Product Overview
Description
Product Description

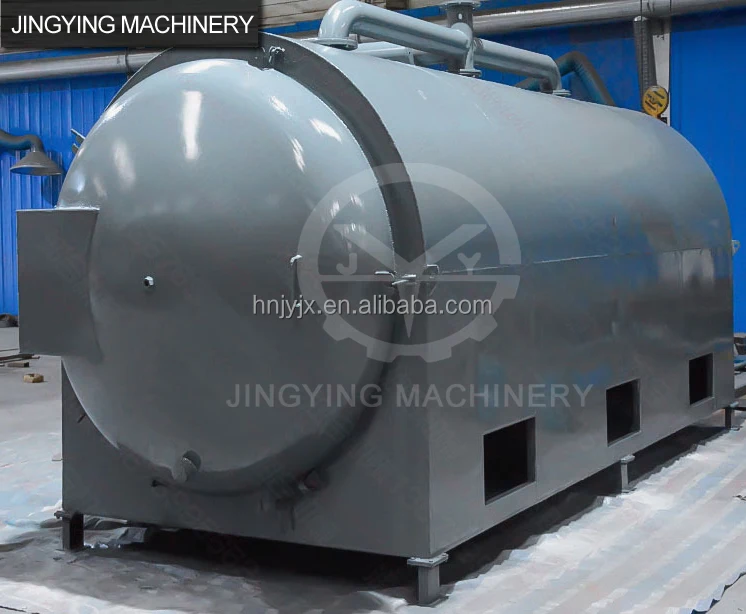

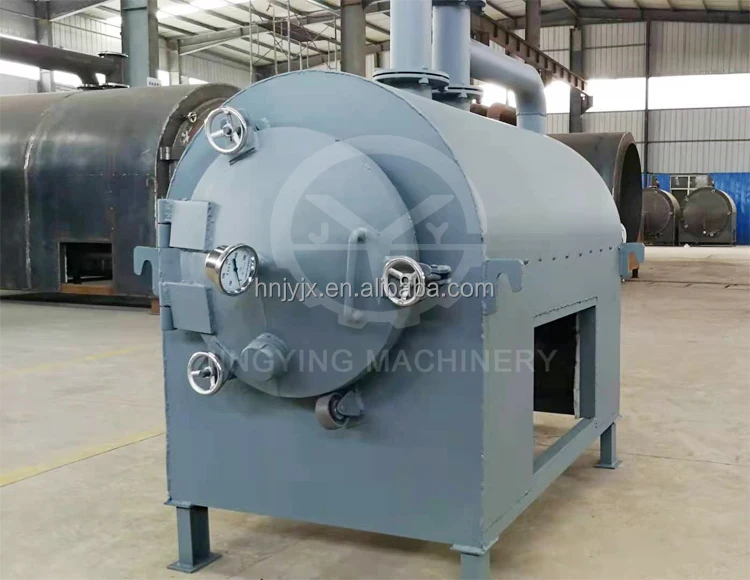

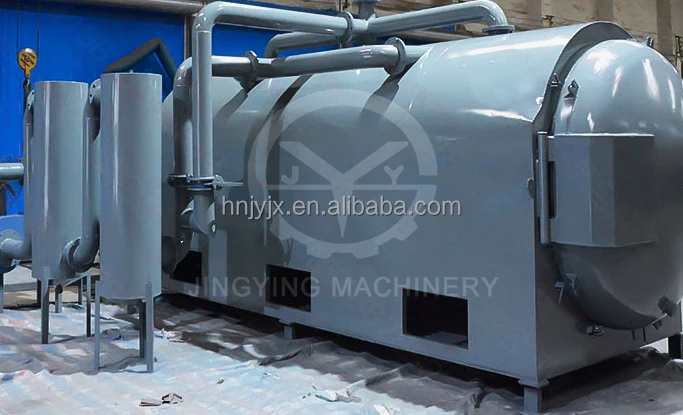

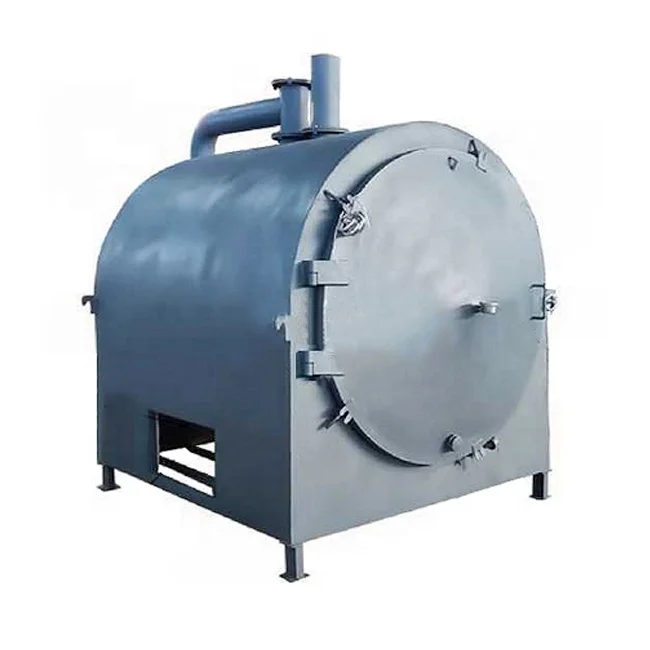

Charcoal furnace

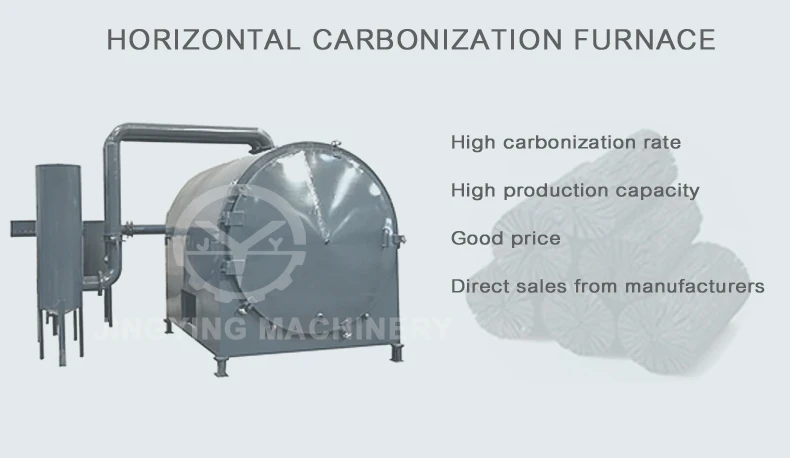

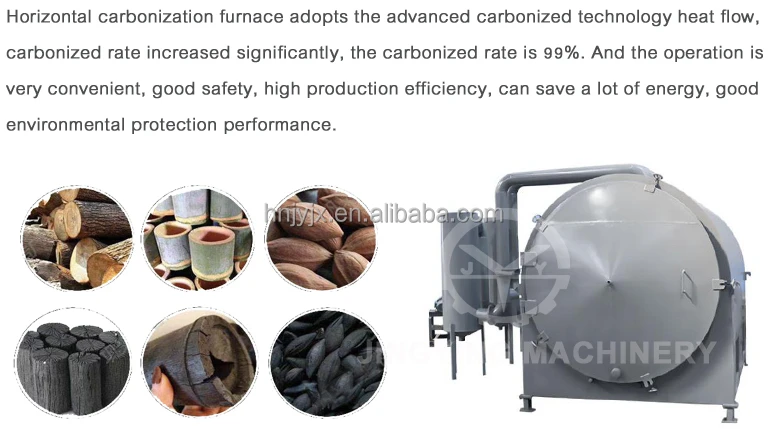

▶The Jingying series horizontal charcoal furnace is a new kind of air flow type carbonization stove, which can also be called charcoal kiln, charcoal making machine, charcoal stove. It is used to make charcoal from wood and all kinds of biomass.
▶ Apply for many kinds of biomass raw materials, such as wood, wood log, tree branch, wood stick, wood waste, wood briquette, coconut shell, bamboo, olive husk, palm kernel shell, cashew nut shell, etc.
▶ Easy to operate, safety, environmental protection and high production efficiency. It is the main ideal equipment of the charcoal production line.
Product Parameter
Model | Inner Size | Capacity | Dimension | Weight | ||||
JYH-1 | 0.5m*1.2m | 100kg | 1.8m*0.8m*1.5m | 300kg | ||||
JYH-2 | 1m*1.5m | 200kg | 2.1m*1.3m*1.7m | 500kg | ||||
JYH-3 | 1.5m*1.5m | 500kg | 2.1m*1.8m*2.3m | 1200kg | ||||
JYH-4 | 1.5m*3m | 1000kg | 3.5m*1.8m*2.4m | 2500kg | ||||
JYH-5 | 1.5m*4.5m | 2000kg | 5.2m*1.9m*2.4m | 3500kg | ||||
JYH-6 | 1.9m*4.5m | 3000kg | 5.2m*3.1m*2.4m | 5000kg | ||||
Other sizes can be customized according to your requirements. | ||||||||
Product Features

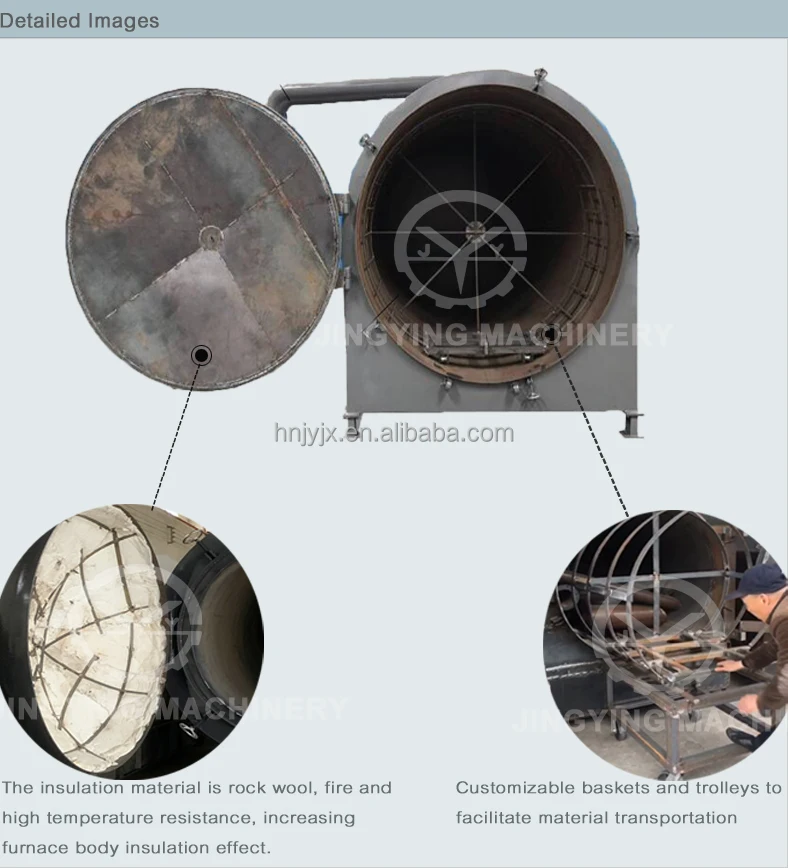

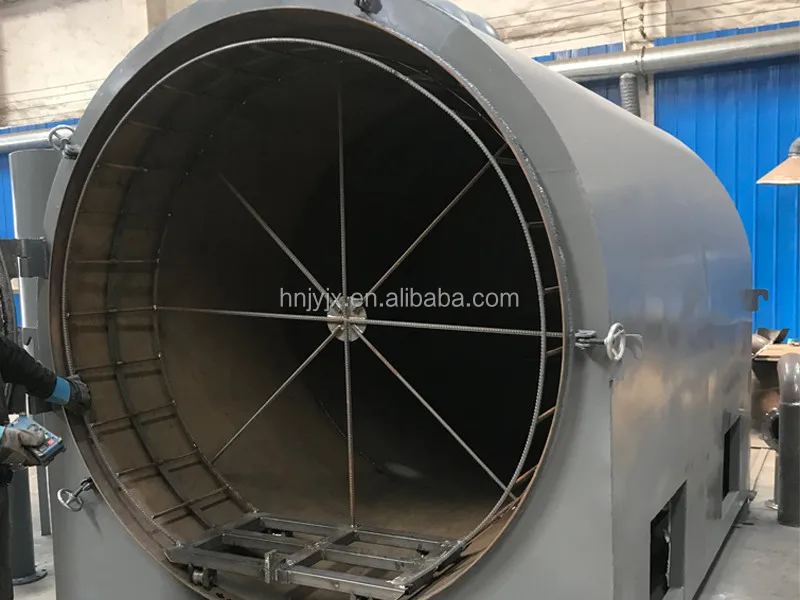

1. Three layers structure of the furnace body. The inner layer is high heat transfer and wear-resistance steel for increasing the carbonizing temperature. The middle layer is the asbestos for insulation. The outer layer is painted steel.
2. Various heating methods. The heating source can be firewood, coal, natural gas, liquefied gas, burner, electric, etc.

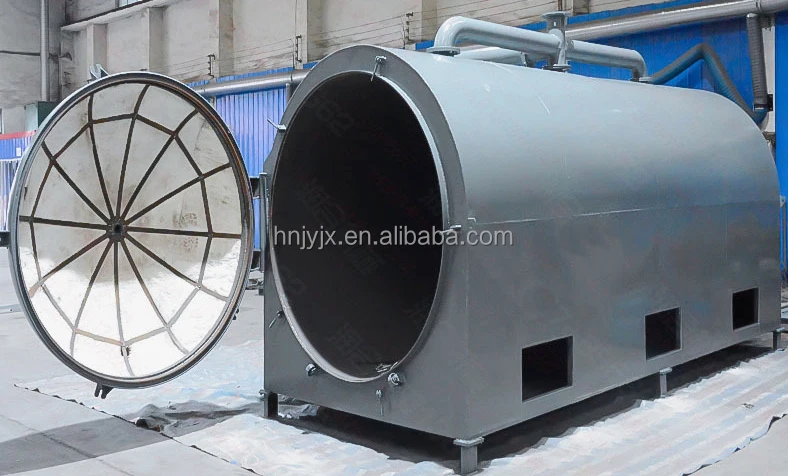

3. The door of the furnace is sealed with graphite packing. This can prevent the air from entering the furnace and increase the charcoal yield.
4. Green and energy saving. The purifier tank can clean the smoke generated in the carbonizing. The cleaned gas enters the burning chamber through the pipes and then is ignited to heating the furnace. In this process, no harmful gas is emitted and reduces the consumption of wood, coal, LPG, etc for heating.
5. Guide rail and loading basket. They are uniquely equipped for the horizontal carbonizing machine. Workers can load the wood or briquettes into the steel basket and then push it into the carbonizing chamber. This design saves the labor cost a lot and makes the operation easier.
2. Various heating methods. The heating source can be firewood, coal, natural gas, liquefied gas, burner, electric, etc.
3. The door of the furnace is sealed with graphite packing. This can prevent the air from entering the furnace and increase the charcoal yield.
4. Green and energy saving. The purifier tank can clean the smoke generated in the carbonizing. The cleaned gas enters the burning chamber through the pipes and then is ignited to heating the furnace. In this process, no harmful gas is emitted and reduces the consumption of wood, coal, LPG, etc for heating.
5. Guide rail and loading basket. They are uniquely equipped for the horizontal carbonizing machine. Workers can load the wood or briquettes into the steel basket and then push it into the carbonizing chamber. This design saves the labor cost a lot and makes the operation easier.

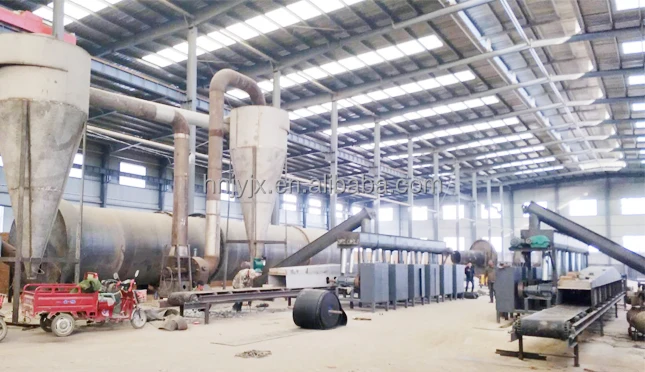

Production Line

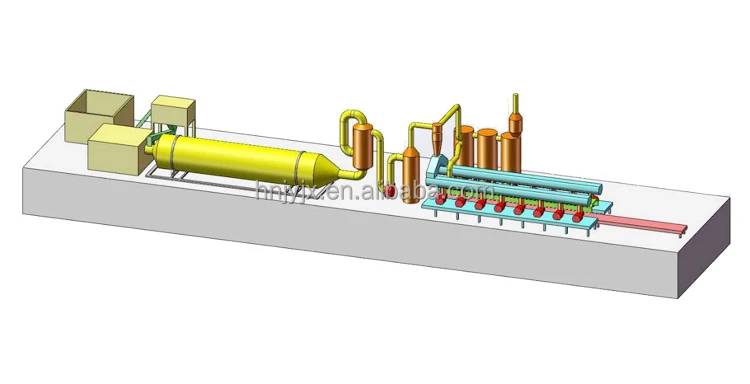

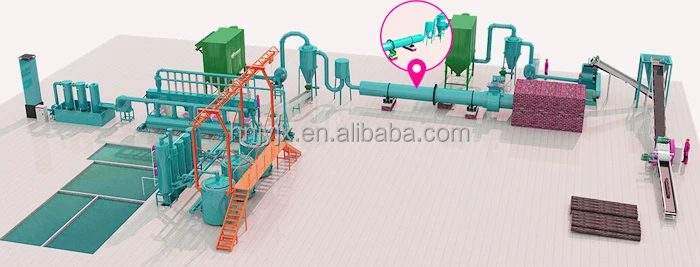

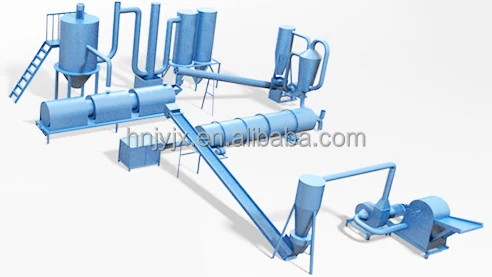

Charcoal briquette making line
How to make charcoal from sawdust?
1. Wood crusher: A crusher will help you to reduce the size of your raw material to less than 5 mm.
2. Dryer: For small capacity drying, you can choose the air flow dryer with small investment. If your capacity is bigger, a rotary dryer will be a better choice.
3. Wood briquette machine: Press raw material into wood briquettes.
4. Charcoal furnace: After carbonization, wood sawdust briquettes become smokeless charcoal.
5. Other accessories: Conveyor, material distributor, etc.

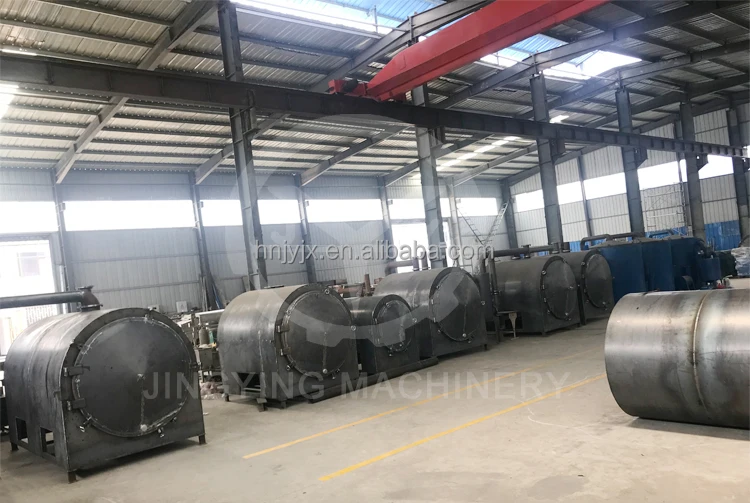

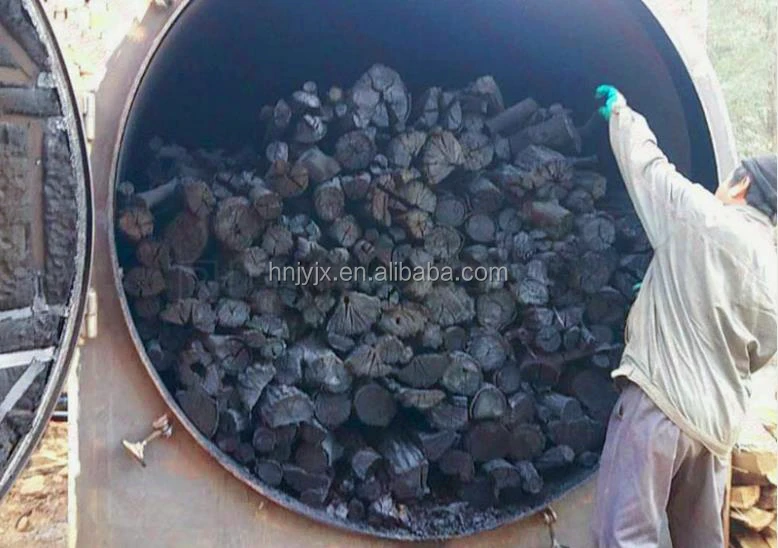

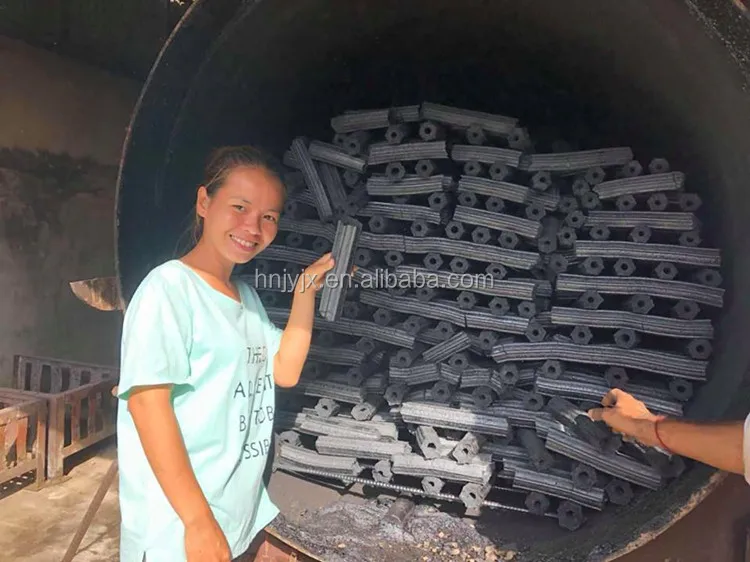

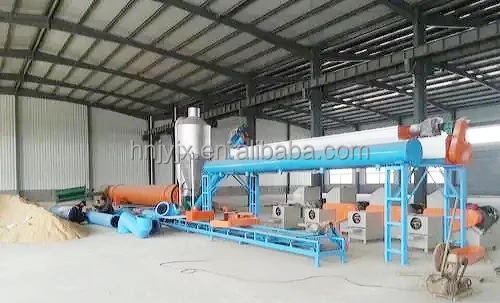

Customer Site
Related Machine

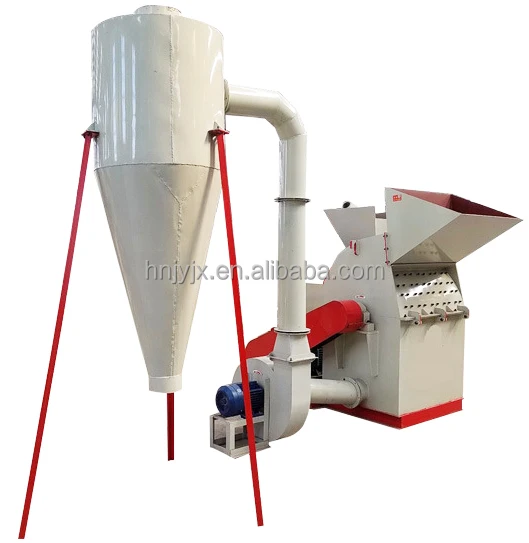

Wood Crusher

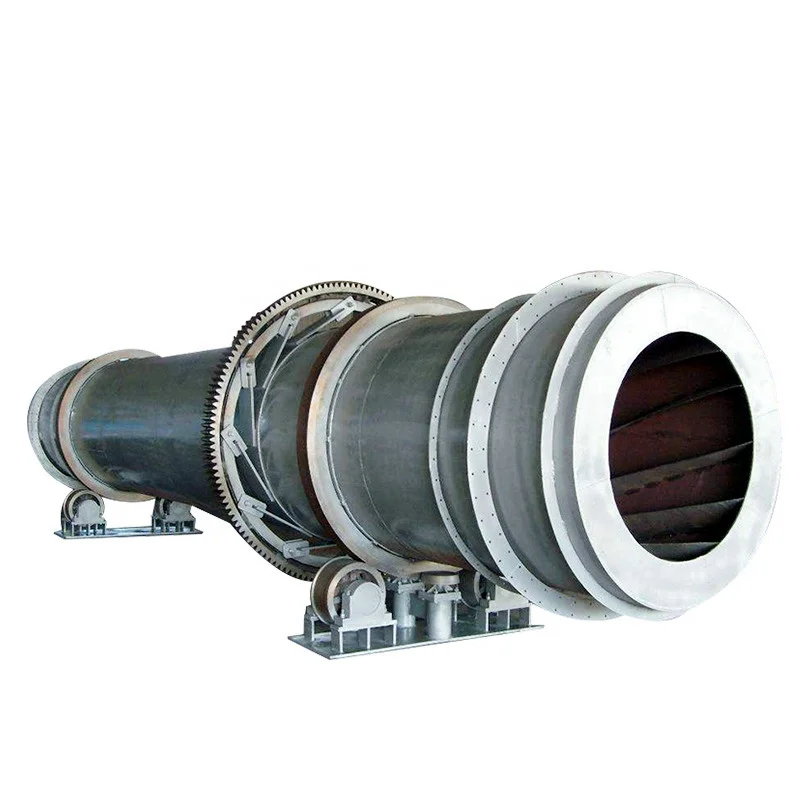

Rotary Dryer

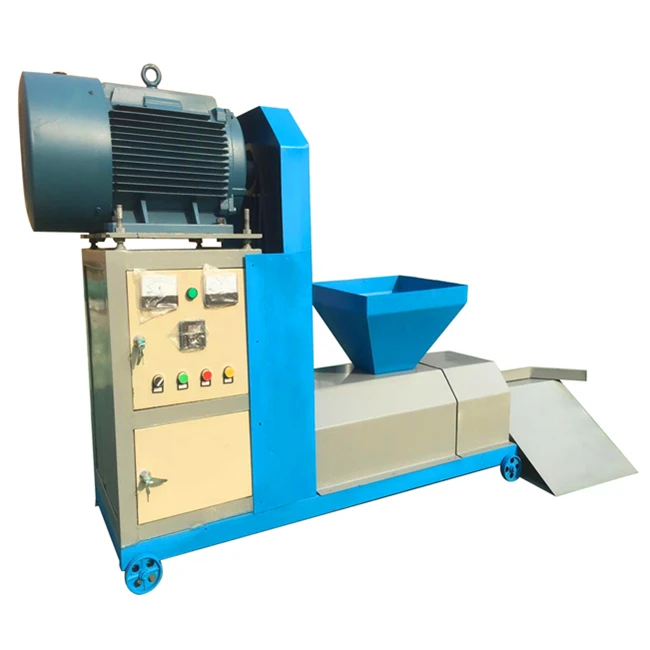

Wood Briquette Machine
