Product Overview
Description

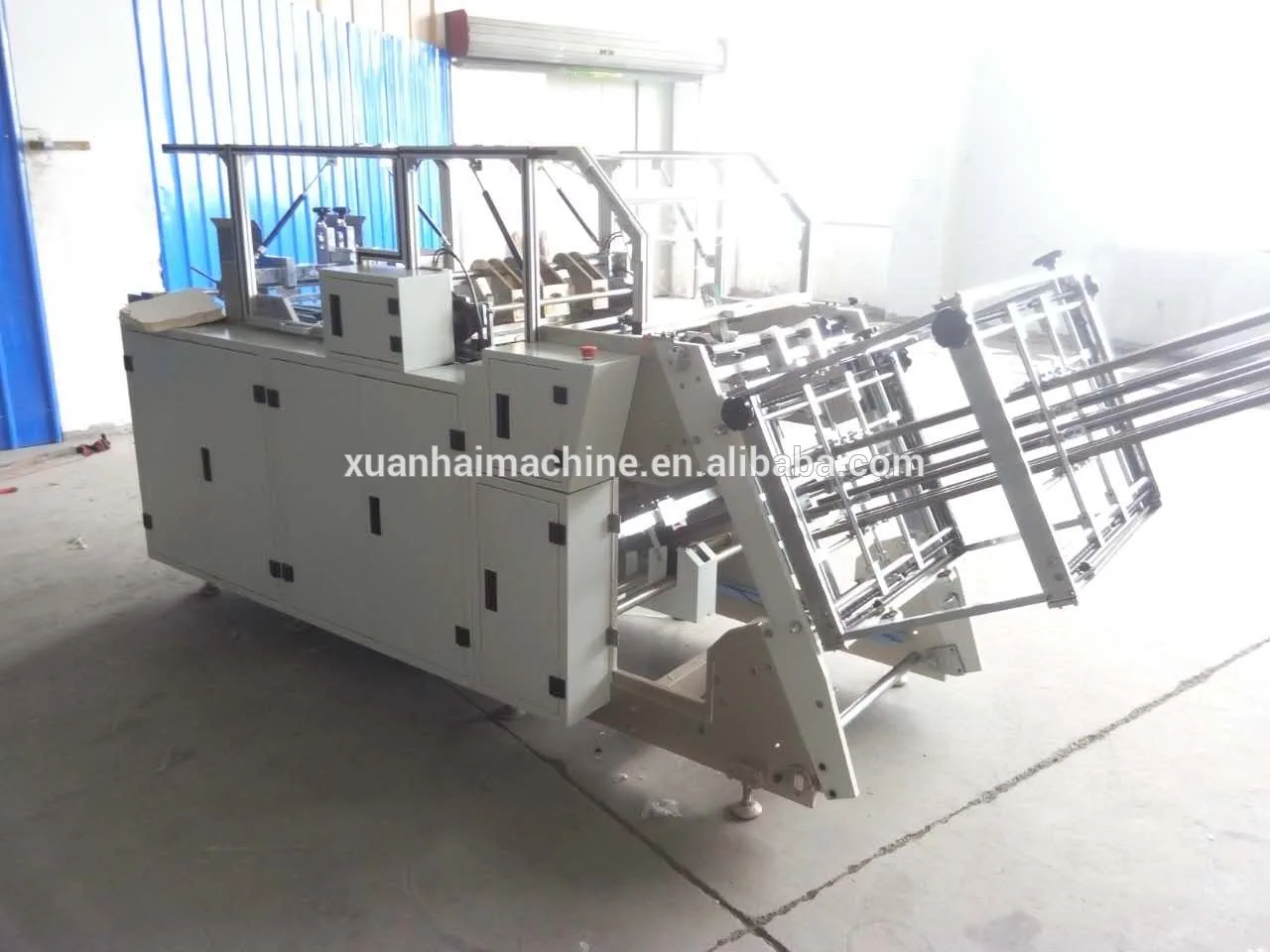

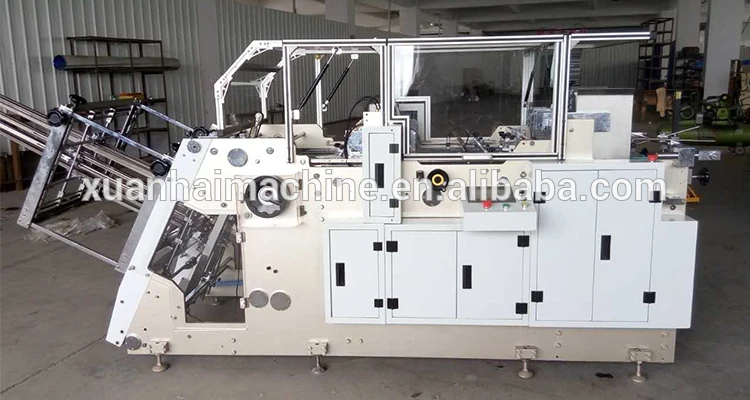

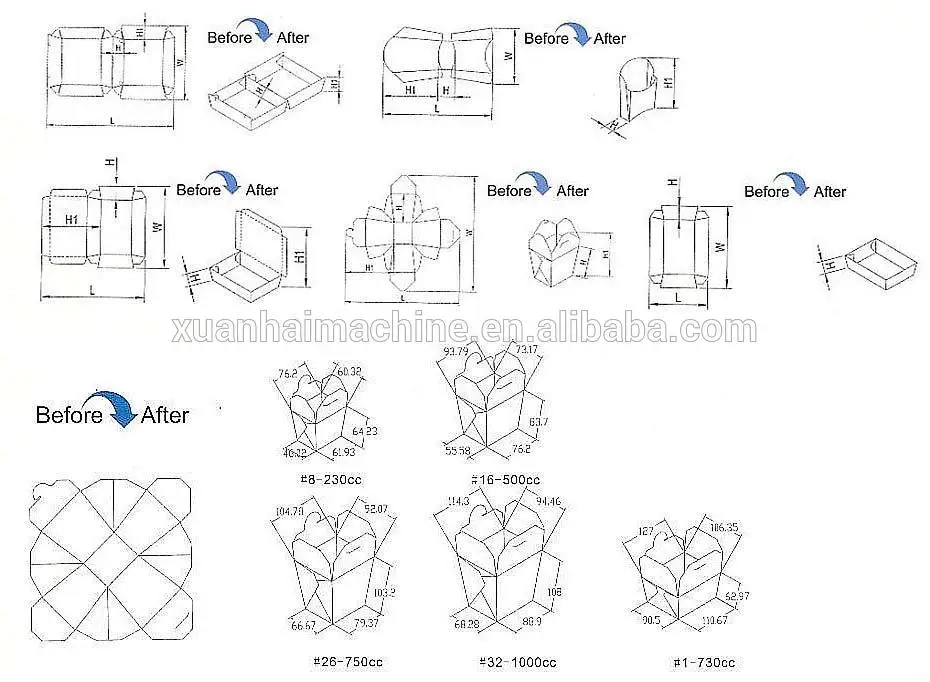

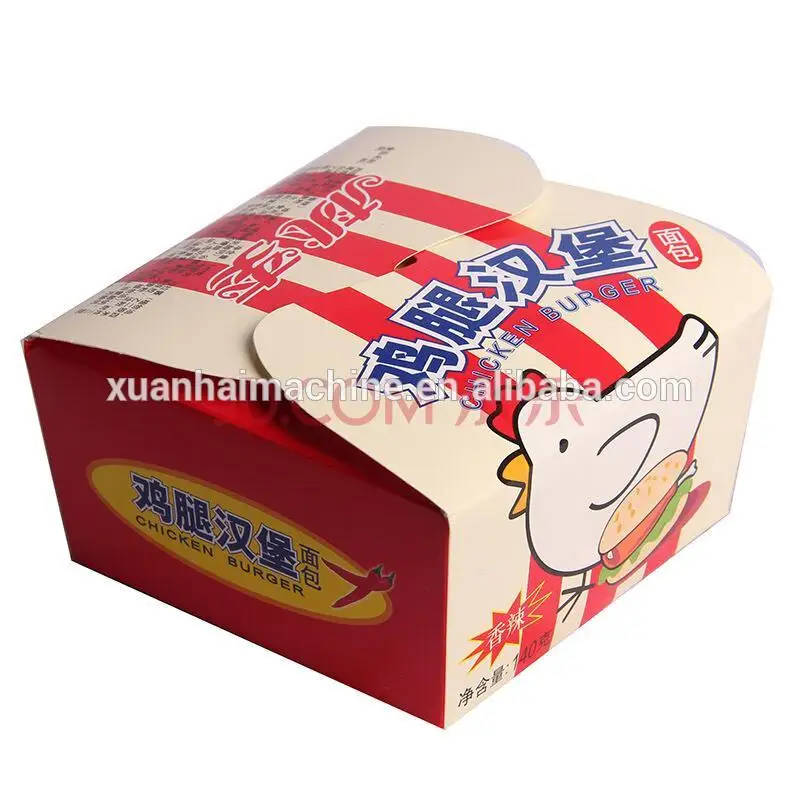

ZF800 take away food box making machine can produce hamburger boxes, four-square boxes, pizza boxes, cake boxes, packing boxes, food boxes (take-away), chip boxes and other cartons made of cardboard and corrugated paper.
Main parameter
Model | ZF800 | ||||||
Production speed | 60-160pcs/min | ||||||
Box standard size | 50*50--320*320mm | ||||||
Paper Box size | Length : 100-450mm , Angle : 10-40° Width : 100-550mm , Box Height : 15-200mm | ||||||
Standard Machine Blank Paper size | Max 320*320mm (if bigger size could custom) | ||||||
Paper weight | 200-600 g/m² PE coated paper | ||||||
Paper thickness | Max 1.5mm corrugated | ||||||
Bonding/Gluing device | Water-based adhesive | ||||||
Electrical requirement | 4kw/h | ||||||
Air requirement | 6kg/cm²*200L/min | ||||||
Equipment size | 3480*1320*1500mm(L*W*H) | ||||||
Package measurements | 3500*1320*1500mm(L*W*H) | ||||||
G.W. | 2T | ||||||
※Note: the output quantity metioned above is under normal conditions .Actual output may very on different box shape , quality of material , and its substance.
Roofless box MAX:160pcs/min Square box MAX:150pcs/min Hot Dog&Burger Box MAX:120pcs/min Food box MAS:100pcs/min
Product Description
Machine Advantages:
* Feature of stereo box die-cutter: high efficiency, reaches 160pcs/min
* Multifunctionality: can manufacture the products such as meal box, chips box, stereo box or burger box with different
specifications on one machine only by changing its molds.
* This machine applies water-based adhesive coating device, attains high efficiency and very high precision. Water-based
adhesive, as water soluble adhesive compostion, is a kind of food-grade glue.
* Most of the machine applies high-quality sealing bearing, prevents from dust or liquid penetrating and impacting the service life of bearings, with long service life and good stability.

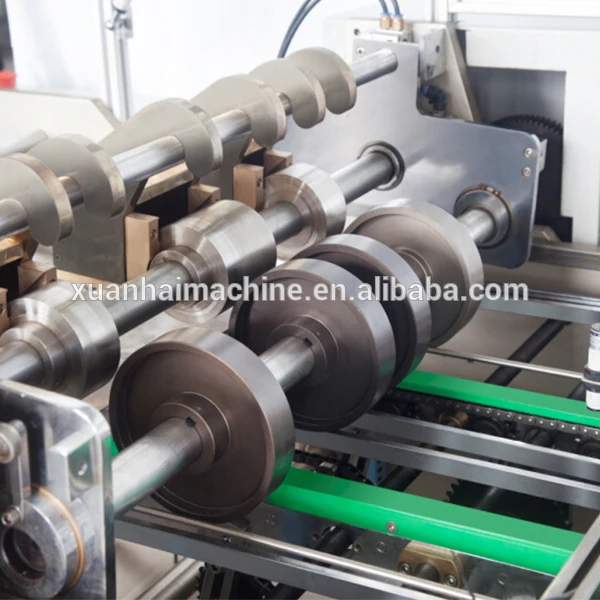

* The whole is driven by high-quality timing belts and ensures almost zero error during its operation.

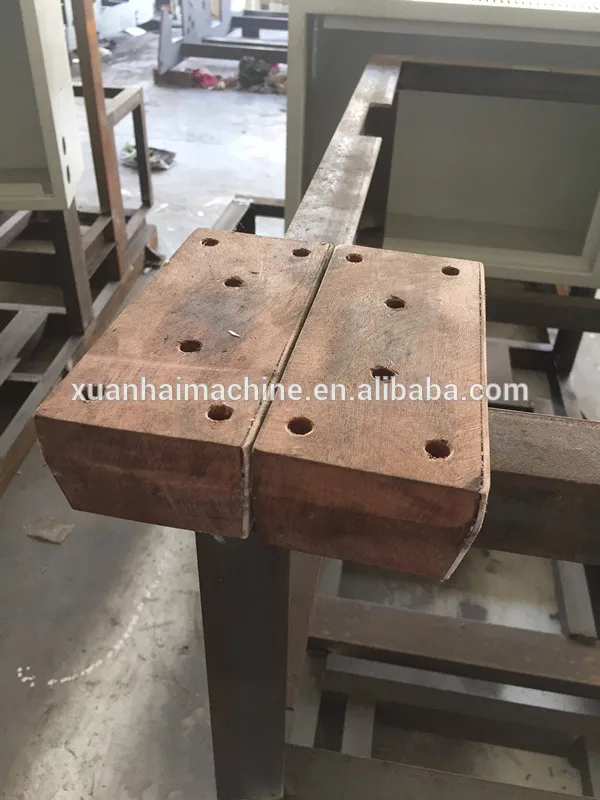

* Main mould employs pine wood, enjoys high efficiency when replacing its mould.
* Can automatically collect, store and count finished products, and install additionally counter as per the requirements of
customers.

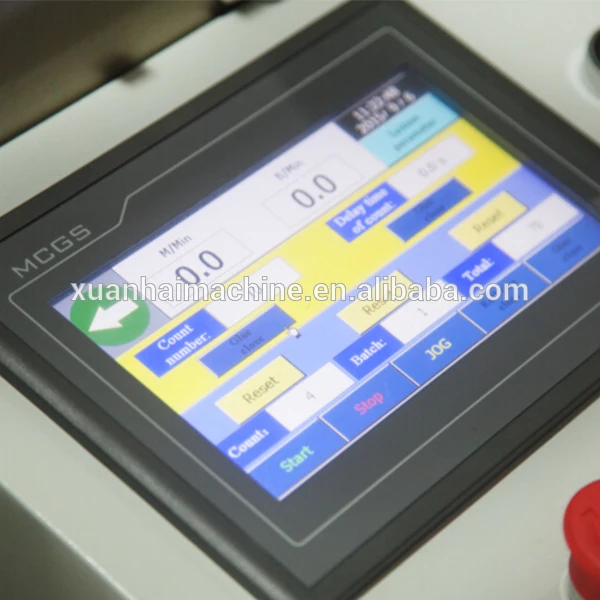

* The machine applies PLC intelligent control system, and automatically stop when there is paper jamming or no paper. It can avoid unnecessary harm caused by the contact between worker and operation mechanism during the production process.
Standard configuration:

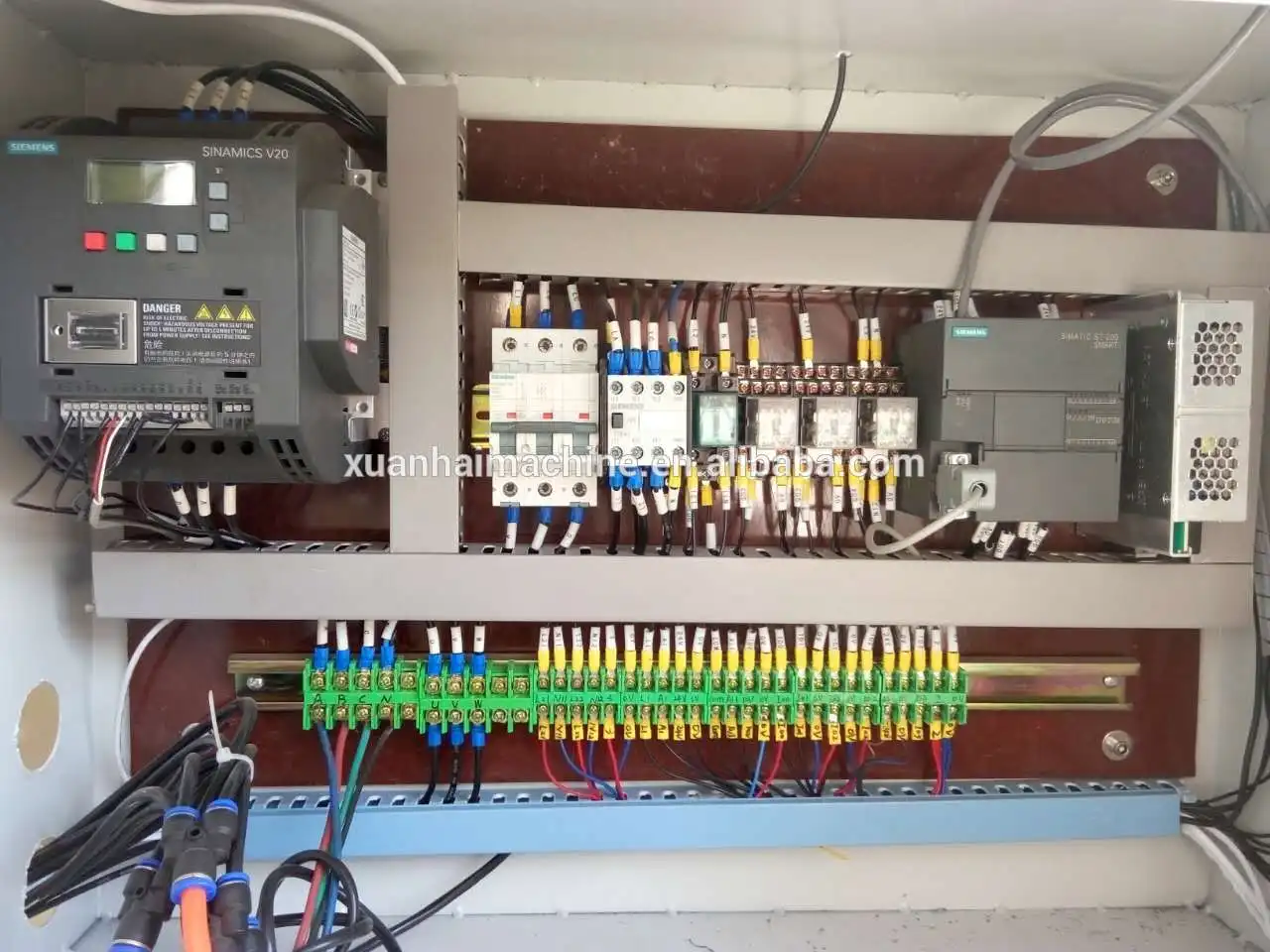

* Integral electric control box ·Feeding unit

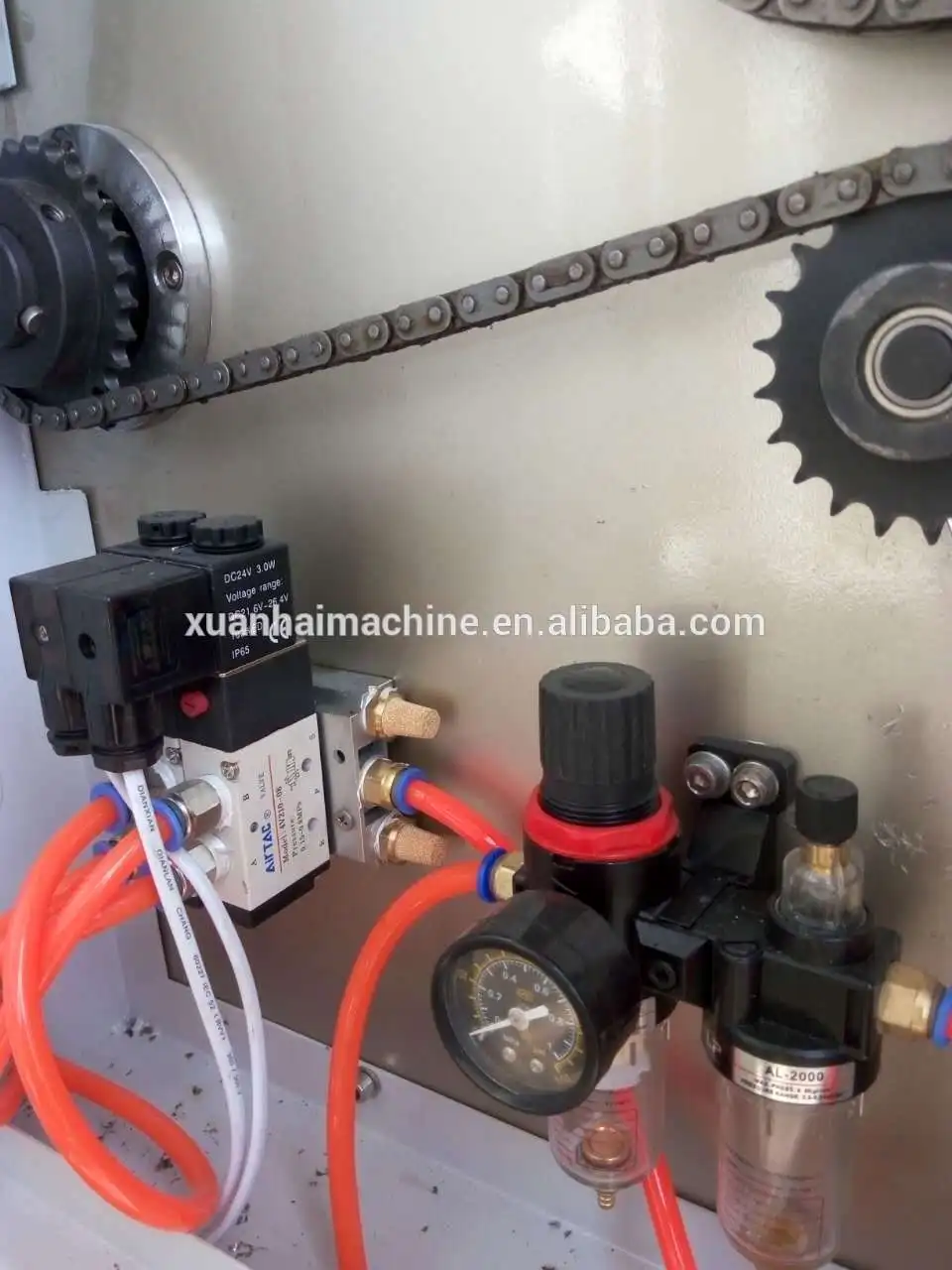

* Compressed air device ·Moulding unit
* Water based adhesive coating device ·Servo control unit
* Discharge unit ·A forming die
Opitional :
Hot melt coating system
Air compressor / Dryer
380V power : 15KW
Machine power: 380v
Use thermal bonding system to produce aluminum foil and double PE coated paper boxes, one machine can produce various products with short replacing time.
product details

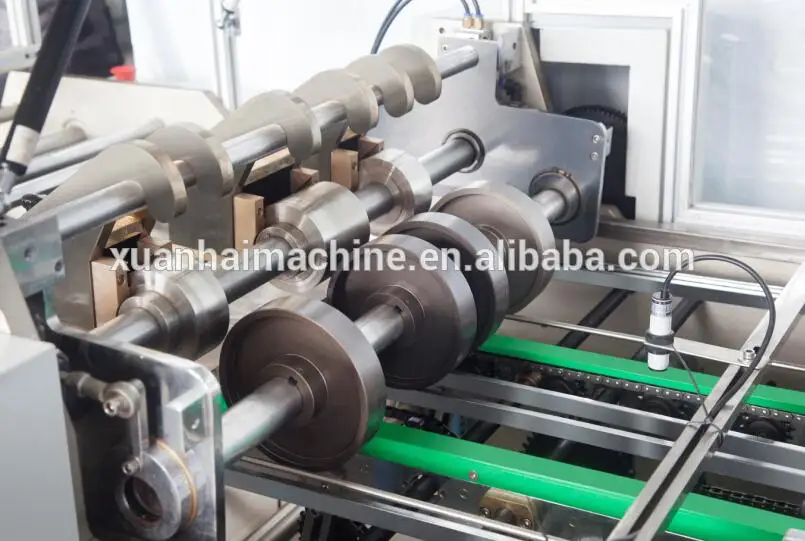

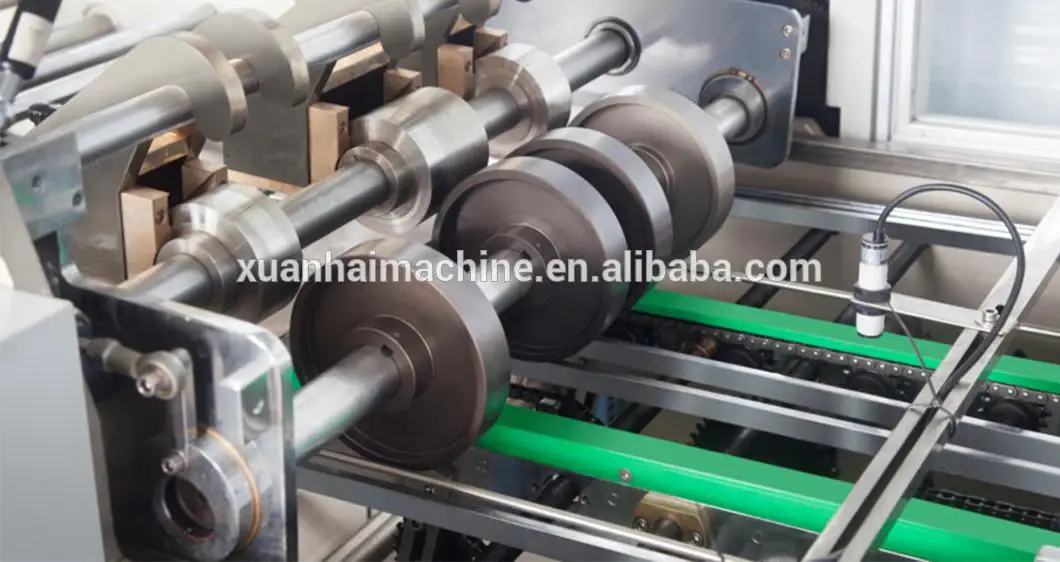

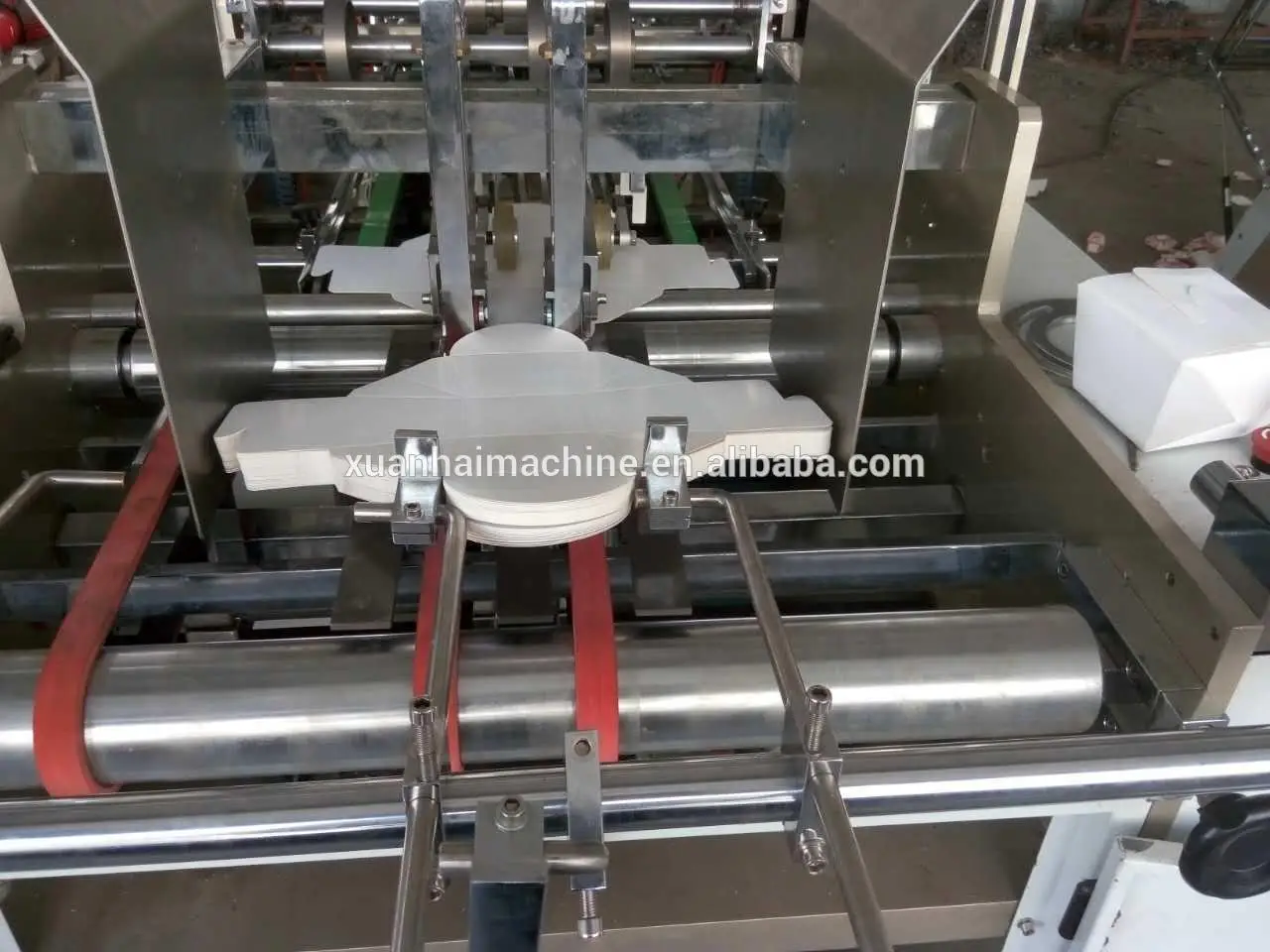

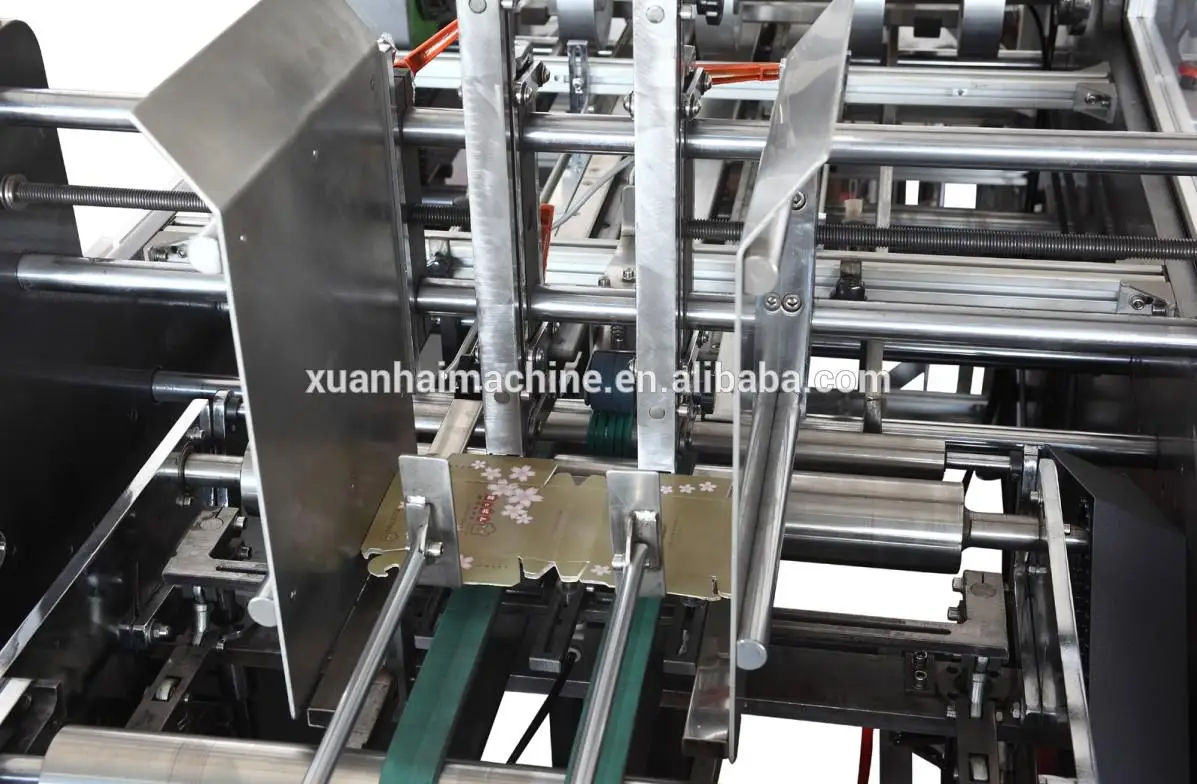

Feeding system
Fully automatic feeding system
high accuracy
save labor

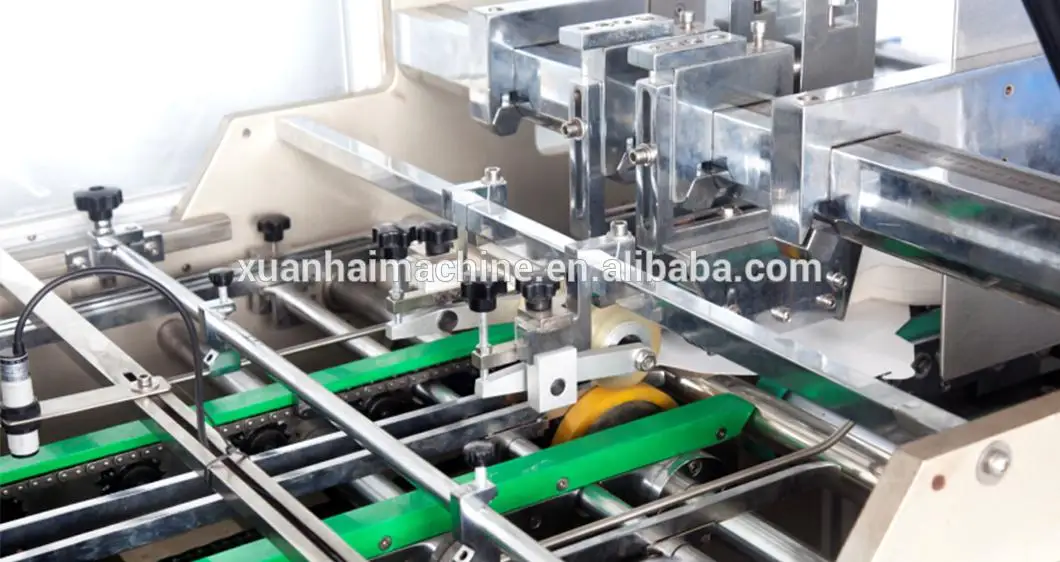

Glue system
Photoelectric system controls.
In case of an error in the carton, the gluing tray will automatically rise, and it will return to normal after one cycle is normal.

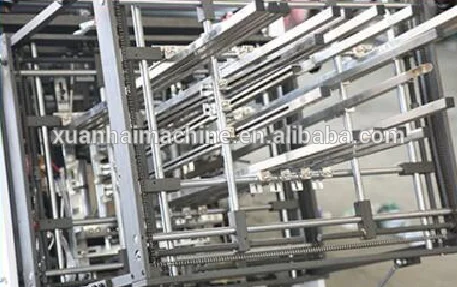

Collecting system
Counting and sorting
after form, the machine collect
automatically

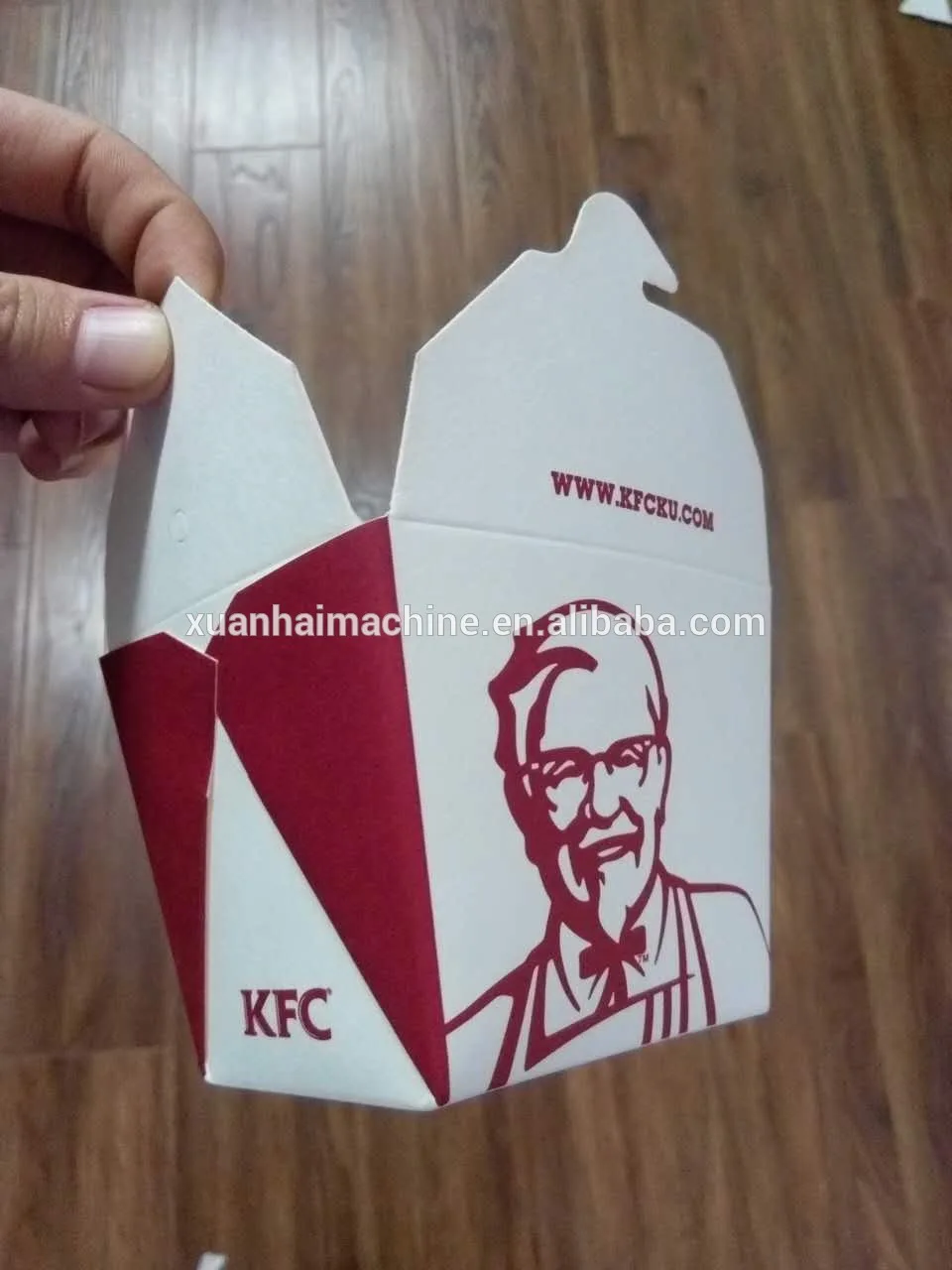

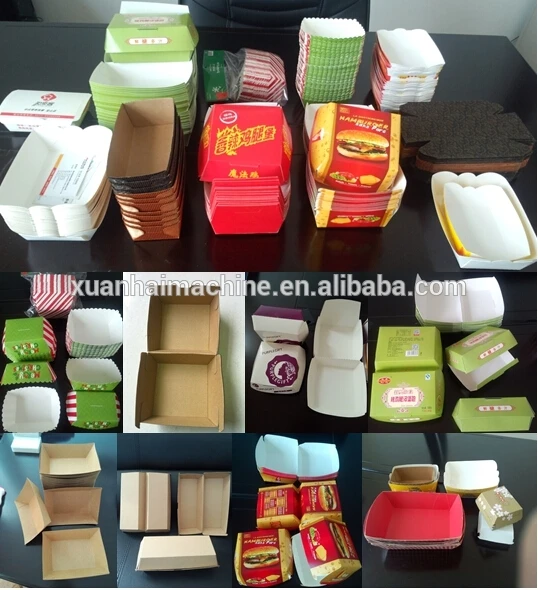

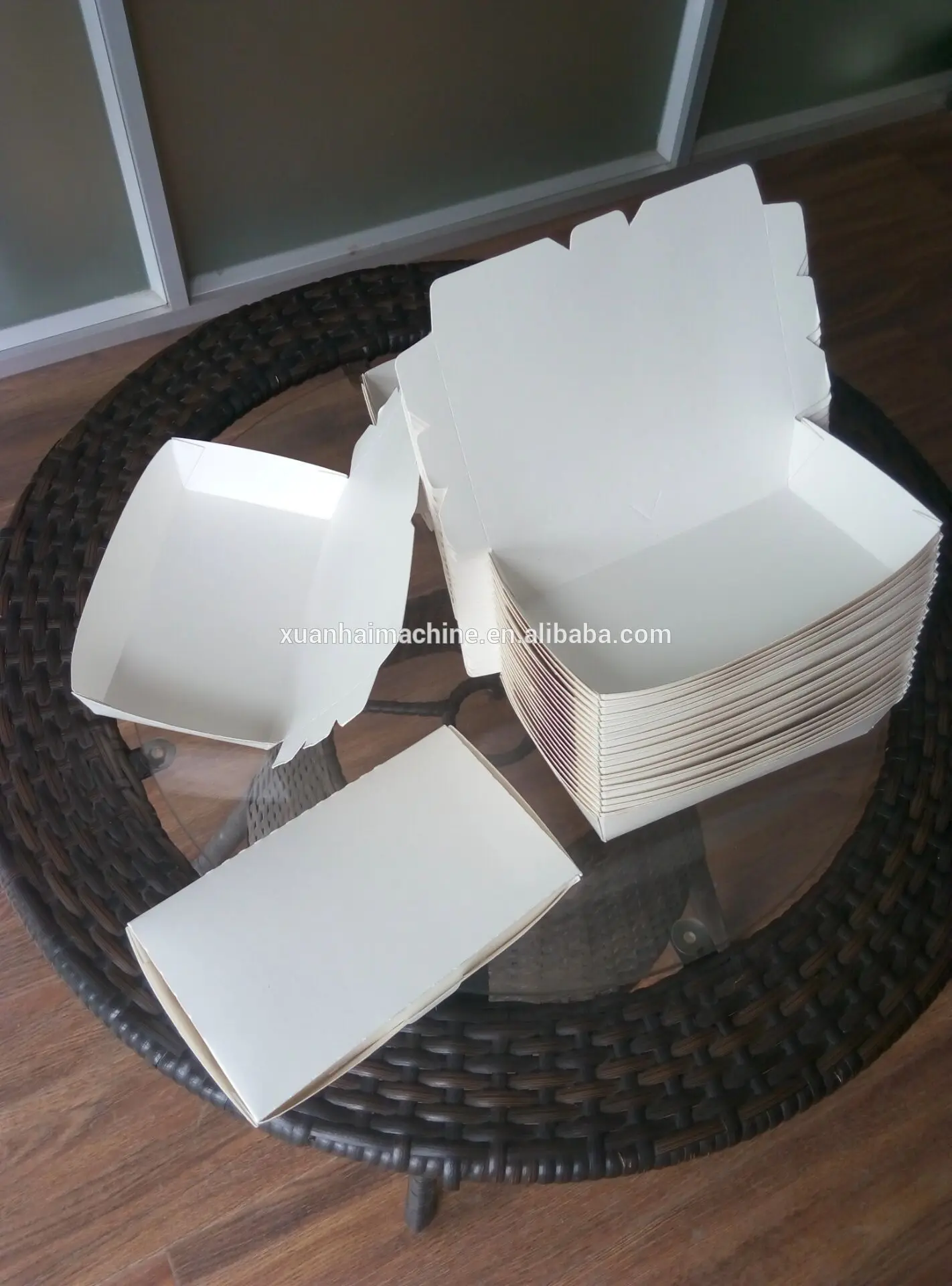

Application
More Products
Company Profile
Our Team
Packing & Delivery
FAQ
Q1:Where is your factory located? How can I visit there? A1: Our factory is established from 1988,located in Rui an,Wenzhou City, Zhejiang Province, China, about 1 hour by air and 3-4 hours by train from Shanghai. Q2: How does your factory do regarding quality control? A2: All machines are doing 24 hours running test to ensure quality. Q3: How about the payment term? A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory. Q4:What about warranty and do the engineers available to overseas? A4: one year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side. salary USD100/day. Q5:What about the service after sale? A5: we can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have english,spanish speaker. Q6: Do you need agent for overseas? A6: yes,we need you to be our agent. welcome to contact us.
