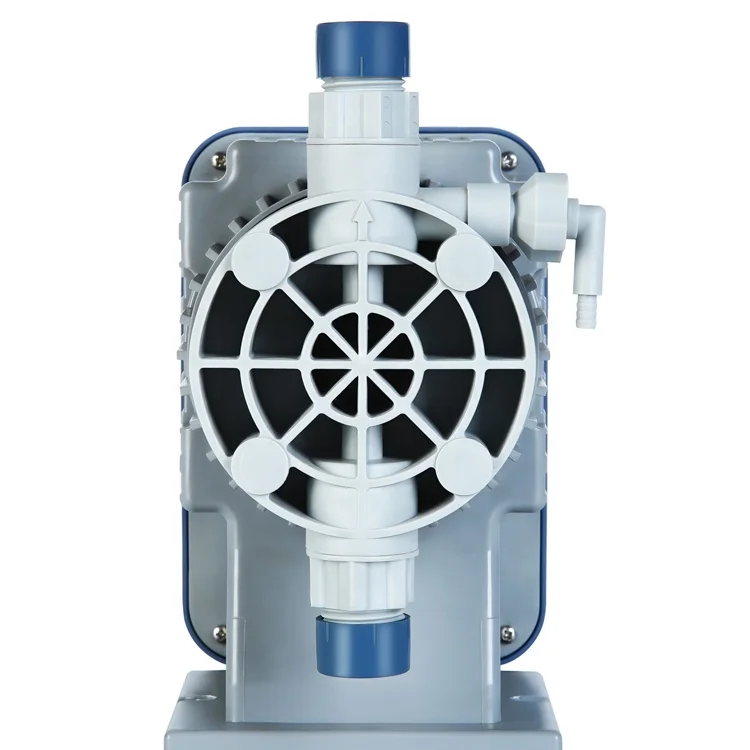

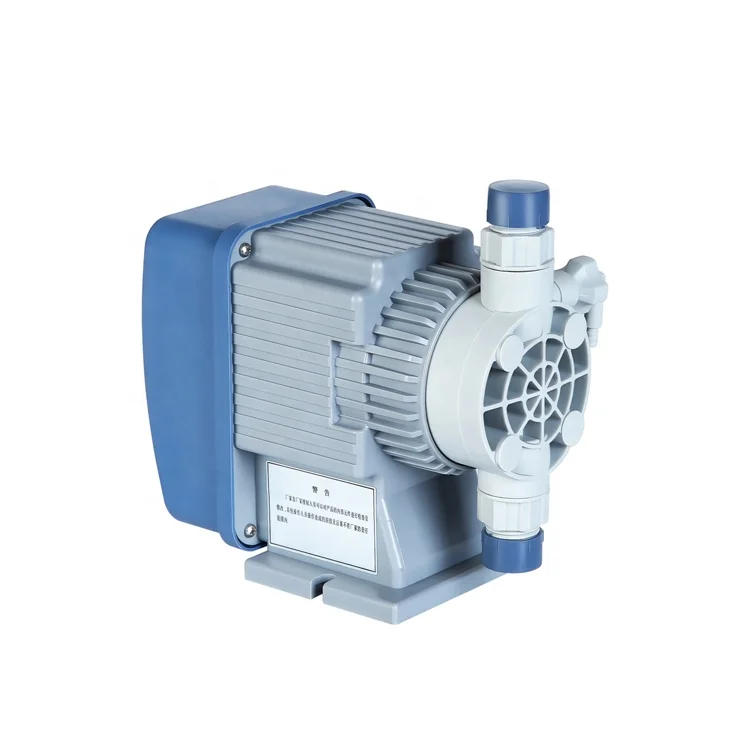

20LPH Solenoid Dosing pump Diaphragm Metering Pump for chemical liquid
- Category: >>>
- Supplier: Beijing Well-Off Environmental Protection Technology Co. Ltd.
Share on (1600170928099):
Product Overview
Description
Video Description
Product Description

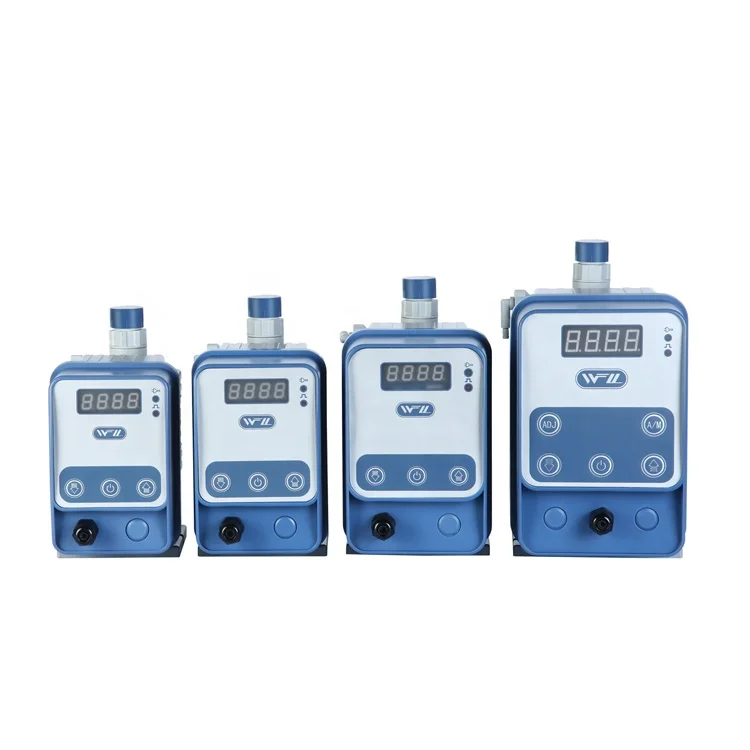

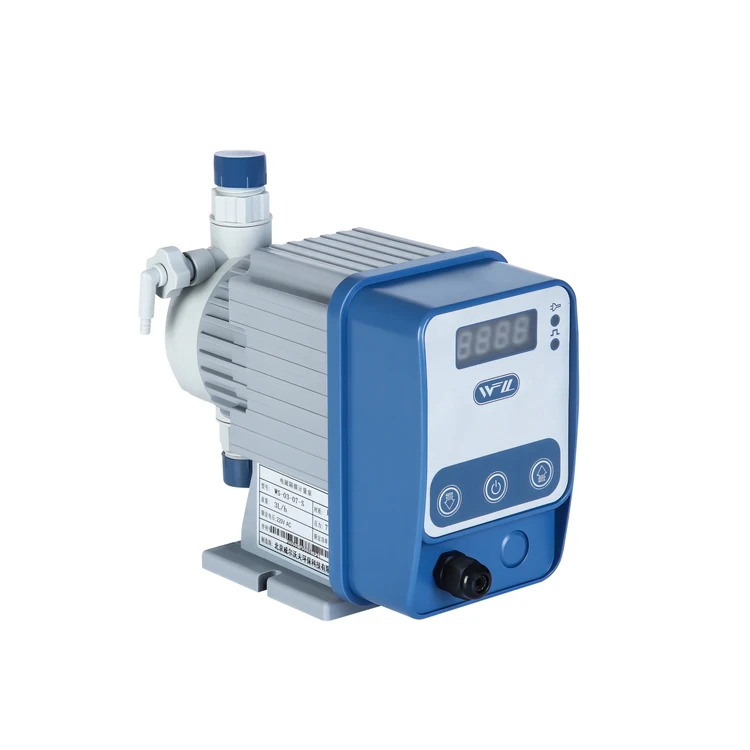

WELLOFF solenoid dosing pump
More than 80000 units are sold annually in mainland China.

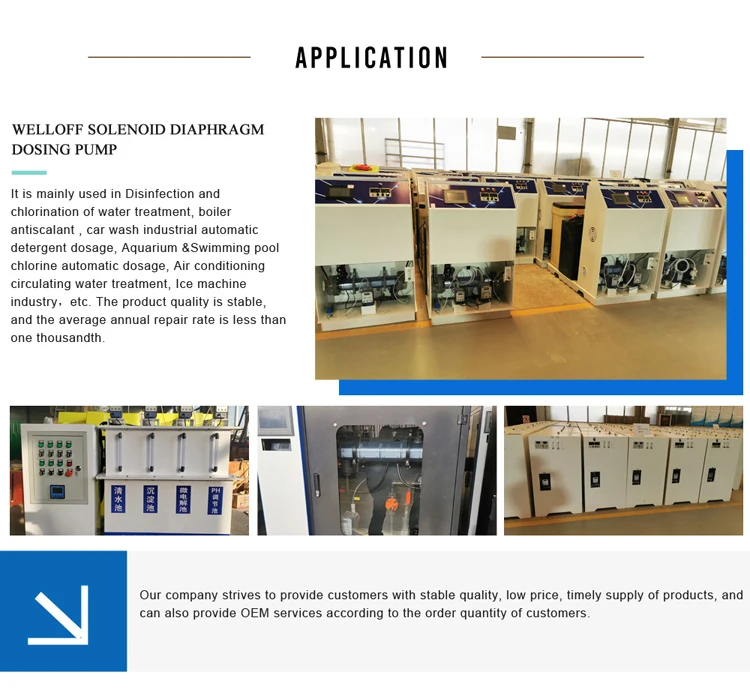

It is mainly used in Disinfection and chlorination of water treatment, RO systerm，boiler antiscalant , car wash industrial
automatic detergent dosage, Aquarium &Swimming pool chlorine automatic dosage, Air conditioning circulating water treatment, Ice machine industry，etc. The product quality is stable, and the average annual repair rate is less than one thousandth.
Flow range :1-50L/H
Pressure:3bar,5bar,7bar,10bar,16bar
Operation mode: Manual adjustment
Pulse control
4-20mA signal control
More than 80000 units are sold annually in mainland China.
It is mainly used in Disinfection and chlorination of water treatment, RO systerm，boiler antiscalant , car wash industrial
automatic detergent dosage, Aquarium &Swimming pool chlorine automatic dosage, Air conditioning circulating water treatment, Ice machine industry，etc. The product quality is stable, and the average annual repair rate is less than one thousandth.
Flow range :1-50L/H
Pressure:3bar,5bar,7bar,10bar,16bar
Operation mode: Manual adjustment
Pulse control
4-20mA signal control
Model | Flow rate (L/H) | Pressure (Bar) | Frequency stroke/min | Suction (m) | Power （Watt） | Voltage (V) | GW (kg) |
WS-01-07-S | 1 | 7 | 120 | 2 | 25 | 220V 50Hz | 2.5 |
WS-02-07-S | 2 | 7 | 120 | 2 | 25 | 220V 50Hz | 2.5 |
WS-03-07-S | 3 | 7 | 120 | 2 | 25 | 220V 50Hz | 2.5 |
WS-06-05-S | 6 | 5 | 160 | 2 | 25 | 220V 50Hz | 2.5 |
WS-09-03-S | 9 | 3 | 180 | 2 | 25 | 220V 50Hz | 2.5 |
WS-12-02-S | 12 | 2 | 180 | 2 | 25 | 220V 50Hz | 2.5 |
WS-15-01-S | 15 | 1 | 180 | 2 | 25 | 220V 50Hz | 2.5 |
WS-20-01-M | 20 | 1 | 180 | 2 | 25 | 220V 50Hz | 2.7 |
WS-02-15-M | 2 | 15 | 120 | 2 | 50 | 220V 50Hz | 3.0 |
WS-06-07-M | 6 | 7 | 120 | 2 | 50 | 220V 50Hz | 3.0 |
WS-09-07-M | 9 | 7 | 160 | 2 | 50 | 220V 50Hz | 3.0 |
WS-12-07-M | 12 | 7 | 160 | 2 | 50 | 220V 50Hz | 3.0 |
WS-15-03-M | 15 | 3 | 160 | 2 | 50 | 220V 50Hz | 3.0 |
WS-20-03-M | 20 | 3 | 180 | 2 | 50 | 220V 50Hz | 3.0 |
WS-25-05-L | 25 | 5 | 180 | 2 | 80 | 220V 50Hz | 5.2 |
WS-30-03-L | 30 | 3 | 180 | 2 | 80 | 220V 50Hz | 5.2 |
WS-40-02-L | 40 | 2 | 180 | 2 | 80 | 220V 50Hz | 5.2 |
WS-50-01-L | 50 | 1 | 180 | 2 | 80 | 220V 50Hz | 5.2 |

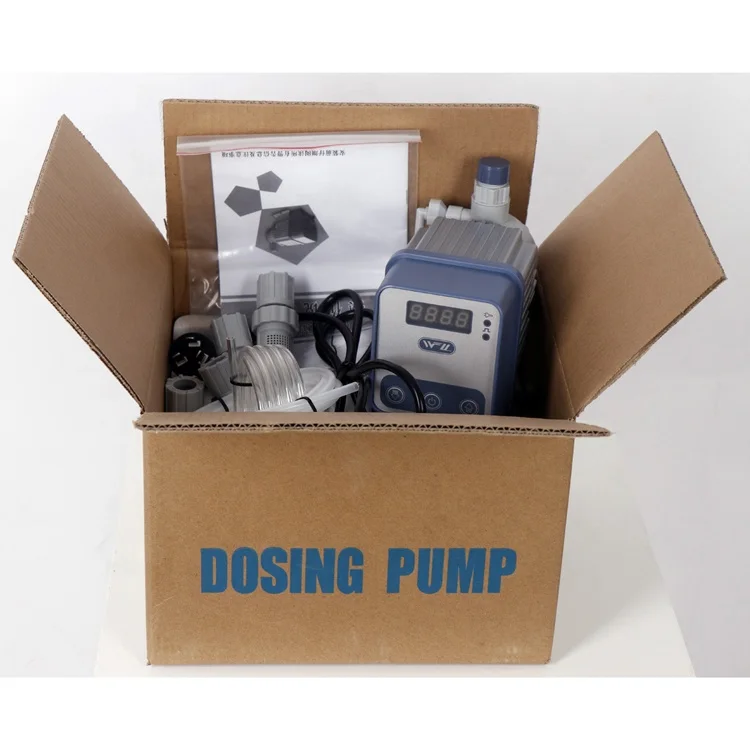

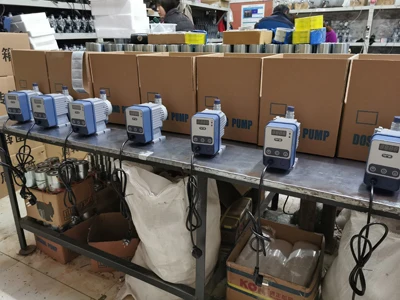

Product show

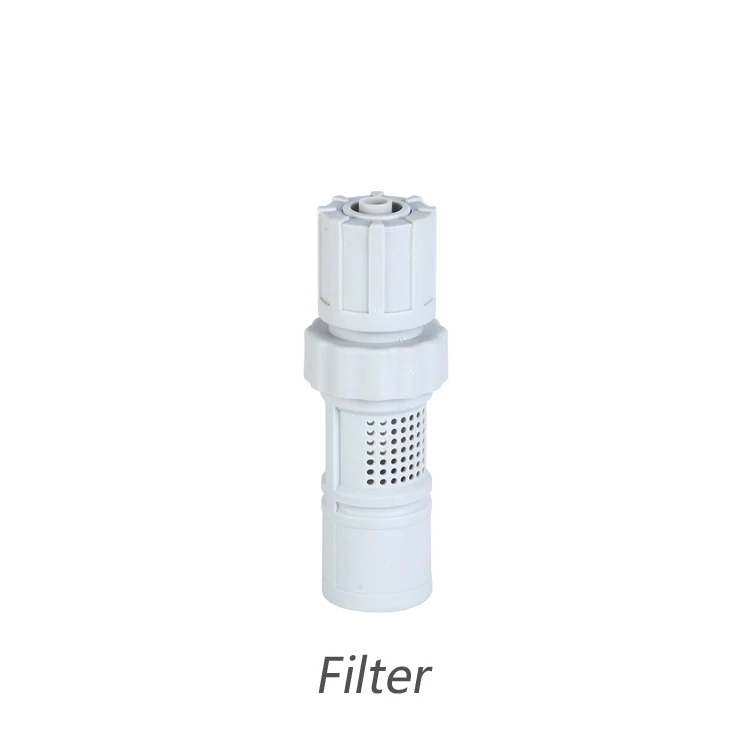

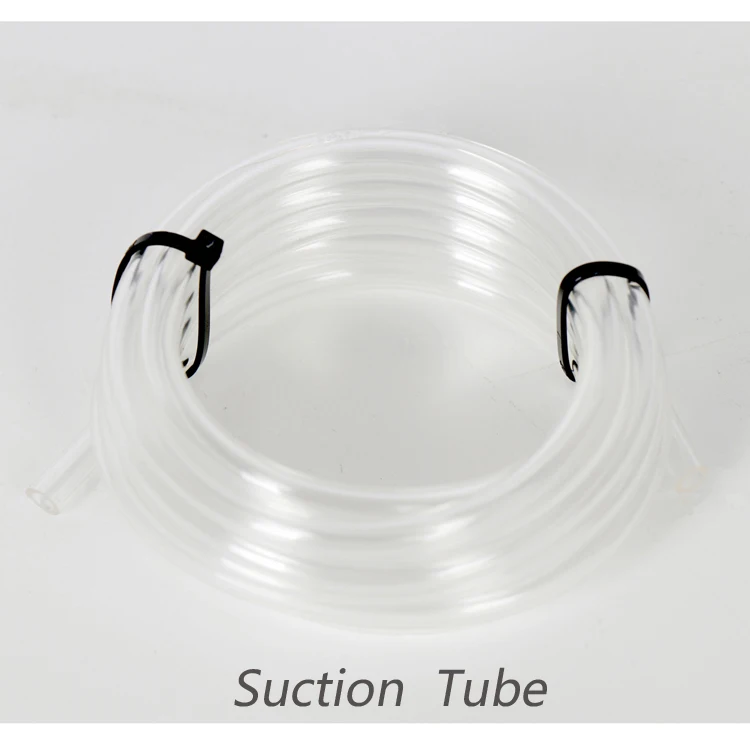

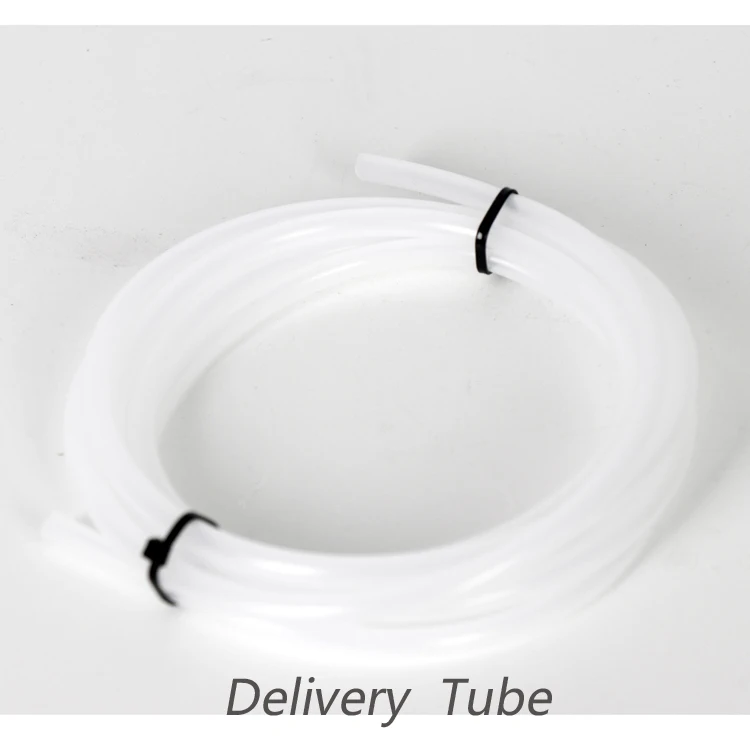

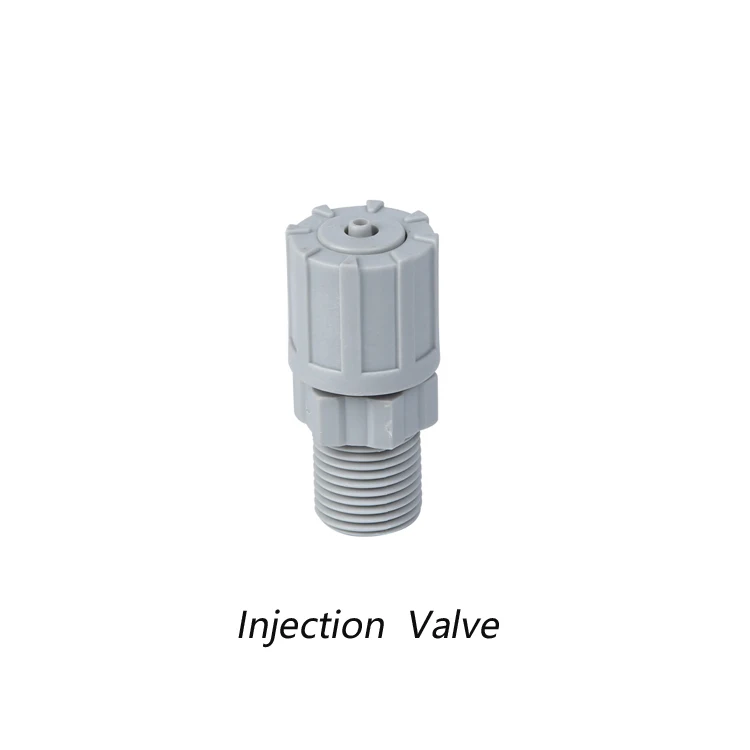

Accessories
Installation
