Industrial Robot Arm Collaborative Robot Elfin 3 Elfin 5 Elfin 10 for AutomationIndustrial Robot Arm Collaborative Robot Elfin 3 Elfin 5 Elfin 10 for AutomationIndustrial Robot Arm Collaborative Robot Elfin 3 Elfin 5 Elfin 10 for AutomationIndustrial Robot Arm Collaborative Robot Elfin 3 Elfin 5 Elfin 10 for Automation
- Category: Material Handling >>>
- Supplier: Shenzhen,Han's,Robot,Co.,Ltd.Shenzhen,Ltd.
Share on:
Product Overview
Description
\t\t\t\t\t\t\t\t\tDescription \t\t\t\t\t\t\t
Parameter
Elfin 5 Robot Arm | ||
Weight | 23kg | |
Payload | 5kg | |
Radius | 800mm | |
Joint range | ± 360° | |
Joint speed | J1-J4 180°/s,J5-J6 200°/s | |
Repeatability | ± 0.03mm | |
End IO | 24V 2A | |
Power input | 200-240VAC,50-60Hz | |
IP class | IP54 | |
Controller Box | ||
IP Class | IP20 | |
Weight | 18.5kg | |
I/O ports | DI: 16 DO: 16 AI: 2 AO: 2 | |
Size | 536*445*318mm | |
Communication | TCP/IP,ModBus TCP | |
Power Output | DC 48V | |
Working Temp. | 0-50℃ | |
Teach Pendant | ||
Dimensions | 210*320*(45+22)mm | |
Weight | 2kg | |
Cable Length | 5m | |
Screen Size | 10.1'' | |
Resolution | 600*800 | |
E-stop Button | 1 | |
IP Class | IP54 | |

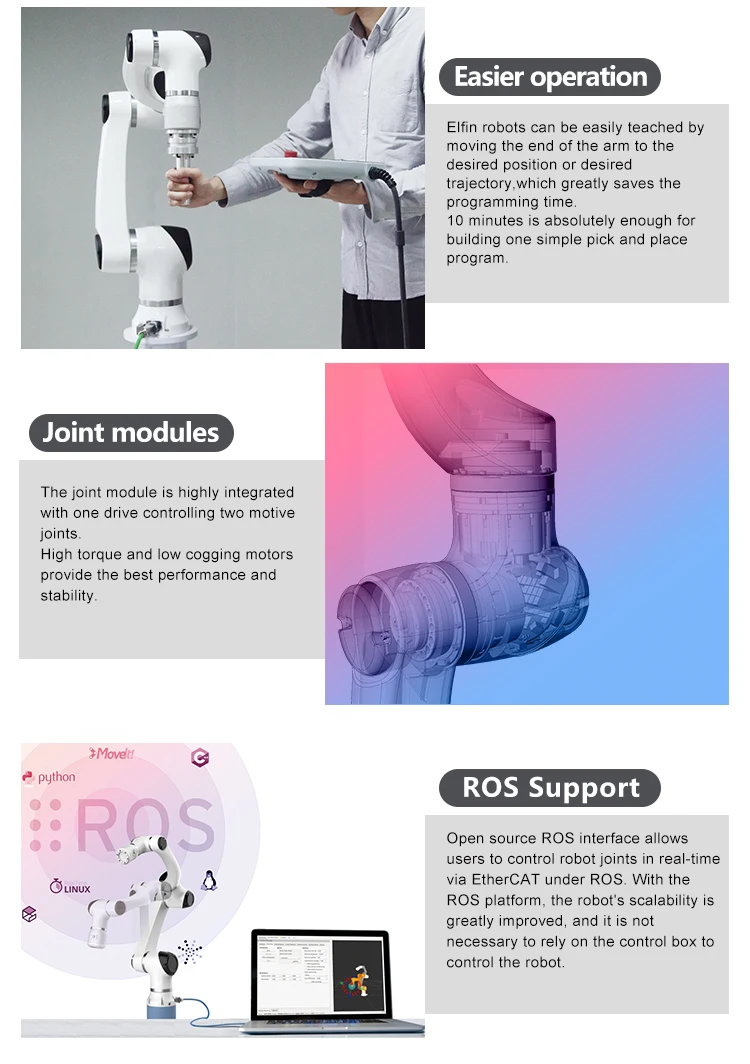

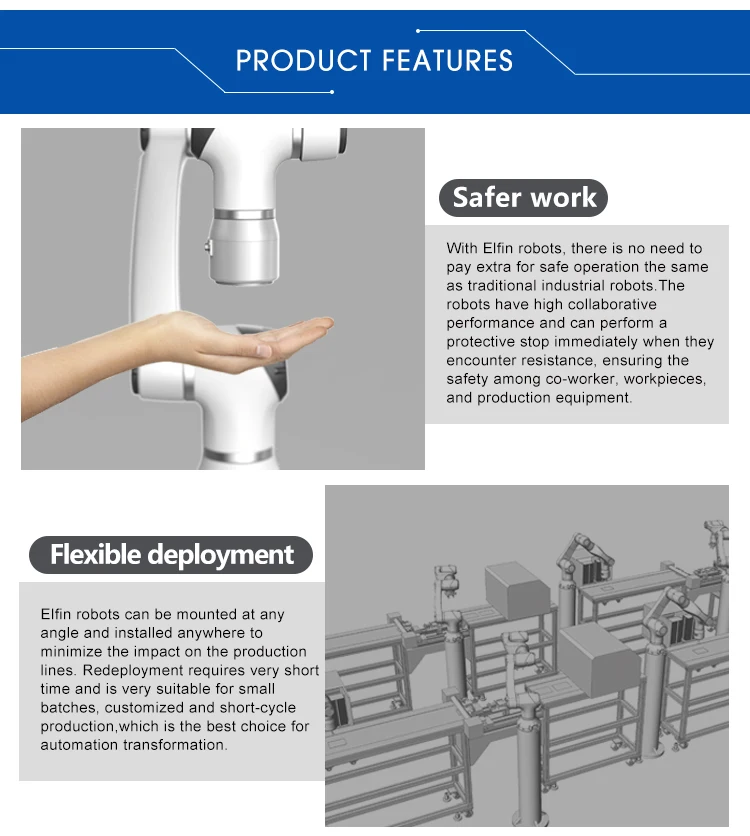

\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tApplications \t\t\t\t\t\t\t
Visit our YouTube channel for more information: www.youtube.com/c/hansrobot
\t\t\t\t\t\t\t\t\tCompany Profile \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPartners \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
