air purifier central heating controller air filter fresh air system temperature humidity sensor
- Category: >>>
- Supplier: Beijing Ifan Peng Instrument Co. Ltd.
Share on (1600171091686):
Product Overview
Description
Product Description

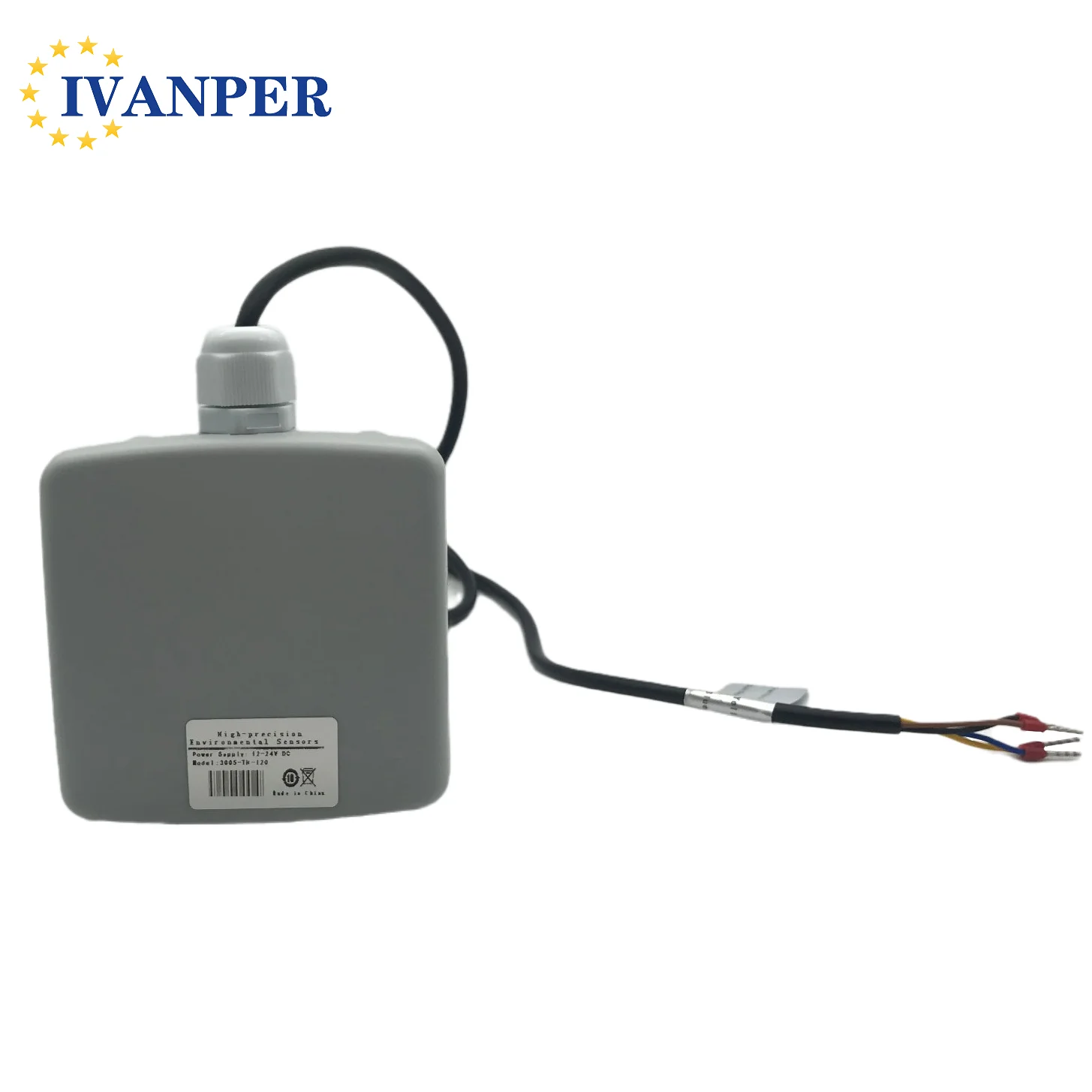

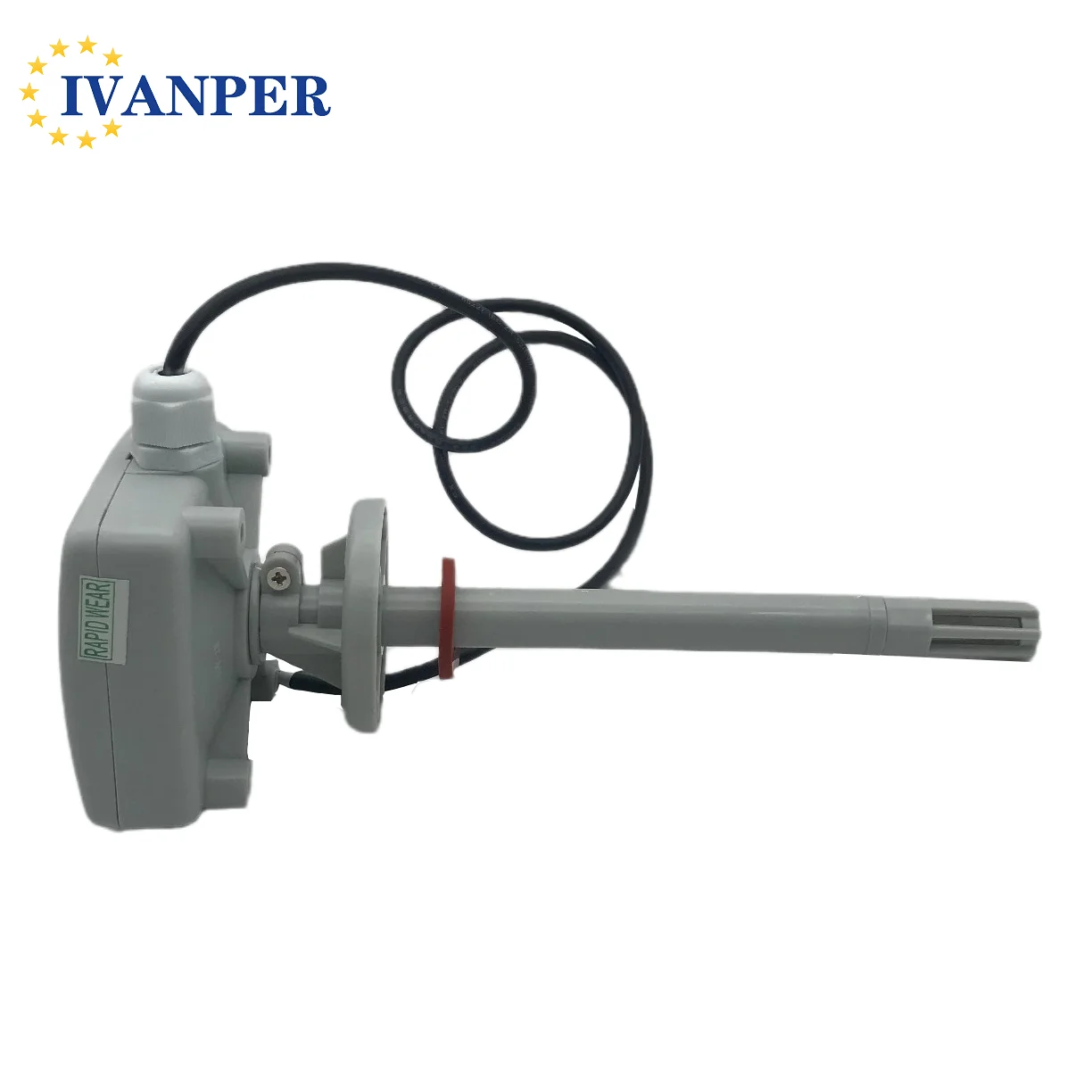

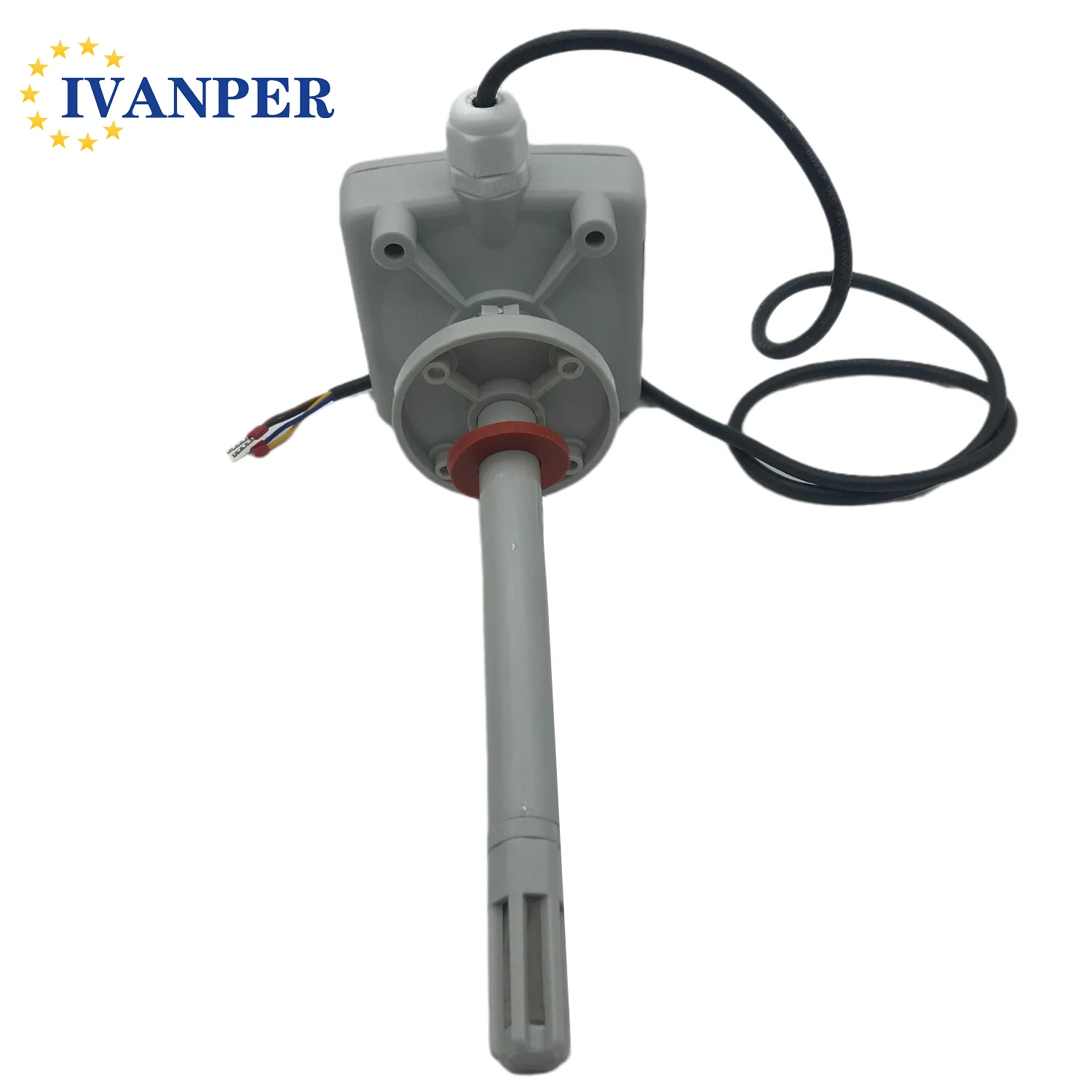

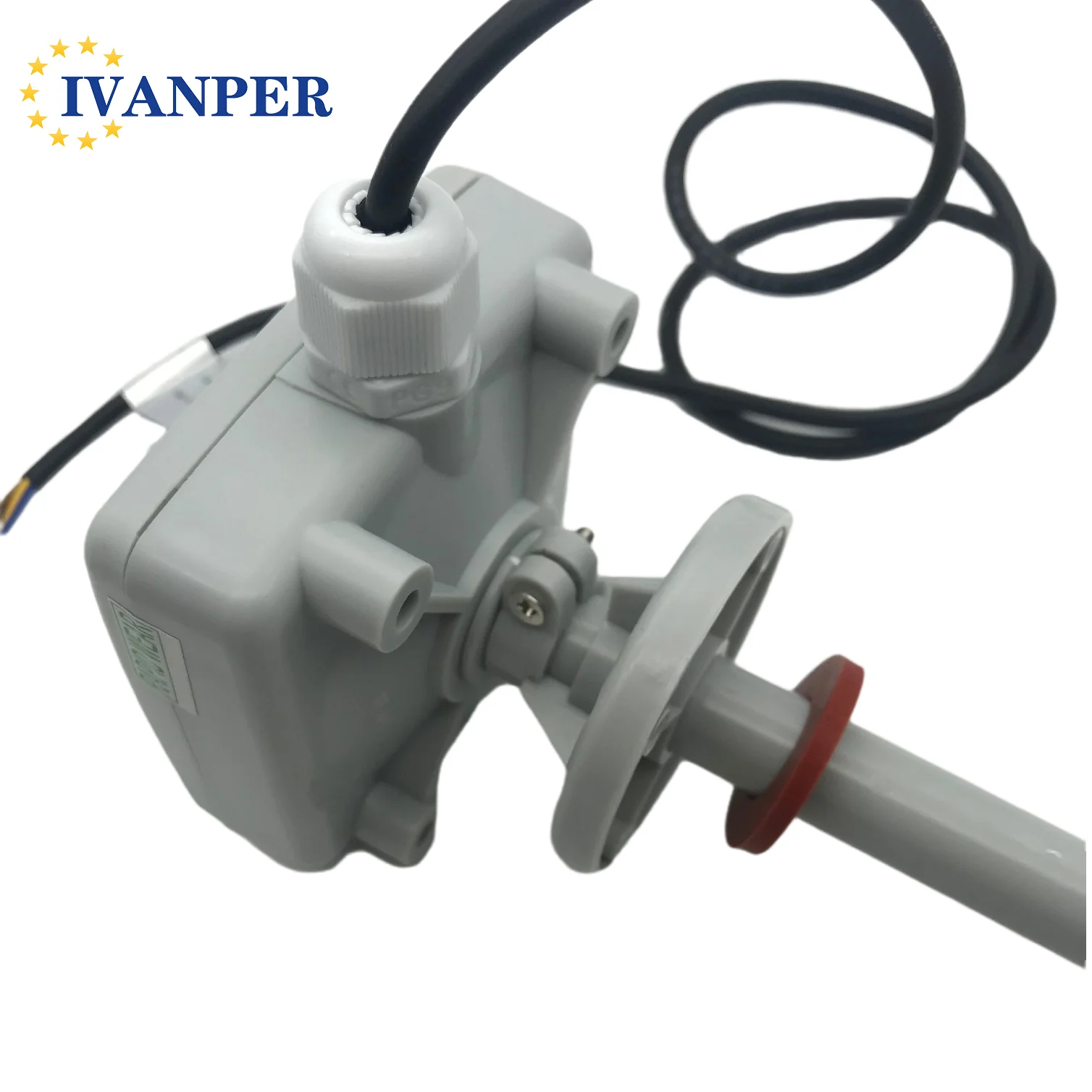

The ts-ftd06 pipeline temperature and humidity transmitter adopts the latest integrated temperature and humidity measurement technology, and through the signal processing of high-performance single-chip microcomputer, the whole machine has excellent performance and long-term stability. The series of transmitters adopt professional pipe linenstallation mode, which is convenient to use and output standard current signal, and is suitable for most industrial control equipment. The series of products are integrated temperature and humidity transmitters, which are widely used in building automation, climate and HVAC signal acquisition
Specification
Product name | Liquid Level Transmitter |
Temperature: | 4-20mA, |
humidity: | 4-20mA (load ≤ 500 Ohm) |
temperature: | 0-10V, humidity: 0-10V |
working voltage: | DC12 ~ 35V |
power consumption: | ≤ 1 VA (typical value) |
allowable maximum air flow speed: | 16 m / S |
Temperature transmitting range: | 0 ~ 50 ℃ (factory default) |
customized accuracy: | ± 0.3 ℃ (full range mean value) |
long term stability: | < 0.04 ℃ |
Accuracy: | ± 3% RH |
long term stability: | < 0.5% RH |
Working environment temperature: | - 40 ~ 80 ℃ |
Working environment humidity: | 0 ~ 99% RH |
Storage temperature: | - 40 ~ 80 ℃ |
storage humidity: | 20 ~ 60% RH |
Electrical connection: | 1 × 2.5 mm Or 2 × 1.5 mm? 2 (terminal capacity) M12 × 1.5mm (waterproof joint) |
Customer Visit
Certifications
Packing & Shipping
FAQ
Q1. Why choose IVAN?
A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
Q4. What is the delivery time of IVAN?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about IVAN validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
