8011 Aluminum Blister Foil PTP with OP/AL/HSL in Pharmaceutical Package Materials
- Category: >>>
- Supplier: Shandong Fubo Composite Packaging Material Co. Ltd.
Share on (1600171155428):
Product Overview
Description
8011 Aluminum Blister Foil PTP with OP/AL/HSL in Pharmaceutical Package Materials
1. Technical Specification
Printing&Overall Appearance
| Ink adhesion | No obvious peeling (tape test) |
Overall Appearance | Surface should be clean, flat and evenly coated.Text and pattern printing should be correct, clear and firm | |
Barrier Performance | Water Vapor Transmission Rate | ≤ 0.5 (g/(m2·24h)) |
Physical Performance
| Heat-seal strength (N/15mm, 155℃*0.2Mpa ×1s) | ≥ 7.0 (heat sealing with PVC) |
≥ 6.0 (heat sealing with PVDC ) | ||
Protection layer`s adhesiveness | No obvious peeling during Polyester adhesive tape stripping test | |
HS-L coating weight g/m2 | 3~8g/m2±10% | |
Residual solvents | Benzene and benzene solvents | Not detected |
Dissolution Physical Testing
| Heavy metal | ≤0.25ppm |
Number of bacteria | ≤1000CFU/100cm2 | |
Number of Mold and Yeast | ≤100cfu/100cm2 | |
Escherichia coli | Not detected | |
Pinhole | Diameter > 0.3mm | Forbid |
| Diameter 0.1 ~ 0.3mm | number≤1 |
2. Feature
Printing: plain, single color printing, full page printing, both sides printing and overprinting available.
Application: tablets, pills. capsules, and other medicine package using blister
Sealing matterials: PVC, PVDC, ALU-ALU foil and etc.
Temperature range: 120℃~220℃
HSL coating:3~8 ±10%

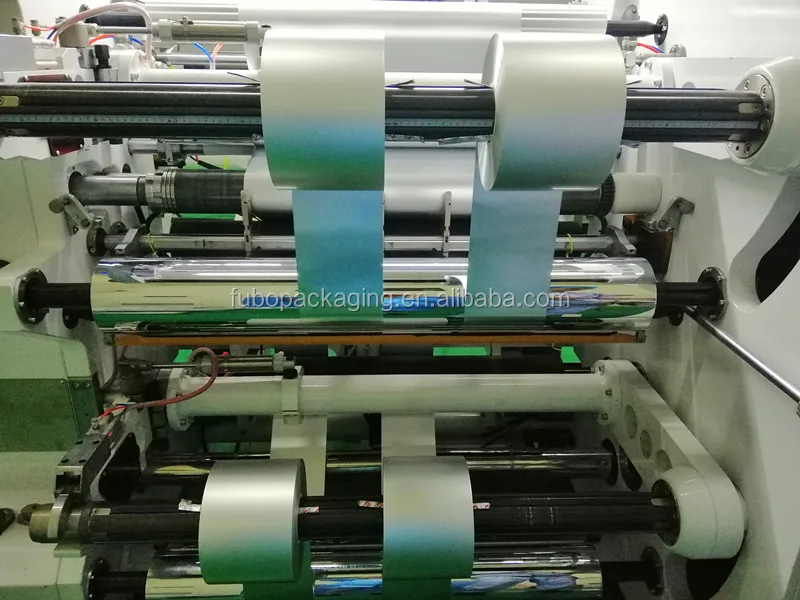

3. Wokshop
4. Package&Delivery
5. Other goods information
6. Contact
