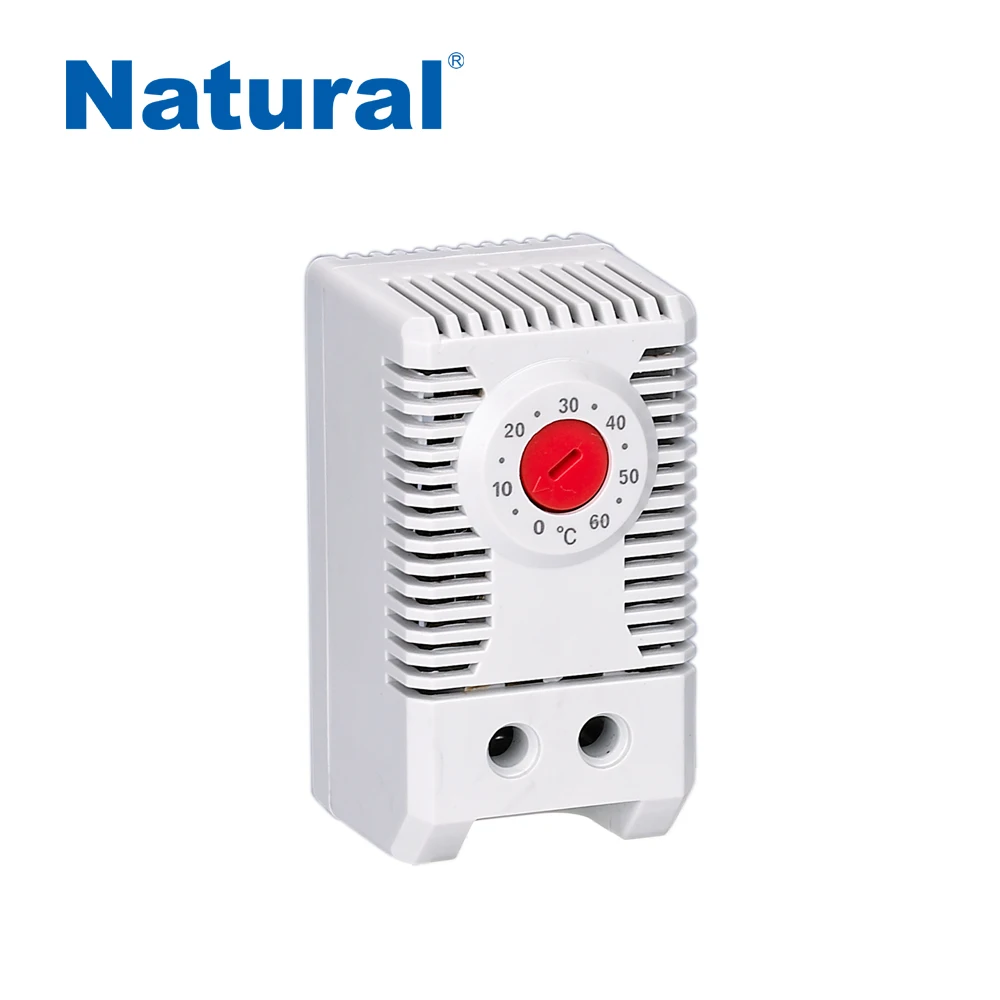

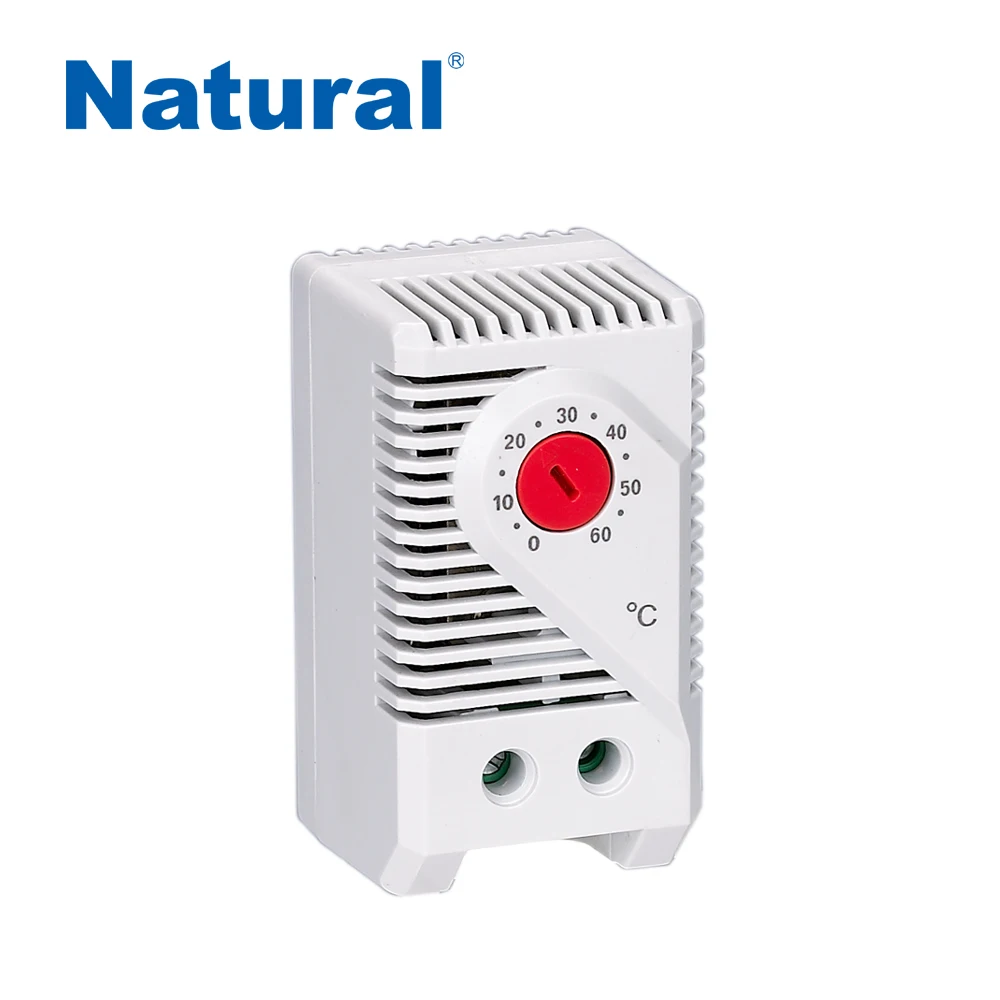

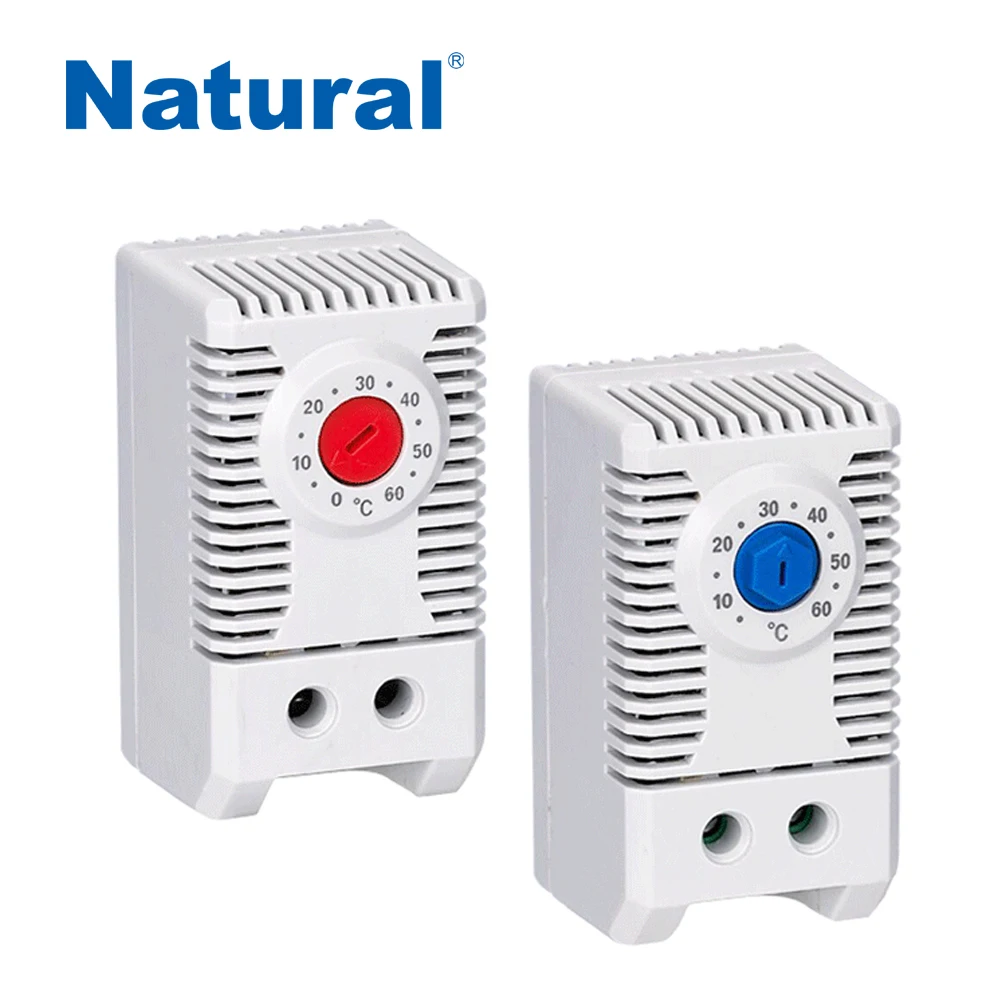

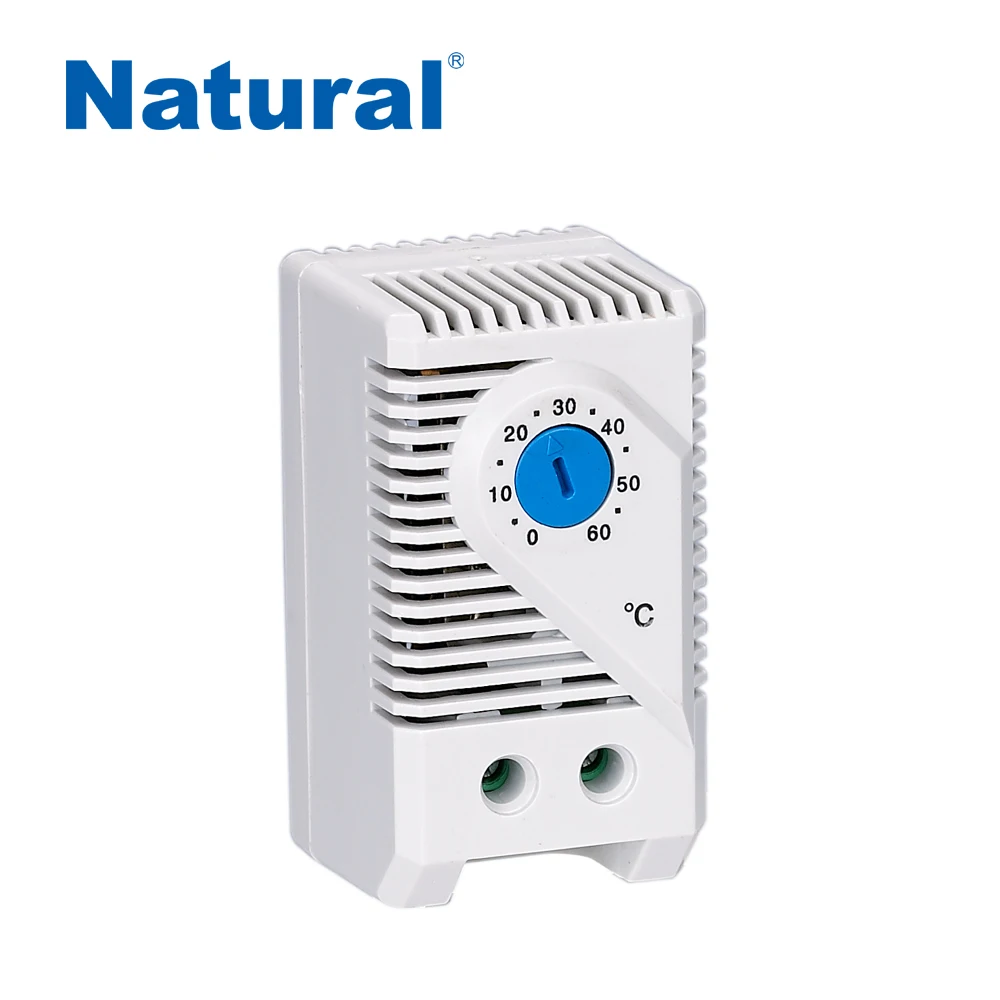

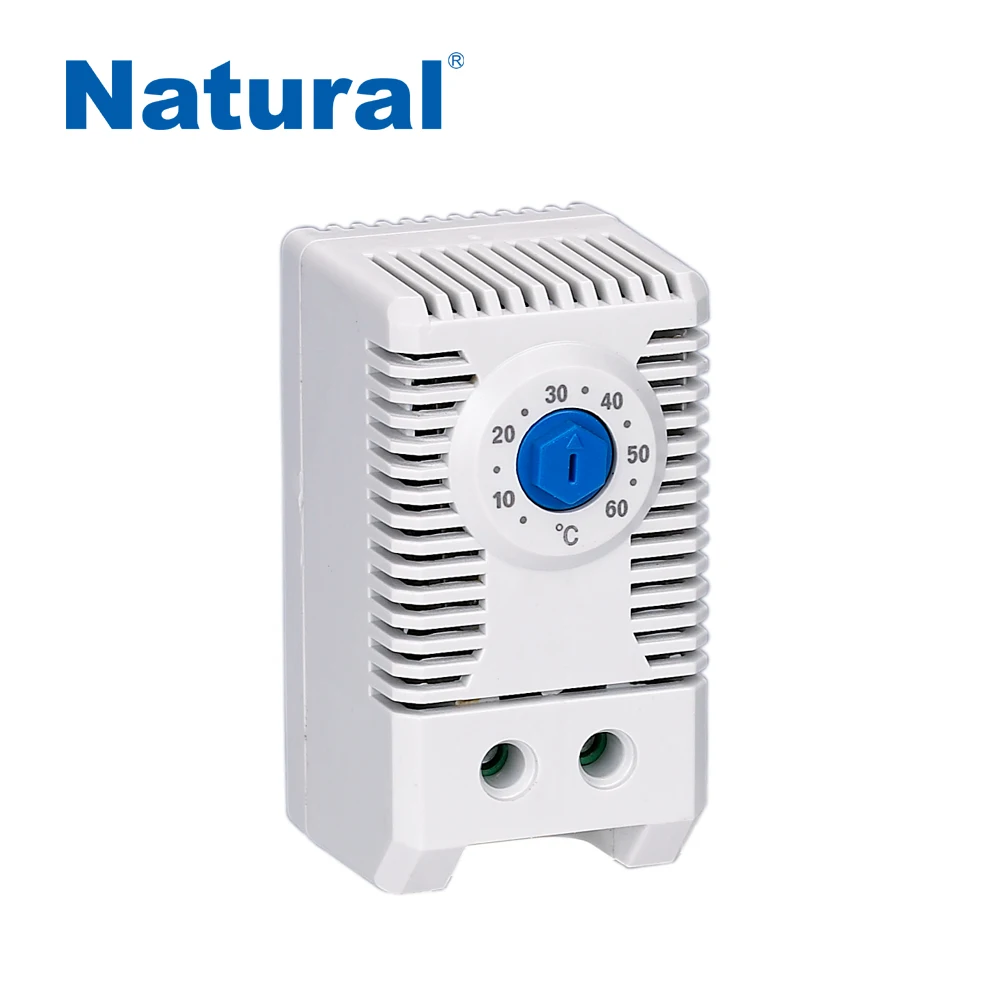

Natural Heater Thermostat(KTO 011), Filter Fan Thermostat(KTS 011)
- Category: >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (1600171162286):
Product Overview
Description
Product Description
Temperature controlled cabinet special Thermostat For Electric Heating Element KTO 011 / KTS011
> Large setting range
> Small size
> Simple to mount
> High switching performance
NTL 79 / NTL 80 | |
Switch temperature difference | +/-5°C |
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Service life | > 100,000 cycles |
Max. switching capacity | 250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC |
Max. inrush current | AC 16A for 10 sec. |
Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14) stranded wire¹ 1.5mm² (AWG 16) |
Mounting | clip for 35mm DIN rail, EN 60715 |
Casing | plastic according to UL94 V-0, light grey |
KTO 011: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.
KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
