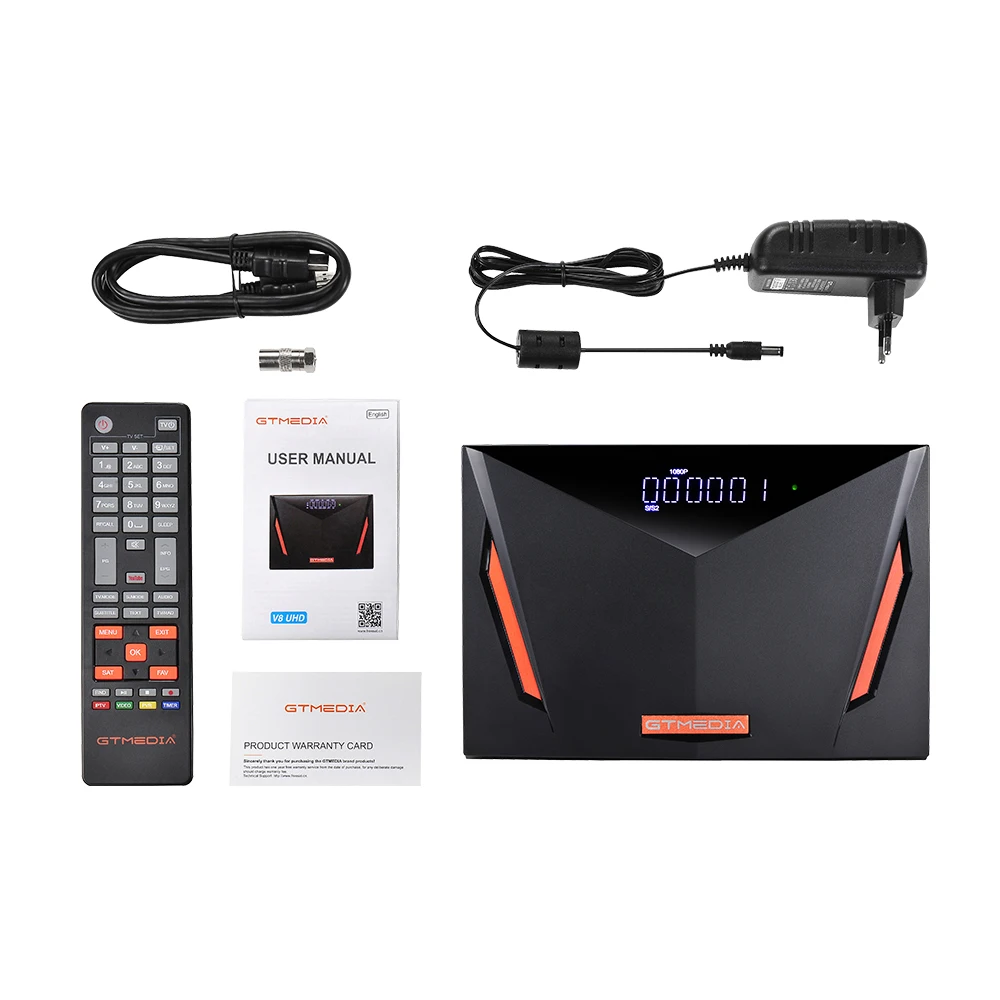

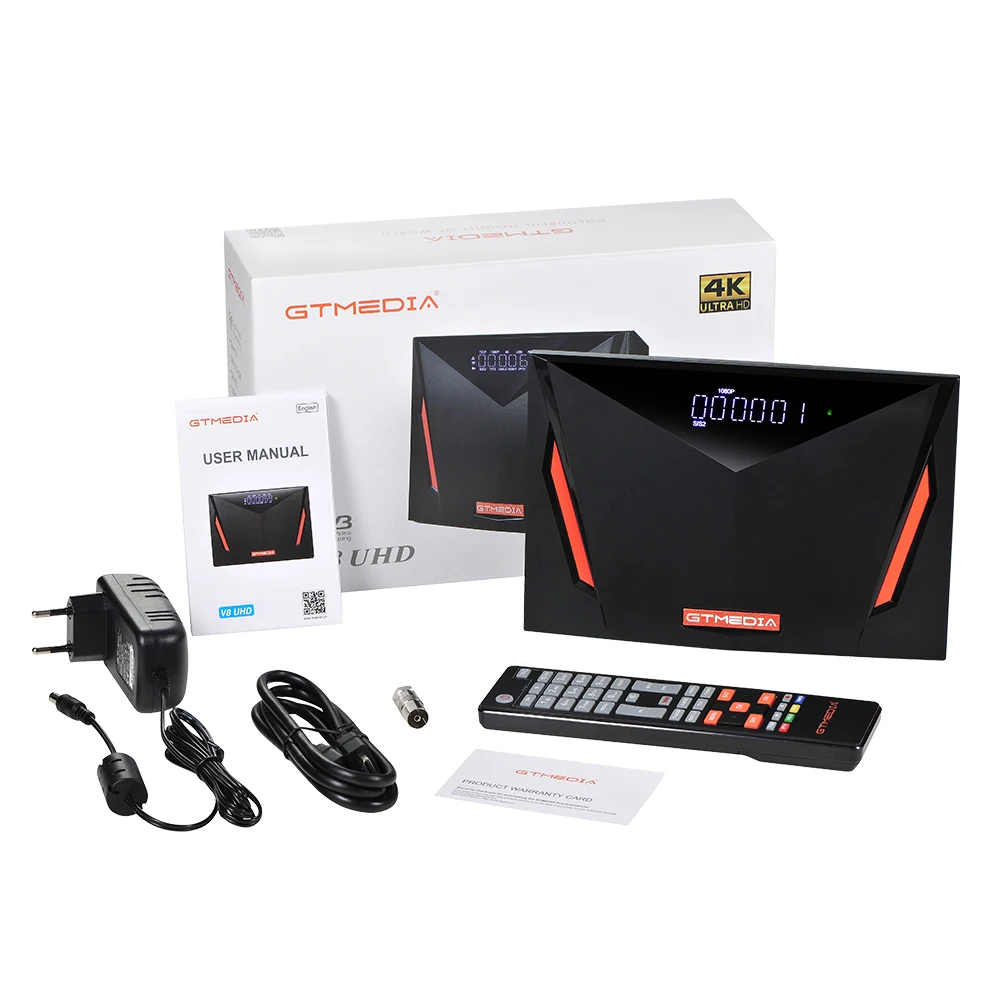

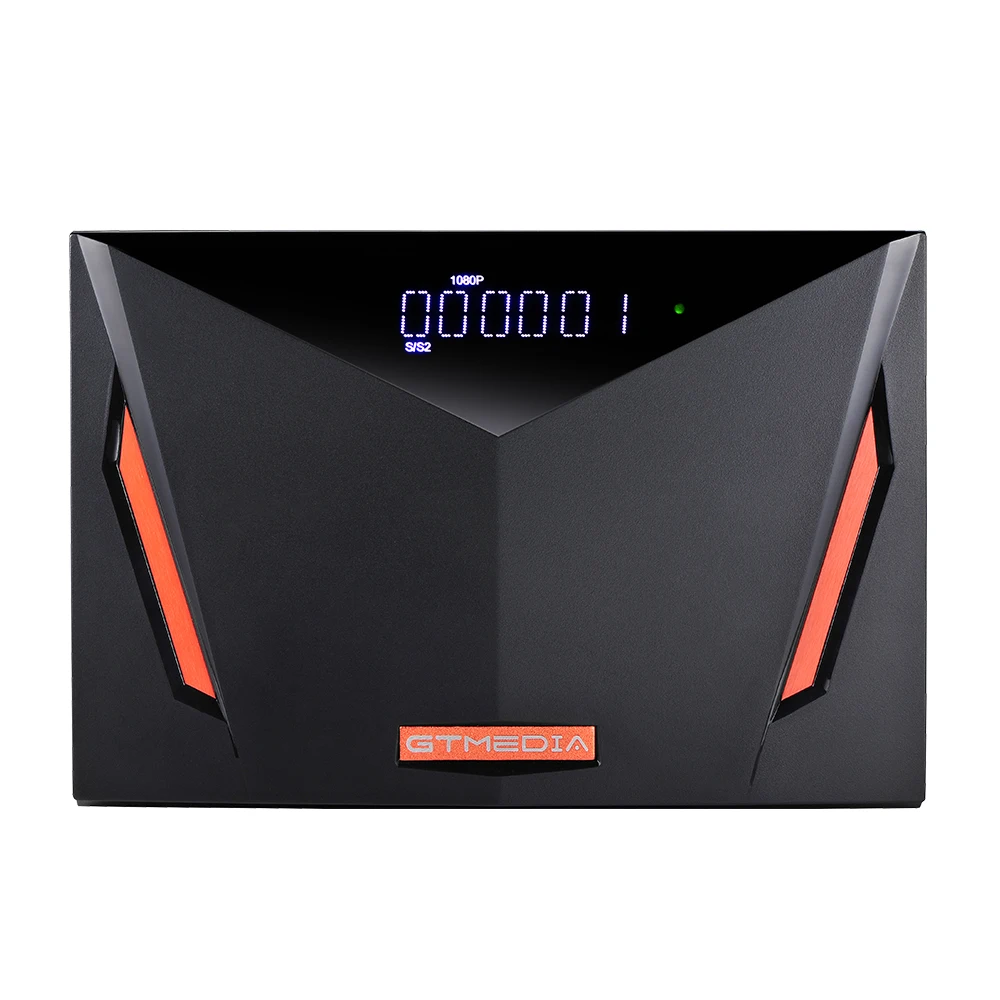

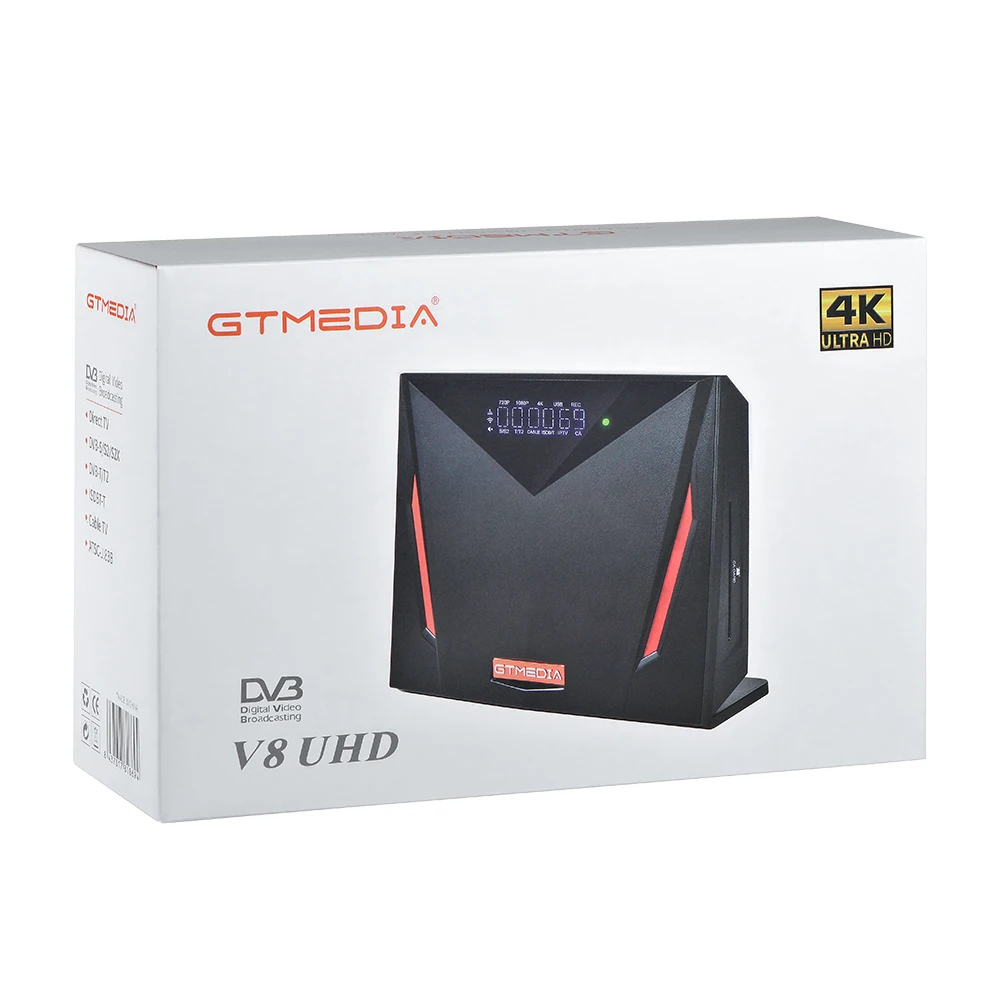

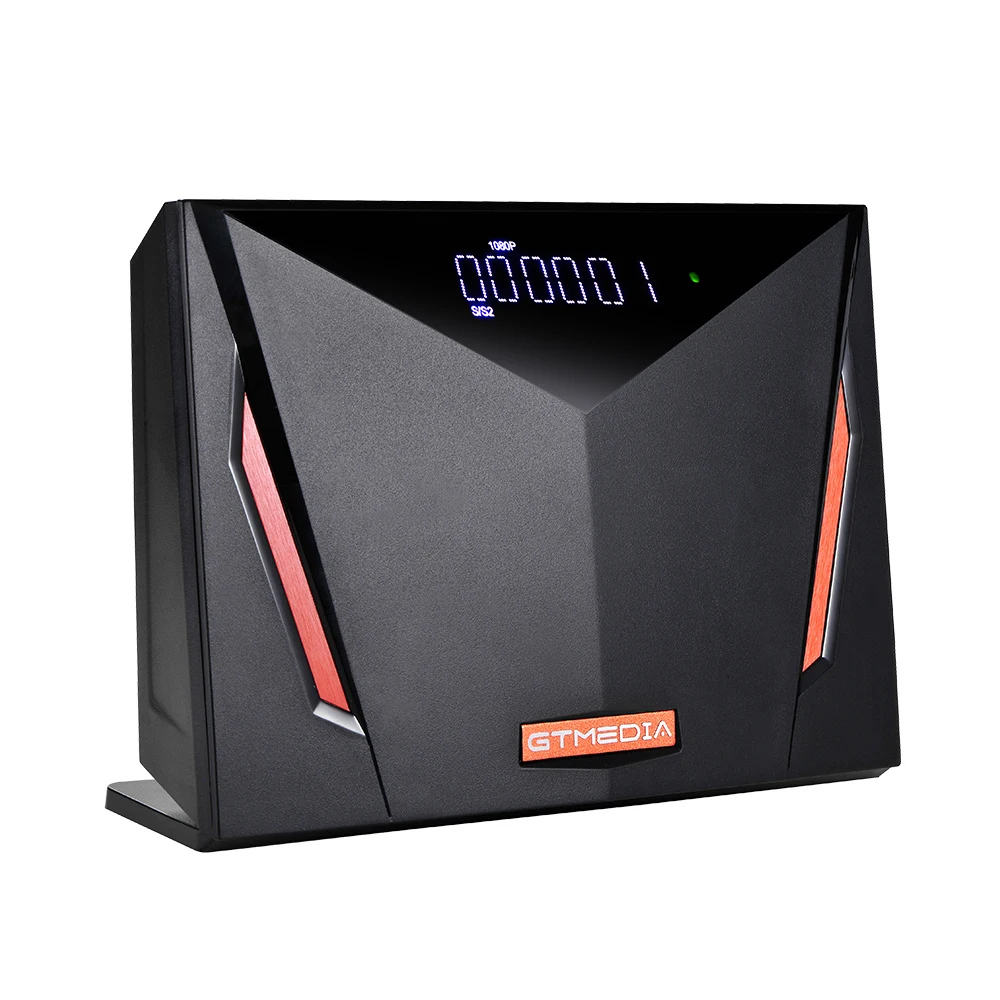

GTMEDIA V8 UHD 4K FTA digital sat receiver with CA card slot DVB S2/T2/C support EPG/LCN Worldwide

Main Chip Sets

Multi-core CPU architecture

MIPS 74Kf core operating frequency up to 1GHz, 16KB I-cache, 16KB D-cache and 1 Register File

Flash Memory

64MB SPI Flash

DDR3 Memory

2G bit*2

TS Demux

Demultiplexer

ISO/IEC 13818-1

Input Bit Rate

2 parallel TS input ports @864Mbps in parallel mode

Video Decode

Video Decode

MPEG-2 ISO/IEC 13818-2 MP@ML, ISO/IEC 14496-2 (MPEG4) compliant, Supports SP@L3 to ASP@L5，Multi-format ultra-high definition video
decoder (MPEG1/2/4, H.264/265, VC-1, AVS/AVS+, VP8 and VP9)

Video Resolution

By Source,
480i,480P,576i,576P,720P_50,720P_60,1080i_25,1080i_30,1080P_25,1080P_24,1080P_30,1080P_50,1080P_60,4K2K_25,4K2K_30,4K2K_50,4K2K_60;

Video DAC

1 x 10bit DAC for CVBS output
Composite NTSC M/N/J, NTSC-4.43
Composite PAL M/N/B/D/G/H/I, PAL-60

Aspect Mode

Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box

HDMI Video Out

Auto, RGB-Normal, RGB-Expand, YCbCr 4:4:4, YCbCr 4:2:2

HDMI deep color

Auto, Normal, None, HDMI deepcolor 24, HDMI deepcolor 36

Audio Decode

Audio Decode

MPEG-1/2 Layer I/II, AAC/HEAAC v1/v2, Dolby Digital (AC3),Dolby Digital Plus (EAC3),RealAudio,WMA/WMA Pro,MP3,OGG,APE,FLAC,ALAC

Sound Mode

LEFT/RIGHT/STEREO/MONO

Audio DAC

Supports 2 channels, 16-bit resolution and 8k-192k sample rate,

Audio Out

LPCM Out, BS Out

Hardware specifications

Panel display

8-digit white LED display,With multiple function indicators

LED Indicator

Power ON :Green; Standby :Red

Button

NOT

Wifi

Built in 2.4G WiFi Support IEEE 802.1.1b/g/n

IR

Exit IR for 38KHz,Infra Remote control

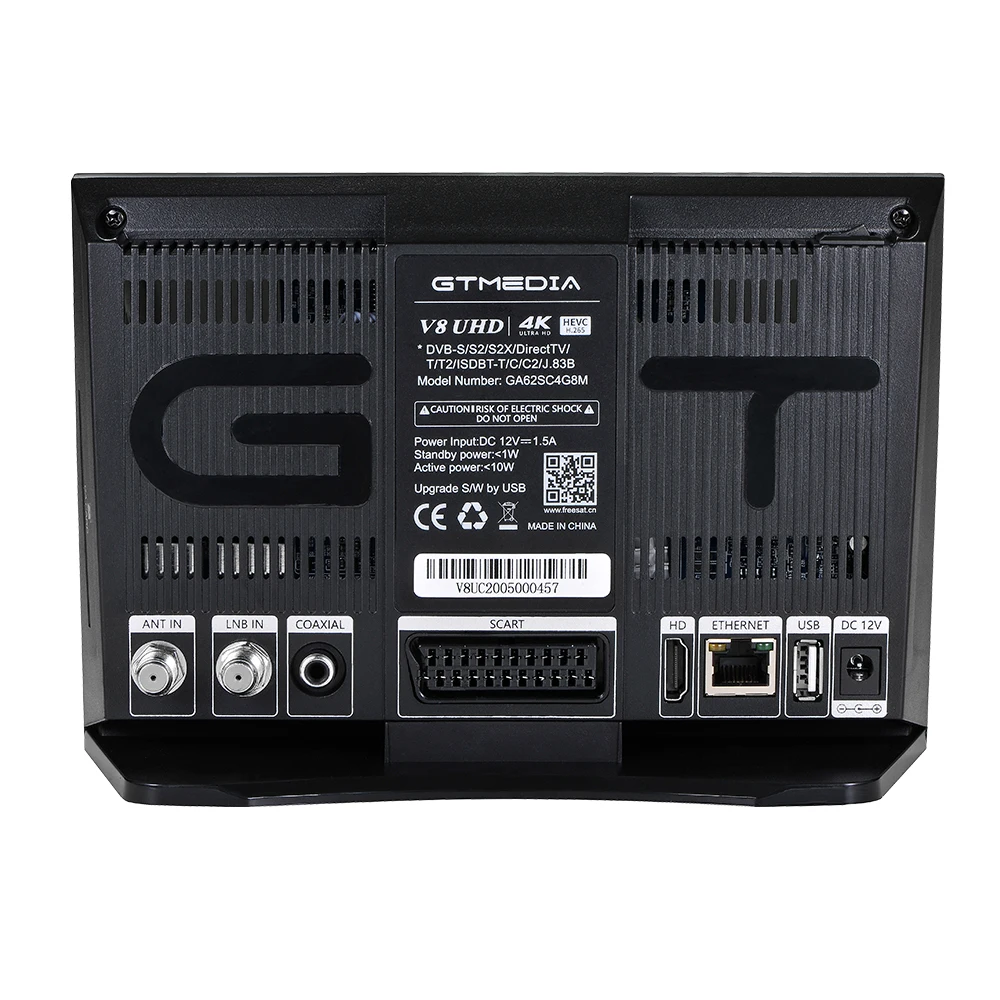

Rear Panel

ANT IN ( EC-type IEC169-2 Female)

LNB IN (Frequency Range950MHz to 2150MHz)

HD OUT(HDMI2.0, up to 4kx2kp50/60 output )

SCART OUT

1*Coaxial (RCA:black)

1*USB2.0 HOST

1*RJ45 (For 10M/100M MAC)

1*CA card solt

DC IN (DC12V/1.5A)

DVB-S/S2 specificati-ons

System standard

ETS 302 307

Frequency Range

950~2150MHz for DVB-S/S2/S2X baseband demodulator

LNB Power and Polarization

DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection

Input Level Range

-80dBm ~ -20dBm (average power)

Symbol Rates

DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK

Forward error correction rate

1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range

±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Symbol Rates

Symbol rate range:
QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M

Roll-off factors

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Code Rates

1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC code rates

Features

Supporting CCM/VCM/ACM
Supporting PLHEADER Scrambling (AMC)
Integrating LDPC and BCH decoders

ANT. Connector

Connector:IEC TYPE F Input Impedance:75 Ω

DVB-T/T2 specificati-ons

System standard

ETSIEN 302 755

Frequency Range

VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2

Demodulation

COFDM,16QAM,64QAM,256QAM

Bandwidth model

6MHZ,7MHZ and 8MHZ

Country

Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany,Greek, Slovenia, Argentina, Australia, Denmark, Finland, France,
England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia.

FEC Code Rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6

FFT

2K and 8K

Guard interval

1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Input Signal level:

Min -80dbm max -20dbm (64QAM,8K 1/8,7/8)

Antenna Power

5V DC @ 150mA MAX

ANT. Connector

IEC 169-2, female. Input Impedance:75 Ω

ISDB-T specificati-ons

System standard

ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX

Frequency Range

VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz

Country

Brazil and Japan

FFT

2K/ 8K/32K

Demodulation

QPSK / 16QAM / 64QAM/QPSK or DQPSK

FEC Code Rate

1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic

Guard interval

1/4,1/8,1/16,1/32

DVB-Cable specificati-ons

Frequency Range

50--858MHz For DVB-Cable (J.83A/B/C)

Demodulation

16QAM,32QAM,64QAM,128QAM,256QAM

FEC Code Rate

1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8

Input Signal level

Min -80dbm max -20dbm

Country (ATSC-C)

U.S.ATSC Cable STD/U.S.ATSC Cable IRC/U.S.ATSC Cable HRC for ATSC-C

Sortware Features

Standard

Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.26
5 Standard

Channel Search

Supports Automatic network search for newly added transponders, and Supports NIT Search for DVB-T/Cable.

Channels Number

6000+ channels TV and Radio programmable

Channel Play Type

Can choose All, Free and Scrambled.

Channel

You can switch to any other channel while recording the channel;
Various channel editing unction(favorite,move,lock,skip,delete,rename,find,sort);

Favorites

32 different favorite groups selection

OSD Language

English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.

OSD Color

32-bits OSD with anti-flickering,

OSD Setting

Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.
Support menu in the small window to play programs

Other Setting

Sets up multiple habitual operation Settings

Parental Ctrl

Parental control for channels

Easy Menu

Plug and Play installation, with an easy to use Menu System

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Subtitle

support DVB EN300743 and EBU

Teletext

support DVB ETS300472 by VBI

Auto Standby

Can open STB to enter play auto standby.

SoftUpgrade

Software upgrades through USB port, or FTP upgrade.

Time Set

Time set by GMT offset automatic and manual,Summer Time support

Timer

8 event timers,off/Once/Daily Mode

USB Decode

USB 2.0

Support FAT/FAT32/NTFS big capacity hard disk

PVR Option

USB 2.0 for PVR,TIMESHIFT,media files playback

Media Codec

TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files

Audio Codec

WMA,MP3

Photo Codec

JPG, BMP, PNG, GIF
