Mechanical life: no-load plug> 10000times
Impact of external force: can afford 1m drop and 2t vehicle run over pressure.
The rated current: 16A、32A
The rated voltage: 250V/415V
Insulation resistance: >1000MQ(DC500V)
Pins temperature rise：<50K
Withstand voltage: 2000V
Contact impedance: 0.5mQMax

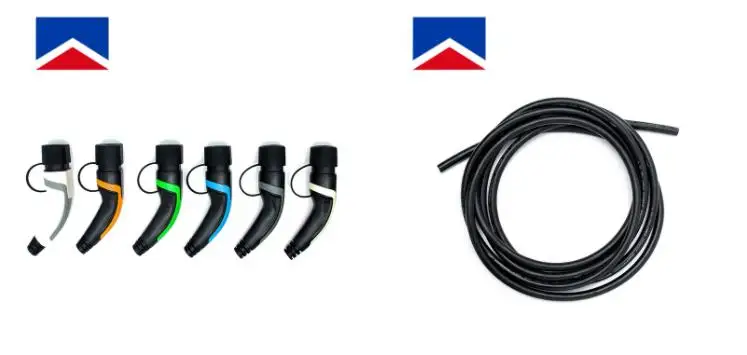

Orange, blue, black, green, white, gray
Orange, blue, black, green, gray
Shell Material: thermoplastics ,lame retar-dant grade UL94-V0 Pin: Copper alloy ,silver
Operating temperature: -30 ℃ ~ +50 ℃
1. Conform to the provisions and requirements of 62196-2 IEC 2010 SHEET 2-lle a..
2.The product assembly conforms to IEC 61851-12010 charging mode 3 connection mode B2.
3.Adopt no screw riveting pressure process，beautiful appearance. Hand held design conforms to the principle of ergonomics，conve-nient plug and pull.
4.Reliable materials, flame retardant，pressure resistance, abrasion resistance, impact resistance, high oil resistance.
5.Excellent protection performance , IP55 protection level of the plug (working state) high security.
