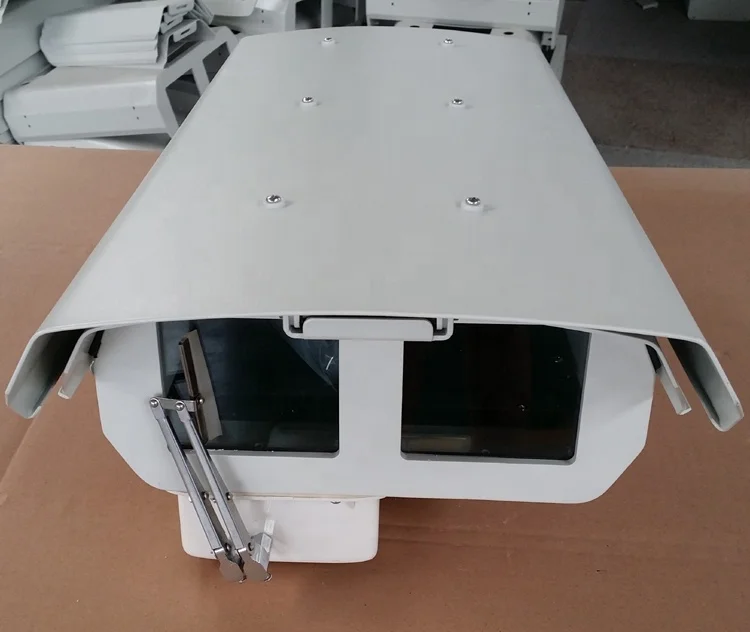

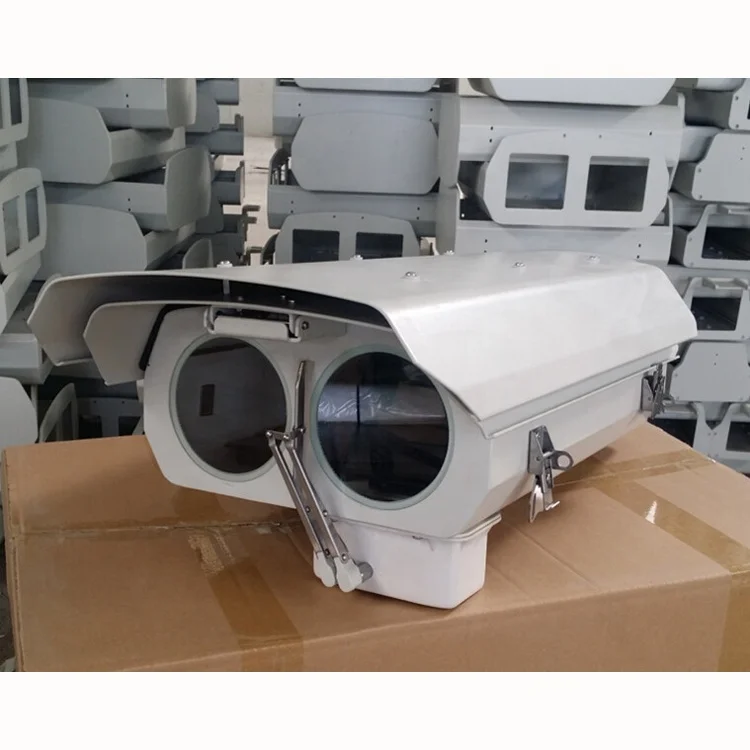

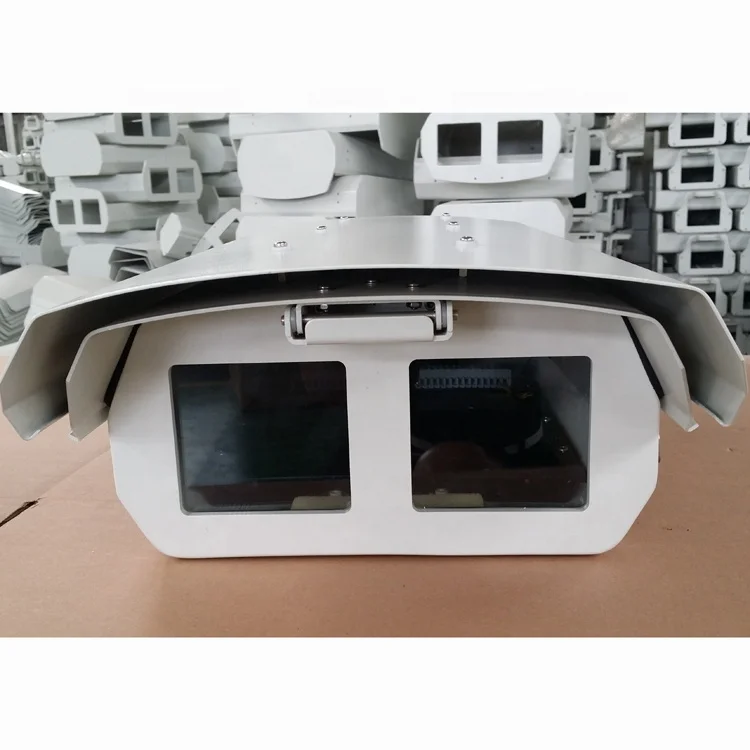

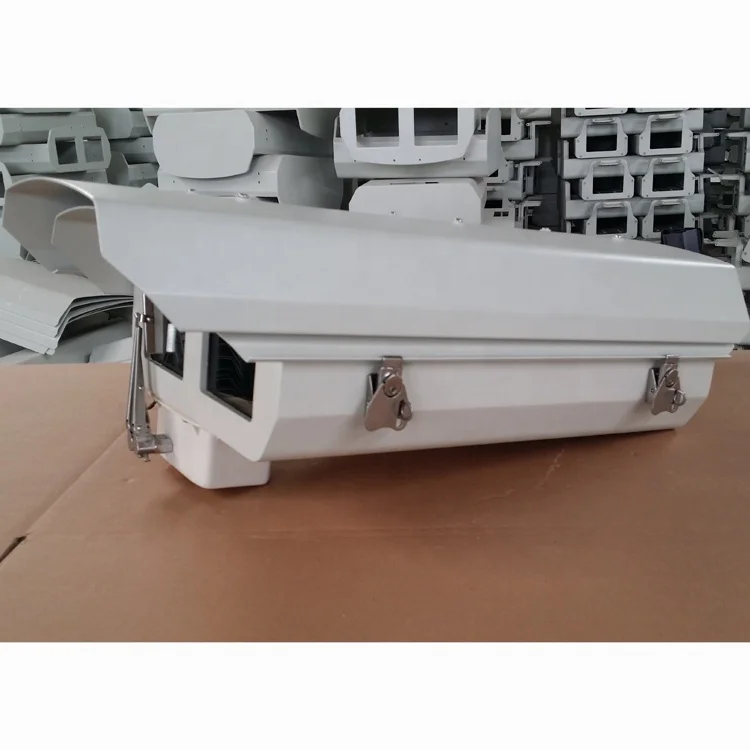

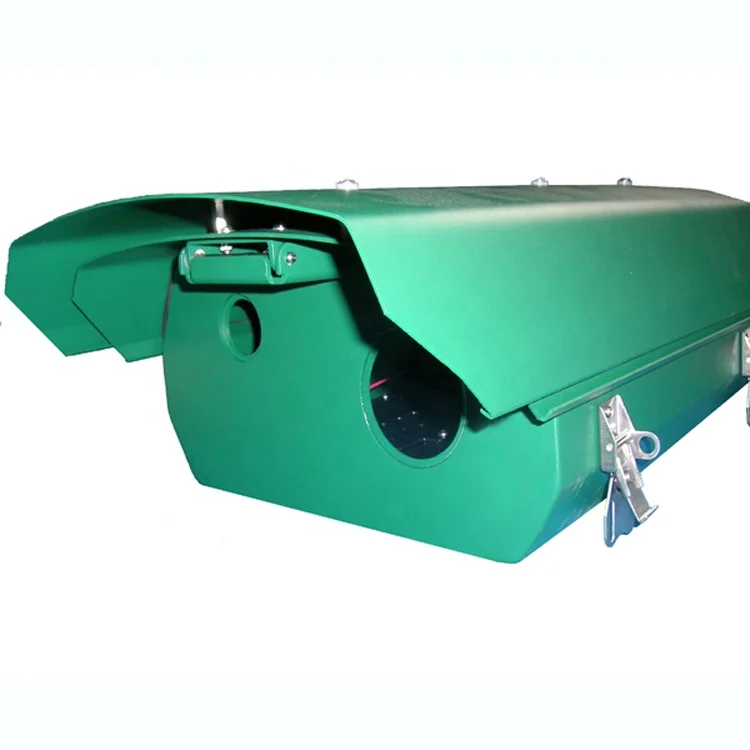

double window camera housing with wiper heater fan

outdoor waterproof double rooms camera housing H4218/15


Drawing

Specification

Model

H4215

Voltage

AC24V±20%

Power

≤65W

Mounting circumstance

Indoor/outdoor

Operating temperature

-35°C~65°C

Max size for camera+Lens

Both sides of the space :190(L)×108(W)×130(H)

Viewing Window

100(W)×90(H)

Auto temperature control range

Heater on 8°C±5°C  off 20°C±5°C (blower is not running )

Blower  on 37°C±5°C  off 20°C±5°C

Dimensions

524(L)×366(W)×185(H)

Weight

6.5kg(without camera and infrared lights)

Construction

Body aluminum alloy,lock catch : stainless steel

Optional

Optional:H: Heater,S: Forced-air cooling,K: sun shield,W:wiper
