Customized automatic smart lead acid li ion LiFePo4 battery charger 5A 6A 8A battery charger with CE
Customized automatic smart lead acid li-ion LiFePo4 battery charger 5A 6A 8A battery charger with CE
Customized automatic smart lead acid li-ion LiFePo4 battery charger 5A 6A 8A battery charger with CE
Customized automatic smart lead acid li-ion LiFePo4 battery charger 5A 6A 8A battery charger with CE
Customized automatic smart lead acid li-ion LiFePo4 battery charger 5A 6A 8A battery charger with CE

Customized automatic smart lead acid li ion LiFePo4 battery charger 5A 6A 8A battery charger with CE

Share on (1600171978722):


Price:

Quantity:


Product Overview

Description


Advantages


1) With global certificates: CE, RoHs, CB, GS(IEC-60335), Reach, SAA, RCM, PSE, CCC,KC.
2) With automatic identification circuit


3) Automatically shut off


4) Spark Proof
5) Protections: Short Circuit / Over Load / Over Voltage / Reverse Polarity Protection
6) Automatic 3 stage charging mode: Constant Current - Constant Voltage - Trickle charging / Shut Down
7) LED indicator (RED) for charging, (GREEN) for full charged


8) Fireproof PC plastic case








Parameter


































































Fuyuan 60W Series
OutputVoltage12.6V14.6V16.8V

21V/


21.9V


25.2V29V36V42V43.8V

50.4V


/51V


58V67.2V73V84V87V
Current1-4.5A1-4A1-3.5A1-2.5A1-2A1-2A1-1.5A1-1.4A1-1.3A1A1A0.9A0.8A0.7A0.7A
Power max57W58W58.8W55W55W58W55W58W58W58W58W60W60W60W60W




































































AC Input:100-240V,50/60HZ, 0.8A Max, 75VA
AC Inlet:IEC320-C14, C6, C8, fixed AC power cord
AC Power Cord:1.2M (or customized length) power cord with US,AU,EU,UK,KR,JP,CHN etc. plug
DC Wire:UL1015/UL2464/2468/1185/SPT-1, 1.2M/1.5M/1.8M or Customized length
DC Plug:Anderson connector , 5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Inline plug, XT60,TX40/60 etc. --- DC plug customized as per your demands.
Protection: Short Circuit/Over Current / Over Voltage / Reverse Polarity Protection.
Housing:Dimension:113*43.5*30MM
Black
TEIJIN brand PC material
Packaging:White box+Export standard Carton
Carton Size:41*34*34cm
50PCS/CTN
16.20kg/CTN
Certificates:UL, ETL, CUL, FCC, CE, GS, CB, BS, PSE, KC, RCM, SAA, C-TICK, CCC, ROHS
Safety Standard:UL60950,UL1012,UL1310, IEC61347, IEC60950, IEC61558, IEC60335, EN62233, EN62493
HIPOT testing:3000-4200V
Operating temperature: -29ºC~ +45.5ºC
Storage temperature: -40ºC~ +75ºC
Dropping Testing:X-Y-Z direction 100cm,one time with each direction
MTBF: 30000 hours full rated load at 25ºC
AQL:MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0

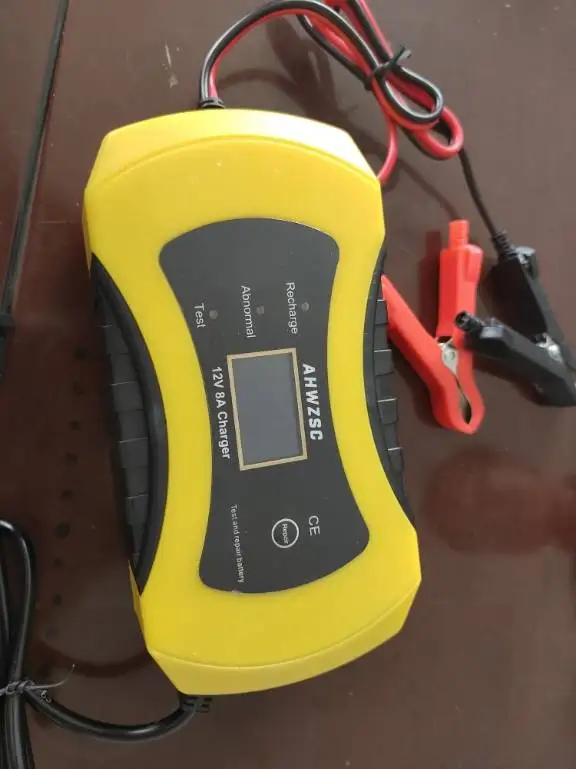

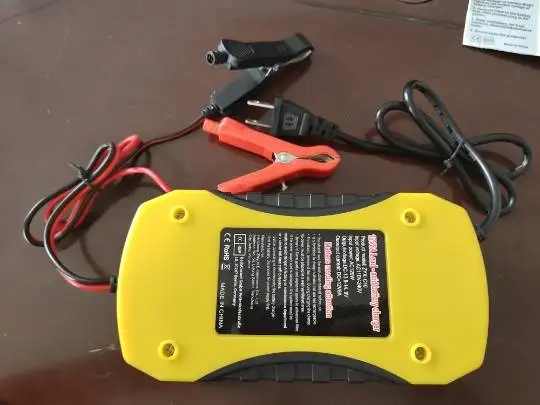

 12V8A (1).jpg12V8A (2).jpg12V8A (3).jpg12V8A (4).jpg
