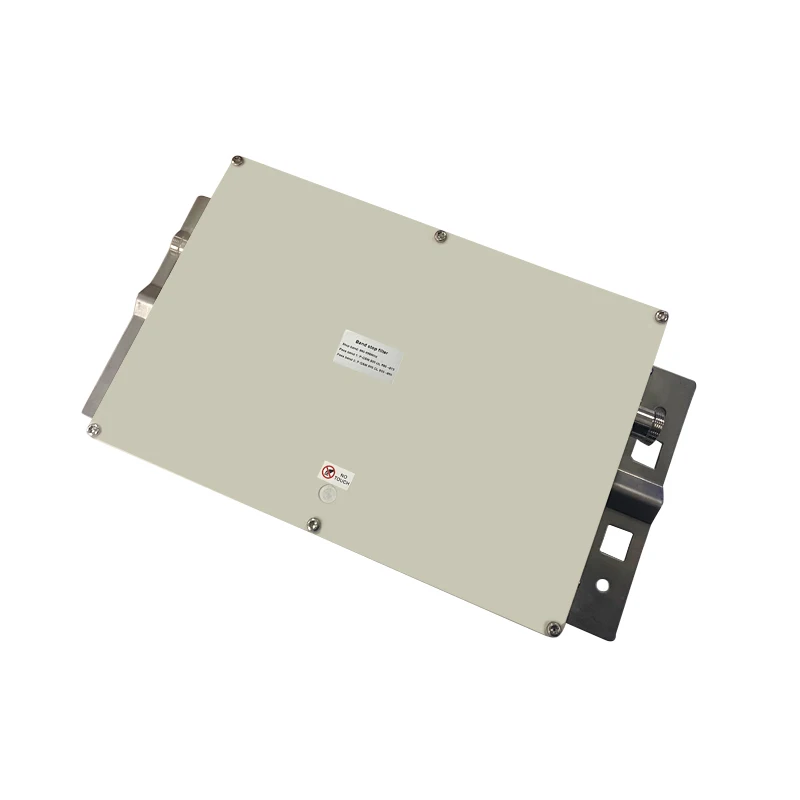

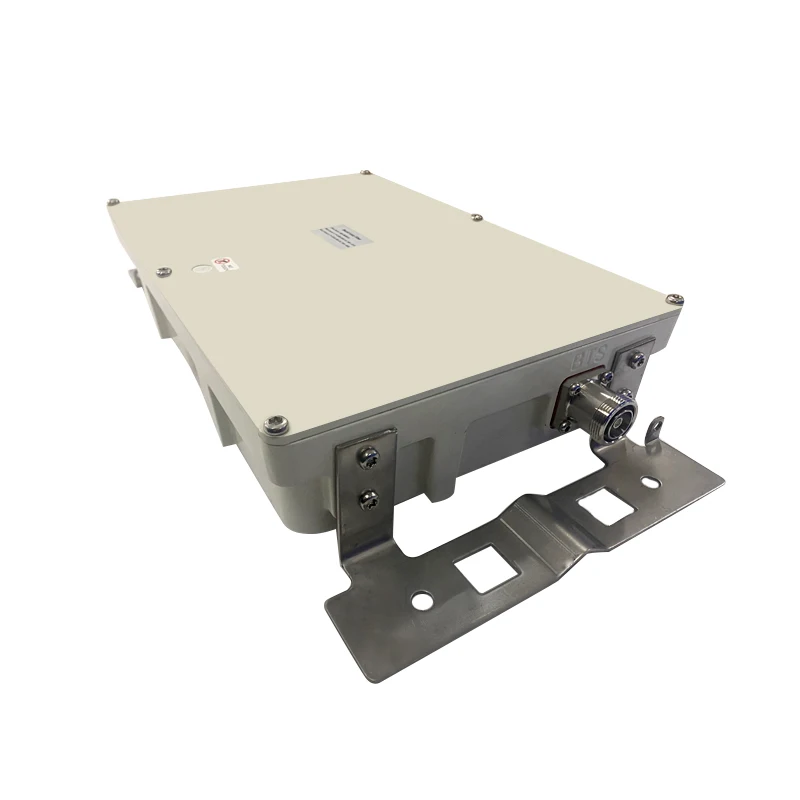

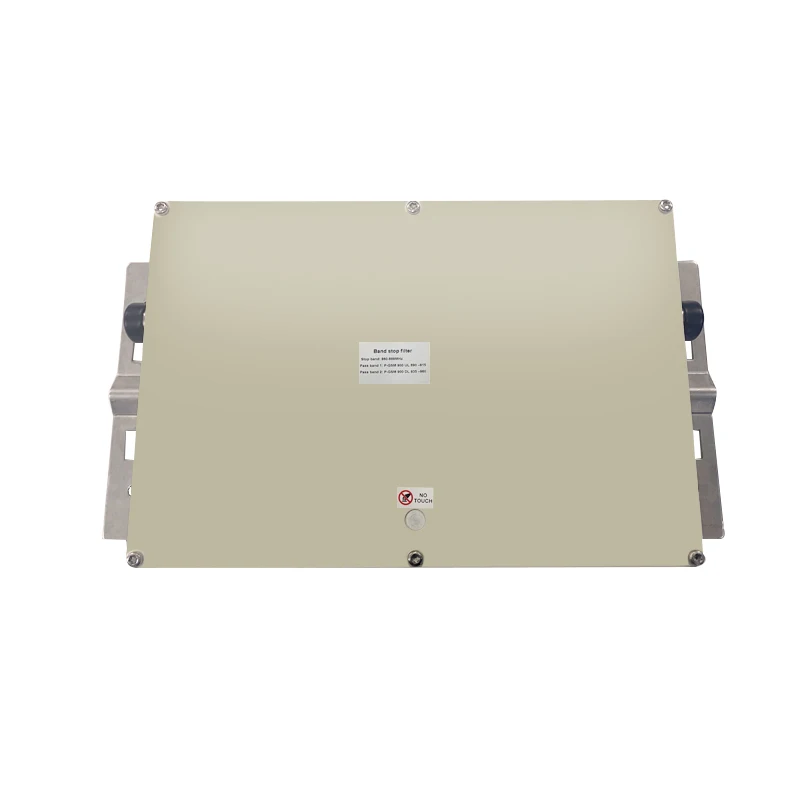

800mhz rf cavity filter bandstop filter 860-888MHz,Pass band GSM 900 UL 890- 915MHz P-GSM 900 DL 935-960MHz, factory
- Category: Filters old >>>
- Supplier: Hefei,Setsail,Telecom,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Name | Band pass Filter |
Stop Band(MHz) | 860– 888 MHz |
Pass Band | P-GSM 900 UL 890 – 915 P-GSM 900 DL 935 – 960 |
VSWR | <1.3 (890 – 915MHz &935 – 960MHz) |
Insertion loss | <1.5 dB (890 - 892 MHz) <0.8 dB (892 - 893 MHz) <0.6 dB (893 - 905 MHz) <0.6 dB (905 - 960 MHz) |
Impedance | 50 ohm |
RF Connector | 7/16 DIN female-Female |
Stop band attenuation | >50 dB (0 – 880 MHz) >40 dB (880 – 885 MHz) >30 dB (885 – 888 MHz) |
Intermodulation | < -150 dBc (3rd order; with 2 x 20 W) |
Working Temperature(deg) | -0~+65 |
Relative Humidity | 5%-95% |
Application | Indoor or outdoor IP66 |
Color | Grey |
Product Features 1
* Wide Frequency Band
* Low VSWR ≤1.3
* Low Insertion Loss
Product Features 2
* RF Connector:DIN-female-Female
* Grey Color or customized
* Widely used for Inbuilding Solutions
Related Products
Company Introduction
17 Years Old & 150 Eemployers
Hefei Maniron Electronic And Technology Co LTD., Esatablished in 2002,is a leading manufacturer of RF components,We offer OEM services.Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui,China.Includes two factories.At the same time,Maniron’s market network has been all over the world.The Maniron Electronic has a huge fellowship that is composed of many high-level technologists.And also has established a research institution which cooperating with some famous universities.
high-level technologists. We also has established a Research Institution which is cooperting with some famous universities in China.
Product Usage
1. In-Building DAS systems requiring best PIM performace
2.Mobile Communication Network Optimization and In-door distribution system
3.Cluster communication, satellite communication,shortwave communication and hopping radio.
4.Radar, electronic navigation and electronic confrontation.
Global Exhibition
Trading Case
FAQ
- Are you a factory or trading company?
A: We are a factory and have more than 15 years' manufacture & sales experience.We can give you reasonable price.
- How is quality ensured?
A: All our processed strictly adhere to ISO9001:2015 procedures, 100% quality test before packing ,we have strict quality control from producing to delivery,100% quality test before packing.
- Do you have any certificates?
A: Yes, we have ISO9001,SGS certificates and depends on your requirement.
- Do you have the products in stock?
A: Depends on your request. We have standard models in stock. Some special products and big order will be newly produced according to your order.
- Would you customize the products?
A: Yes, we can offer the customized service as you required.
- How can I get some samples?
A:We are very glad to supply samples for your fully test.
- What about shipping?
A: We'll show you the photos of the products and packages before you pay the balance.
