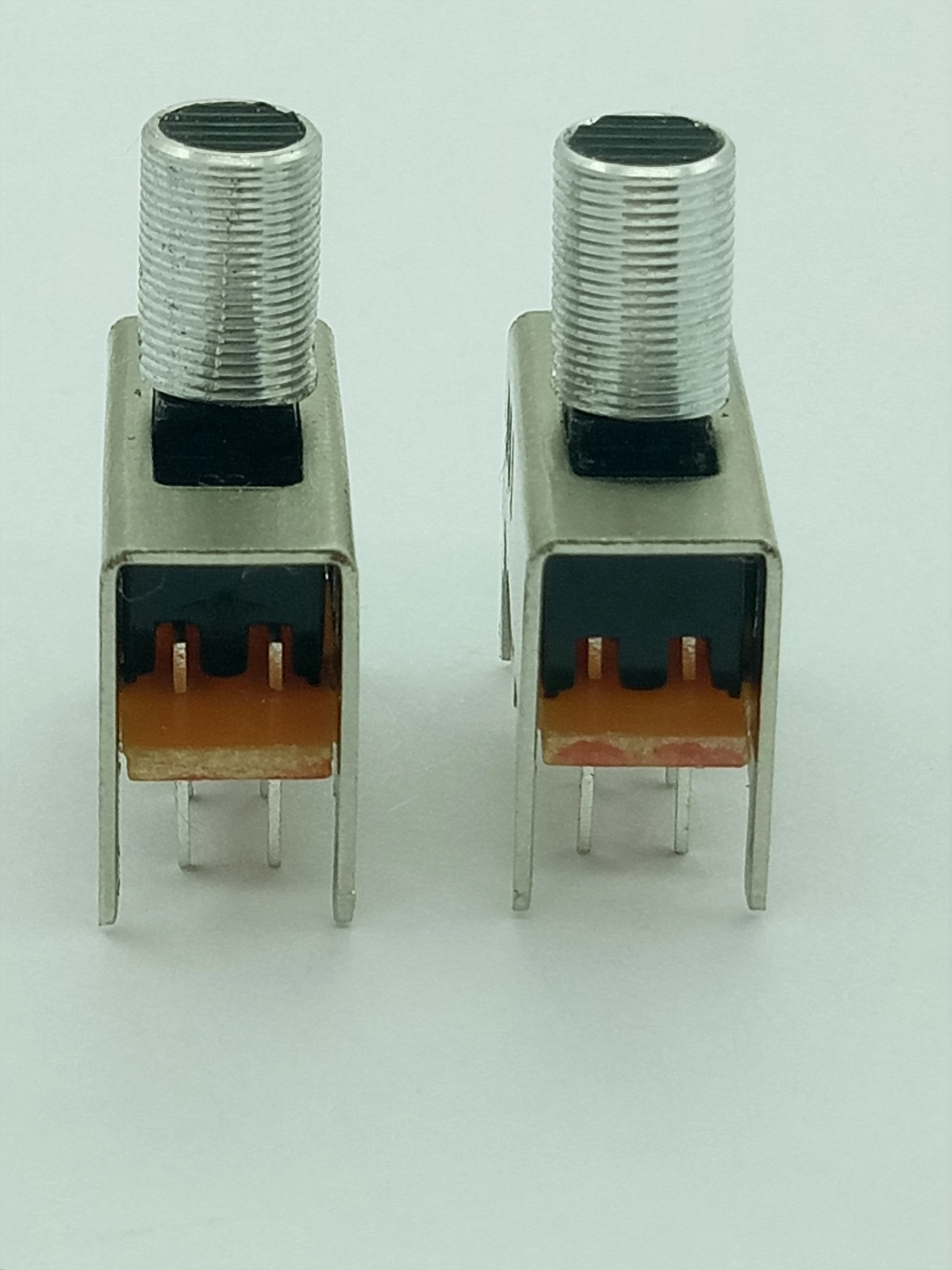

SS-23D01 DP3T electronic Slide switch with metal knob vertical DIP type customized spdt dpdt dp3t sp3t
- Category: Switches >>>
- Supplier: Xiamen,Jinbeili,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Quick Details
| Port: | xaimen shenzhen ningbo shanghai beijin |
| Payment Terms: | L/C,D/A,T/T |
| Supply Ability: | 10000 Piece/Pieces per Day |
| Current - Switching: | 0.3A |
| Voltage - Switching DC: | 50v |
| Voltage Rating: | 50v |
| Display Mode: | Full color |
| Current Rating (Amps): | 0.3A |
| Supplier Type: | Original manufacturer |
| Power - Rated: | 15w |
| Voltage - Supply: | / |
| Voltage: | 50v |
| Voltage Rating - AC: | / |
| Media Available: | datasheet,Photo,EDA/CAD Models |
| Features: | knob vertical DIP type customized |
| Operating Temperature: | / |
| Place of Origin: | Guangdong China |
| LED Color: | / |
| Color: | black and silver |
| Voltage - Switching AC: | NO |
| Salt Spray Test: | NSS 24H(Can be customized according to customer requirements |
| Material: | Nylon |
| Mounting Type: | Soldering |

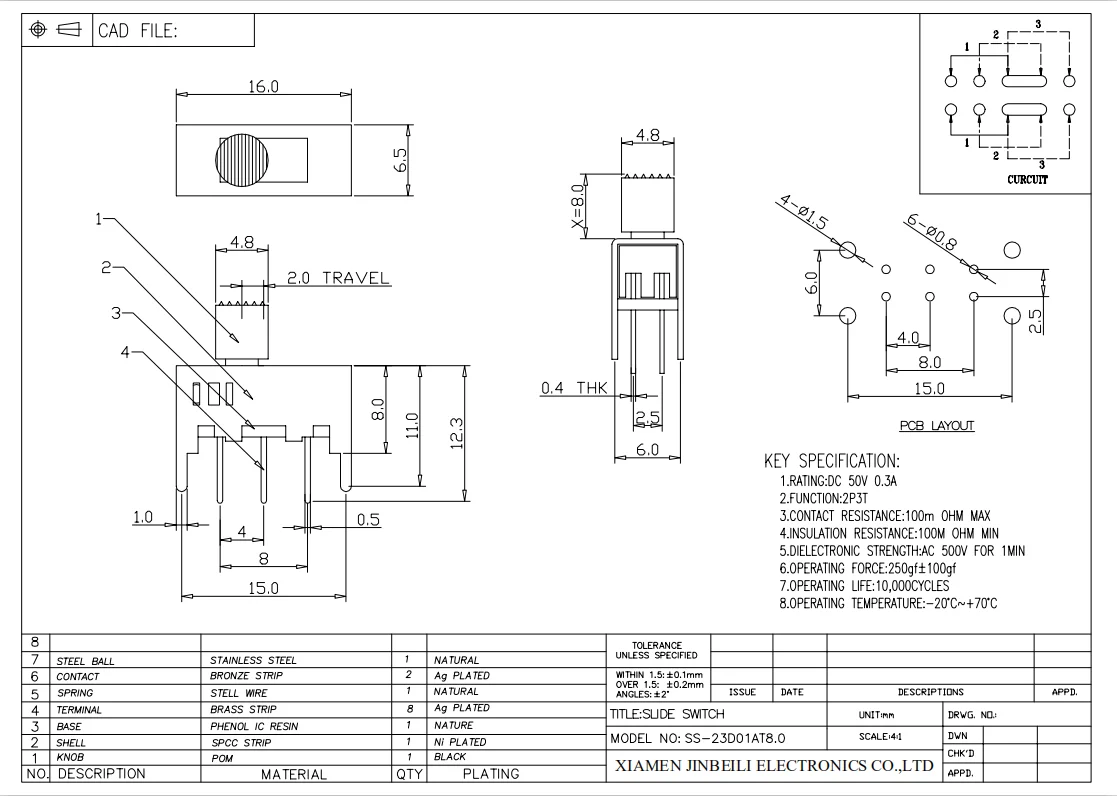

| Size / Dimension: | at the 2D picture |
| Model Number: | SS-23D01 |
| Rated Voltage: | 50V |
| Mounting Feature: | Back or Front of Panel |
| Illumination Voltage (Nominal): | NO |
| Brand: | slide switch |
| Brand Name: | JINBEILI |
| Voltage Rating - DC: | 50v |
| Type: | Switch Slide |
| Switch Function: | dip |
| Packaging: | NO |
| D/C: | SS-23D01 |
| MECHANICAL LIFE: | 100,000 cycles |
| Application: | flashlight |
| Packaging Detail: | T&R PACKING |
