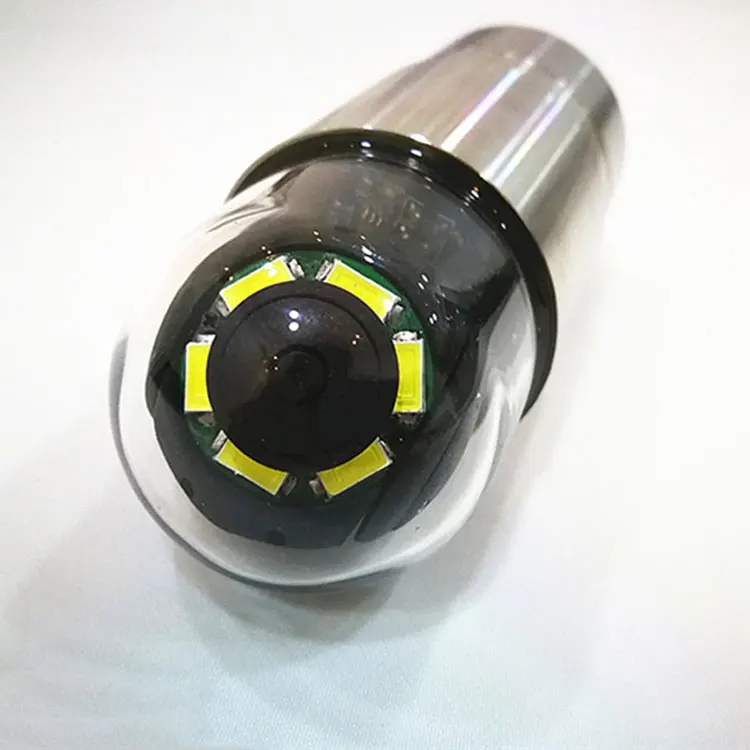

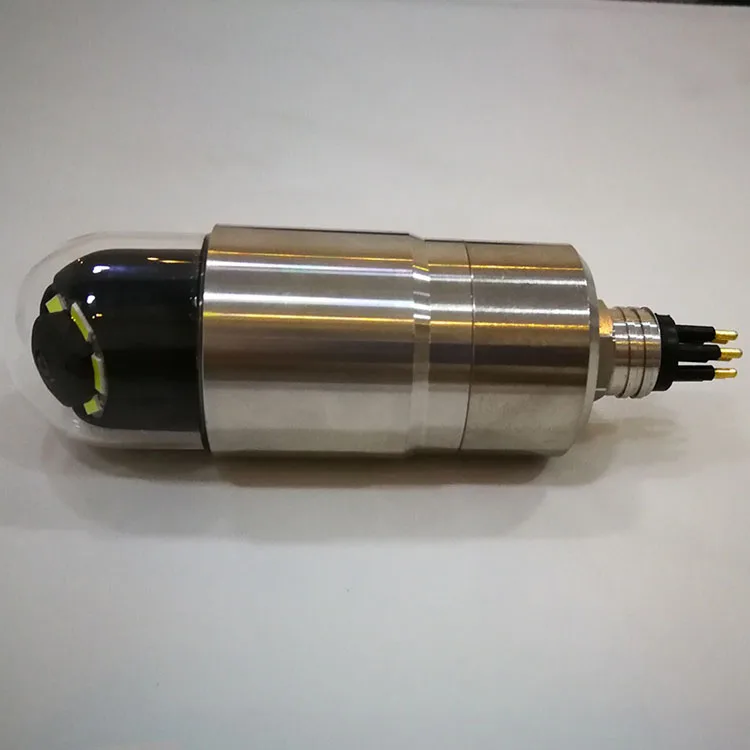

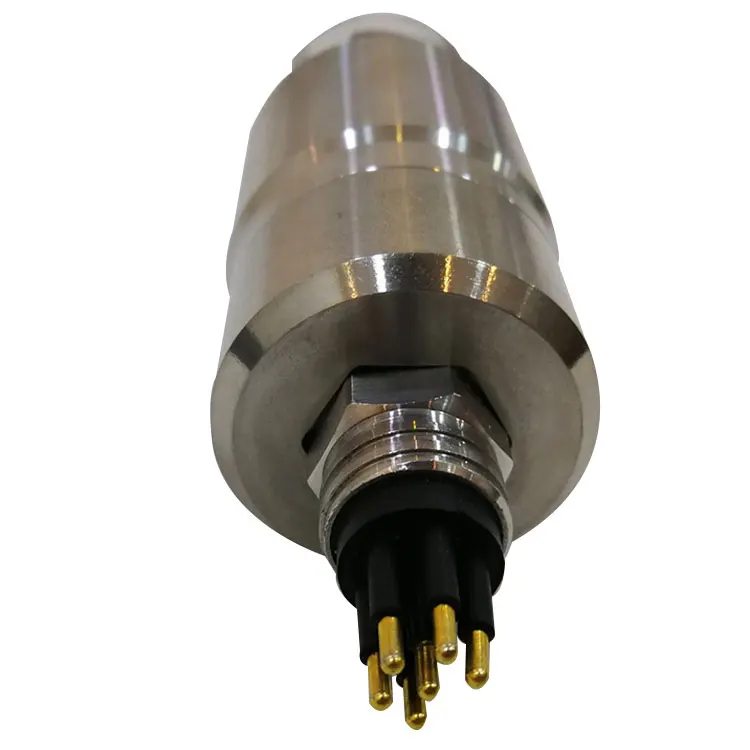

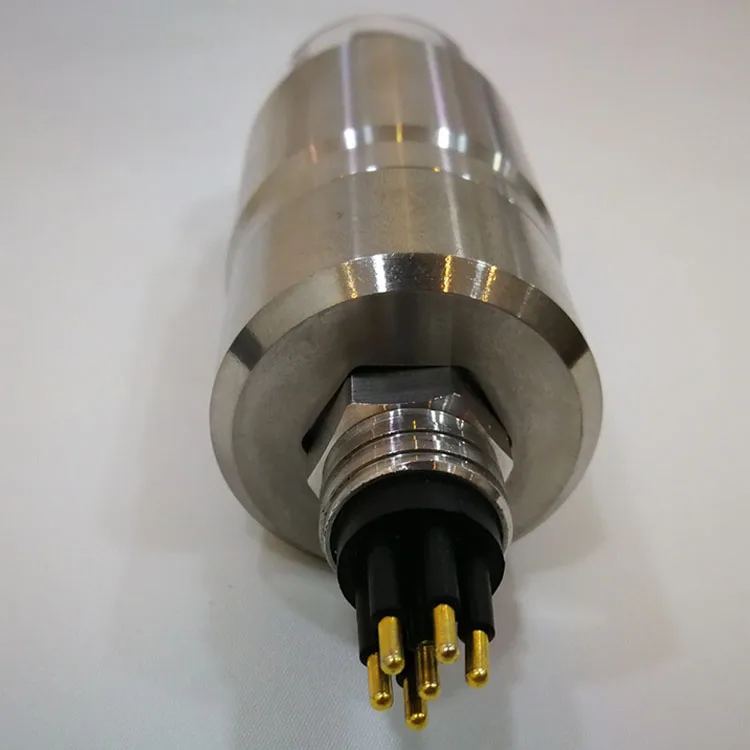

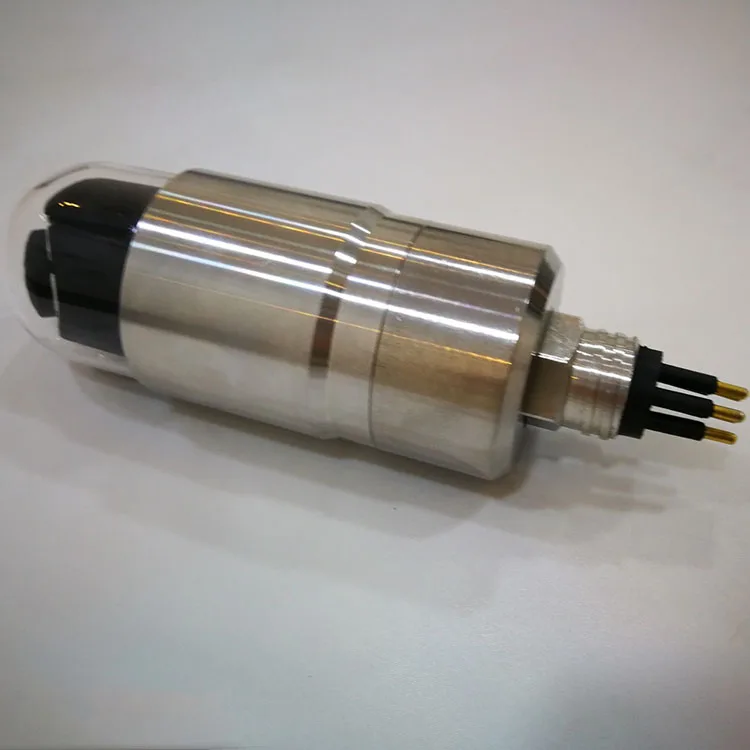

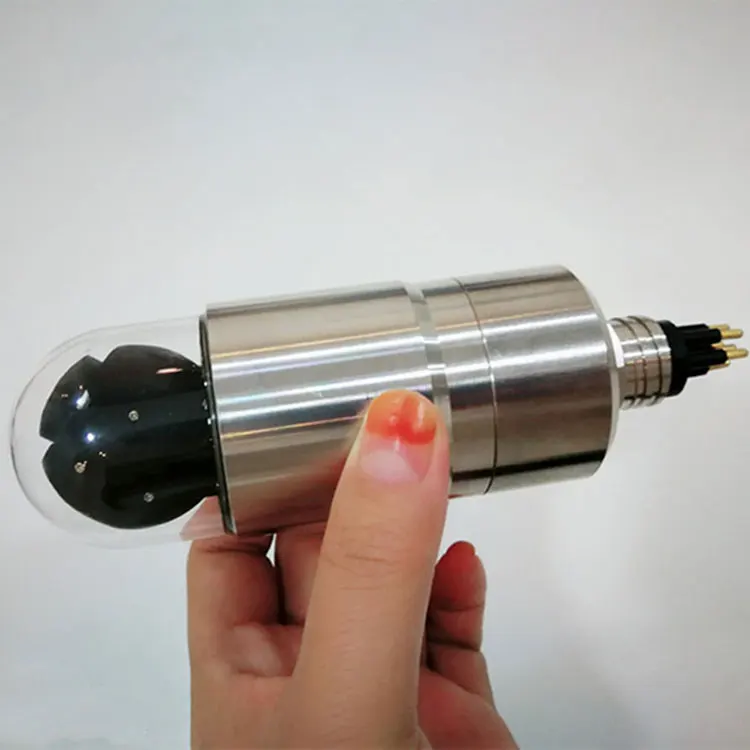

Hd microdrainpipe detection and inspection of underwater cameras
- Category: >>>
- Supplier: Shaanxi Granfoo Intelligent Technology Co. Ltd.
Share on (1600172171997):
Product Overview
Description
Model | GLF-UDC-MH360 |
Image sensor | 1/3“SONY EXview HAD COMS |
Resolution | 2.0 megixel |
Video format | PAL(Default)/ NTSC(Optional) |
S/N ratio | >52dB(Min)/ (AGC Off) |
Video output | 1.0Vp‐p composite video signal at 75 ohms |
Angles of view | Approx. 44°(D)& 34°(H) in Air |
Operating temperature | ‐15° / +55°(Recommended) |
Storage temperature | ‐40° / +80° |
Connector | Dedicated Underwater Slip Connector(OH: SUS316) |
Leading wire | 300mm(default, Optional), manual welding |
OH construction | Aluminium alloy housing ,End cap (SUS316),Hemispherical Dome(Optical PC/PMMA) |
Sealing material | O‐Ring+ Special Sealant(ROHS)+ PTFE sealing Film |
AWG | PTFE 22‐6.AWG |
Evaluation Control Board (ECB) | PN: GC01KK‐10S(Default) |
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
