undercarriage spare parts for excavator bulldozer
US $25.00-$150.00

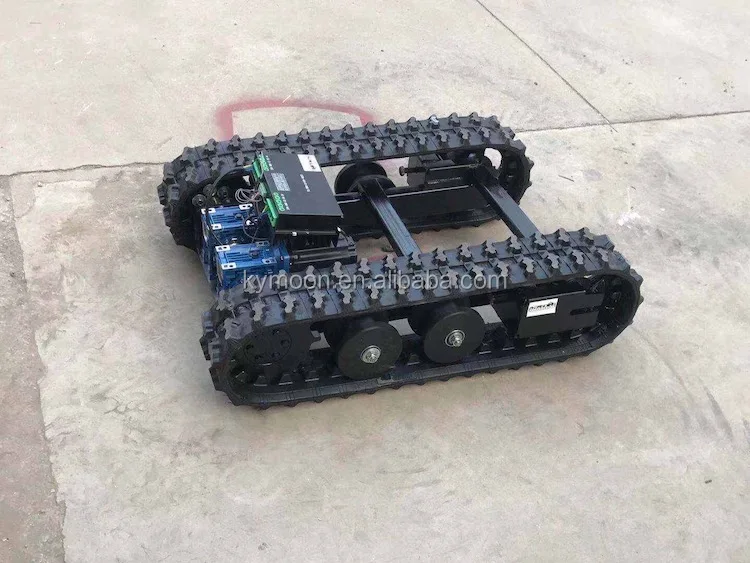

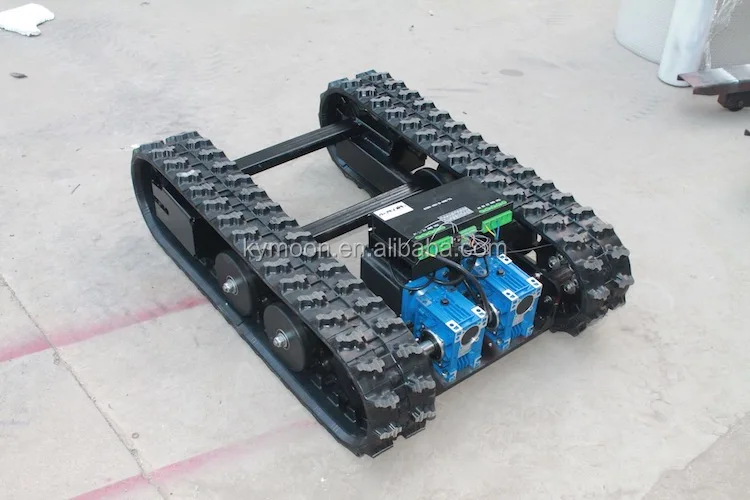

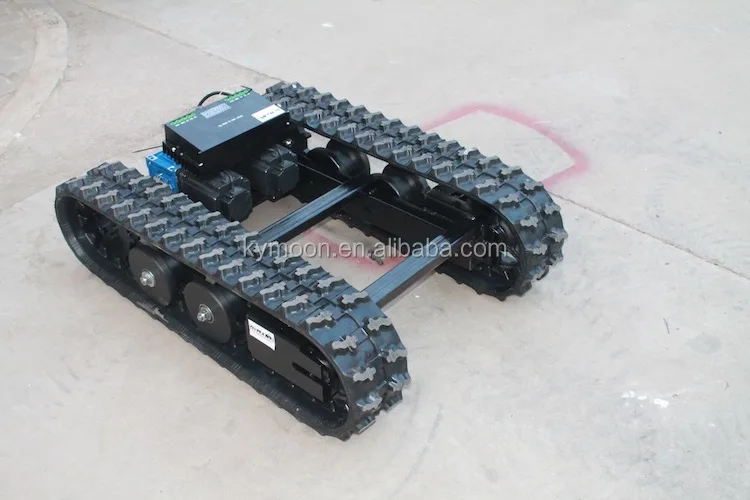

Tracked chassis robot Rubber crawler loading weight 50kgs -800KG Rubber Tracked Chassis Undercarriage
- Category: Construction Machinery Parts >>>
- Supplier: Shanghai,Kymoon,Rubber,Co.,Ltd.
Share on:
Product Overview
Description

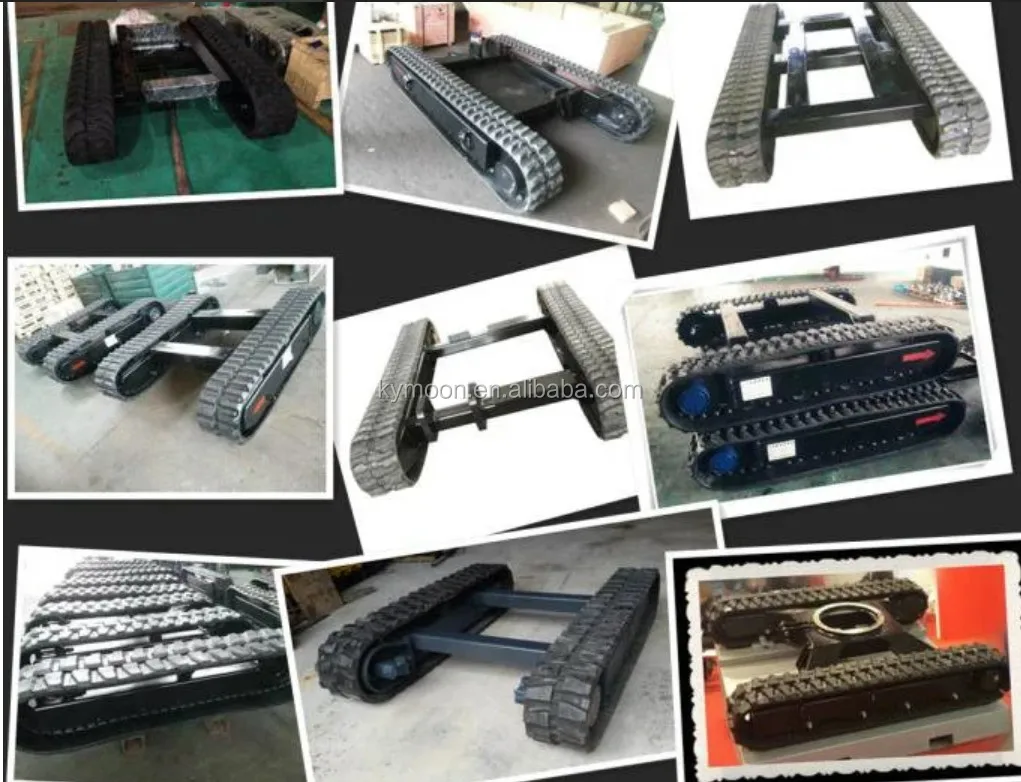

We have developed various tracked undercarriage systems and the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.If you are just in need to customize a rubber track chassis, please feel to consult us at any time.
Below is our small size, for big size,please kindly contact us
Small size rubber track undercarriage chassis platform | |||||||||
Model | Length | Width | Height | Sprocket Diameter | Rubber Track Model/Width | Rubber Track Link | Weight | Load-bearing Weight | Stent |
KCM-40 | 540mm | 545mm | 150mm | 140mm | 40/40mm | 27 | 26.5kg | 50kg | Aluminum Alloy Bracket |
KCM-50 | 810mm | 377mm | 165mm | 99mm | KCMDG-50/50mm | 75 | 50kg | 100kg | Stainless Steel Bracket |
KCM-76 | 940mm | 550mm | 210mm | 200mm | KCM-A/76mm/KCM-B/60mm | 138/84 | 24.15kg | 150kg | Aluminum Alloy Box |
KCM-100 | 700MM | 520MM | 240MM | 197MM | KCM-A/100mm | 40 | 95kg | 100kg | Aluminum Alloy Box |
KCM-70 | 590mm | 530mm | 250mm | 172mm | KCM-70/70mm | 28 | 17.85kg | 100kg |
|
KCM-70 | 800MM | 570MM | 300MM | 195.7MM | KCM-70/70mm | 43 | 44kg | 150kg | Aluminum Alloy Box |
KCM-70 | 1010MM | 540MM | 410MM | 195.7MM | KCM-70/70mm | 54 | 106kg | 150kg | Aluminum Alloy Box |
KCM-100 | 640mm | 520mm | 260mm | 212mm | KCM-A/ 100mm | 36 | 46kg | 75kg | Square Tube Bracket |
