PRODUCT TYPE | 5G CPE | MODEL: S552A | |
Interfaces | WAN/LAN port | 1* GE | |
LAN port | 1* GE | ||
WPS button | 1 | ||
Reset button | 1 | ||
DC port | 1 | ||
SIM port | 1(nano-SIM) | ||
Wi-Fi | Standard | Compliant with IEEE 802.11a/b/g/n/ac 2X2,MIMO | |
Speed | 1266 Mbps | ||
Frequency Band | 2.4GHz & 5GHz,Dual-band auto-selection | ||
Antenna | 4 * Internal Antennas | ||
5G Module | Work Model | 5G NR, LTE FDD/TDD, LAA, UMTS(WCDMA) | |
Work Band | 5G NR:n41/n77/n78/n79 LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE TDD: B34/B38/39/B40/B41/B42 LAA: B46 WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | ||
Data Rate | 5G SA Sub-6: DL MAX 3.3Gbps, UL MAX 250Mbps 5G NSA Sub-6: DL MAX 3.4Gbps, UL MAX 200Mbps LTE:DL MAX 2.0Gbps, UL MAX 150Mbps WCDMA: DL MAX 42Mbps,UL MAX 5.76Mbps | ||
Antenna | 8* Internal Antennas | ||
SOFTWARE | Support | Access Mode | PPPoE/Dynamic IP/Static IP/5G |
Management | Web Management | ||
Mobile App | Andorid & iOS | ||
Networking | IPv4 & IPv6 Dual Stack | ||
Security | Wireless Encryption | 64/128/152 bit WEP Encryption WPA-PSK/WPA2-PSK,WPA/WPA2 Security Mechanism | |
Authentication | CHAP, EAP | ||
OTHERS | Accessories | 1 * Power Adaptor | |
1 * Manual | |||
Device Parameter | Power Supply | Input 110~240VAC; Output 12VDC/1.5A | |
Power Consumption | <18W | ||
Size | 100mm(L)*100mm(W)*218mm(H) |

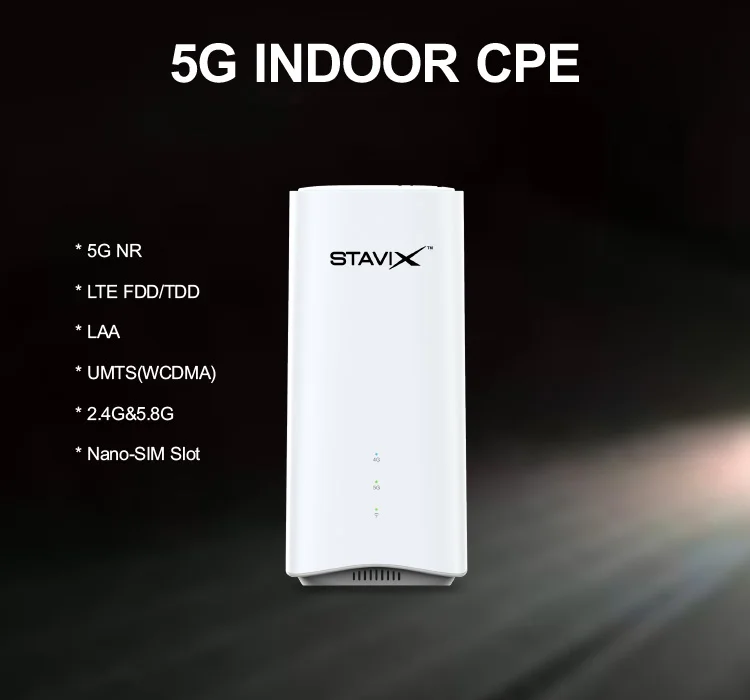

5G Module
5G Module offers you a better surfing experience.
Fast and Wi-Fi speed
Fast and reliable Wi-Fi speed which can reach up to 1200M
Nano SIM Card Slot
Nano SIM Card Slot provides a convenient and quick way to get onlineDual Band Auto-Selection
2.4GHz & 5GHz,Dual-band auto-selection
More intimate design
With a delicate white appearance design and built-in antennas, S552A 5G CPE router coordinates with any home style and easily blending into your home decor.
