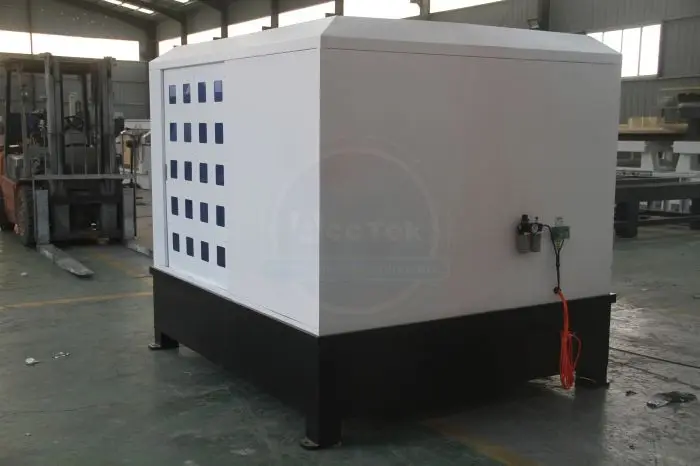

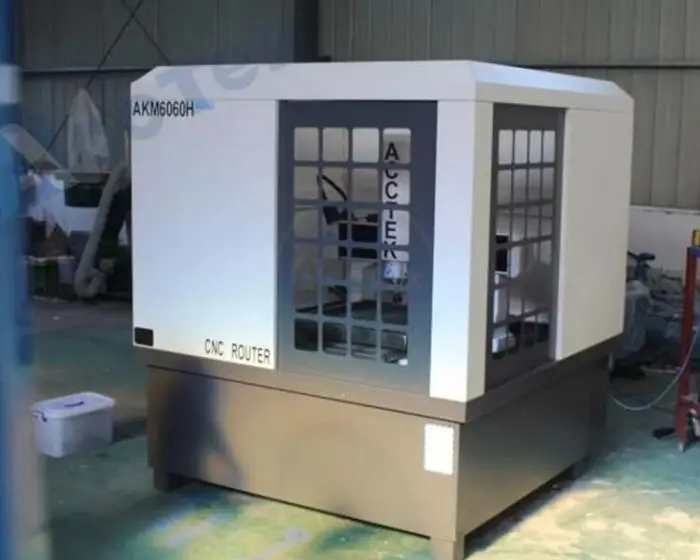

6060 Jinan Acctek CNC Metal cutter machine CNC Metal Engraver for Mould
- Category: >>>
- Supplier: Jinan AccTek Machinery Co. Ltd.
Share on (1600172348639):
Product Overview
Description
More details of 6060 Jinan Acctek CNC Metal Parts CNC Metal Engraver for Mould
Features about cnc router metal machine:
1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint, etc.
3.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’shigh-precision square linear guide, effectively imported the precision of carving.
4.Adopt high-speed water cooling motor with invariably power, big torque, strong cutting, high-frequency and long-life.
5.Available for continuous work for a long time.
Stand Configurations of 6060 Jinan Acctek CNC Metal Parts CNC Metal Engraver for Mould
Spindle of cnc router for metal
This machine use 3.2kw water cooling spindle special for metal. It use ER20 collet. And the speed is 12000-24000rpm.
This machine use 3.2kw water cooling spindle special for metal. It use ER20 collet. And the speed is 12000-24000rpm.
Mach3 controller,cheaper and easy to operate
or you can choose to DSP or Syntec controller system
Control cabinet
It includes Leadshine drivers, Mach3 control board, filter, power supply.
It includes Leadshine drivers, Mach3 control board, filter, power supply.
Machine accessories
Specification
Description | Parameter |
X,Y Working Area | 600*600*200mm |
Z Working Area | 200mm |
Table Size | 600*600mm |
Resolution | 0.01mm |
Lathe Structure | Semi-closed Heavy duty Steel Structure, table moving |
X,Y Structure | Y, X axis are TBI ball screw transmission, Taiwan 20mm square guide rails |
Z Structure | Z axis is TBI ball screw transmission, Taiwan 20mm square guide rails |
Spindle | 3.2kw |
Spindle Speed | 0-24000r/min, variable speed |
Working Voltage | AC220V,1PH or 380V,3PH, 50/60Hz |
Motor and driver | Stepper motor and drivers |
Working Mode | Leadshine Stepper |
Command | G code (HPGL,U00,mmg,plt) |
Compatible Software | Ucancam/Type3/Artcam/Artcut etc |
Operating System | Mach3 |
Diameter of Cutter | φ3.175-φ12.7 |
Cooling Mode | water-cooling |
Work Holding | T-slot table |
Net Weight | 500KG |
Optional
Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Application samples of 6060 Jinan Acctek CNC Metal Parts CNC Metal Engraver for Mould

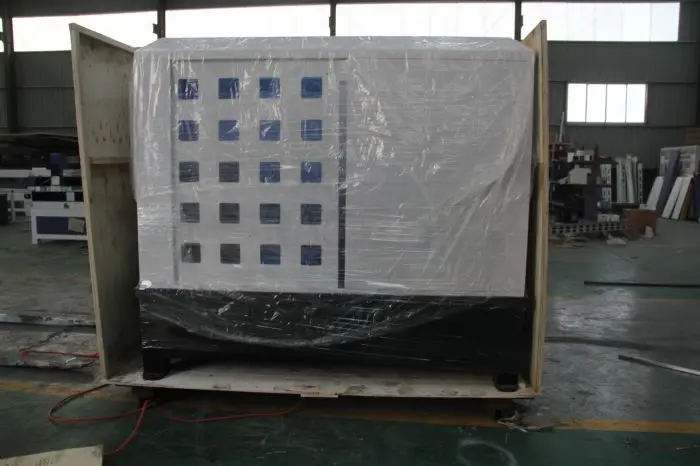

Payment &Delivery
