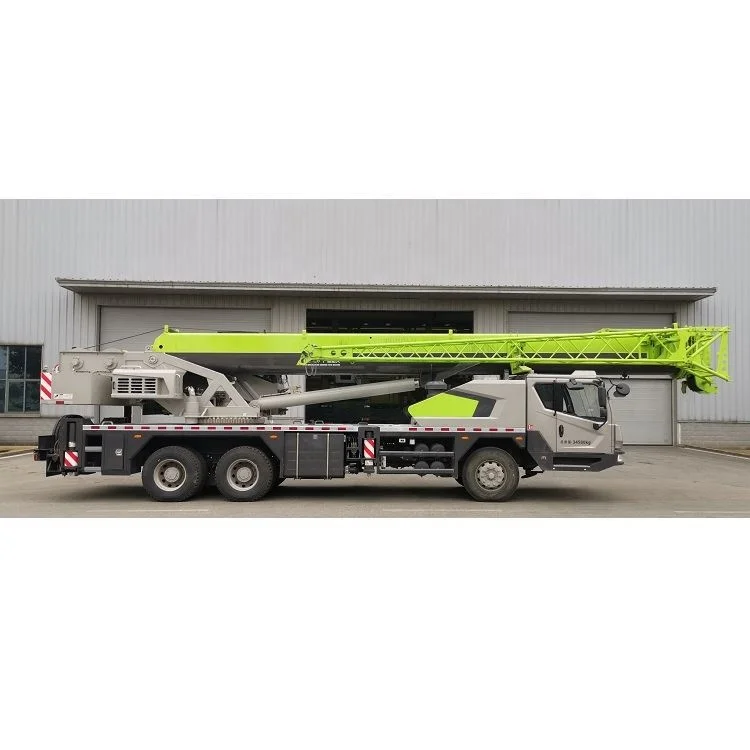

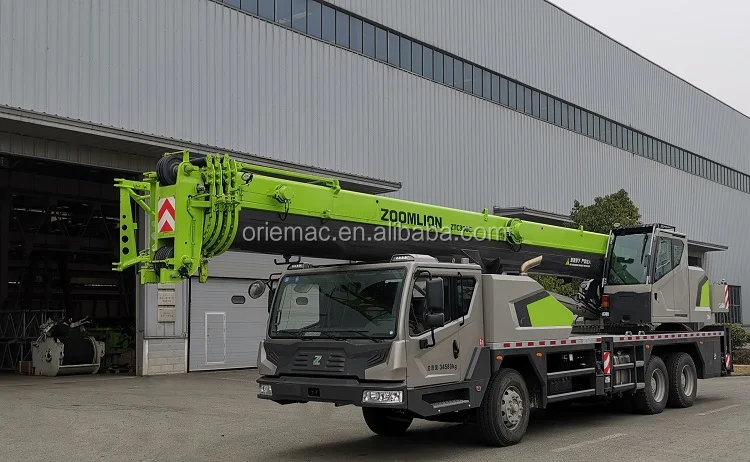

30 ton Hydraulic truck crane ZTC300E552 ZOOMLION Mobile Crane
200 ton chinese truck crane terrain crane track mounted crane
Full-width cab,
LHD,
3-axle,
WEICHAI engine WP8.320E51 235kW,
5-section U-shaped boom(11.2-44.0m),
1-section jib (8m),
Independent two winches,
chassis and up cab cool and heat A/C,
Single-stage outrigger, double-sided operation,
Plunger pump hydraulic system, hydraulic control operation,
6.5ton fixed counterweight,
Acousto-optic alarm lamp, slewing monitor system and parking camera,
The cab is allowed to drive 2 people.
| ZTC300E552 | |||
| Item | Unit | Value | |
| Working performance | Max. rated lifting capacity | kg | 30000 |
| Max. load moment of basic boom | kN.m | ||
| Max. load moment of main boom(fully extended) | kN.m | ||
| Max. lifting height of basic boom | m | ||
| Max. lifting height of main boom | m | ||
| Max. lifting height of jib | m | ||
| Working speeds | Max. hoist rope speed(Main winch) | m/min | 135 |
| Max. hoist rope speed(Auxiliary winch) | m/min | 120 | |
| Boom demrricking up time | s | 35 | |
| Boom telescoping out time | s | 80 | |
| Slewing speed | r/min | 0-2.7 | |
| Driving parameters | Max. height above sea level | m | |
| Max. driving speed | km/h | 80 | |
| Max. gradeability | % | 40 | |
| Min. turning diameter | m | 21 | |
| Min. ground clearance | mm | 260 | |
| Oil consumption per hundred kilometers | L | ||
| Mass | Deadweight in driving condition | kg | 34580 |
| Complete vehicle kerb mass | kg | ||
| Front axle load | kg | ||
| Rear axle load | kg | ||
| Engine | Engine model | WP8.320E51 | |
| Rated power | kW | 228/rpm | |
| Dimensions | Overall dimensions(L×W×H) | mm | |
| Outrigger spread(L) | m | ||
| Outrigger spread(W) | m | ||
| Tail slewing radius | mm | ||
| Main boom length | m | 11.2-44 | |
| Boom angle | ° | ||
| jib length | m | 8 | |
| Offset | ° | 0 15 30 | |
