New Design Single Head Liquid Soap And Shampoo Automatic Filling Machine Price High Volume Filler
- Category: >>>
- Supplier: Guangzhou ABCDPACK Machine Co. Ltd.
Share on (1600173019232):
Product Overview
Description
Product Overview

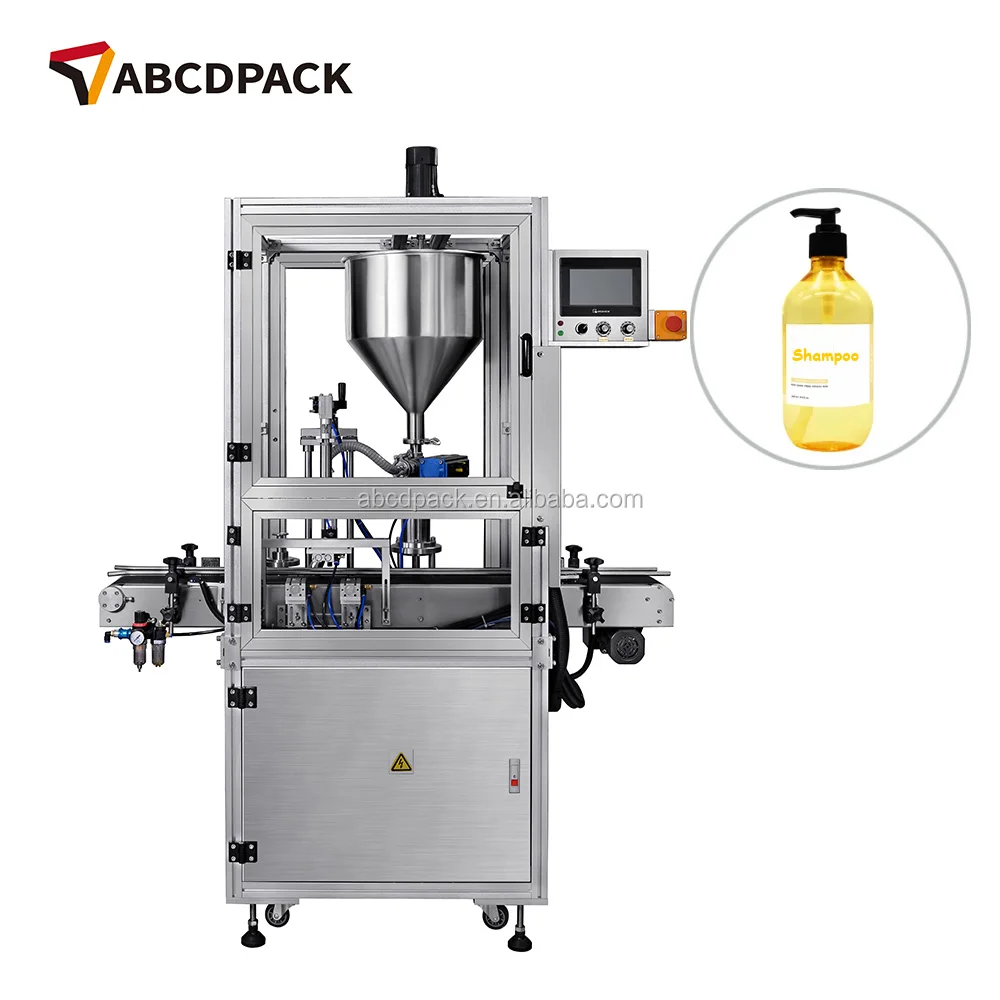

New Design Single Head Liquid Soap And Shampoo Automatic Filling Machine Price High Volume Filler
Application
New Design Single Head Liquid Soap And Shampoo Automatic Filling Machine Price High Volume Filler is widely applied for gel, jam, honey, oil, shampoo, skin cream and so on.
Products Specifications
How It Works:

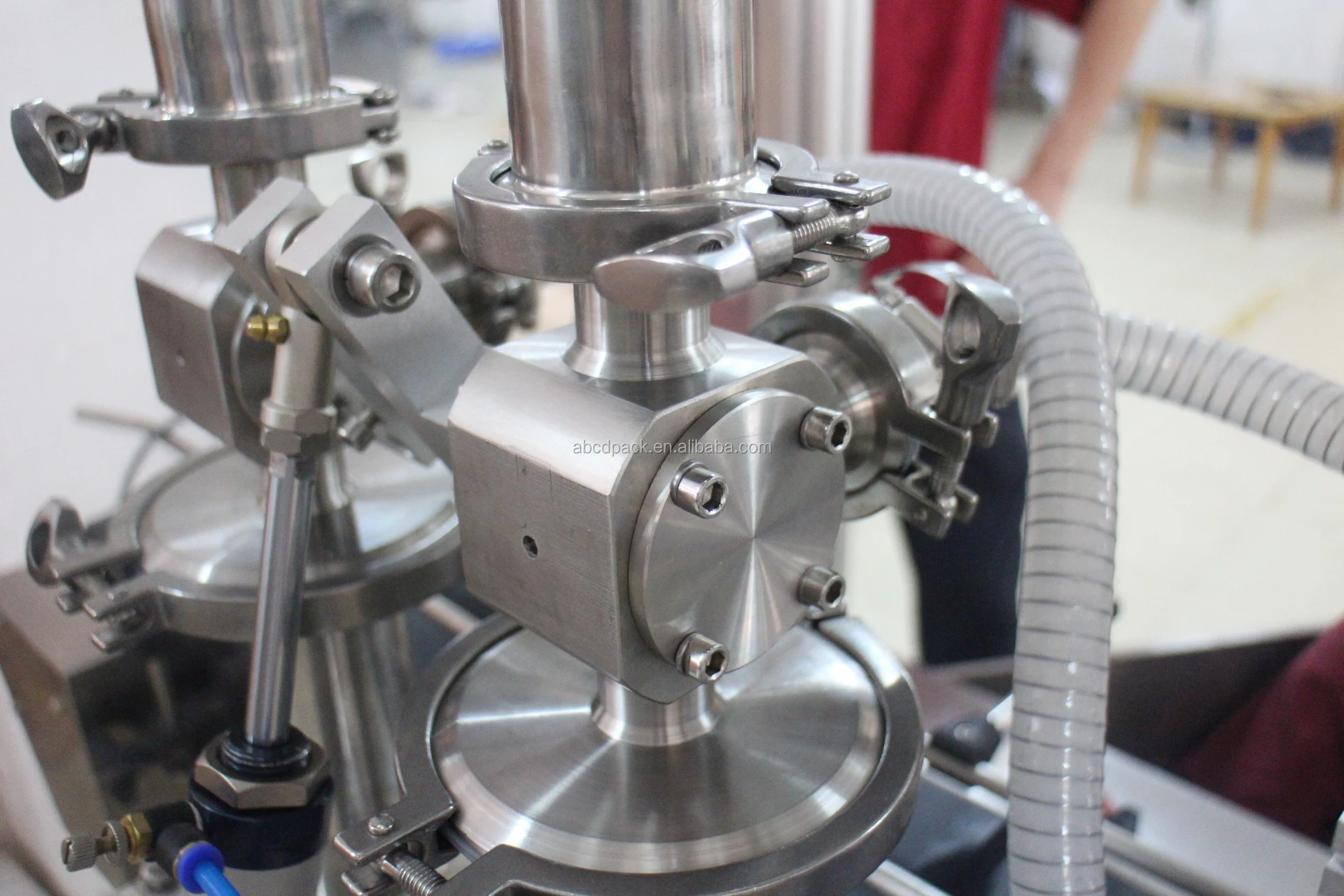

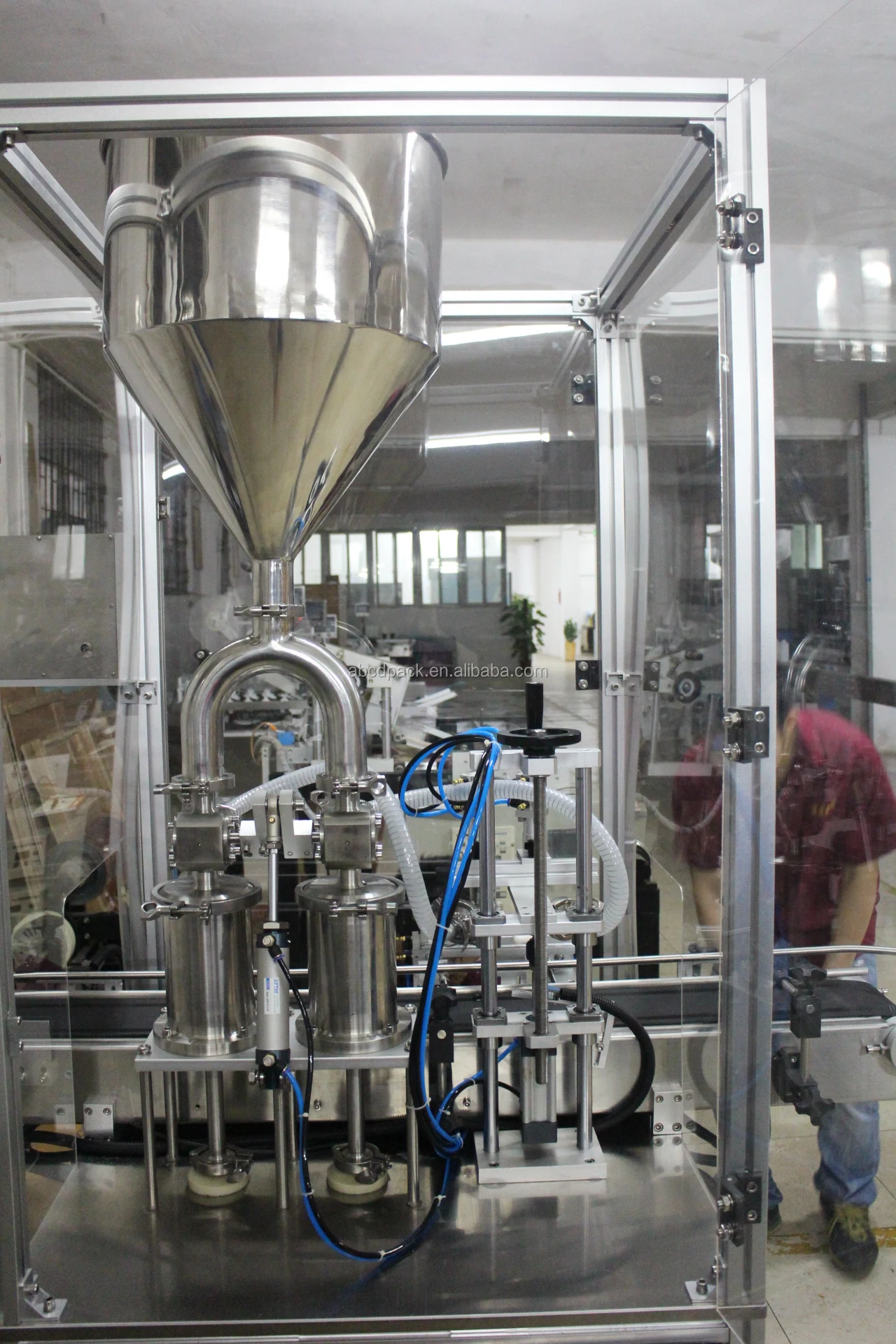

The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.
Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particulates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
Examples:

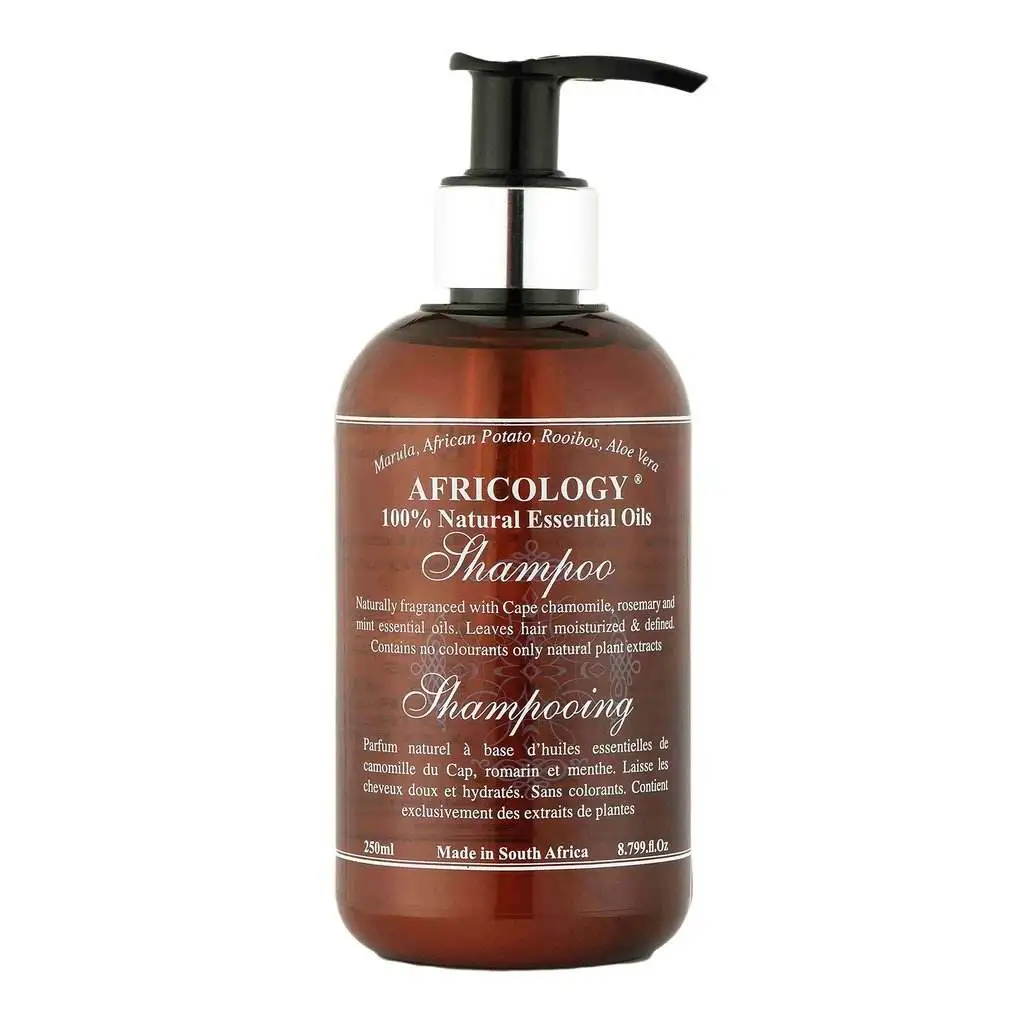

Light oils like olive oil, baby oil, and also shampoo. Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.
Advantages:
For most users, this low-cost traditional technology is easy to understand and operate. Fast fill rates are achievable with fairly thick products.
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.
Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particulates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
Examples:
Light oils like olive oil, baby oil, and also shampoo. Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.
Advantages:
For most users, this low-cost traditional technology is easy to understand and operate. Fast fill rates are achievable with fairly thick products.
Data sheets | Details |
Name and model | AXGZ-SG-1B Computer piston filling machine |
Max filling speed | filling 200ml, 500~900pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property |
Applicable bottle diameter size | Φ20≤D≤Φ100mm |
Applicable bottle height size | 30≤H≤200mm |
Filling accuracy | ±1% |
Filling dose | 100~1000ml |
Voltage | AC220V, single phase, 50/60HZ |
Power | 500W |
Working pressure | 0.6MP |
Air consumption | 1200L one hour |
Net/gross weight | 100/150Kgs |
Machine size(L*W*H) | 1500*800*1800mm |
Machine direction | from left to right |
Operation process | put products on conveyer—>Block bottles—> sensor count the empty bottles—> 1 bottle come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles |
Main construction and electrical products | ||
Object sensor | Keyence or Autonics or similar brand sensor | |

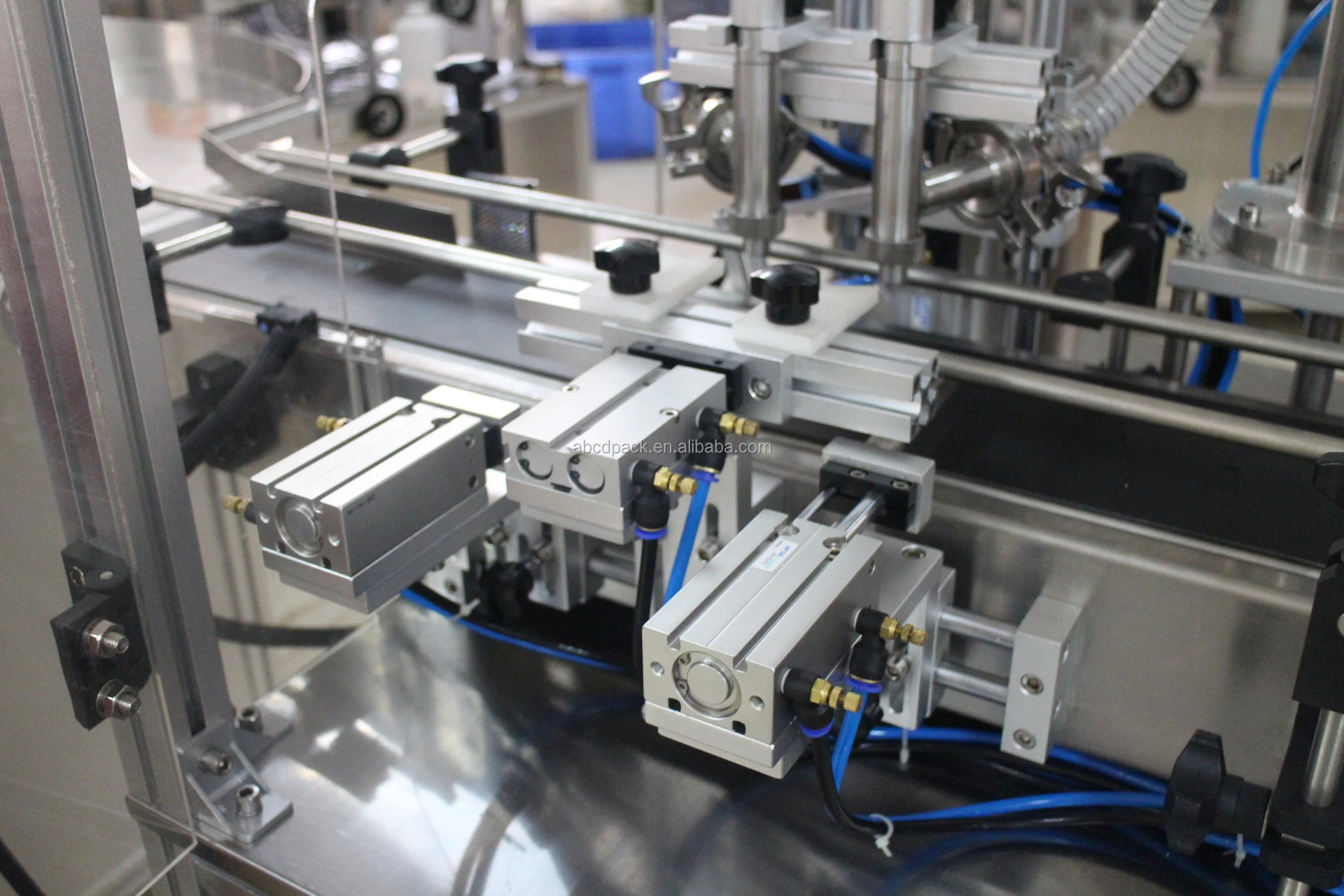

Cylinders | Airtac or similar china brand model | |
PLC | Siemens | |
Display | Siemens or Samkoon | |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inside support machine frame is painted steel | |
Standard adopt SUS304 stainless steel, or upgrade into SUS316L stainless steel or plastic non-metal parts according order | ||
Production Process
Successful Project&Feedback
Packing & Delivery
Packaging Details:
Filling machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we also can pack it according to clients' requirements.Port: Guangzhou
Lead Time : 30 working days after payment.
