High quality factory price list 380V 3 phase 160KW AC built in bypass contactor motor soft starter
- Category: Power Supplies >>>
- Supplier: Zhejiang,Chuanken,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

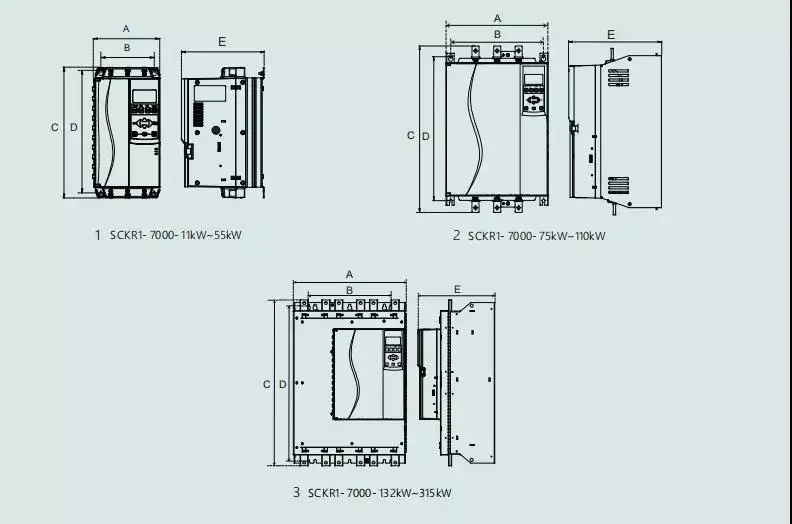

Model | Overall dimension(mm) | Install dimension(mm) | Drawing | ||||||||
A | C | E | B | D | d | ||||||
5.5KW-55KW | 152 | 292 | 215 | 92 | 269 | M6 | 1 | ||||
75KW-110KW | 274 | 408 | 260 | 160 | 385 | M8 | 2 | ||||
132KW-315KW | 440 | 530 | 290 | 320 | 530 | M8 | 3 | ||||
Model | Star connection method | Rated current of delta connection method |
SCKR1-7000-5.5-Z | 11A | 16A |
SCKR1-7000-7. 5-Z | 15A | 22A |
SCKR1-7000-011-Z | 23A | 34A |
SCKR1-7000-015-Z | 30A | 44A |
SCKR1-7000-018-Z | 37A | 55A |
SCKR1 -7000-022-Z | 45A | 67A |
SCKR1-7000-030-Z | 60A | 89A |
SCKR1-7000-037-Z | 75A | 111A |
SCKR1-7000-045-Z | 90A | 133A |
SCKR1-7000-055-Z | 110A | 163A |
SCKR1-7000-075-Z | 150A | 222A |
SCKR1-7000-090-Z | 180A | 266A |
SCKR1-7000-110-Z | 220A | 325A |
SCKR1-7000-132-Z | 255A | 377A |
SCKR1-7000- 160-Z | 320A | 474A |
SCKR1 -7000-185-Z | 370A | 548A |
SCKR1-7000-200-Z | 400A | 592A |
SCKR1-7000-220-Z | 425A | 629A |
SCKR1 -7000-250-Z | 500A | 740A |
SCKR1-7000-280-Z | 560A | 829A |
SCKR1-7000-320-Z | 630A | 932A |
SCKR1 -7000-350-Z | 700A | 1036A |
SCKR1-7000- 400-Z | 800A | 1184A |
SCKR1-7000-450-Z | 900A | 1332A |
SCKR1-7000-500-Z | 1000A | 1480A |
Feature List
*Optional soft start curve: 1.Adaptive control 2.constant current 3.Current ramp
*Optional soft stop curve: 1.Taxi stop 2. Timed voltage ramp soft stop 3.Adaptive control 4.Brake
*Extended input and output options: 1.Remote control input(3 fixed input,2 programmable inputs) 2.Relay output (1 output, 3
programmable outputs) 3.Analog output 4.Built-in PT100 RTD input 5.Optional expansion card

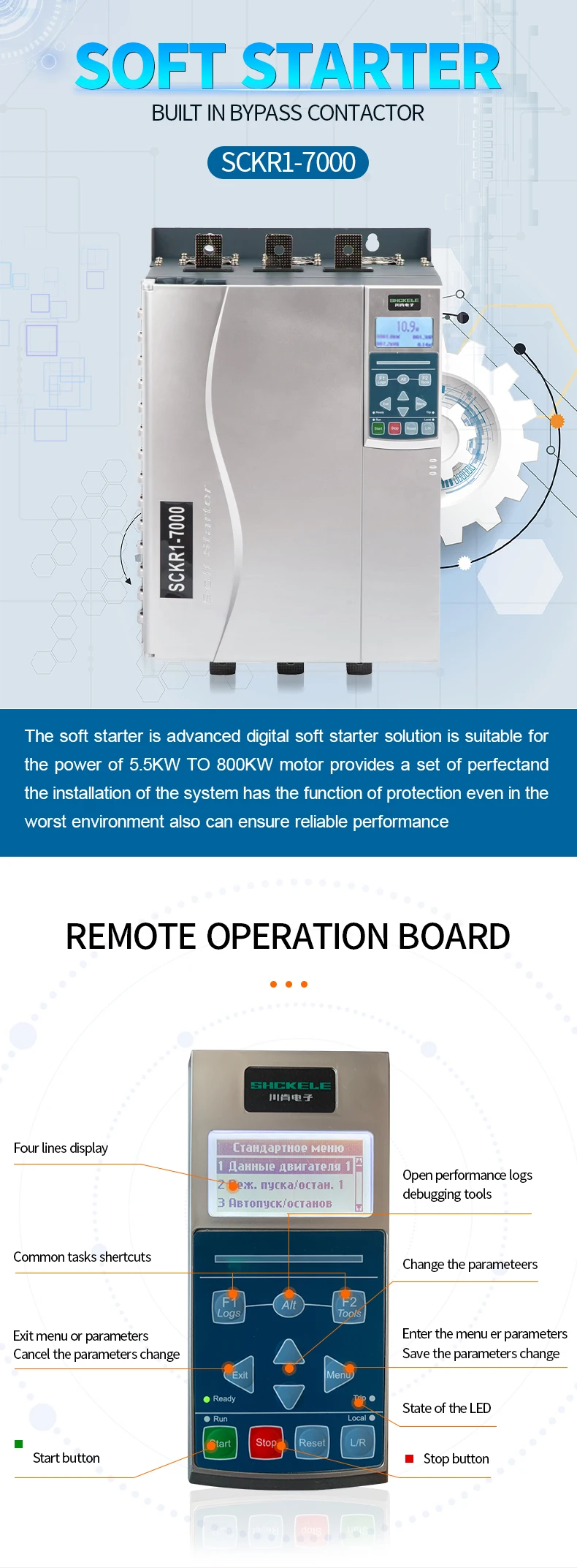

*Easy-to-read display shows comprehensive feedback: 1.Removable operation panel 2.Multilingual feedback 3.Event record with date
and times stamp 4.Performance monitoring(current,voltage,power factor,kilowatt hours) 5.User-programmable ,monitoring screen

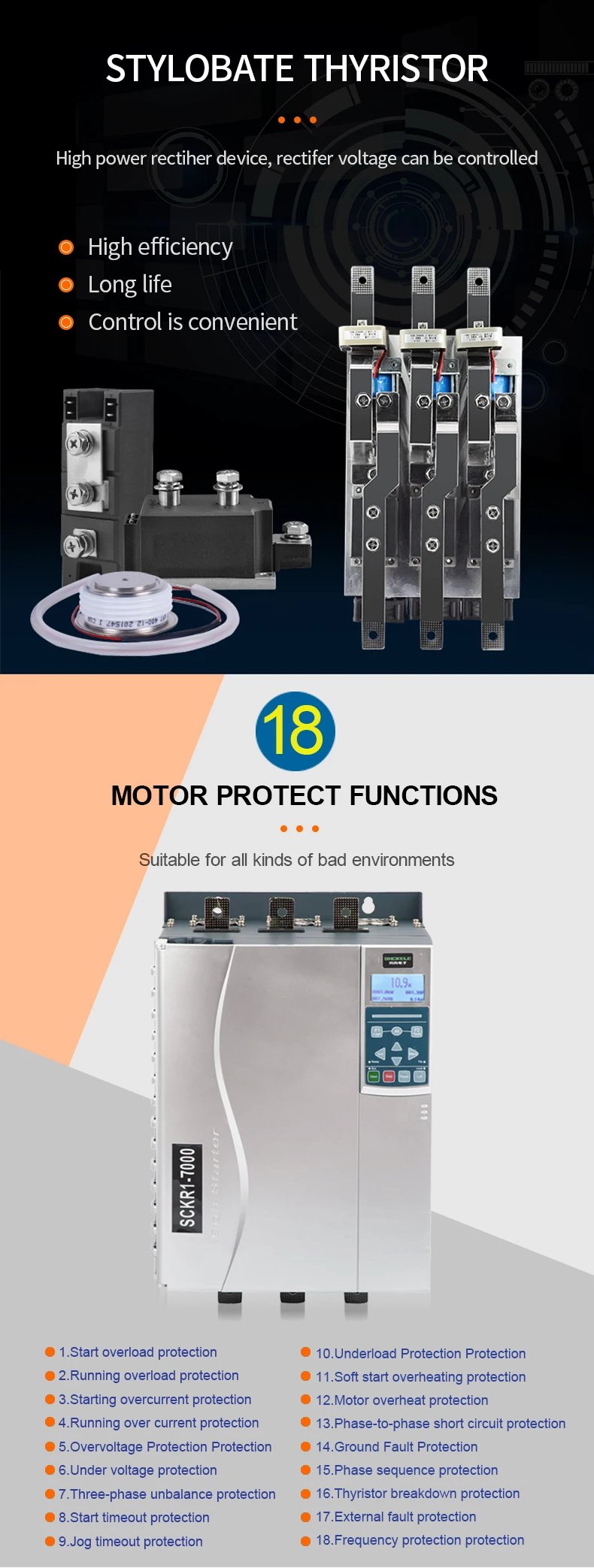

*Customizable protection: 1.Motor overload 2.start-up timeout 3.Under current 4.Transient over current 5.Current imbalance 6.Power
frequency 7.Input trip 8.Motor thermistor 9.Power circuit 10.Phase sequence
*Models that meet all your connectivity needs: 1. 23A-1600A(rated) 2.T5,200VAC-525VAC 3. T7,380VAC-690VAC 4. Internal bypass
selection. 5.Star connection or delta connection
*Advanced application optional features: 1.Input/output extension 2.RTD and ground fault protection
3.DeviceNet,Modbus,Profibus,Ethernet IP,Modbus TCP,Profinet)or USB communication module
*Optional soft stop curve: 1.Taxi stop 2. Timed voltage ramp soft stop 3.Adaptive control 4.Brake
*Extended input and output options: 1.Remote control input(3 fixed input,2 programmable inputs) 2.Relay output (1 output, 3
programmable outputs) 3.Analog output 4.Built-in PT100 RTD input 5.Optional expansion card
*Easy-to-read display shows comprehensive feedback: 1.Removable operation panel 2.Multilingual feedback 3.Event record with date
and times stamp 4.Performance monitoring(current,voltage,power factor,kilowatt hours) 5.User-programmable ,monitoring screen
*Customizable protection: 1.Motor overload 2.start-up timeout 3.Under current 4.Transient over current 5.Current imbalance 6.Power
frequency 7.Input trip 8.Motor thermistor 9.Power circuit 10.Phase sequence
*Models that meet all your connectivity needs: 1. 23A-1600A(rated) 2.T5,200VAC-525VAC 3. T7,380VAC-690VAC 4. Internal bypass
selection. 5.Star connection or delta connection
*Advanced application optional features: 1.Input/output extension 2.RTD and ground fault protection
3.DeviceNet,Modbus,Profibus,Ethernet IP,Modbus TCP,Profinet)or USB communication module
Product packaging

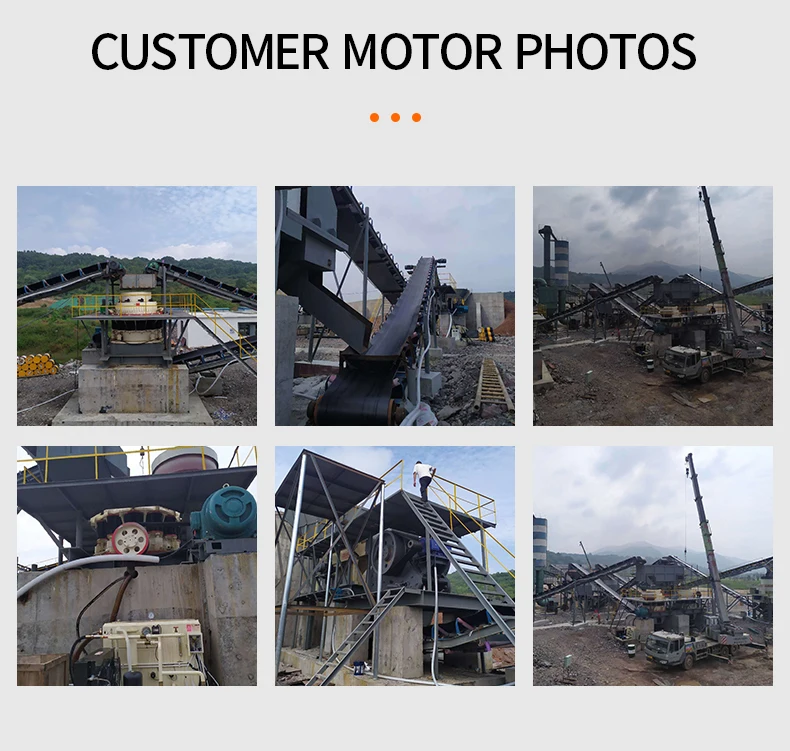

Customer Photos
Certifications
FAQ
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost
What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.
How to pay it?
You can pay it to Alibaba,Paypal,bank.
How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost
What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.
How to pay it?
You can pay it to Alibaba,Paypal,bank.
How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
