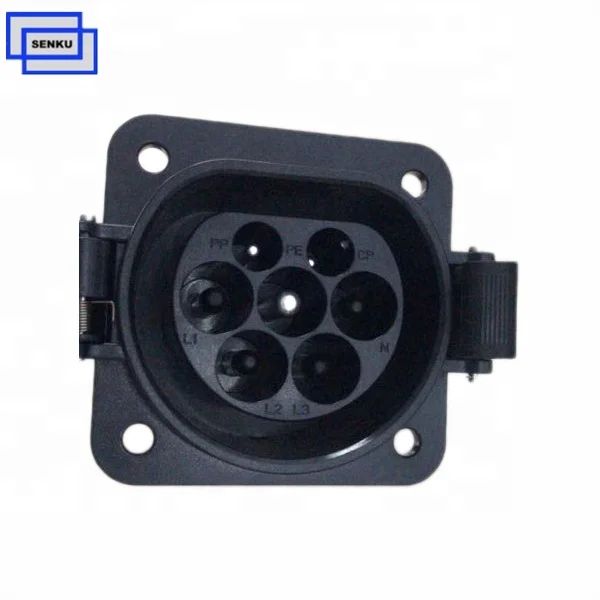

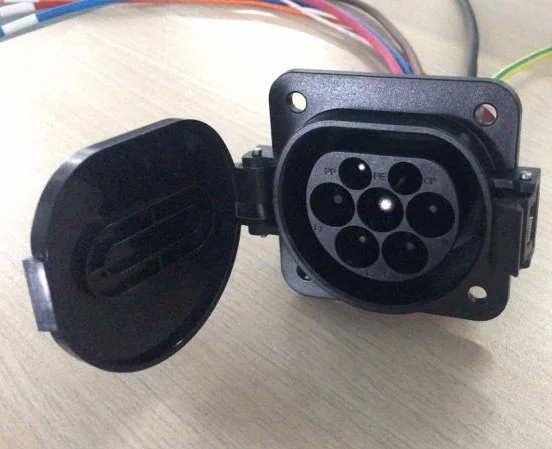

Iec 16196 Type 2 Male Socket 16A 32A Fast Charge EV Charging Inlet
- Category: >>>
- Supplier: Chongqing Senku Machinery Imp And Exp Co. Ltd
Share on (1600173228014):
Product Overview
Description
Specification
AC input current | 32A |
AC input voltage | 480VAC |
Insulation resistance | >1000MΩ (DC500V) |
Terminal temperature rise. | <50K |
Contact Resistance | 0.5m Ω Max |
Withstand Voltage | 2000V |
Mechianical life | no-load plug in / plug out > 10000 times |
Coupled insertion force | >45N<80N |
Impact of external force | can offord 1m drop test and 2T vehicle run over pressure |
Case Material | Thermoplastic, Flame retardant grade UL94-0 |
Contact Pins | Cooper alloy+ thermoplastic on the top |
Standards | Meet the IEC62196 ; CE TUV ROHS Certificated |
Operation Temp. | -30℃ ~ + 50℃ |
IP protection class | IP 55 ( working condition) |

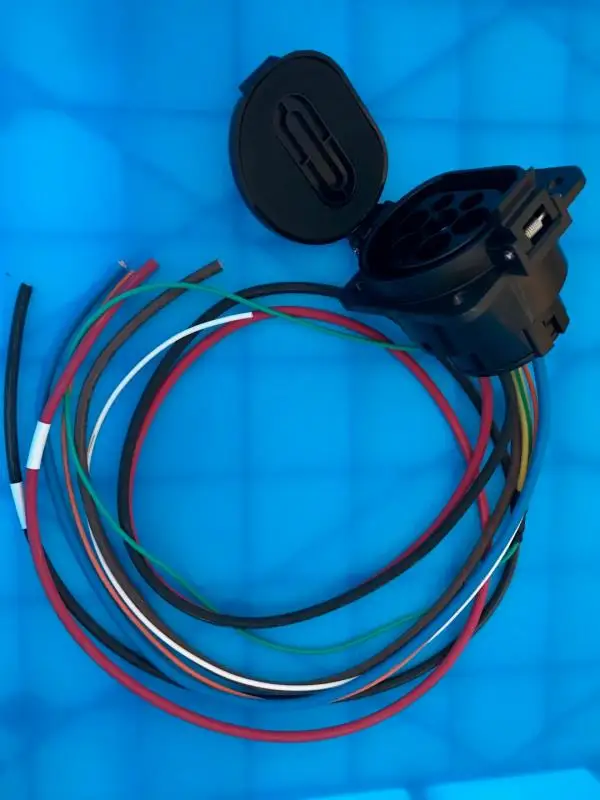

Cable Length | Customized |

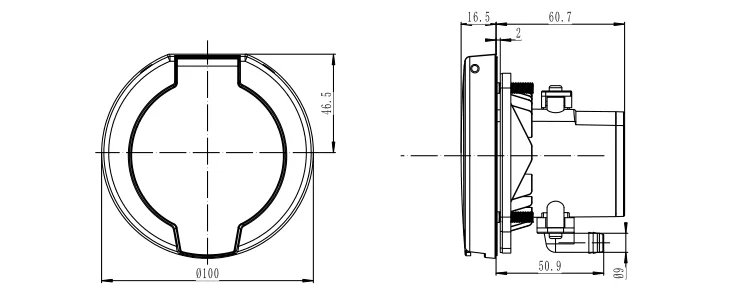

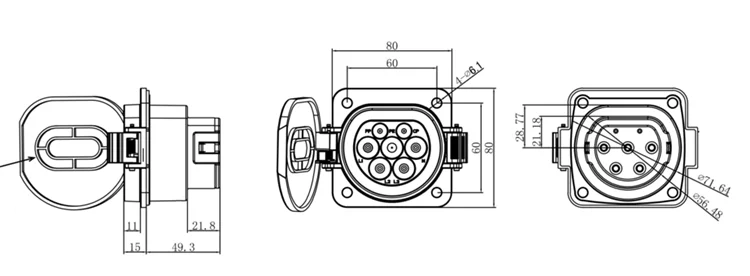

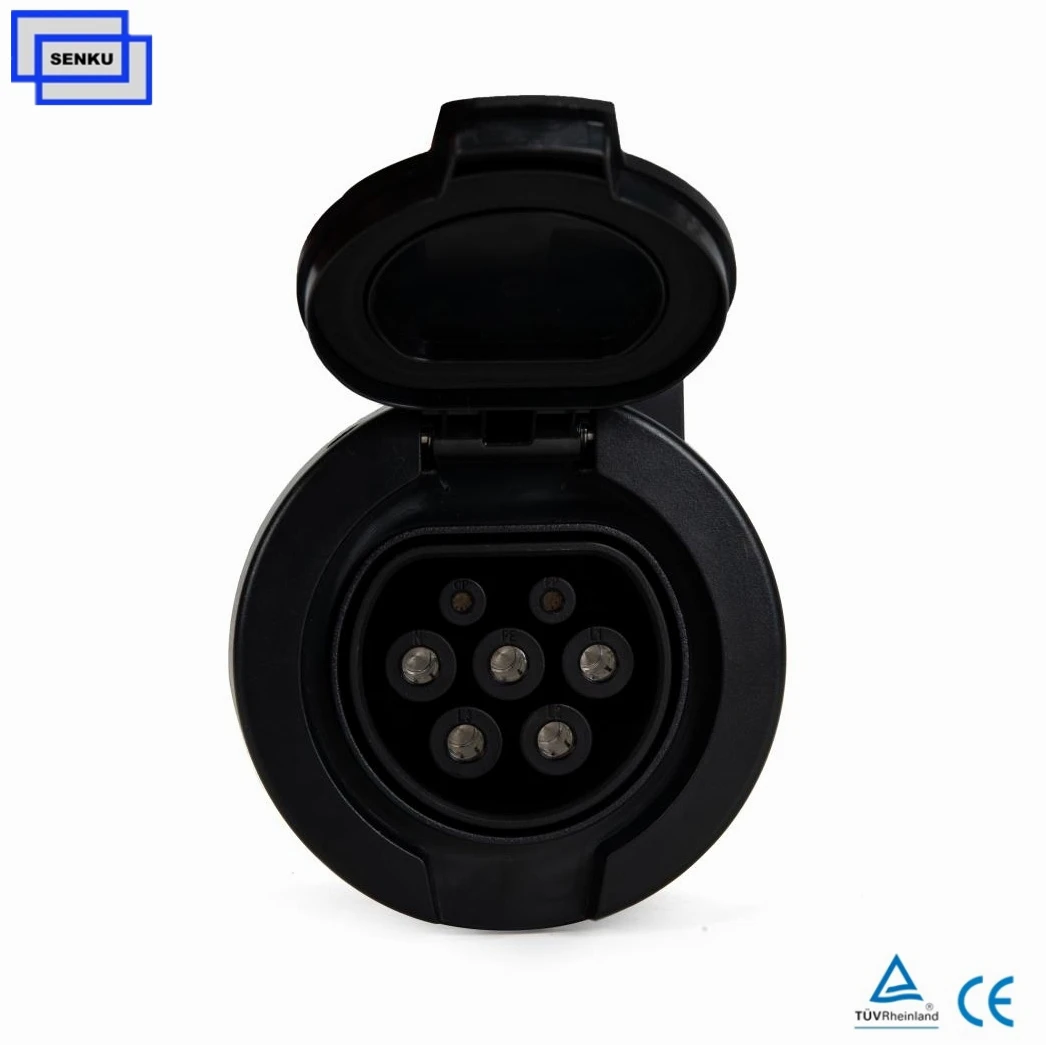

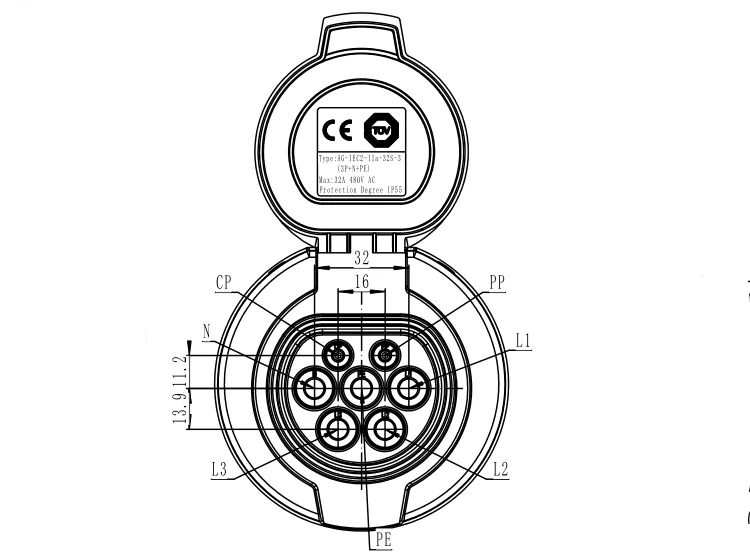

Details Images
Company Profile
FAQ
Q1. What is the MIN Order Quantity?
A: MOQ is 1pc.
Q2: Do you have other ev charging inlet option?
A: Yes, we have type2, type1, CCS2, CCS1, CHADEMO, GB/T EV inlet for option, please tell us which model you prefer.
Q3: Can I buy ev socket only? I don't need cable。
A: Yes, sure.
Q4: What shipping method you use？
A: For order quantity lower than 50 pcs, we usually shipping by air or express.
For order quantity above 50pcs, we usually shipping by sea.
Q5: Can I use the type2 AC Charging plug with this socket？
A: Yes, the ccs2 ev socket is a AC & DC input socket, it can work with AC type2 and DC CCS2 plug.
Q6: Do you have any other EV Inlet socket?
Yes, see the following recommend products.
