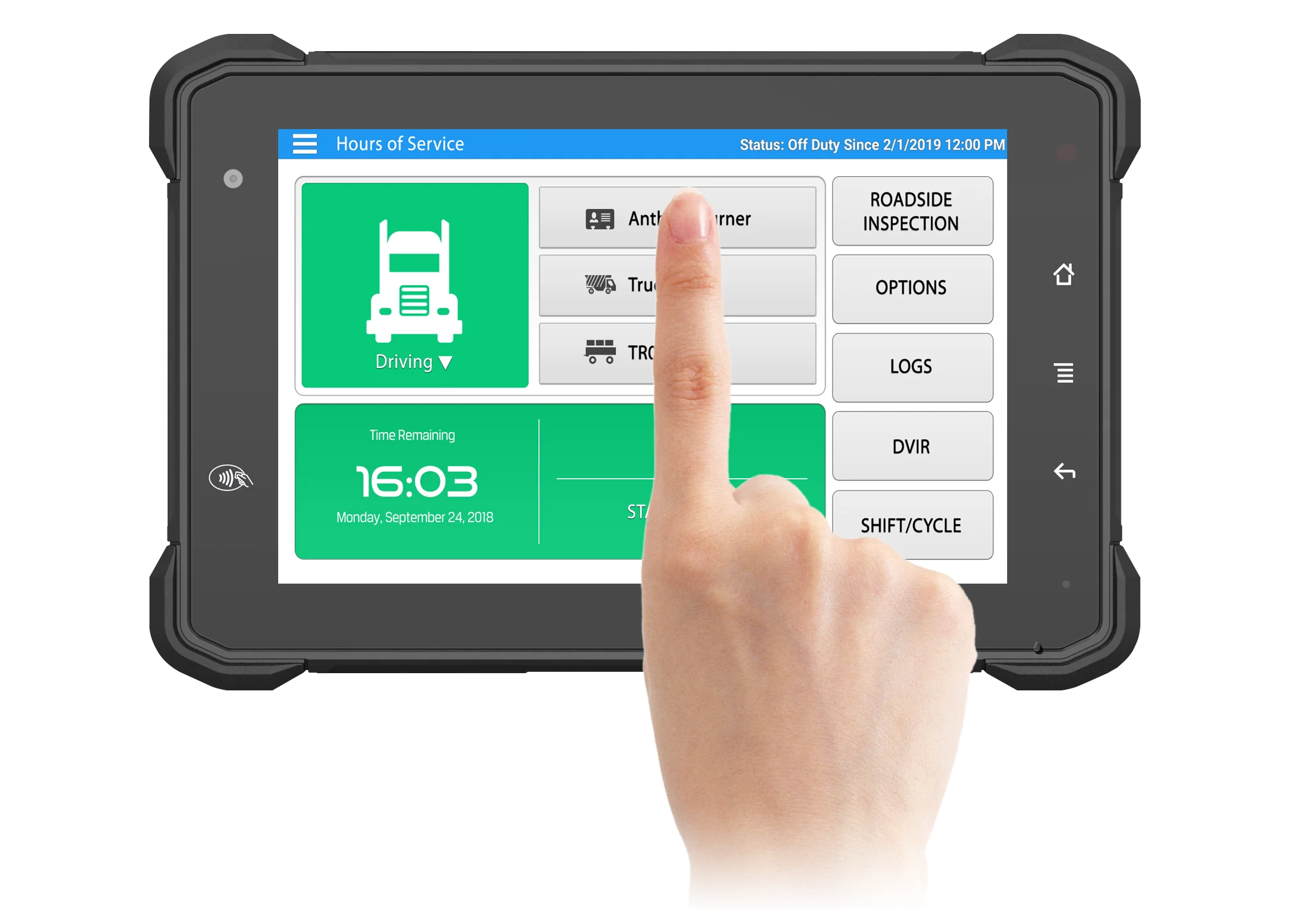

VT-7 Pro 7 inch 4G LTE WIFI BT in-Vehicle Rugged Tablet with an IP67 rating and Android 9.0.1 system
VT-7 Pro is a 7-inch rugged tablet with an IP 67 rating for in-vehicle and out-of-vehicle harsh working environment.
It comes with Qualcomm ARM Cortex A53 Octa-core processor, powered by Android 9.0.1 system, and is specifically designed for fleet management, telematics solution, GPS tracking, ELD compliance solutions, Farming & Agriculture etc.
It comes with Qualcomm ARM Cortex A53 Octa-core processor, powered by Android 9.0.1 system, and is specifically designed for fleet management, telematics solution, GPS tracking, ELD compliance solutions, Farming & Agriculture etc.
Feature:
Multiple connection
The tablet comes with 4G LTE/WIFI (2.4G&5.8G)/BT(4.2BLE)/NFC/GNSS technology for wireless communication and positioning. Makes telematics solution simpler and cost-effective.
ECM data reading
Optional tailored cradle designed for data collecting from vehicle OBD II /J1939 interface. Adapt to your vehicle and software more efficiently and conveniently.
Rugged design for harsh environment
Comply with IP67 water-proof and dust-proof, MIL-STD-810G and 1.5M drop resistance, brings maximum protection from crashing, falling, vibration and shocking.
With SAE J1939/OBD-II interfaces, recording data automatically compliant with multiple HOS rules (FMCSA) including
Property/Passenger 60-hour/7 days & 70-hour/8-day.
Built-in Li-polymer battery makes the tablet convenient for portable use
5000mAh of battery capacity supports the tablet work for 5 hours in operation mode typically
Easily to replace a new battery by maintenance personnel.
5000mAh of battery capacity supports the tablet work for 5 hours in operation mode typically
Easily to replace a new battery by maintenance personnel.
and out-of-vehicle.
10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.
Compliance with IP67 rating dustproof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military
MIL-STD-810G.

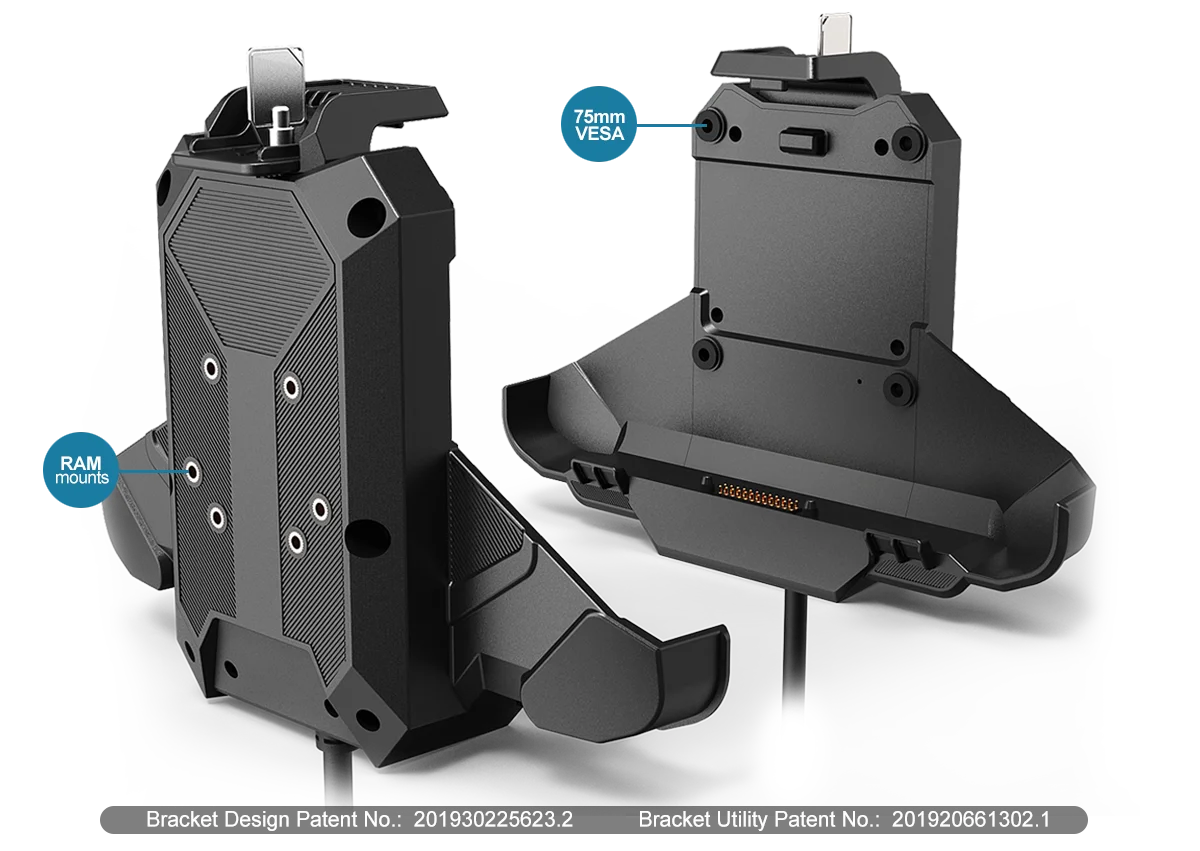

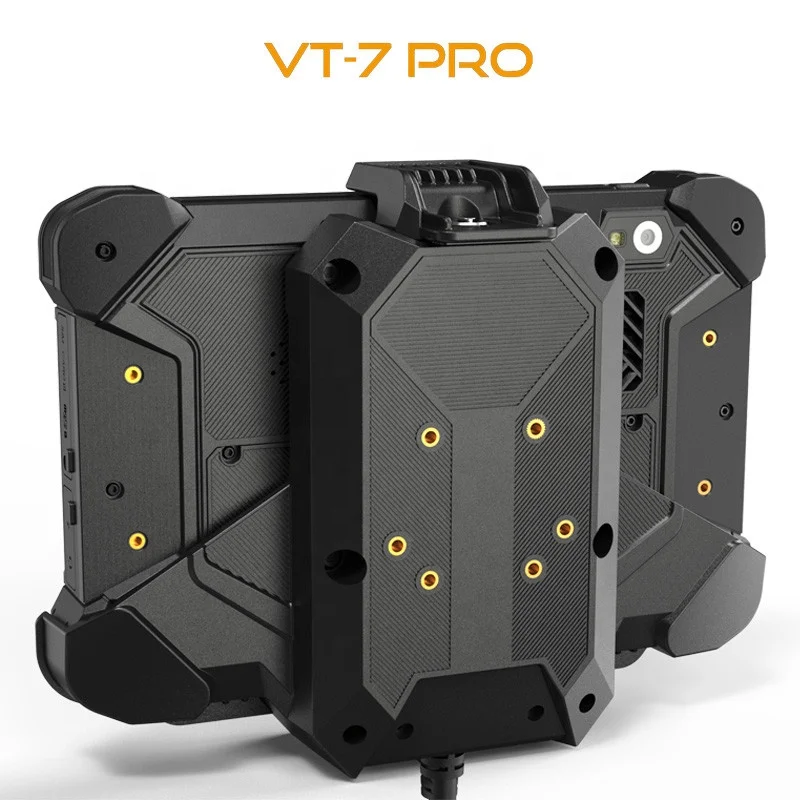

Security lock hold the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support SAEJ1939
or OBD-II CAN BUS protocol with memory storage, compliance with ELD/HOS application.
Support rich extended interfaces according to customer ‘s requirements, such as RS422, RS485 and LAN port etc.
or OBD-II CAN BUS protocol with memory storage, compliance with ELD/HOS application.
Support rich extended interfaces according to customer ‘s requirements, such as RS422, RS485 and LAN port etc.

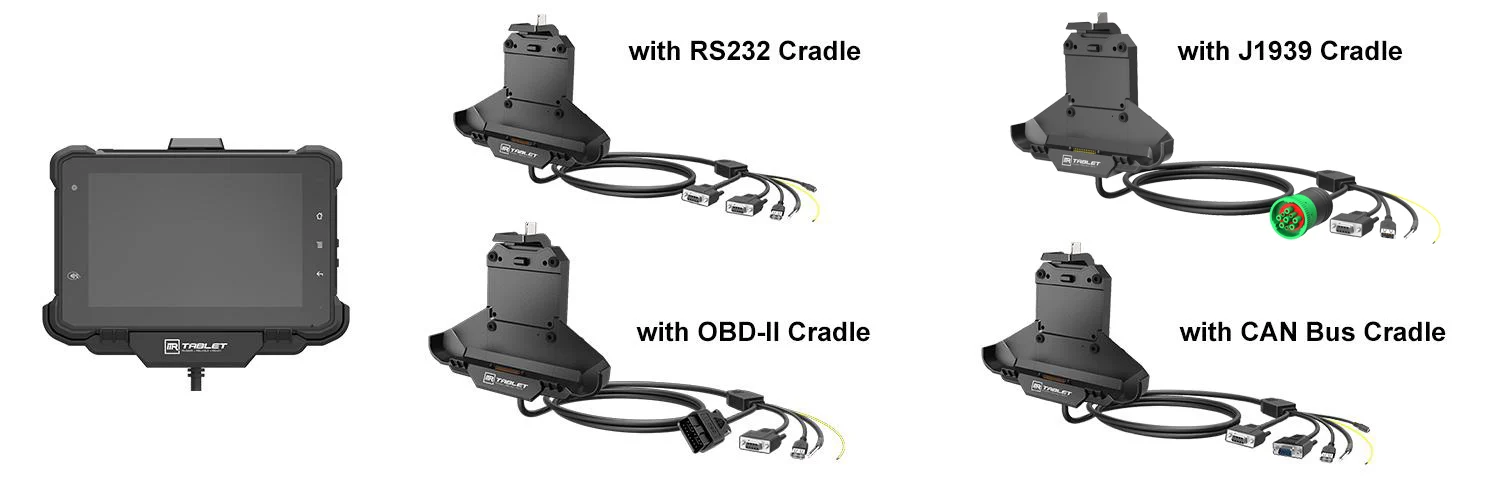

Much Docking Station Options
Much rich extended interfaces, just like RS232, RS422, RS485, LAN port, ACC, USB port etc.
Specification
Mobile Computing Platform | Qualcomm Octa-core processor, 1.8GHz |
Operating System | Android 9.0 |
RAM | 2GB LPDDR3(Default) / 3GB(Optional) |
Storage | 16GB eMMC (Default) / 32GB (Optional) - (up to 128G TF card expansion) |
LCD | 7" HD (1280 x800), sunlight readable 800cd/m² |
Touchscreen | 10 point multi touch capacitive touchscreen |
Camera (Optional) | front: 5 MP Rear: 16 MP rear camera with LED light |
BT | BT4.2 LE |
WLAN | IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz |
Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) |
GNSS | GPS/GLONASS |
NFC (Optional) | Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 & 424 kbit/s, MIFARE 1K, 4K NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s T3T (FeliCa, PN7150 only) |
Sound | Build-in speaker 2W x 1 85dB internal microphones x1 |
Interfaces | Docking Station Standrad Version (Optional) RS232 X2 & RS485 × 1 optional & RS422 × 1 optional GPIO Input ×2 output ×2 USB Type-A ACC × 1 DC × 1 Docking Station OBD II Version (Optional) RS232 X1 GPIO Input ×2 output ×2 USB Type-A ACC × 1 Docking Station J1939 Version (Optional) RS232 X1 GPIO Input ×2 output ×2 USB Type-A ACC ×1 Docking Station Can Bus Version (Optional) Can Bus x1 RS232 x1 GPIO Input ×2 output ×2 USB Type-A ACC ×1 DC × 1 |
Sensors | Acceleration sensors, ambient light sensor |
Power | Battery: User replaceable Li-ion 5000 mAh Battery operating time: 4.5h(typical) DC 8-36V (ISO 7637-2 Compliant) |
Buttons | Power on/off button: x1 |

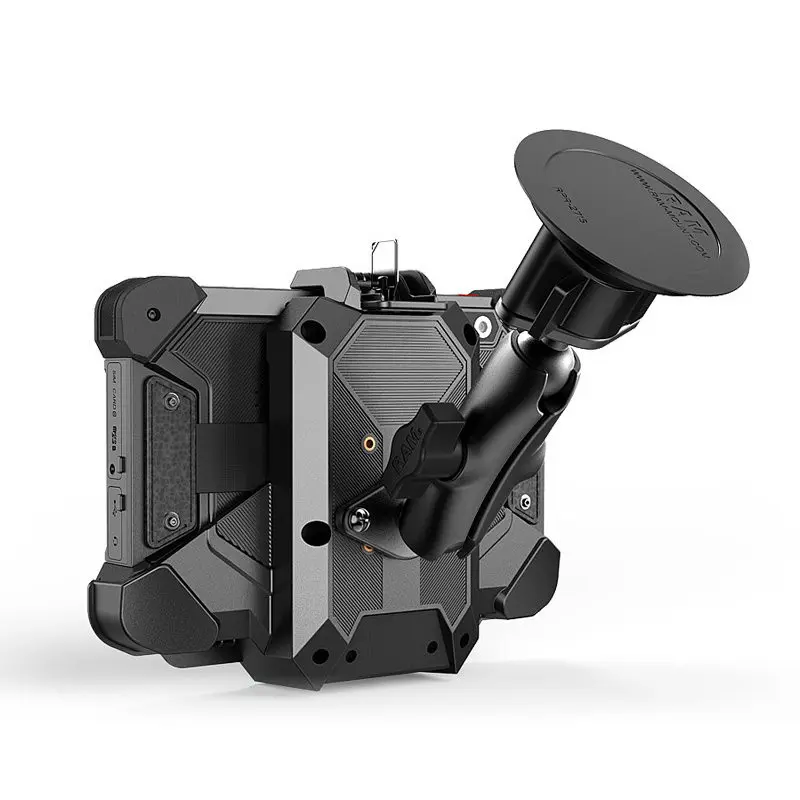

Mouting | 75mm vesa/ RAM |
Physical Dimensions (WxDxH) | 200W x 130H x 28.5D |
Weight | 815g |
Testing Standards | Gravity drop resistance test: 1.5m Vibration test: MIL-STD 810G Dust resistance test: IP6x Water resistance test: IPx7 Operating temperature:-10° C ~ 65° C (0° C ~ 55° C(charging) Storage temperature: -20° C ~70° C |
Product Usage
Tablet Applications

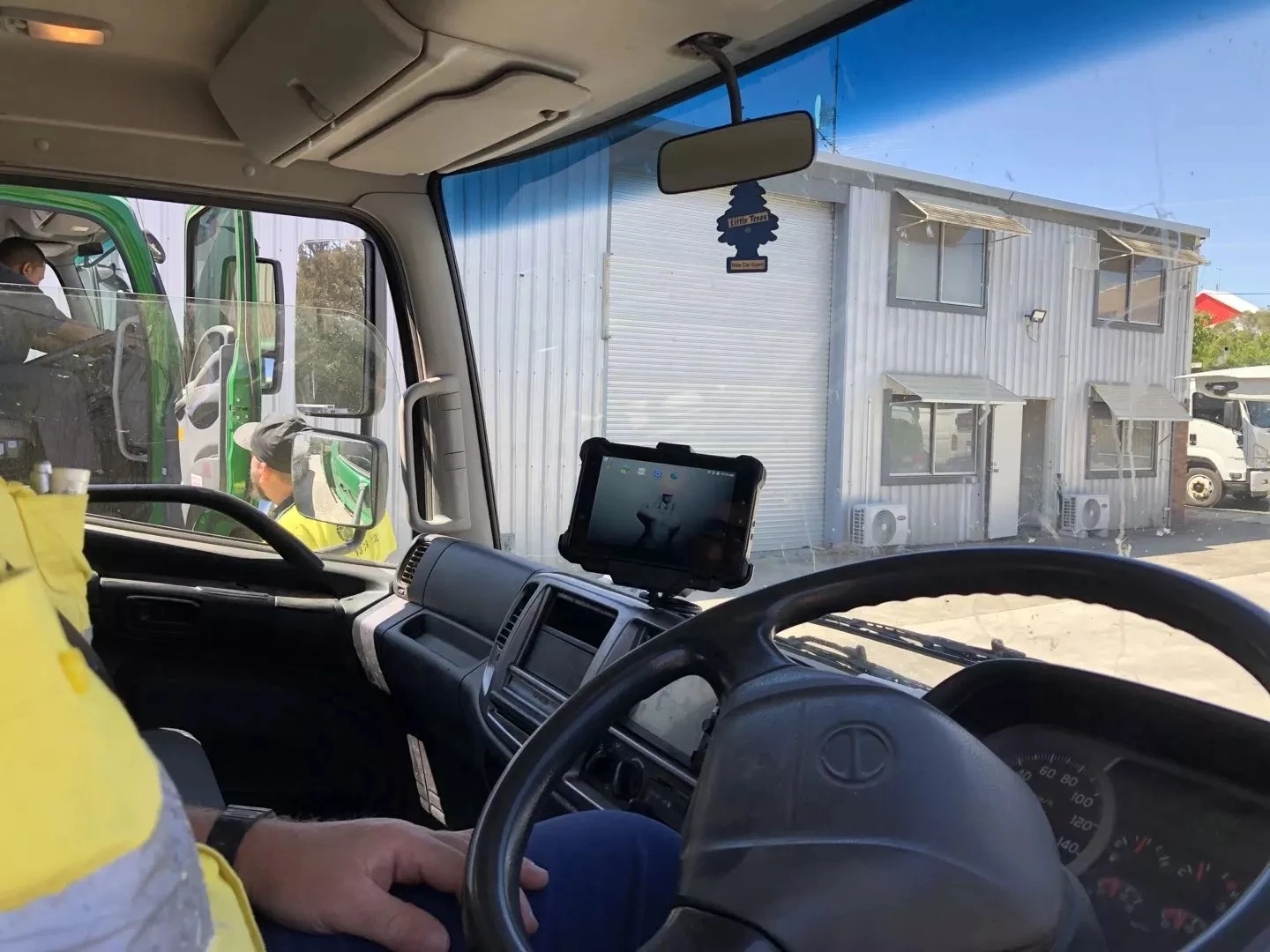

VT-7 Pro is a tablet designed for the vehicle market to satisfy the demands of cost-effective and rugged applications.
It designed to operate in a harsh automotive environment, including a wide range of temperatures,vibrations and shocks.
It is ideal for fleet management, taxi dispatch, agricultural vehicles, school buses and special trucks.
Packing&Shipping
3Rtablet Logo Brown Box Package;
Neutral Brown Box Package;
5PCS/CTN
Weight: 13KG
Dimensions: 65*25.4*26.9CM
5PCS/CTN
Weight: 13KG
Dimensions: 65*25.4*26.9CM
Company Profile

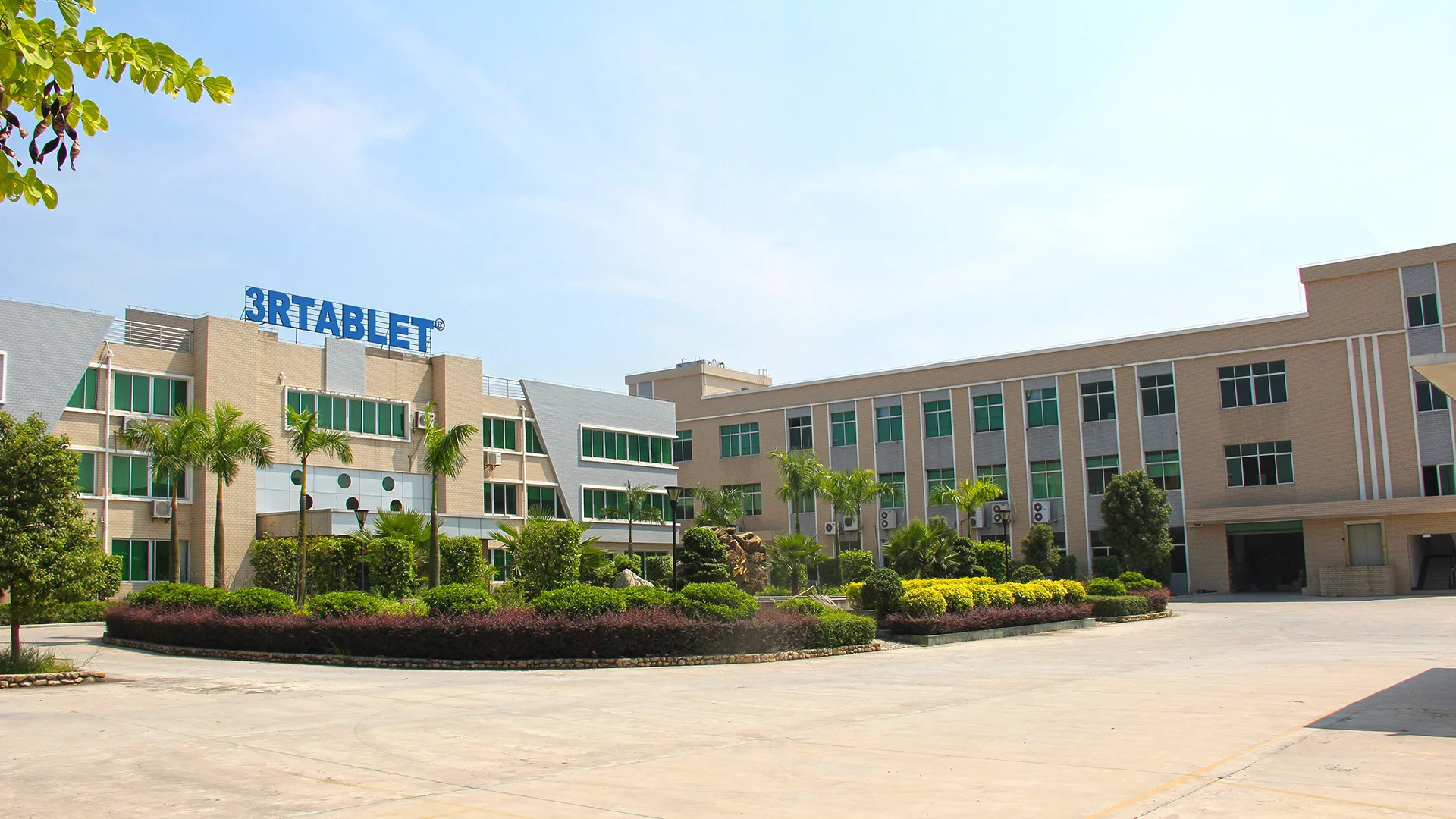

About
3RTABLET mainly focus on the developing and manufacturing of automotive and commercial products.

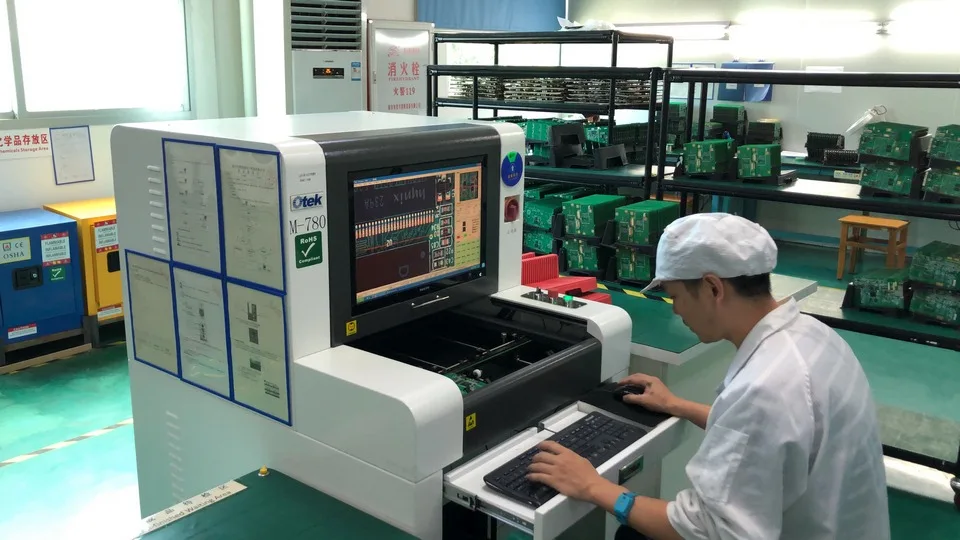

3Rtablet is a technology based and market oriented innovative enterprise. Our R&D team has been deeply engaged in embedded technology for many years, mainly focusing on the development, manufacturing, marketing and delivery of IoV products.
3Rtablet follows innovative technologies, complete solutions, friendly products, excellent quality and professional services, in order to continuously improve product quality and customer satisfaction. 3Rtablet offers OEM/ODM service, products could be tailored to meet your needs.
FAQ
Q: How can i get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get
theprice, please email us or contact us in other ways so that we can offer you a quote.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
