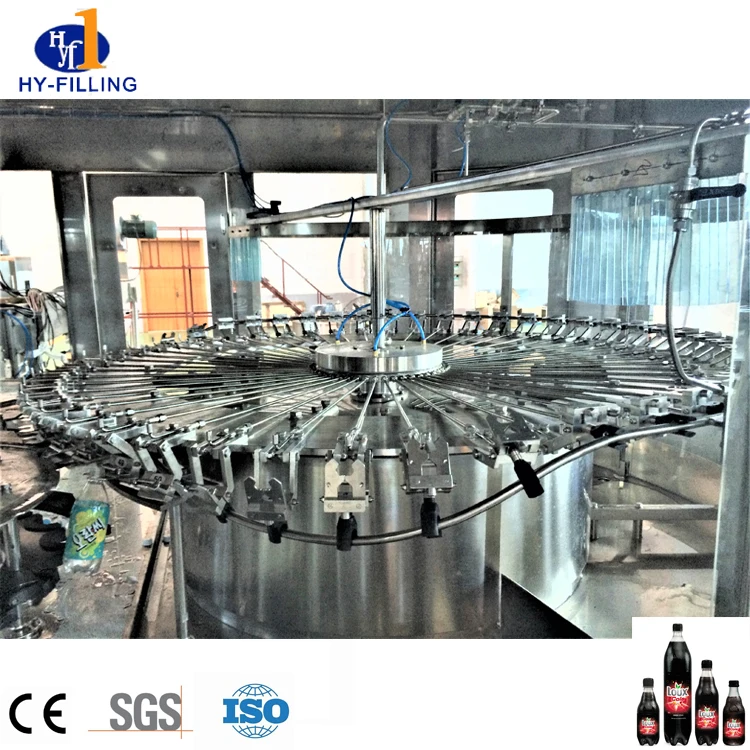

exact filling valve PET CSD Filling Machine 3 In 1 energy drink manufacturing equipment
- Category: >>>
- Supplier: Zhangjiagang Hy-Filling Machinery Co. Ltd.
Share on (1600173494563):
Product Overview
Description
recommend products
Product Description

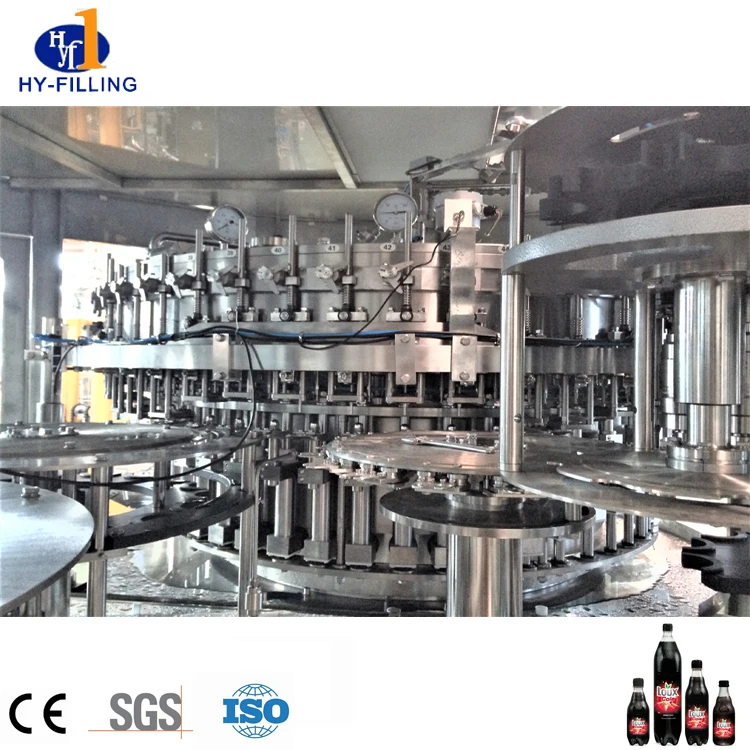

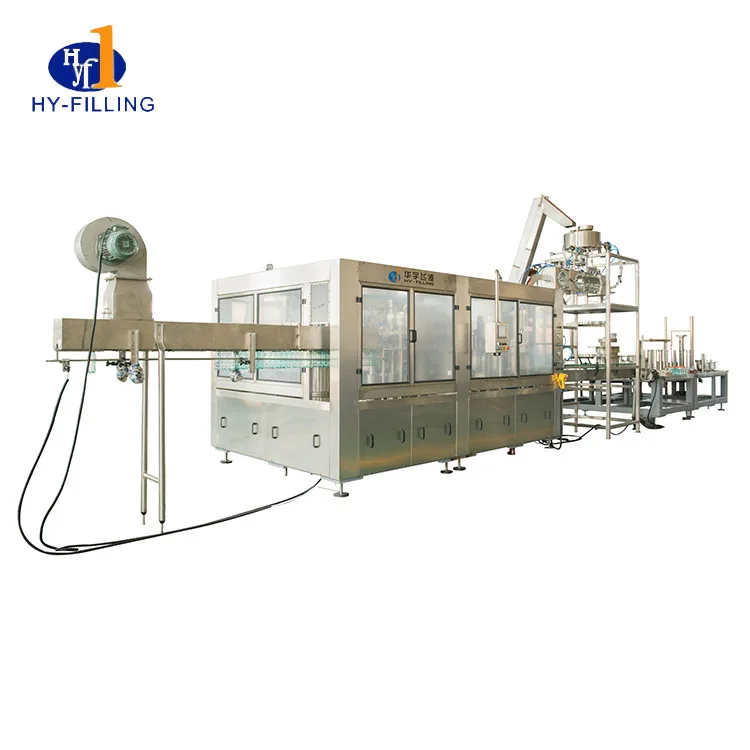

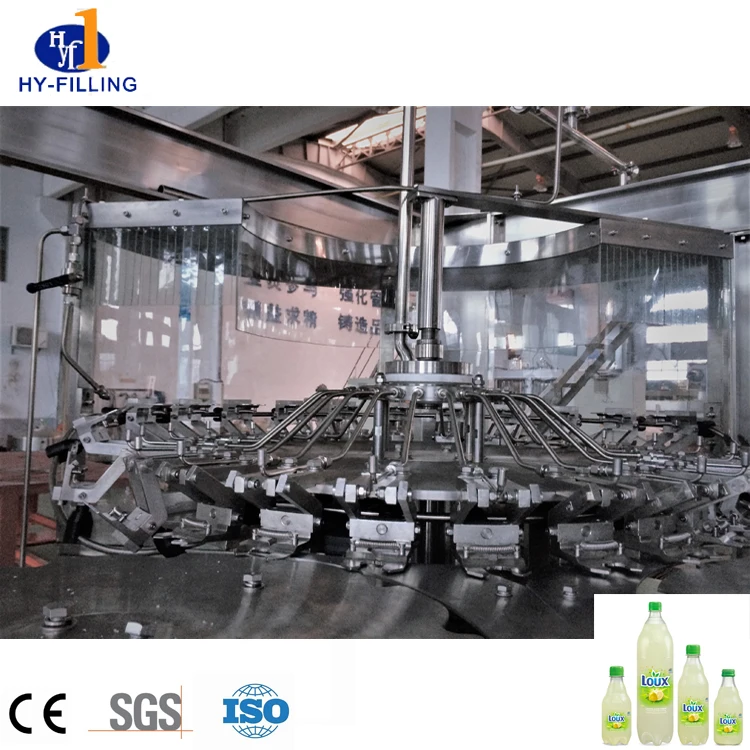

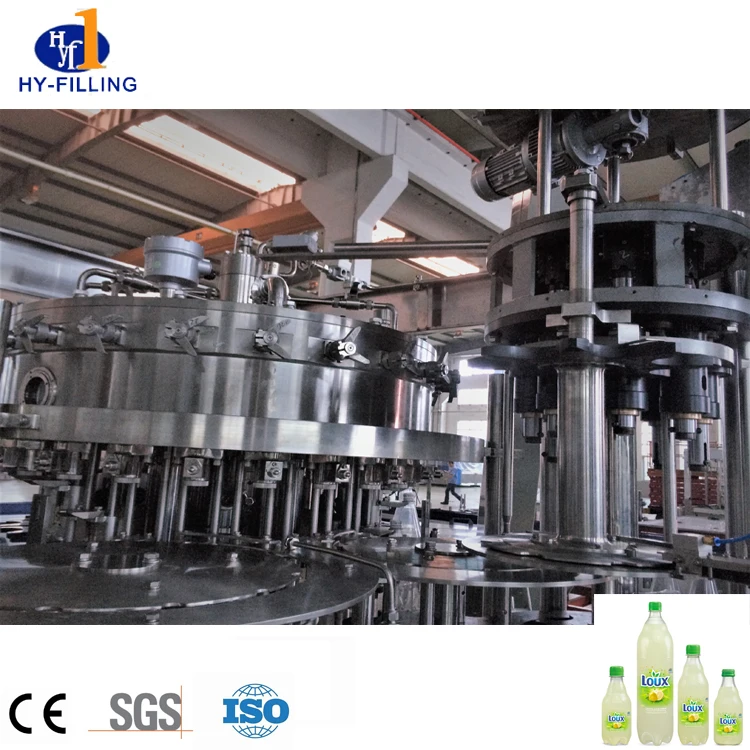

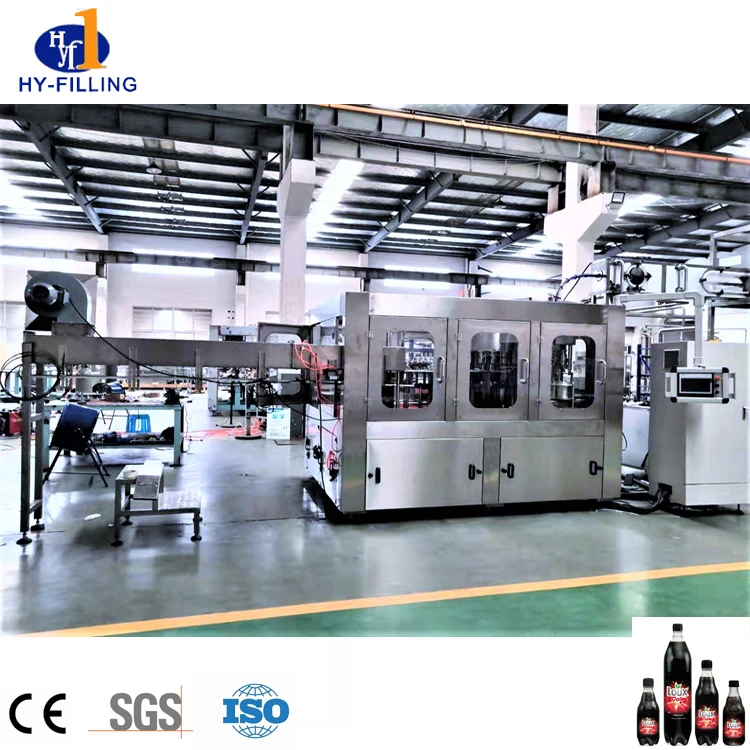

Rinsing-Filling-Capping 3-in-1 Monoblock
It can meet the filling requirements with different sealing caps such as crown cap, pop can cap, aluminum cap, twist cap (iron cap), screw cap(plastic cap),which is applied to water, carbonated soft drinks.
The entire line includes the following optional equipment: depalletizer, rinser, bottle washer, rinsing/filling/capping 3-in-1 monoblock, filling-capping 2-in-1 monoblock, bottle warmer, inkjet printer, labeling machine, packaging machine and etc..
Detailed Images
It is widely used in filling gas-containing beverages, such as beer, soda, sparkling wine, etc.
Because the pressure in the bottle before and after filling is equal to that in the silo and is greater than atmospheric pressure, it is called isobaric filling.
Washing part
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing <3> 304/316 stainless steel washing pump

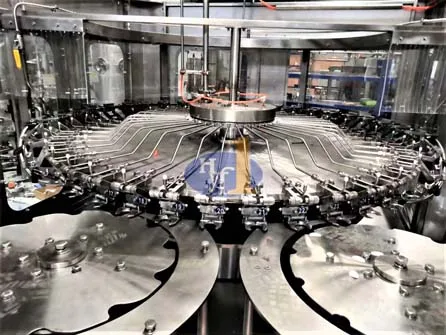

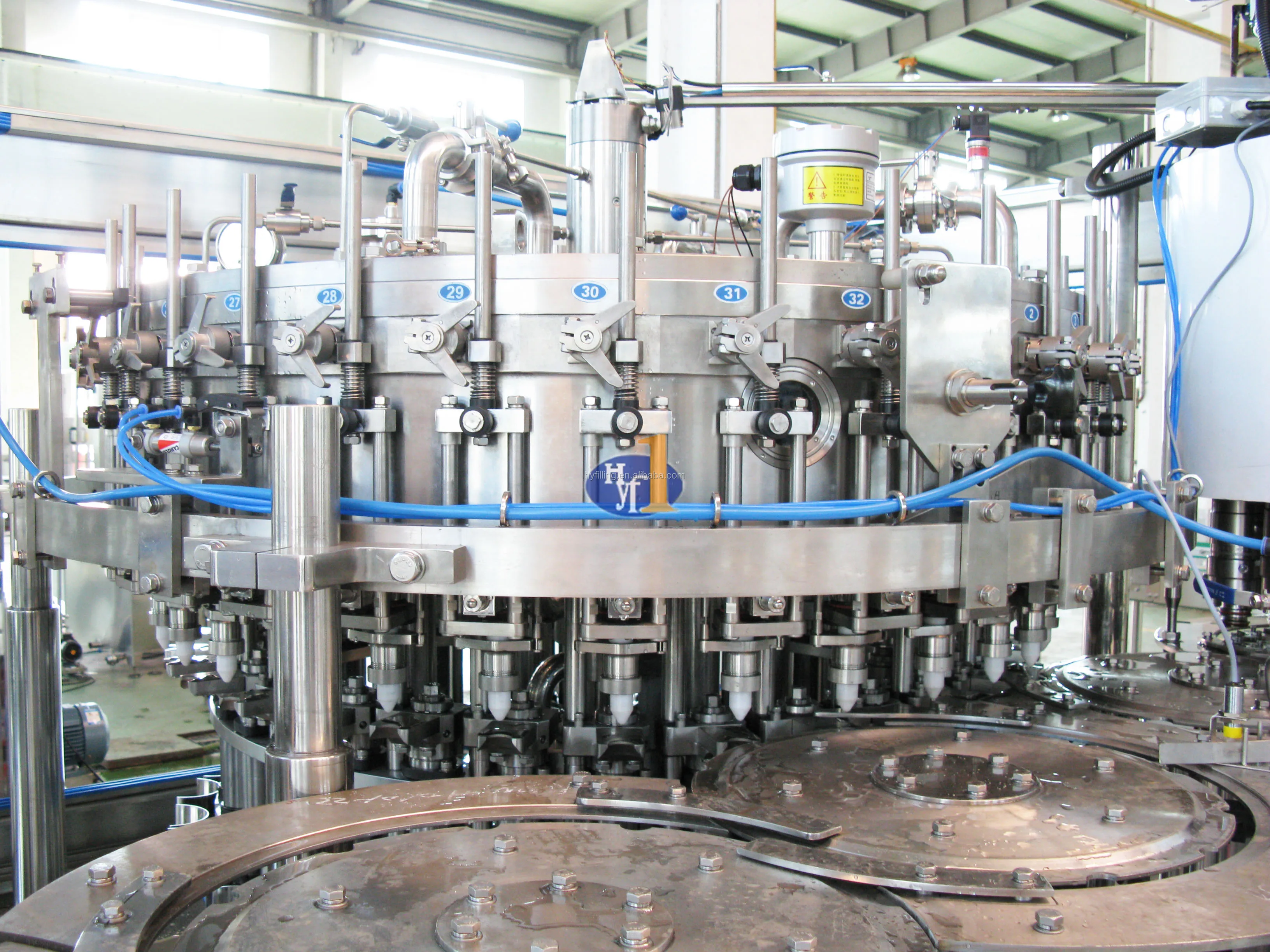

Filling part
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping part
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction <3> No bottle no capping <4> Automatic stop when lack of bottle
Model | DCGN18-18-6 | DCGN24-24-8 | DCGN32-32-10 | DCGN40-40-12 | DCGN50-50-15 | ||||
Capacity 0.5L/bottle/h | 5000BPH | 8000-10000BPH | 10000-12000BPH | 12000-15000BPH | 150000-18000BPH | ||||
Suitable bottle | PET Circular or square | ||||||||
Bottle diameter | 50-115 mm | ||||||||
Bottle height | 160-320 mm | ||||||||
Compressed air pressure | 0.3-0.7 Mpa | ||||||||
Washing water's pressure | >0.06Mpa <=0.2Mpa | ||||||||
Total power | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | ||||
Auxiliary Equipment
UF Water Treatment
High precision: thoroughly remove bacteria, rust, colloids, macromolecular organic substances and other substances in the water, retain trace elements beneficial to human health, and the main indicators such as microbial and turbidity of purified water are better than the sanitary standards for bottled drinking water.
Carbonated Soft Drink Mixer
Mainly used for mixing machining of all kinds of carbonated drinks, it also can be used for mixing machining of pulpiness drinks, and ferment drinks. With the function of GOB system, after vacuum oxygen degassing,, sterilized water with CO2 and sugar one-shot synthesis according to the customer's demand proportion.
Rotary blowing machine
Automatic rotary blowing machine is successfully developed and researched by our company by absorbing the most advanced bottle producing technology in the world. It’s mainly made of hopper, elevating system, lining device, oven and mainframe, electrical controlling system and pneumatic controlling system.

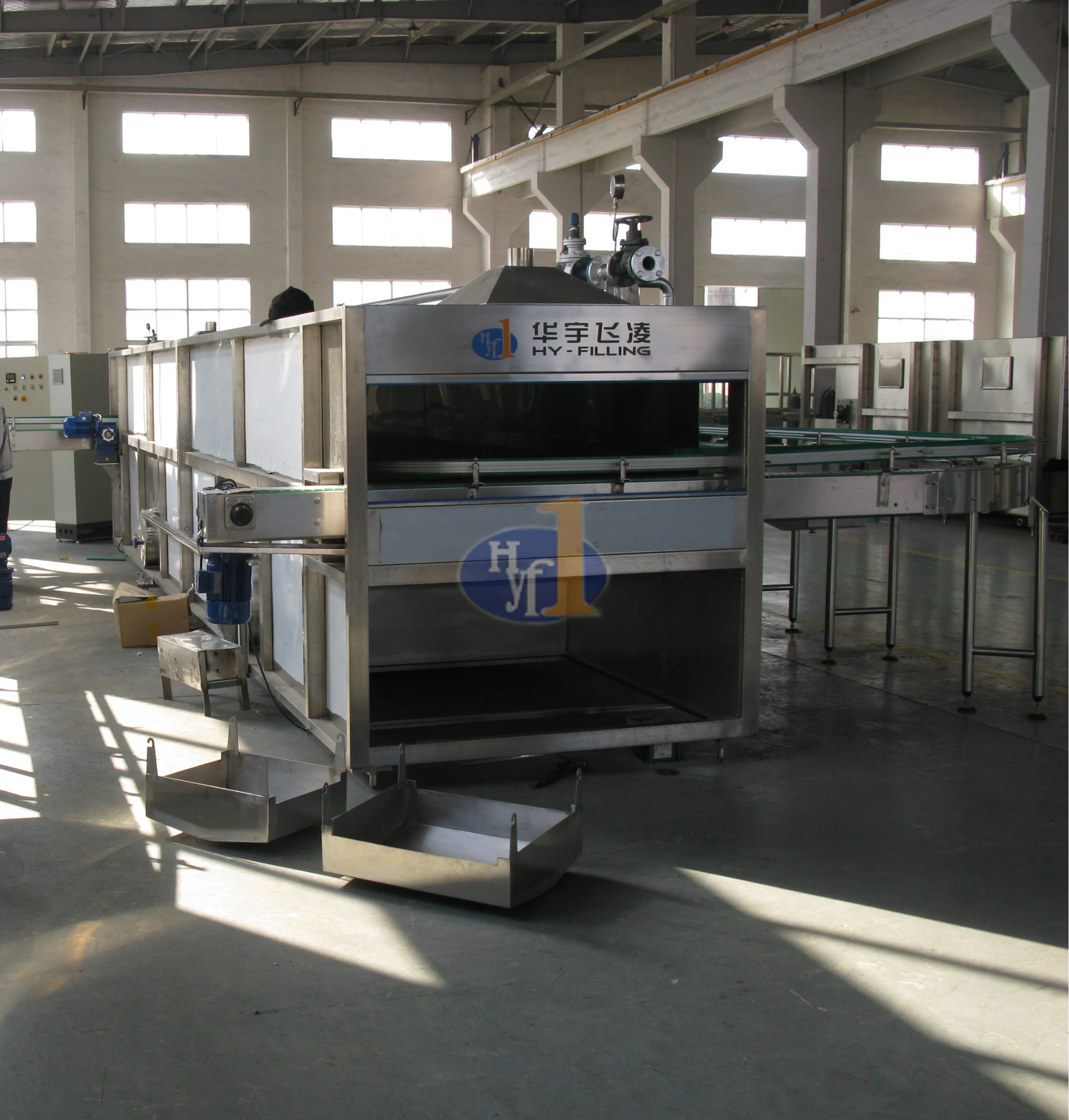

warming tunnel
Bottle warming machine is a tunnel-type spray equipment, spray water through the circulation of heat exchange heating bottle, standing three temperature zones (which can also design more zone), sub-heating, beverage center temperature reaches room temperature, usually designed to 30-35 ℃.
OPP hot glue labeling machine
Continuously running new model labeling machine; it is mainly used for beverages, mineral water, food etc. Label material applies OPP, Pearl Membrane, composite paper etc.
This machine has features of running fast, high accuracy, stable performances, convenient operation and beautiful outlook.
PE film shrink
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Company Profile
HY-Filling
<1> Standardized workshop of total 30,000 square meters.
<2> With a more than 30 professionals team to design and develop, is a key professional enterprise, which integrates development, research, design, manufacture, technology service and marketing.
<3> HY-Filling follows ISO9001:2000, CE Certificate , SGS , COC , TUV international quality management system.
<4>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
<5>Professional installation team who are seasoned technician, Provide equipment quality installation services.
<4>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
<5>Professional installation team who are seasoned technician, Provide equipment quality installation services.
Certifications
Packing&Shipping
Package Type :
It is usually packed in reinforced wooden boxes, which are then loaded into containers and transported to Shanghai Port for dispatch.HY-Services
1 Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.
2 Training
Our company will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
3 Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4 After-sales service
1）After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
Why Choose Us
Million-dollar-invested workshop
All filling machine accessories and bottle blowing machine molds we try to ensure their own production, to ensure that our HY-QUALITY. Every fittings fits perfectly with the main body. Controlling Quality from Source.
Clear Classification of Warehouse
No need to worry about the replacement of spare parts after purchase. HY-warehouse will store the fragile parts that every customer may need, and provide you with the original spare parts at any time.
Orderly workshop
