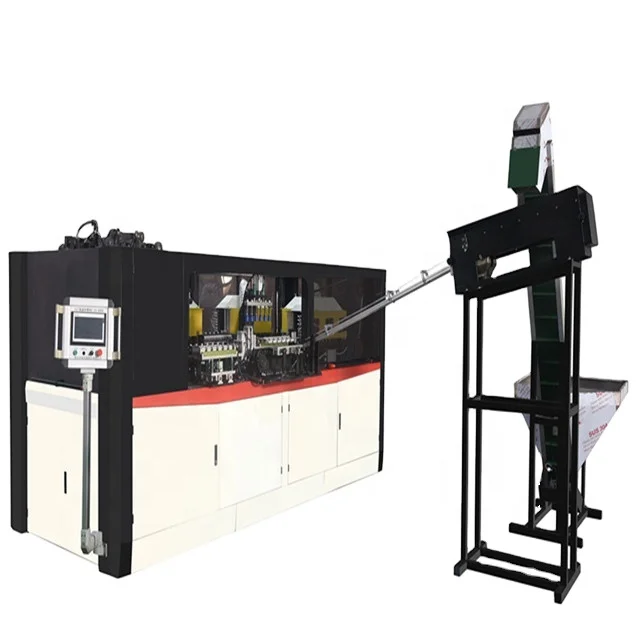

High tech Automatic Bottle Blow Machine Prices
- Category: Plastic & Rubber Machinery >>>
- Supplier: Zhejiang,Leeny,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Paramenters
TYPE | ITEM | LEENY-2000-2 | LEENY-2000-4 | LEENY-2000-6 |
Product parameters | Production capacity | 2000-2500pcs/hr | 4000-4500pcs/hr | 6000-6500pcs/hr |
Max.volume | 2.0L | 1-2L | 1L | |
Max.neck size | 38mm | 38mm | 38mm | |
Max.diameter | 110mm | 110mm | 110mm | |
Max.height | 320mm | 320mm | 320mm | |
NO.of cavity | 2 | 4 | 6 | |
Power specifications | NO.of lamp | 32pcs | 40pcs | 48pcs |
Max.heating power | 64kw | 80kw | 96kw | |
Total machine power | 64kw | 80kw | 96kw | |
Actual power consumption | 12kw | 16kw | 20kw | |
Air pressure specifications | Working pressure | 0.7-0.9Map | 0.7-0.9Map | 0.7-0.9Map |
低压耗气量/ Low pressure gas consumption | 1400ltr/min | 2000ltr/min | 2500ltr/min | |
吹瓶压力/ Blow bottle pressure | 3.5Mpa | 3.5Mpa | 3.5Mpa | |
高压耗气量/ Hig pressure gas consumption | 3500ltr/min | 5000ltr/min | 6500ltr/min | |
Cooling water specifications | Chiller pressure | 0.3-0.5Mpa | 0.3-0.5Mpa | 0.3-0.5Mpa |
Temperature range | 10℃ | 10℃ | 10℃ | |
Consumption | 30L/Min | 40L/Min | 50L/Min | |
Appearance specifications | Machine size | 3.2*1.6*2.0cm | 4.5*1.6*2.0cm | 5.5*2.1*2.2cm |
Features of this machine:
1. Using Taiwan Delta (DELTA) computer control system, with high reliability, fast speed and stability.
2. It adopts infrared tube heating, strong penetrating power, heating by the rotation of the preform, orbital revolution and uniform heating.
3. Automatic voltage regulation.
4. The conveyor automatically feeds the blanks.
5. Automatic alarm, automatic fault detection, accurate judgment.
6. Each action is driven by an air cylinder, no oil pump is used, and it has no pollution and low noise.
7. The air circuit is divided into three parts: low pressure action, low pressure pre-blowing and high pressure blowing to meet the needs of different air pressures for blowing actions, to achieve high-pressure blowing finished products and low-pressure stable operation.
8. The unique blowing system is adopted to make the product quality higher.
9. Adopting double crankshaft and connecting rod clamping mechanism, strong clamping force, stable and reliable movement.
10. The tie rods made of high-tensile steel and high-quality cast iron templates are used, which are durable and working life.
11. Mould closing moving parts adopt high-rigidity linear guide rail, which is light and fast.
Company Information
About LEENY
Zhejiang LEENY Technology Co., Ltd. is located in Huangyandong Economic Development Zone. Close to Jingwen High-speed Railway and Shenhai Expressway, it is 13 kilometers away from Luqiao Airport and only 10 kilometers away from Haimen Port. The regional advantage is unique. There are 210 employees (including 2 senior engineers, 5 intermediate managers and 6 senior managers).

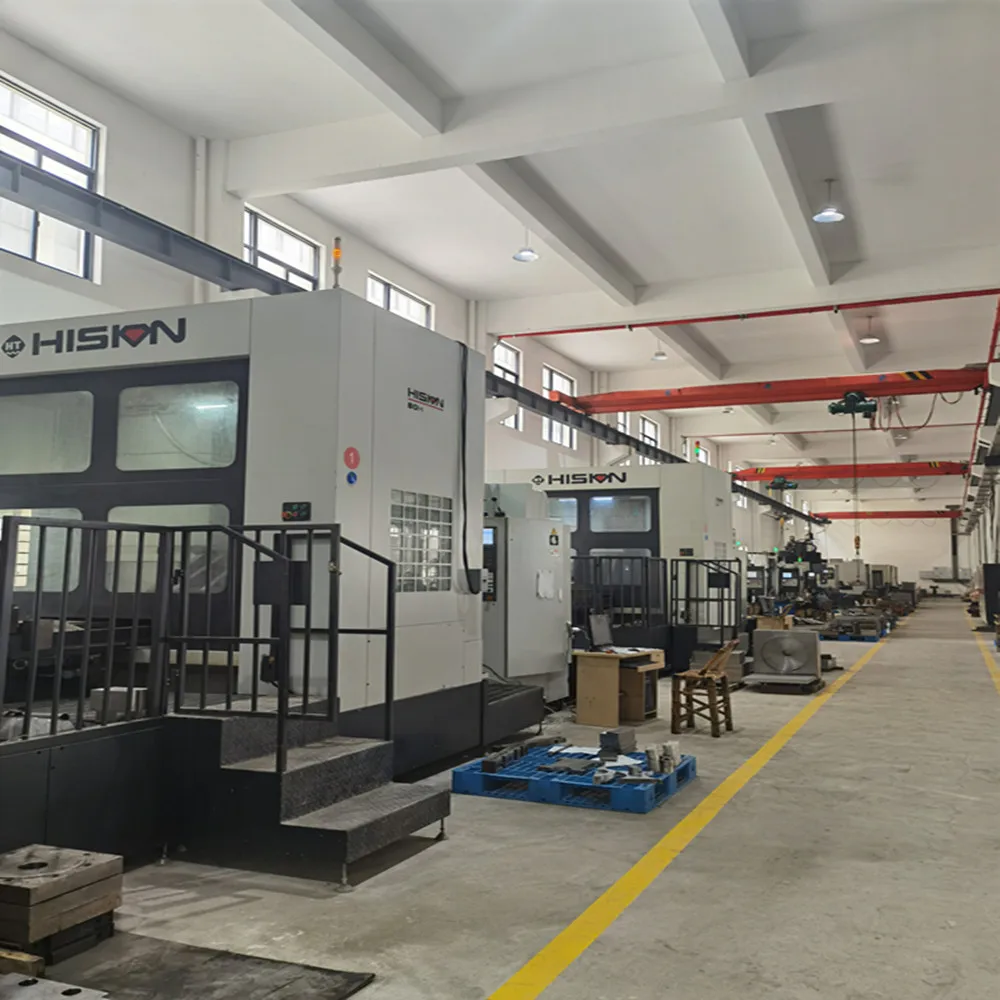

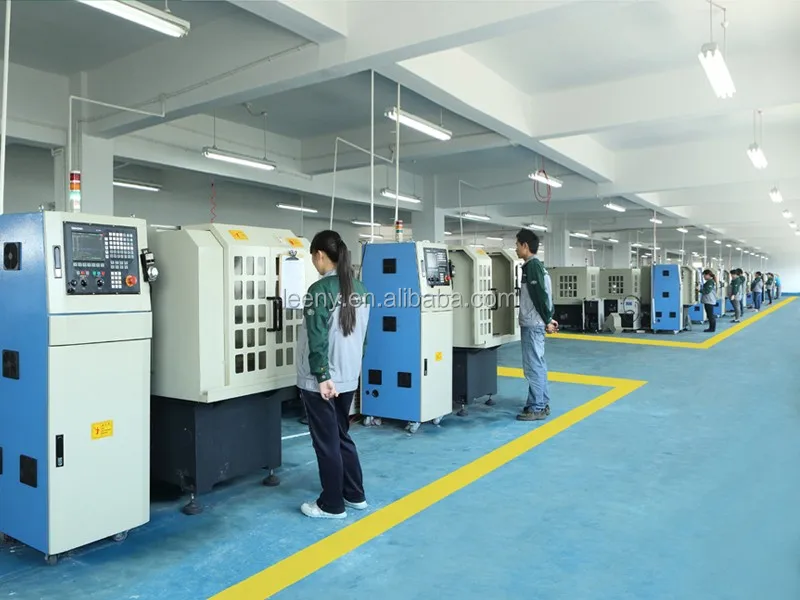

Creating value for customers is the core concept of the company. Since the company has carried out technological innovation this year, it has invested more than 30 million yuan to introduce 48 internationally advanced CNC machining centers, more than 100 fully automatic punching machines of 0.1~0.6mm and all Grouped equipment.
Spacious and clean production environment, advanced equipment and excellent mechanical professional technicians are
united,diligent in research, committed to the development of new products and the optimization and upgrading of existing
products,ensuring that each machine of LEENY is superior.
LEENY Company has developed and produced "Leon" brand non-screen filter, which has won dozens of national patents, more than 5,000 international and domestic successful cases, and is well received by customers.
The sea memory confidant, the end of the world. We sincerely hope to cooperate with friends from all corners of the country to create a better future. We firmly believe that we are doing better than promised.
Creating value for customers is the core concept of the company. Since the company has carried out technological innovation this year, it has invested more than 30 million yuan to introduce 48 internationally advanced CNC machining centers, more than 100 fully automatic punching machines of 0.1~0.6mm and all Grouped equipment.
Spacious and clean production environment, advanced equipment and excellent mechanical professional technicians are
united,diligent in research, committed to the development of new products and the optimization and upgrading of existing
products,ensuring that each machine of LEENY is superior.
LEENY Company has developed and produced "Leon" brand non-screen filter, which has won dozens of national patents, more than 5,000 international and domestic successful cases, and is well received by customers.
The sea memory confidant, the end of the world. We sincerely hope to cooperate with friends from all corners of the country to create a better future. We firmly believe that we are doing better than promised.
FAQ
Q:How many days to delivery?
A:Shipped in 15 days after payment.
Q:Which countries are the products mainly exported?
A:USA,Russia,Malaysia,India,Indonesia,Argentina and other countries and regions.
Q:Do you have patent?
A:Yes,we have utility model patent.
Q:Will you attend the exhibition?
A:Yes, we will all attend the exhibition.
Q:Where are your company and factory?
A:Our address is on the 82nd line of the East Economic Development Zone, Huangyan District, Taizhou City, Zhejiang Province.
Our Service
Pre-Sales Service
1)introduce products and application details
2)recommend suitable machine according to customer
requirement
3)Sample testing support.
4)View our Factory.
2)recommend suitable machine according to customer
requirement
3)Sample testing support.
4)View our Factory.
After-Sales Service
Training how to instal the machine, training how to use the machine.
