Product Name
|
HUAWEI TE40
|

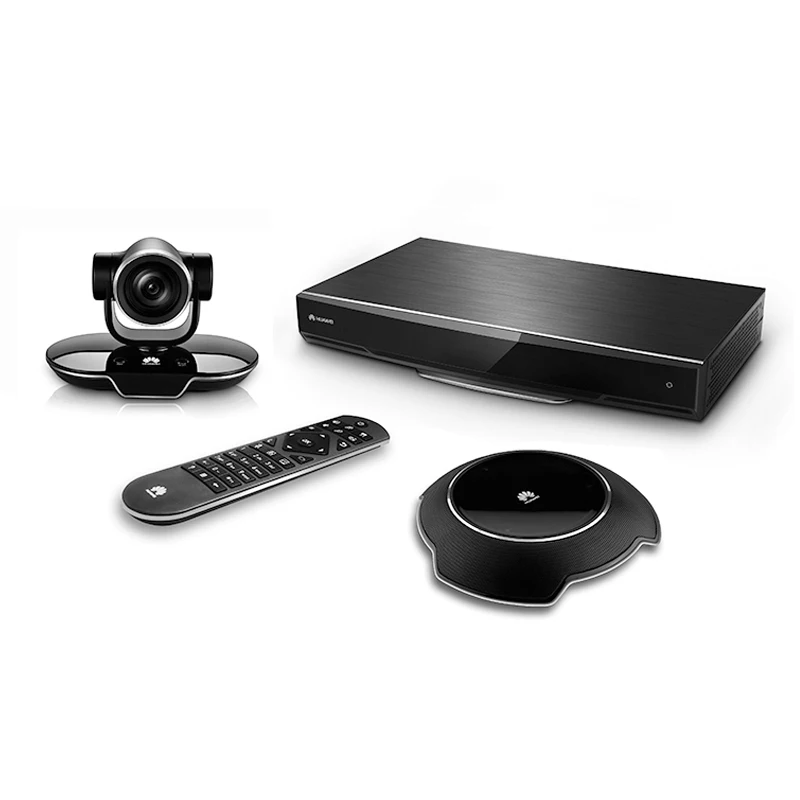

Unit delivered complete with:
|
HD Codec, Remote control, Cables, and power supply;

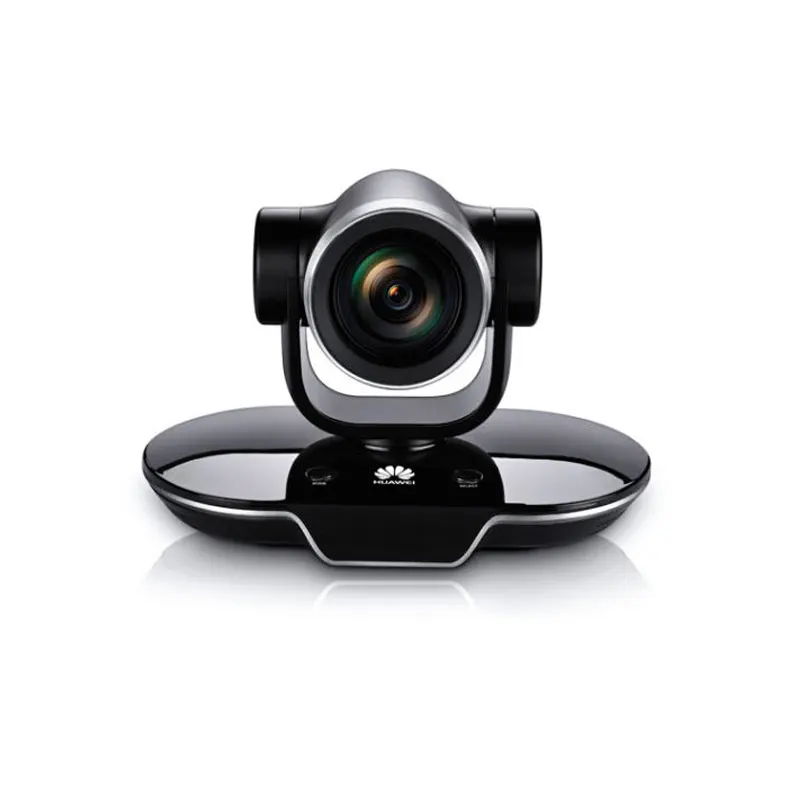

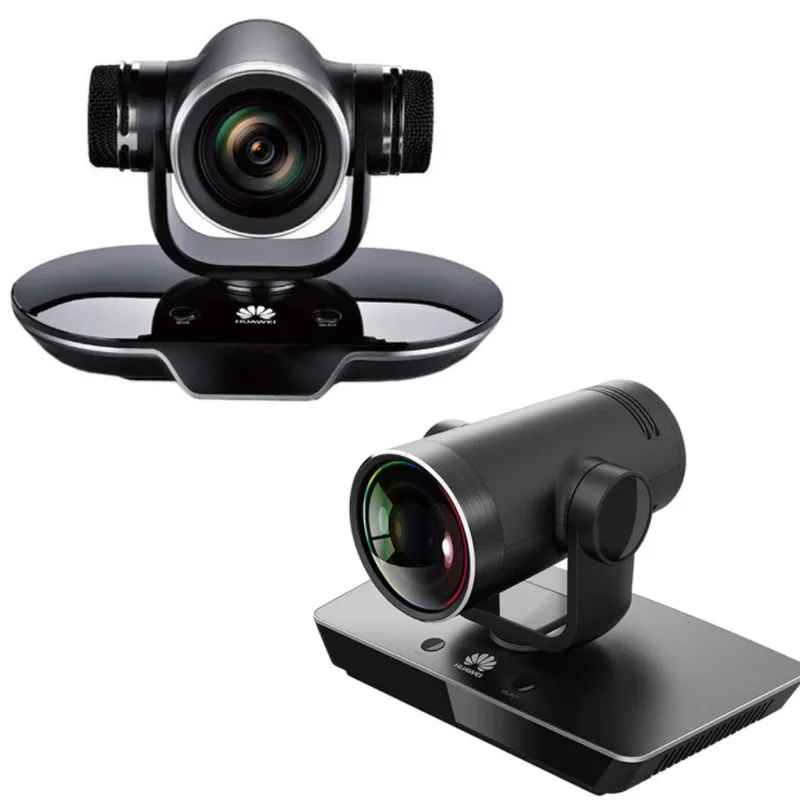

Optional: HD Camera, Omni-array Microphone or wireless Microphone
|
Standards & Protocols
|
Standards and Protocols: ITU-T H.323, IETF SIP
Video Standards & Protocols: H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, RTV
Audio Standards & Protocols: G.711, G.722, G.728, G.719, G729, G.729A, AAC-LD,
HWA-LD
Dual Stream: ITU-T H.239, BFCP
Other Standards: H.225, H.235, H.241, H.243, H.245, H.350, H.460, T.140, DTMF, H.281, H.224
Network Standards & Protocols: TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS,
PPPoE, RTP, RTCP, SNTP, ARP, DNS, 802.1X, 802.1P, 802.1Q
|
Video Specifications and Features
|
People Video Resolution:
• 1080p @ 60 fps from 1Mbps (Optional)
• 1080p @ 30 fps from 512 Kbps (Optional)
• 1080i @ 60 fps from 512 Kbps (Optional)
• 720p @ 50/60 fps from 512 Kbps(Optional)
• 720p @ 25/30 fps from 384 Kbps
• 4SIF/4CIF from 128 Kbps
• SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbps
Content Video Resolution:
• Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1024
x 768) @ 60/70/75/85 fps, 1152 x 864 @ 60/75/85 fps, 1280 x 600 @ 60 fps, WXGA (1280 x 768)
@ 60/75/85 fps, WXGA (1280 x 800) @ 60/75/85 fps, 1280 x 960 @ 60/75/85 fps, SXGA (1280 x
1024) @ 60/75/85 fps, 1360 x 768 @ 60 fps, 1366 x 768 @ 60 fps, 1440 x 900 @ 60 fps, XGA+
(1400 x 1050) @ 60 fps, 720p @ 60/75/85 fps, 1080p @ 60 fps, 1600 x 900 @ 60 fps, 1600 x
1200 @ 60 fps, 1680 x 1050 @ 60 fps, 1920 x 1200 @ 60 fps
• Coding/Decoding resolution: 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080,
1600 x 1200, 1920 x 1200
• Output: 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080, 1600 x 1200, 1920 x 1200
Dual Stream: Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps (Optional); Dual 720p @ 30 fps
Other Video Features
• Intelligent Face Detection
• Picture in Picture,
• Picture outside Picture
• Video Motion Enhancement (VME)
• Video Intensifier
• View Processing
|
Audio Specifications and Features
|
Audio Features
• Dual-channel AAC-LD Stereo
• HWA-LD Stereo: Huawei Audio Broadband Low Delay Stereo
• Acoustic Echo Cancellation (AEC)
• Acoustic Noise Suppression (ANS) 12 dB
• Automatic Gain Control (AGC) ±6 dB
• Voice Clear, Audio Enhancer
• Lip synchronization
|
Security and Stability
|
Network:
• Dual-stack IPv6 and IPv4
• IP Precedence, Diffserv
• Uniform resource identifier (SIP and H.323 support up to 40 characters) dialing
• Super Error Concealment (SEC), Intelligent Rate Control (IRC)
• Automatic Repeat reQuest (ARQ), Forward Error Correction (FEC), PLC
Security:
• H.235 signaling and media stream encryption
• Dual-stream encryption
• SIP signaling and media stream encryption
• Conference access password, conference control password
• Administrator password
Firewall Traversal: H.460.18, H.460.19 firewall traversal, Static NAT, SNP
|
Bandwidth
|
IP: 64 Kbps to 8 Mbps
|

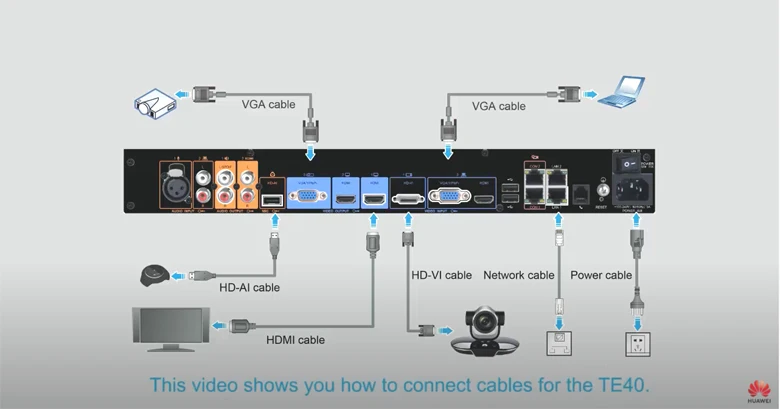

Interfaces
|
Audio Inputs: 1×XLR, 2×RCA, 1×HDMI, 1×HD-AI (Mic Array/Audio external)
Audio Outputs: 4×RCA, 2×HDMI
Video Inputs: 1×HD-VI /DVI, 1×HDMI / DVI, 1×VGA/YPbPr,
Video Outputs: 2×HDMI / DVI, 1×VGA/YPbPr
USB Interfaces: 2×USB 2.0 Host
Network Interfaces:
• IP: 10/100/1000 Base-T, 2×RJ45
• Wireless: Built-in Wi-Fi
COM Interfaces: 2×RS232 COM
Connected Microphones: Two VPM220 or two VPM220W
|
Application Features
|
Languages: Simplified Chinese, Traditional Chinese, English, Japanese, Russian , French , Spanish,
Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian,
Czech, Turkish, Greek, Thai, Dutch, Malay, Indonesian
Special Features:
• Voice Dialing in English and Chinese
• USB auto data configuration
• VGA bypass
• Wireless Wi-Fi access
• Air content sharing
• Wireless MIC VPM220W access
• Multi-view: 2-view
• Hybrid with IMS network
• Lock Site/Conference
• P2P to multipoint
• Favorites in address book
• SiteCall (HD dual-stream)
• Web-based conference management
• Web-based image monitoring and HD picture snapshot
• 16:9 and 4:3 mixed display
• Picture-in-picture: 1/16 picture size, optional position
• Split output: Bi-screen and tri-screen display
• LDAP/Network address book
• API for integration
Digital Caption:
• Caption banner, body text and information bar
• Rolling display mode of the speech draft
• Modifiable front background color, caption size and transparency
• 64 optional colors
• Editable caption and auto zone adjustment
• Caption rolling mode setting
• Site name display and position shift
• Text input through remote control
• External character generator
• Powerful caption SMS function
|
Optional
|
Function Models: 1080p @ 60 fps, 1080p @ 30 fps, Embedded MCU
|
Maintenance Management
|
Maintenance Methods
• Remote control: 3D Effects & GUI Animation
• Endpoints Network Management: SNMP
• Embedded Web server, GUI interface
• Command line mode: Telnet/SSH
• Wireless touch panel (Optional)
Maintenance Functions

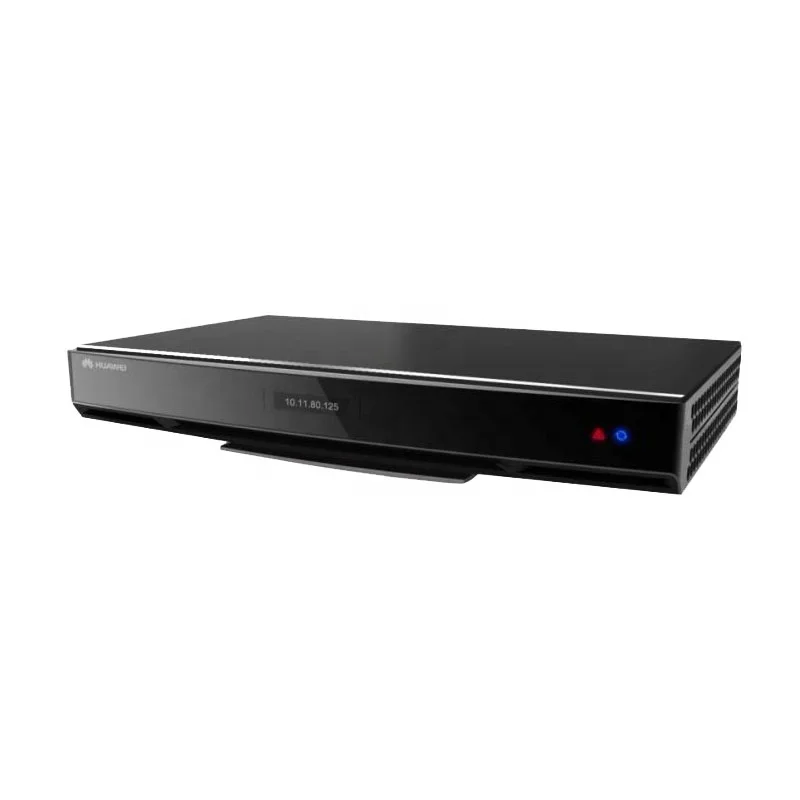

• Endpoint IP and number are displayed on the front panel
• Auto sleep, wake-up by remote control or remote module
• Event log record, query, and display, and export query results
• IP network test, default settings restoration
• Local and remote loopback
• Test signals: Providing sound test and standard test stripes
|
Physical Characteristics
|
Dimensions:

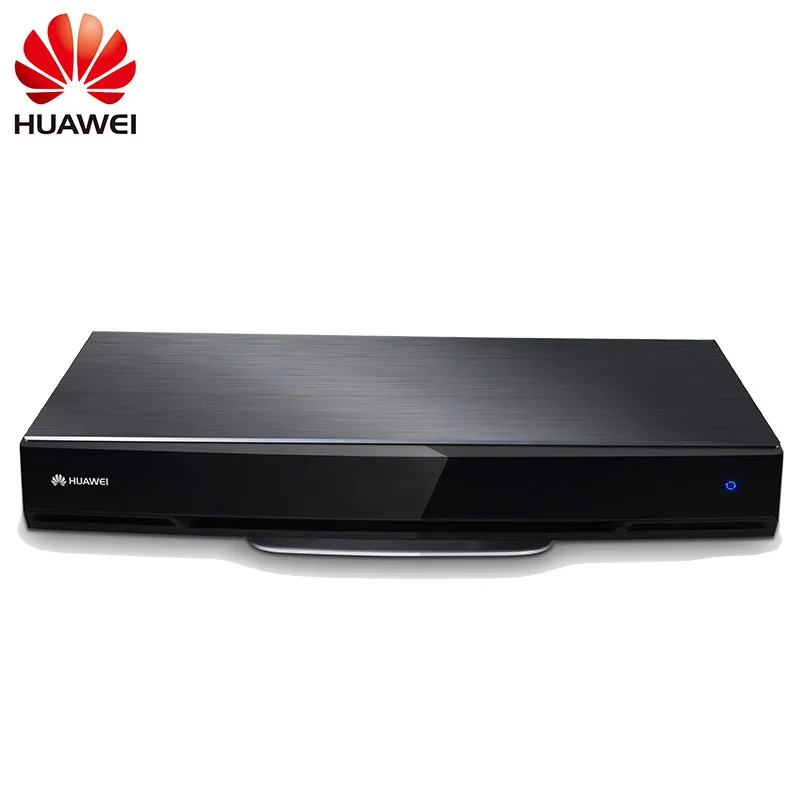

• Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm
• Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm
• Net weight: 3.9 kg
• Package Weight: 5.8 kg
Electrical:
• Working voltage: 100V to 240 V AC
• Working frequency: 50 Hz to 60 Hz
• Power consumption: 60 W
• Embedded AC/DC power module
Environmental Specification:
• Operating Temperature: -5°C to 45ºC
• Operating Humidity: 10% to 95%
• Non-Operating Temperature: -40ºC to 70ºC
• Peripheral noise: < 46 dBA SPL
• Lowest luminance: 7 lux
• Recommended luminance: > 300 lux
Approval and Compliance: CE, RoHS, WEEE, REACH, UL, CCC, FCC, VCCI, C-Tick
|
