Vacuum Homogenizing Mayonnaise Pomade Meat Emulsification Mixing Emulsifying Emulsion Pump Vacuum Mixer Emulsifying Machine
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (1600173648388):
Product Overview
Description
Product Description

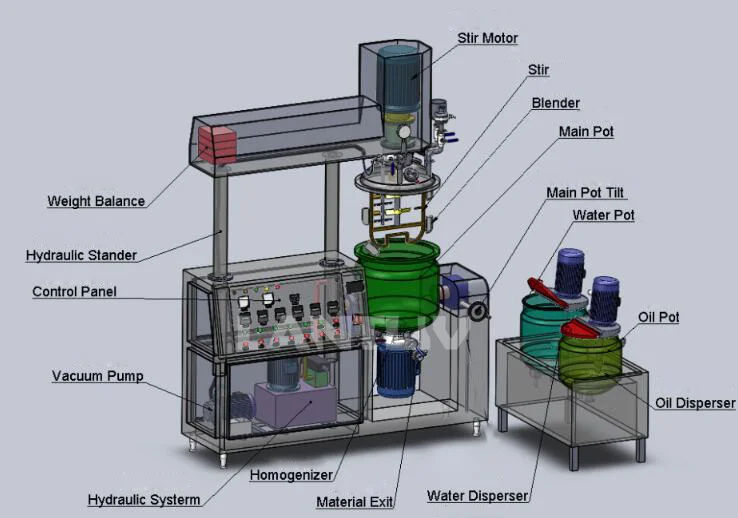

Vacuum emulsifying mixer machine includes pretreating oil pot and water pot, vacuum emulsifying pot, vacuum pump, hydraulic lift system, dumping system, electric control system and work platform etc. Can be used for the production of ointment and cream products in cosmetic and pharmaceutical plants.
Features
1. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, especially for the power materials, vacuum sucking can avoid dust.
2. GMP standard to design and production, sanitary standard.
3. According to process requirements, the tank's body can heating or cooling the materials. The heating method including steam heating and electric heating.
4. The inner parts adopts 316 stainless steel and the bearing is janpanese NSK.
5. Part of this machine can be customerized according to customers' need.
2. GMP standard to design and production, sanitary standard.
3. According to process requirements, the tank's body can heating or cooling the materials. The heating method including steam heating and electric heating.
4. The inner parts adopts 316 stainless steel and the bearing is janpanese NSK.
5. Part of this machine can be customerized according to customers' need.
Technical Parameter
Volume (L) | Homogenizer power / Speed (kw / rpm) | Blending power / Speed (kw / rpm) | Electric heating power (kw) | Cover open |
150 | 3-4 / 0-3000 | 1.5 / 0-65 | 6 | Hydraulic lifting |
250 | 4-5.5 / 0-3000 | 2.2 / 0-65 | 9 | |
350 | 4-5.5 / 0-3000 | 3 / 0-65 | 12 | |
500 | 5.5-7.5 / 0-3000 | 3 / 0-65 | 15 | |
800 | 5.5-7.5 / 0-3000 | 4 / 0-65 | 20 | |
1000 | 7.5-11 / 0-3000 | 5.5 / 0-65 | 29 | |
2000 | 11-15 / 0-3000 | 5.5 / 0-65 | 38 | |
3000 | 15-18 / 0-3000 | 7.5 / 0-65 | 45 |
Products Show
Stirrer
Name: Frame oar scraping blender with 1 fixed oar.
Material: SUS316L.
Speed: 0-65rpm, frequency inverter frequency inverter, PTFE material scrape blade, Flange shaft coupling.
Speed: 0-65rpm, frequency inverter frequency inverter, PTFE material scrape blade, Flange shaft coupling.
Homogenizer
Name: High shearing homogenizer
Material: SUS316L
Speed: 0-2800rpm, frequency inverter
Material: SUS316L
Speed: 0-2800rpm, frequency inverter
Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, two sides tungsten seal. water circulation cooling homogenizer.
Water pot and Oil pot
1. Machine equipped a set of water and oil pot.
2. Water pot and Oil pot capacity can be customized.
3. Power: Siemens motor, 1440RPM.
3. Power: Siemens motor, 1440RPM.
4. Electric heating by water or conduction Oil.
5. Mixing: High shearing disperser plates with baffle on the wall.
5. Mixing: High shearing disperser plates with baffle on the wall.
6. Half open hinged lid for easy operation.
7. Top / Bottom disperser (Option).
7. Top / Bottom disperser (Option).
Operating electric cabinet
Each function can be controlled separately:
1. The working time of homogenize can be set ( suggest 10 minutes ) .
2. Heating temperature can be set according to different formula .
3. Mixing speed of frame mixer and homogenizer mixer is adjustable .
4. Touch screen HMI control panel is optional

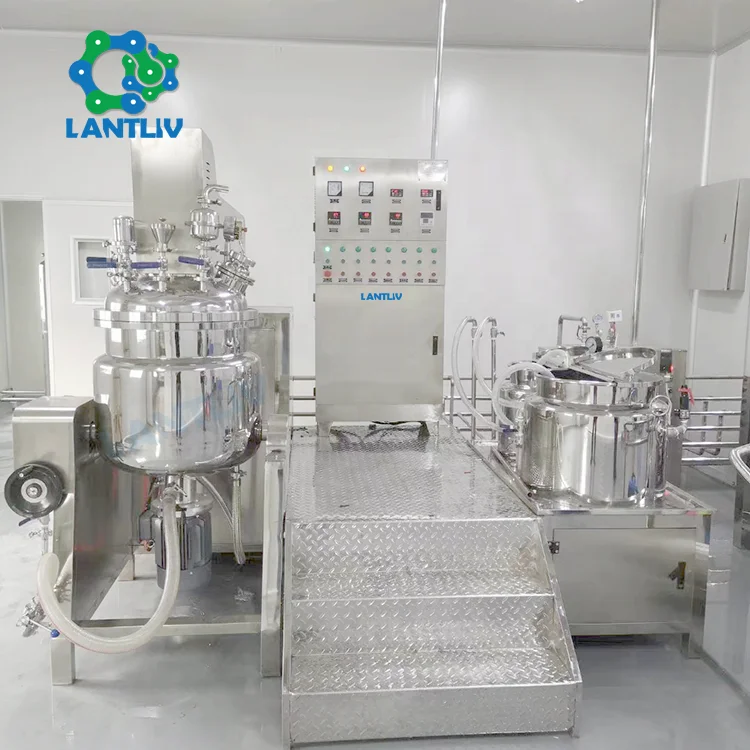

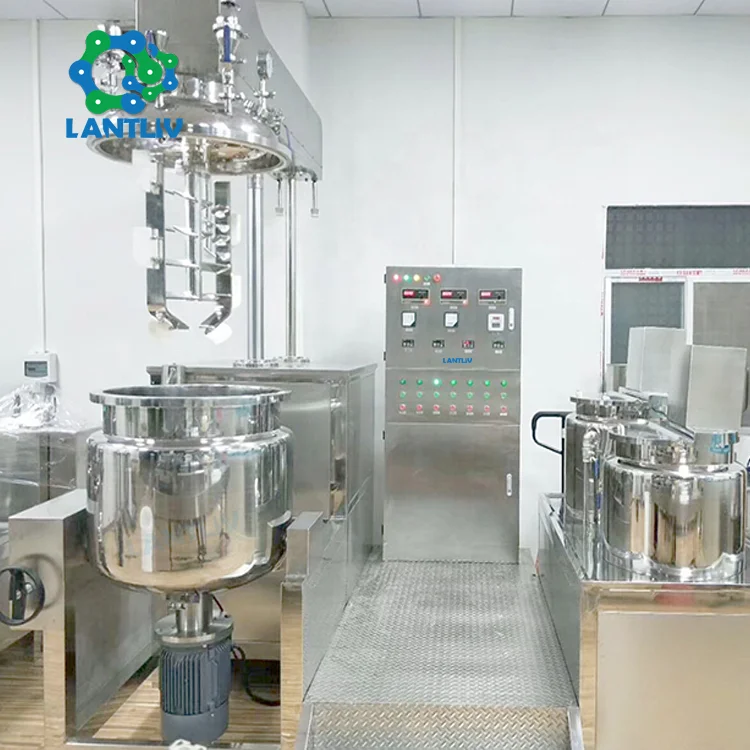

Project

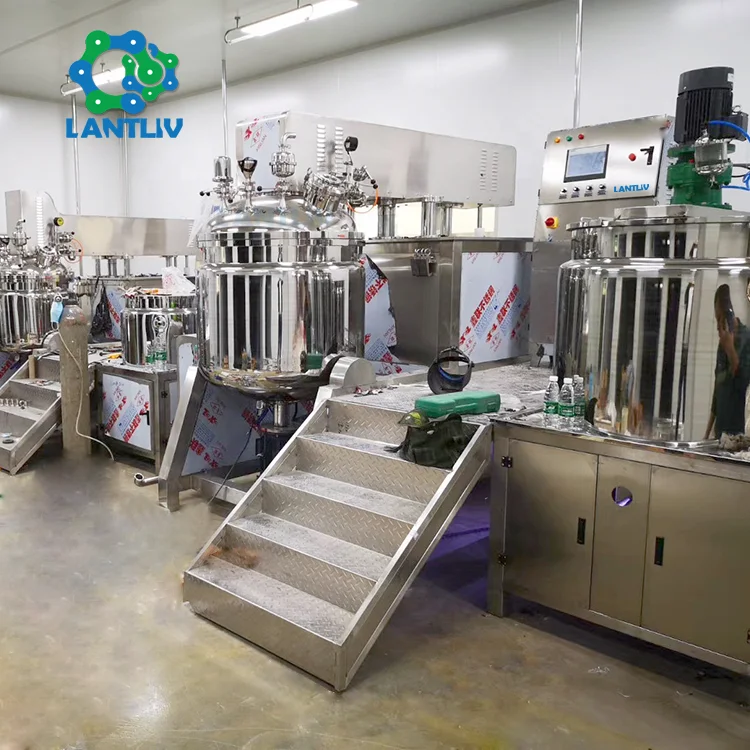

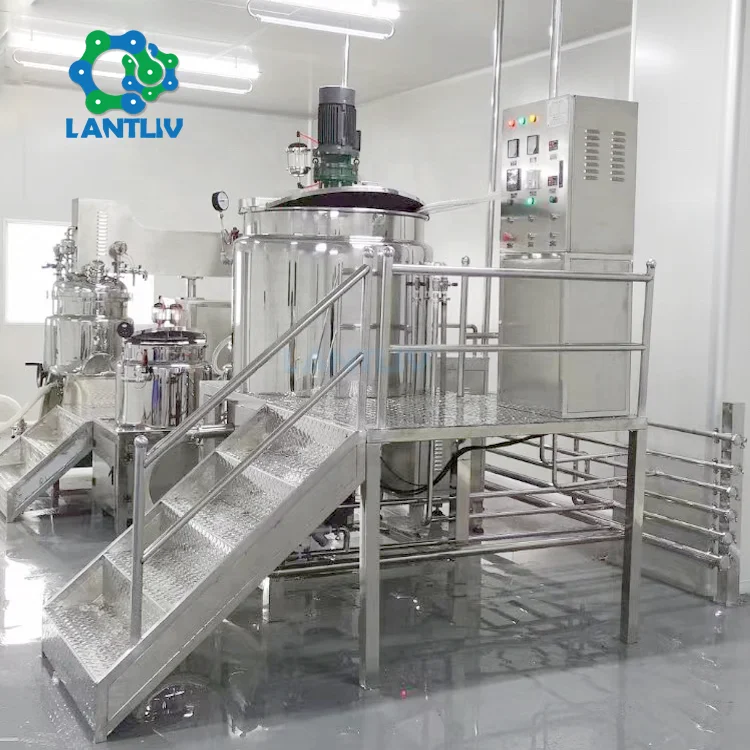

Workshop Production
Certifications

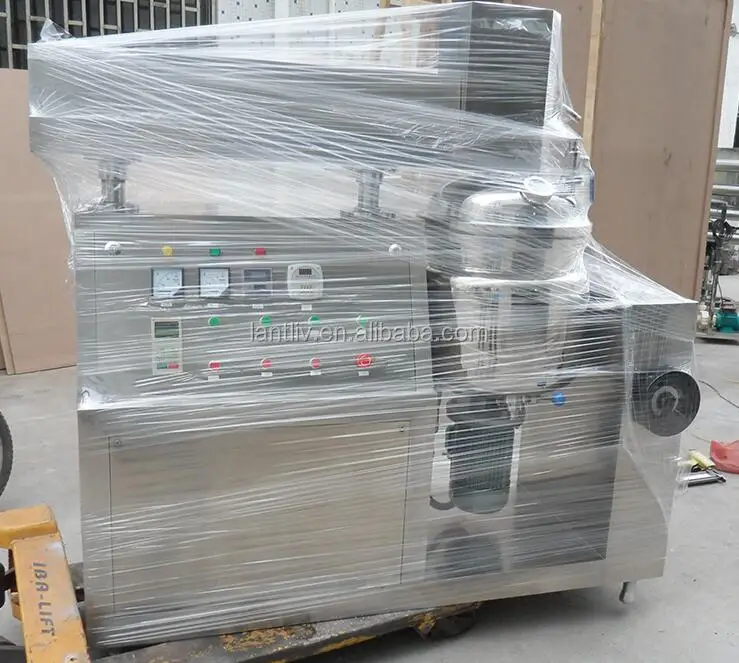

Packing & Delivery

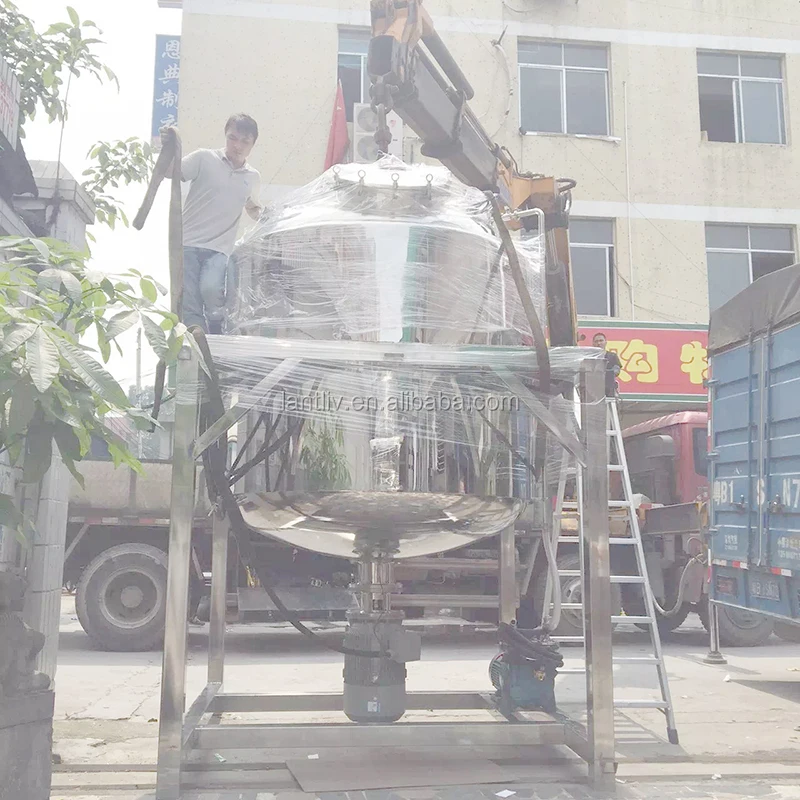

1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 25 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
