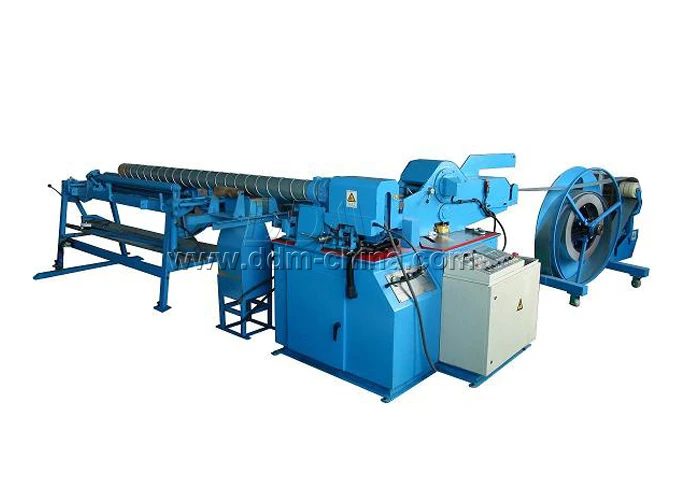

DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making machine
Machine Parameters
DMTF-2020 Spiral tubeformer Parameters | ||
Model | DMTF-2020 | |
Diameter range (mm) | Φ80-Φ2500 | |
Thickness of strip （mm) | 0.4-2(GI) / 0.4-1.2(SS) /0.4-2.0(Alu) | |
Strip width (standard) (mm) | 0.4-1.0mm 137mm/ 1.1-1.3mm 140mm /1.4-2.0mm ( standard ) | |
Max working speed( m/min) | Max 60 meters/min depending on material | |
Corrugations | Either one or two beads | |
Lockseam | Outside tube ,on the inside on the request | |
Cutting system | plasma cutting flying slitter | |
Power （KW) | 22KW | |
Weight (KG) | 3200 | |
Dimension (MM) | 2100X1800X1500 | |
Machine Features
Diameter range: 80-2500mm
Thickness: 0.4-2mm
Feeding speed: max 0-60m/min （based on the material types )
The flanging and seaming is the tightest ever detected on the market by independent research institutes.
All key parts are made of high quality die steel.
The unique roll pattern on the drive roller optimizes the force.
Special angle blade optimize shear.
The special inlaid copper piece of the molding head minimizes friction and makes it more durable.
The precision work differential of the forming roll assembly optimizes the edge seam.
The blade uses high-quality steel with long service life.
The special clamping roller makes the edge seam firm.
With high efficiency, the conveying speed of the belt can reach up to 80m/min.
Compact structure and occupy a small area.
The forming machine bed and base plate are made of ductile iron with good stability and no deformation.
Adopt multiple protection devices with good safety performance.
The decoiling machine with unique material tensioning device, improve the precision and quality of products.
Hydraulic system, stable operation, low noise, easy maintenance.
The hydraulic system is safe, reliable and easy to adjust.
Multi-step programming, automatically program running.
It has power off protection function to ensure the parameter is not lost.
Thickness: 0.4-2mm
Feeding speed: max 0-60m/min （based on the material types )
The flanging and seaming is the tightest ever detected on the market by independent research institutes.
All key parts are made of high quality die steel.
The unique roll pattern on the drive roller optimizes the force.
Special angle blade optimize shear.
The special inlaid copper piece of the molding head minimizes friction and makes it more durable.
The precision work differential of the forming roll assembly optimizes the edge seam.
The blade uses high-quality steel with long service life.
The special clamping roller makes the edge seam firm.
With high efficiency, the conveying speed of the belt can reach up to 80m/min.
Compact structure and occupy a small area.
The forming machine bed and base plate are made of ductile iron with good stability and no deformation.
Adopt multiple protection devices with good safety performance.
The decoiling machine with unique material tensioning device, improve the precision and quality of products.
Hydraulic system, stable operation, low noise, easy maintenance.
The hydraulic system is safe, reliable and easy to adjust.
Multi-step programming, automatically program running.
It has power off protection function to ensure the parameter is not lost.
Details Images

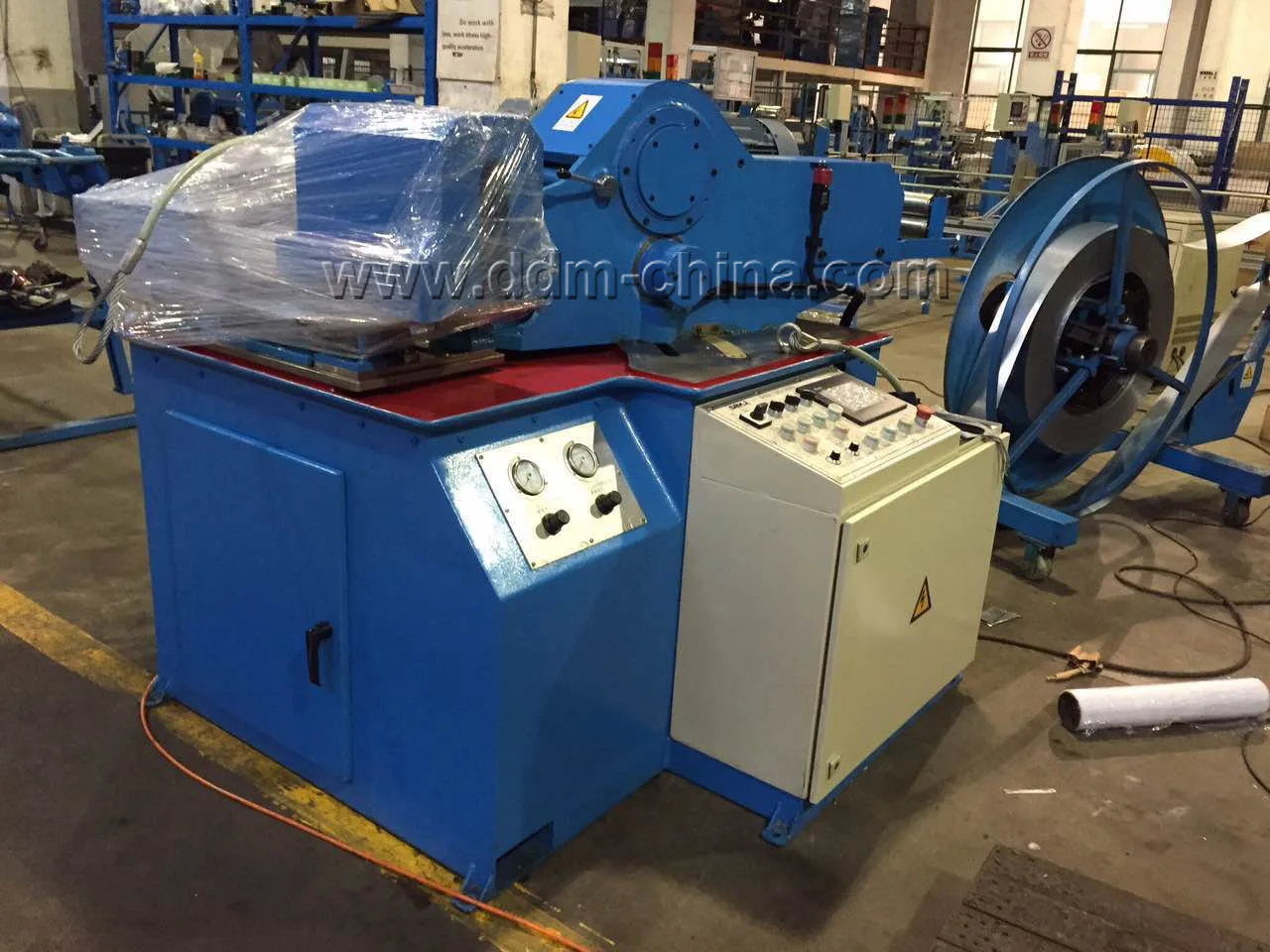

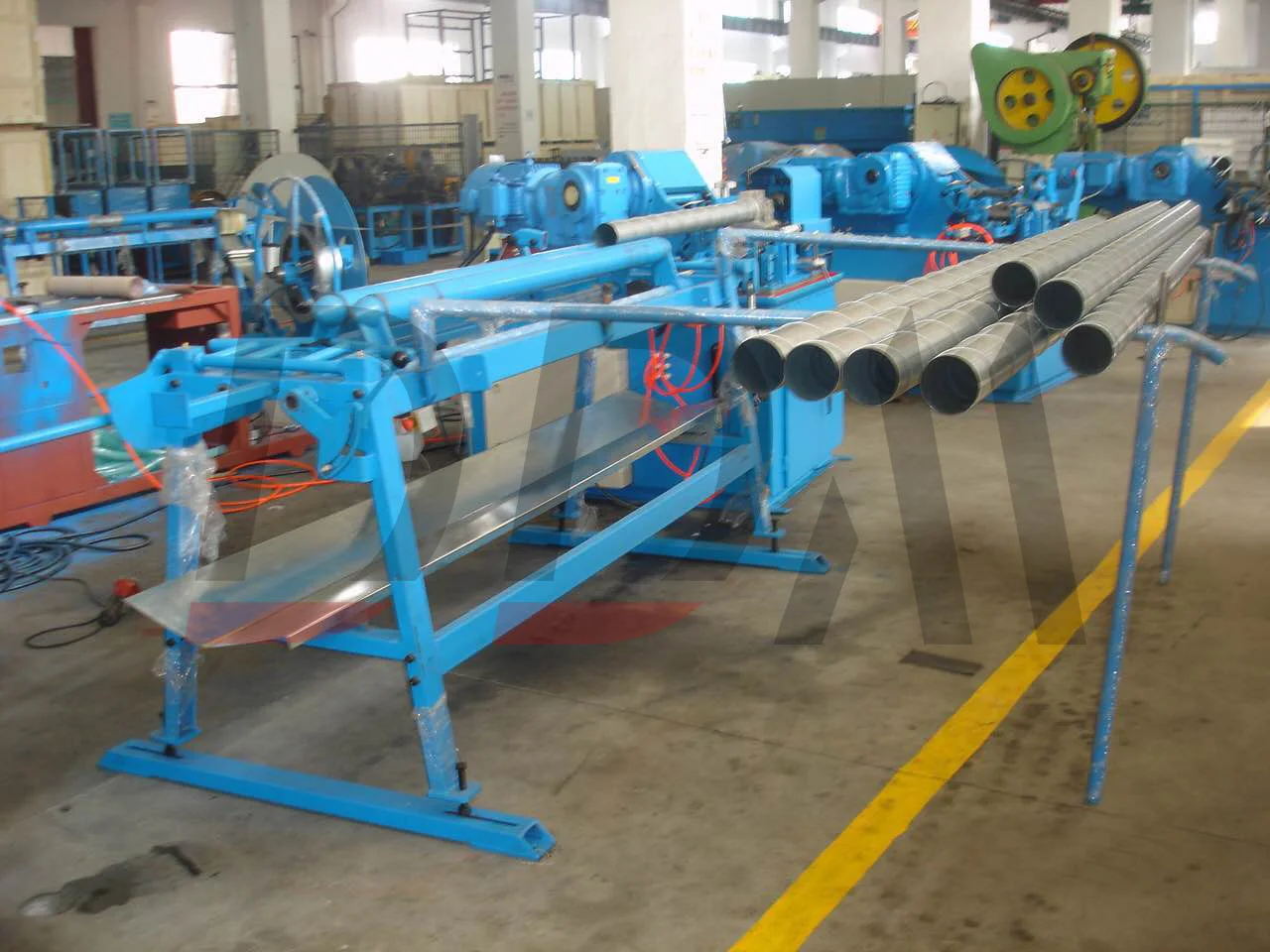

The front view of main machine body of DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making machine

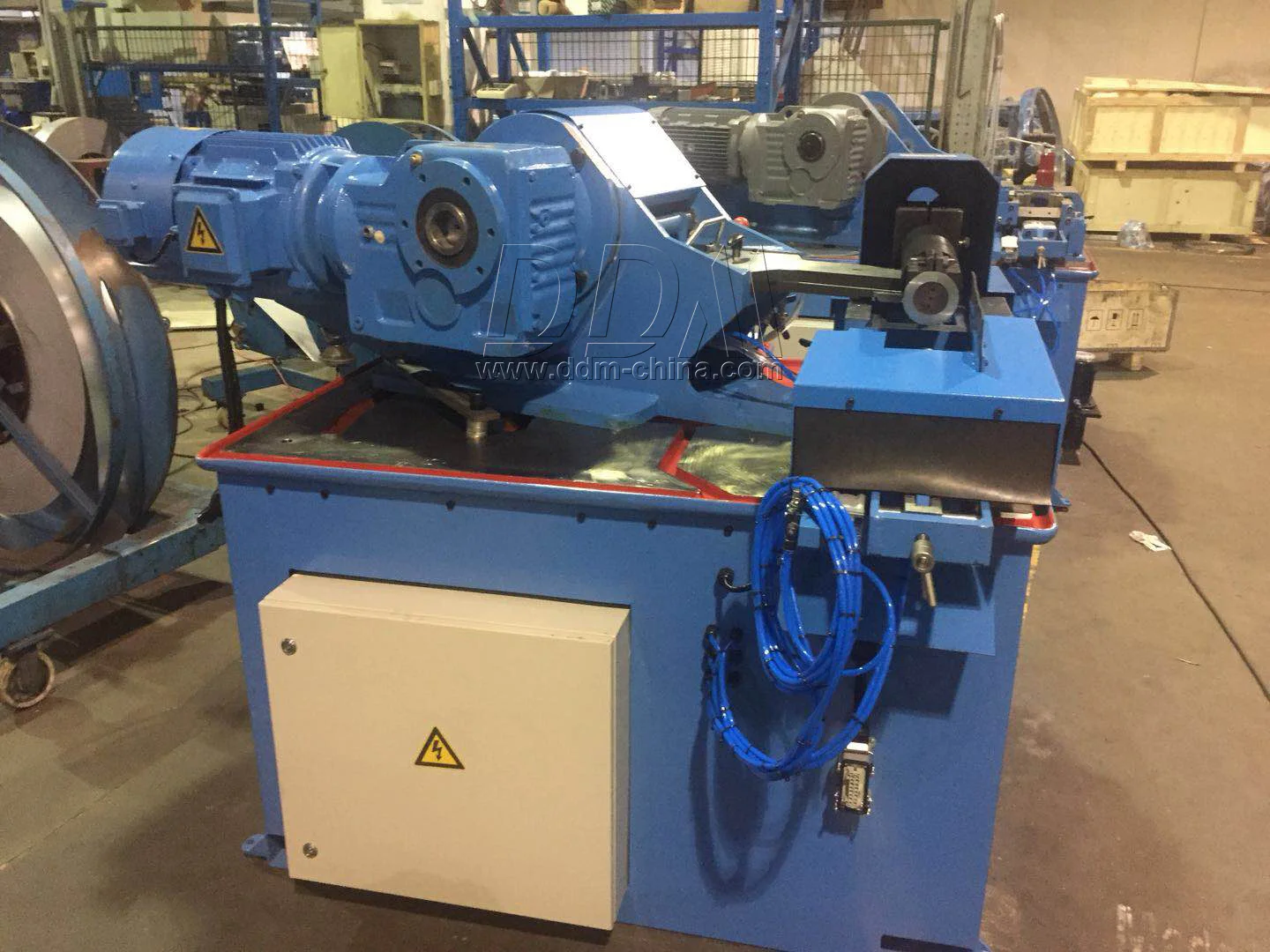

The back view of main machine body of DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making machine

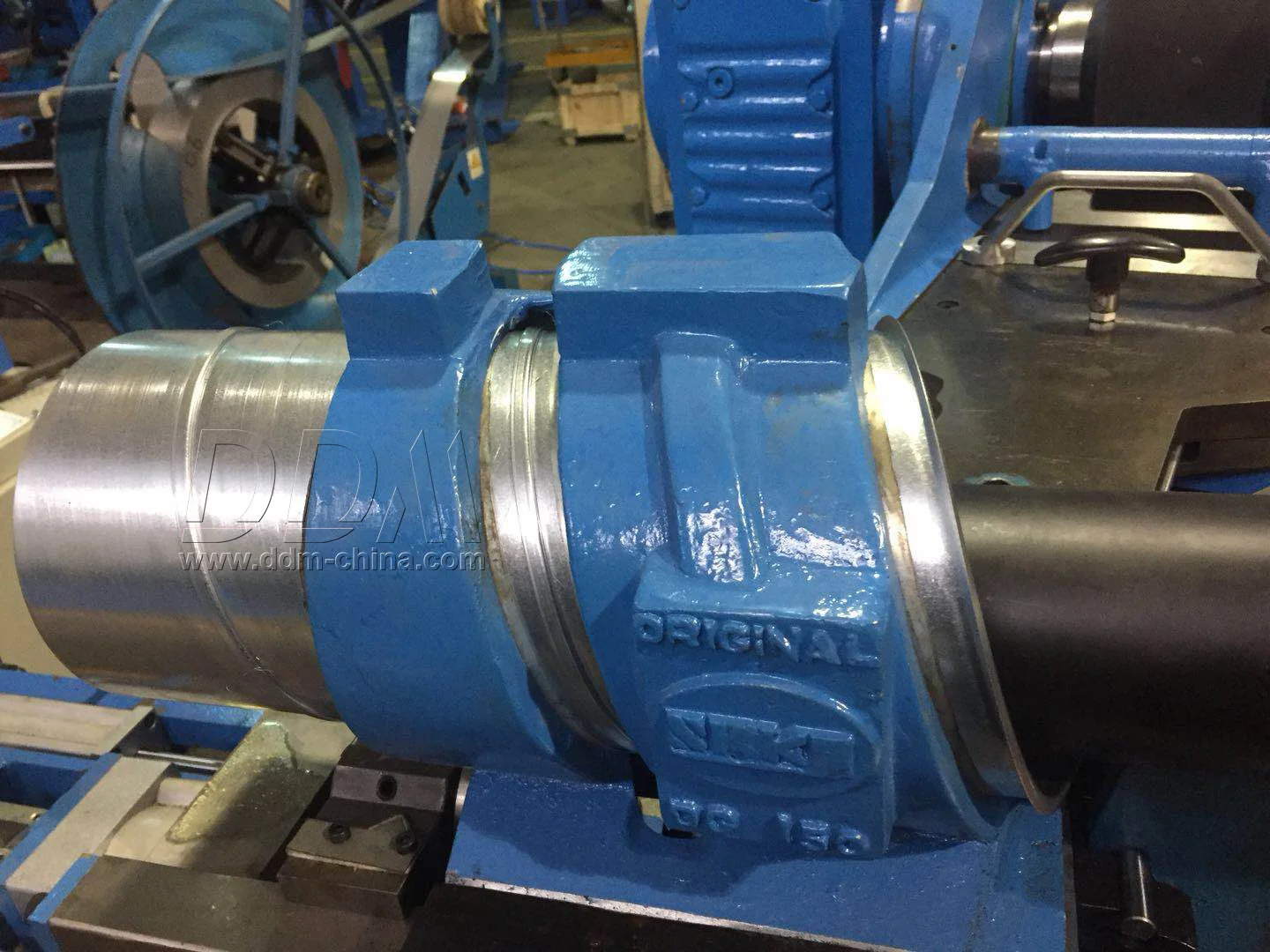

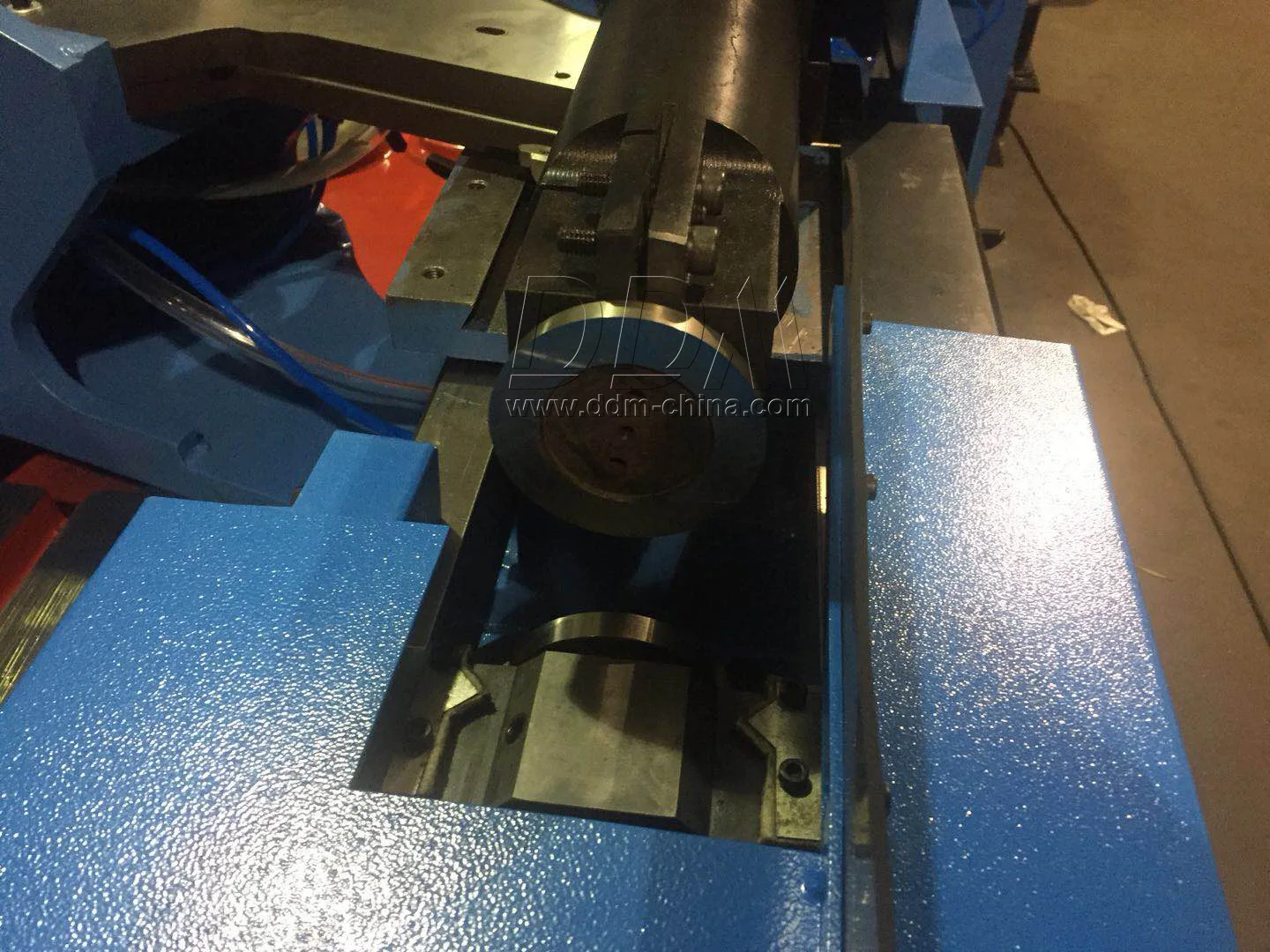

The detailed forming part of DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making machine

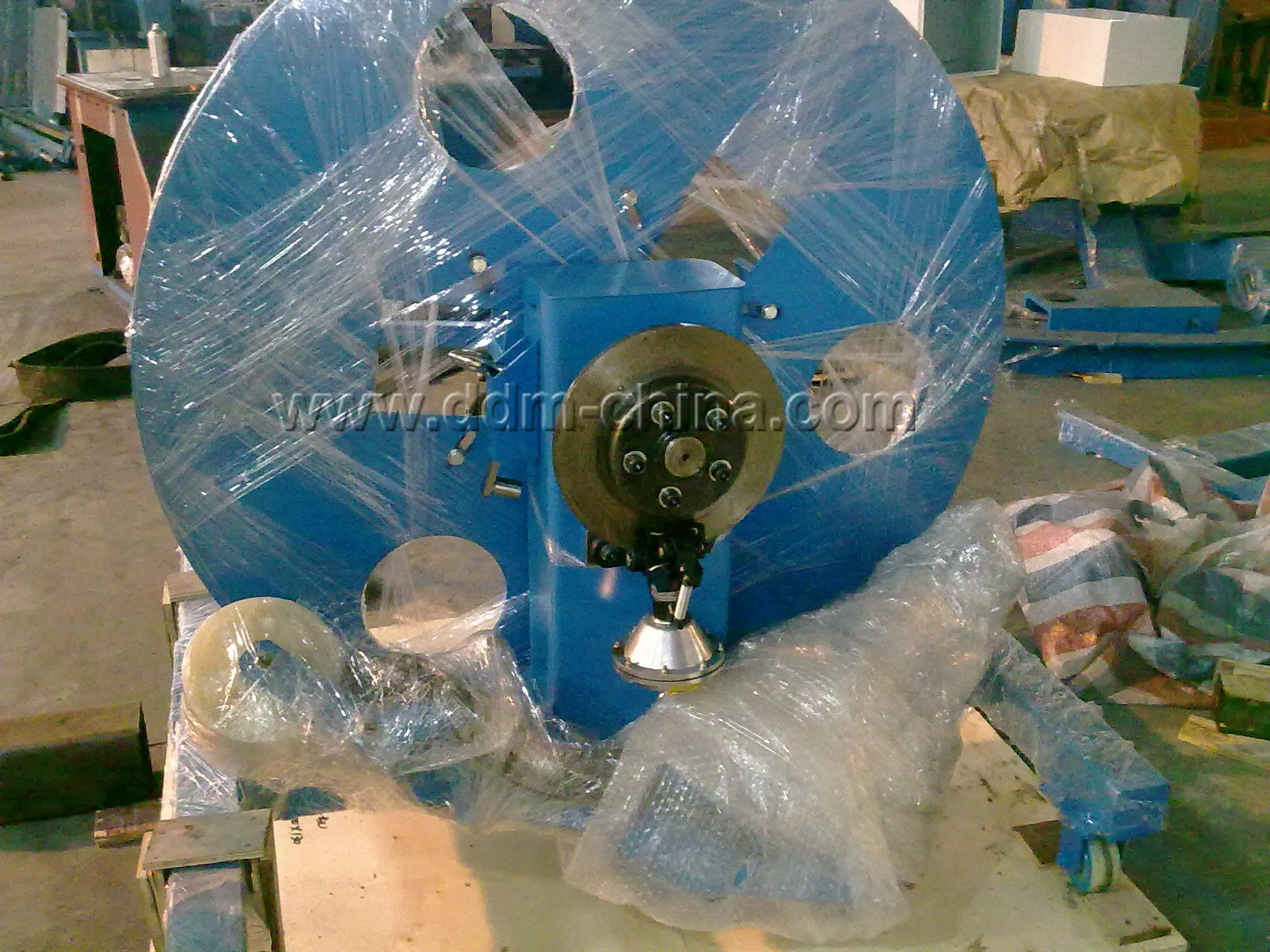

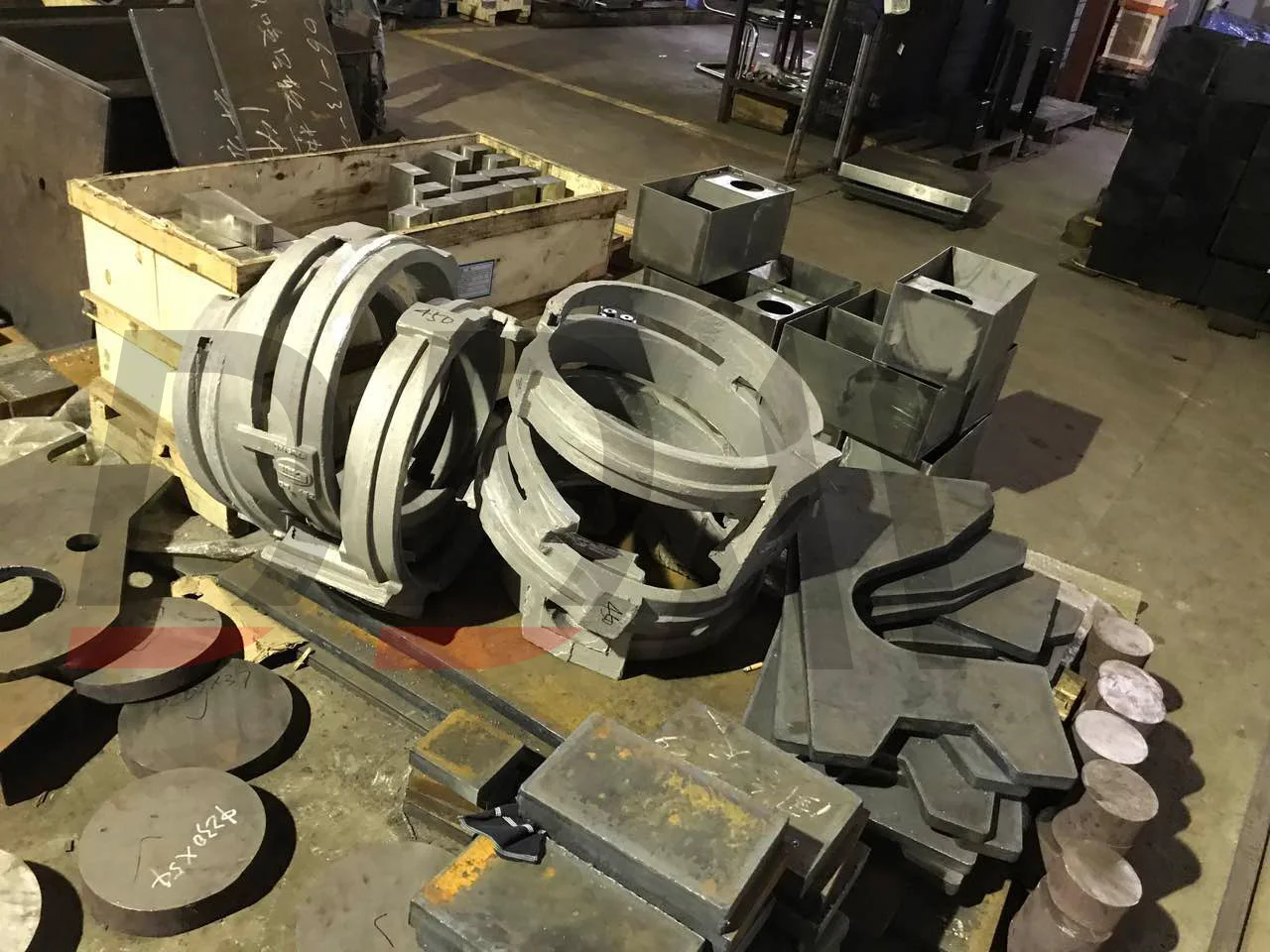

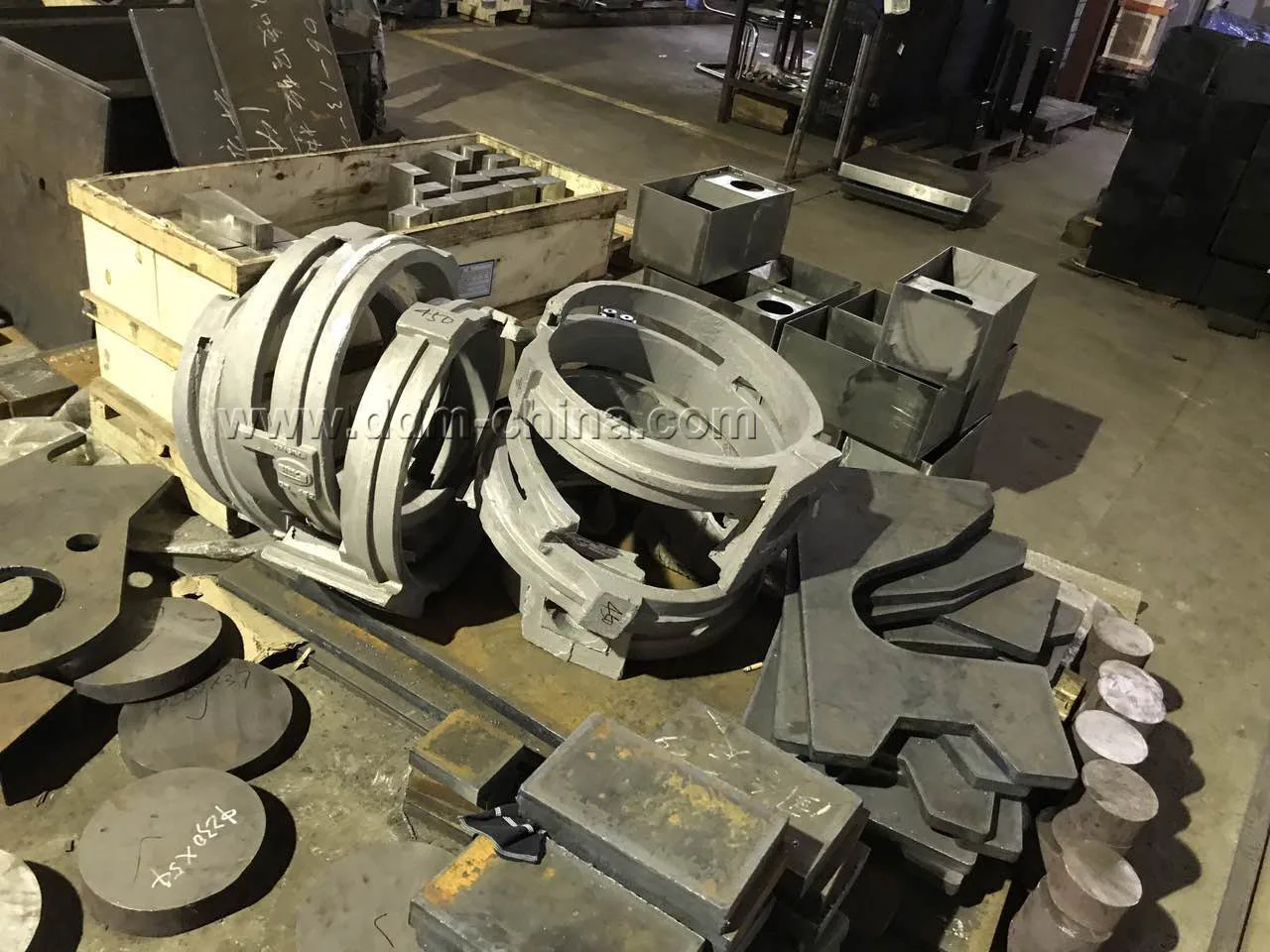

Alu forming head for round pipe forming from DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making

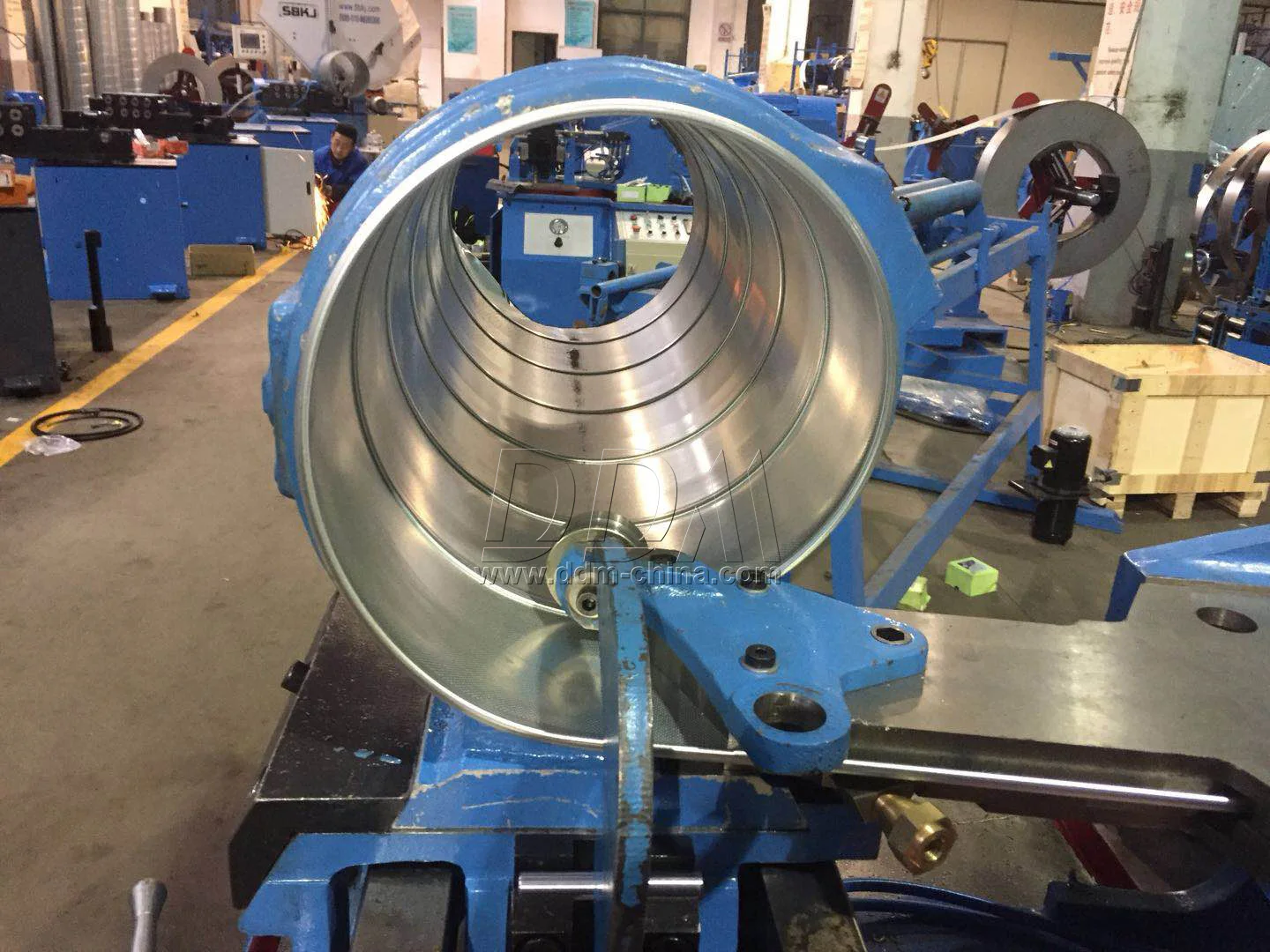

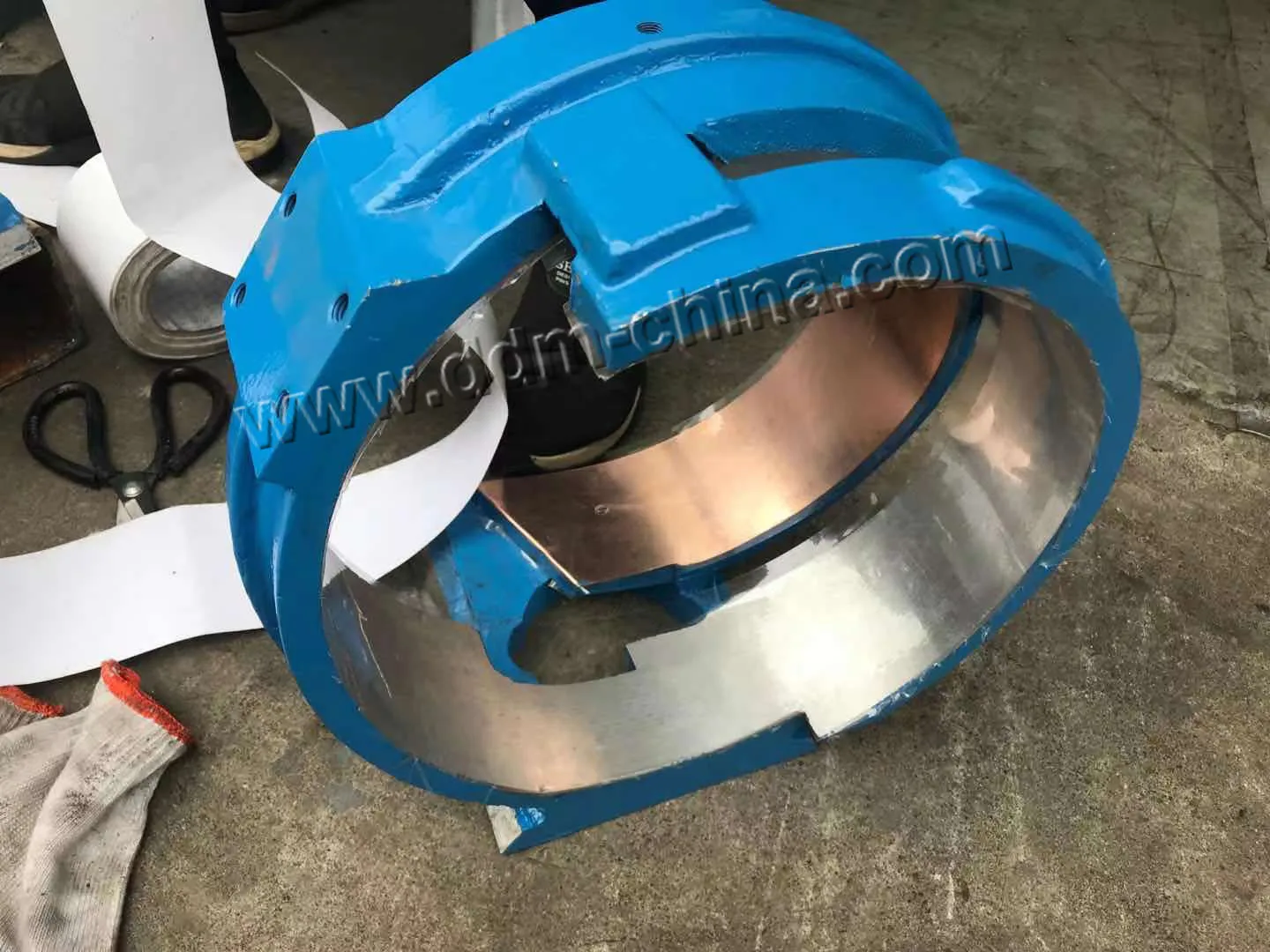

Customized alu forming head for DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making

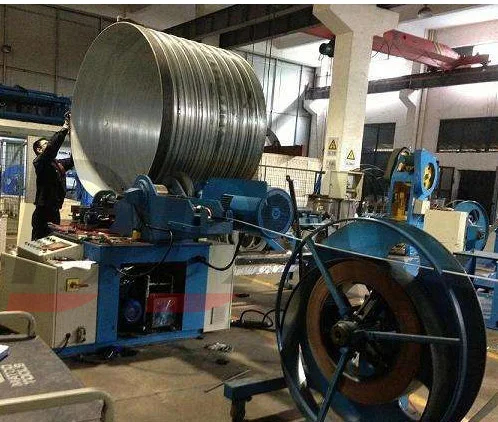

Round duct with 2000mm diameter

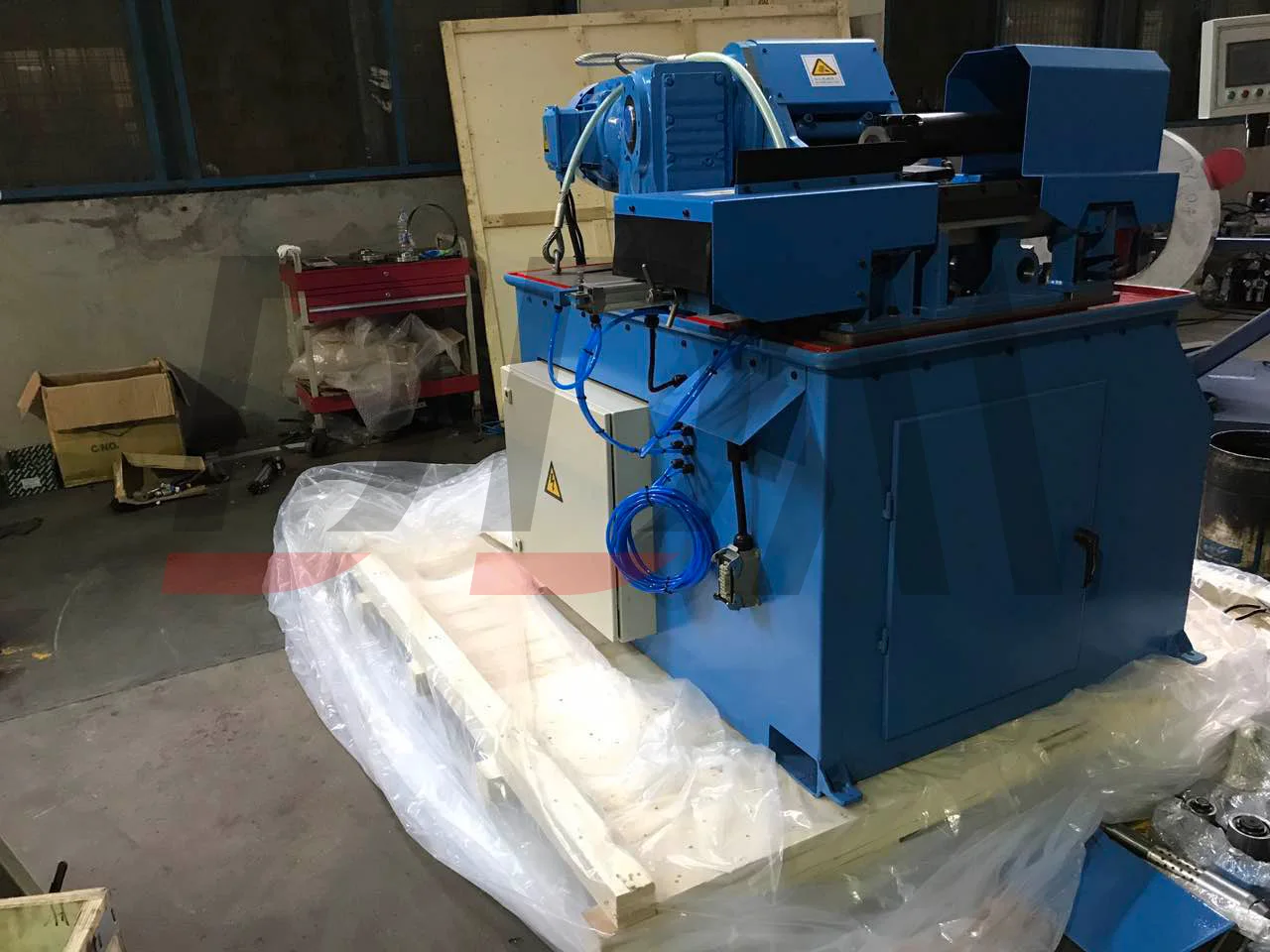

Solid export wooden package for our 2020 spiral tubeformer
