Kongter battery analyzer capacit analyzer for measurement of battery impedance battery conductance

Product Name:

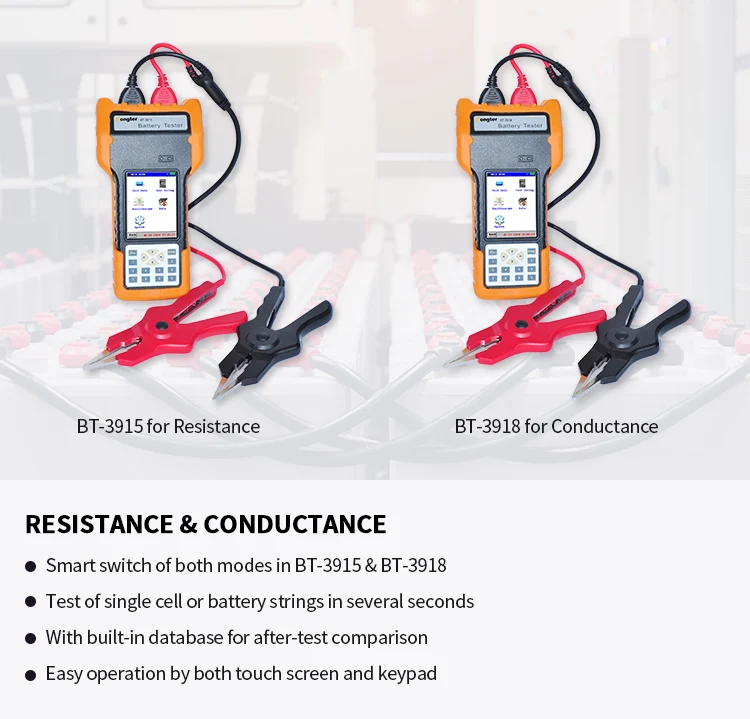

BT-3918 Battery Conductance Tester

Conductance range

100-19990 Siemens

Voltage range

0.000V ~16V

Minimum test resolution

-Conductance

-Voltage

0.01S

1mv

Test accuracy

-conductance

-voltage

±1.0%rdg ±6dgt

±0.2%rdg ±6dgt

Power supply

Li-ion battery (7.2V 2400mAh)

Working time

More than 5 hours after full charge

Measuring data memory

>3000 cells

Operation environment

0℃ to 40℃, 90% R.H

Measuring cells per string

1≤cells≤254

LCD display

320*240 pixel, 3.5” TFT screen

Net weight (package)

2 kg

Dimension

L210*W110*H60 mm
