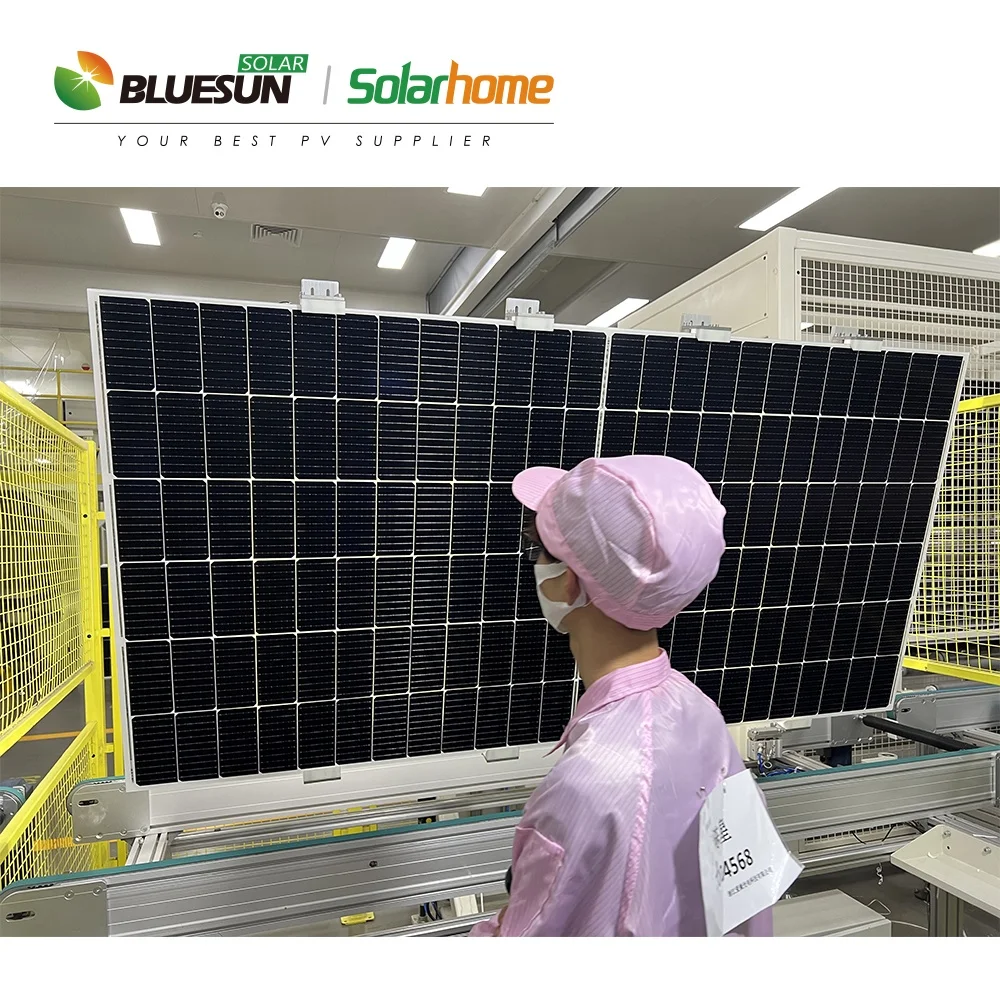

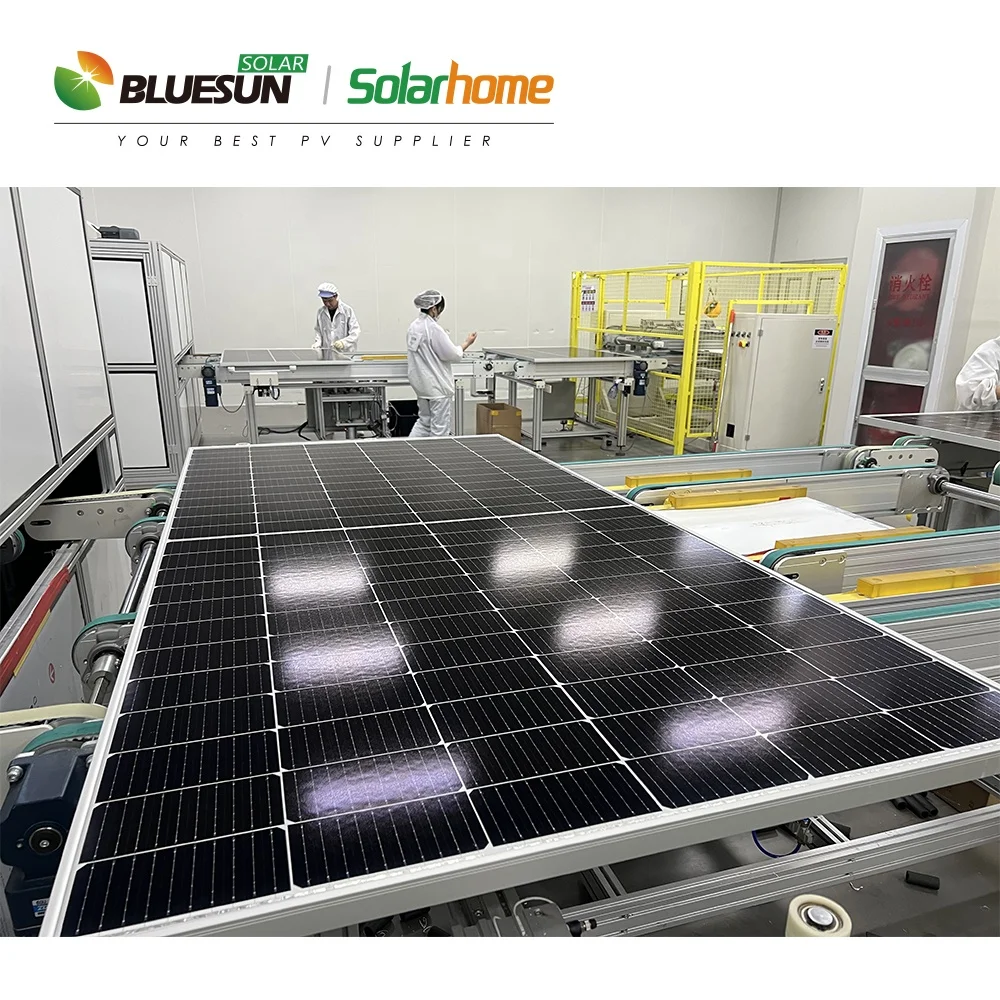

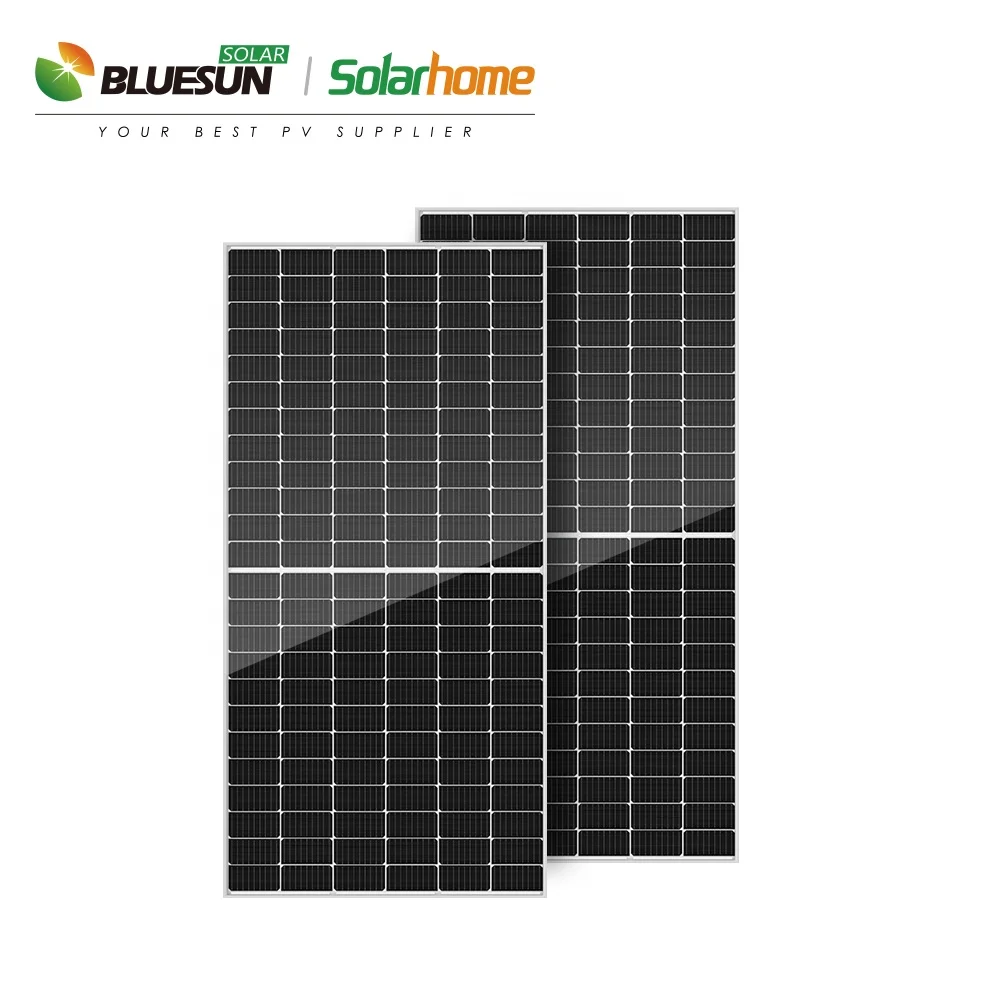

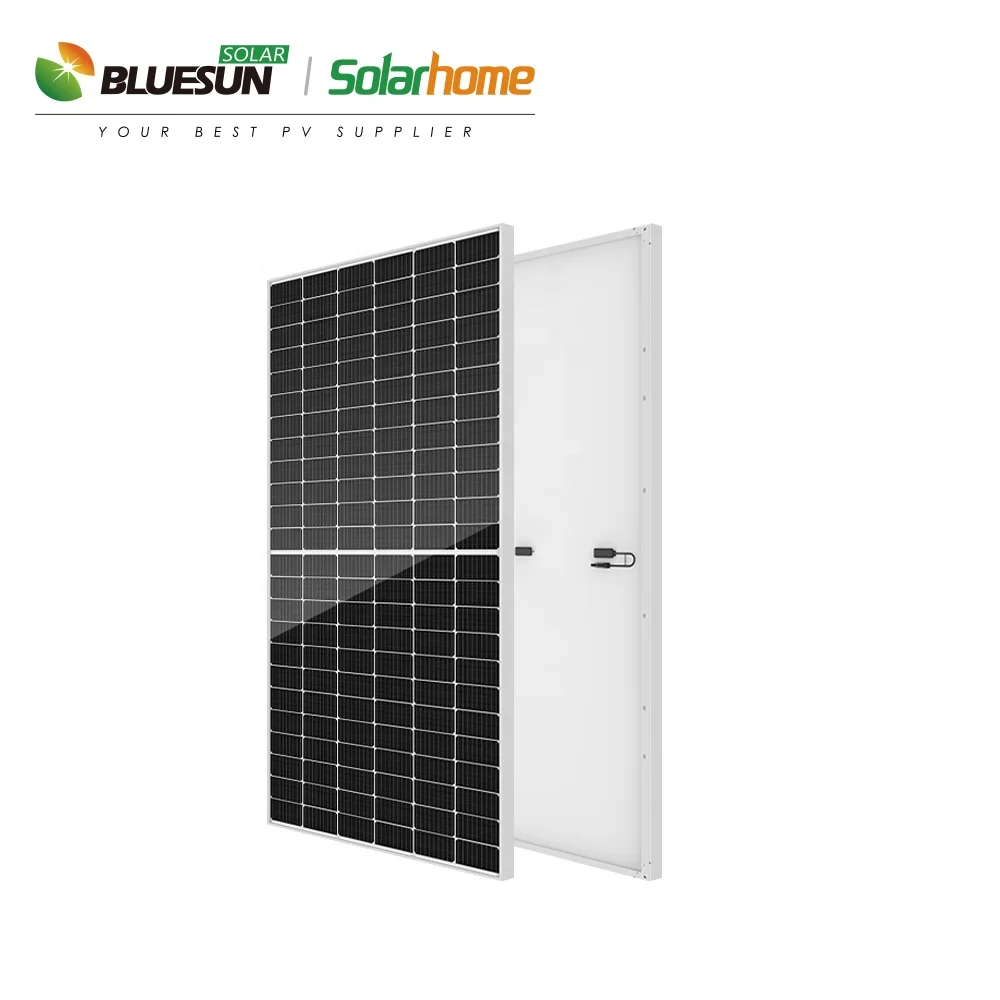

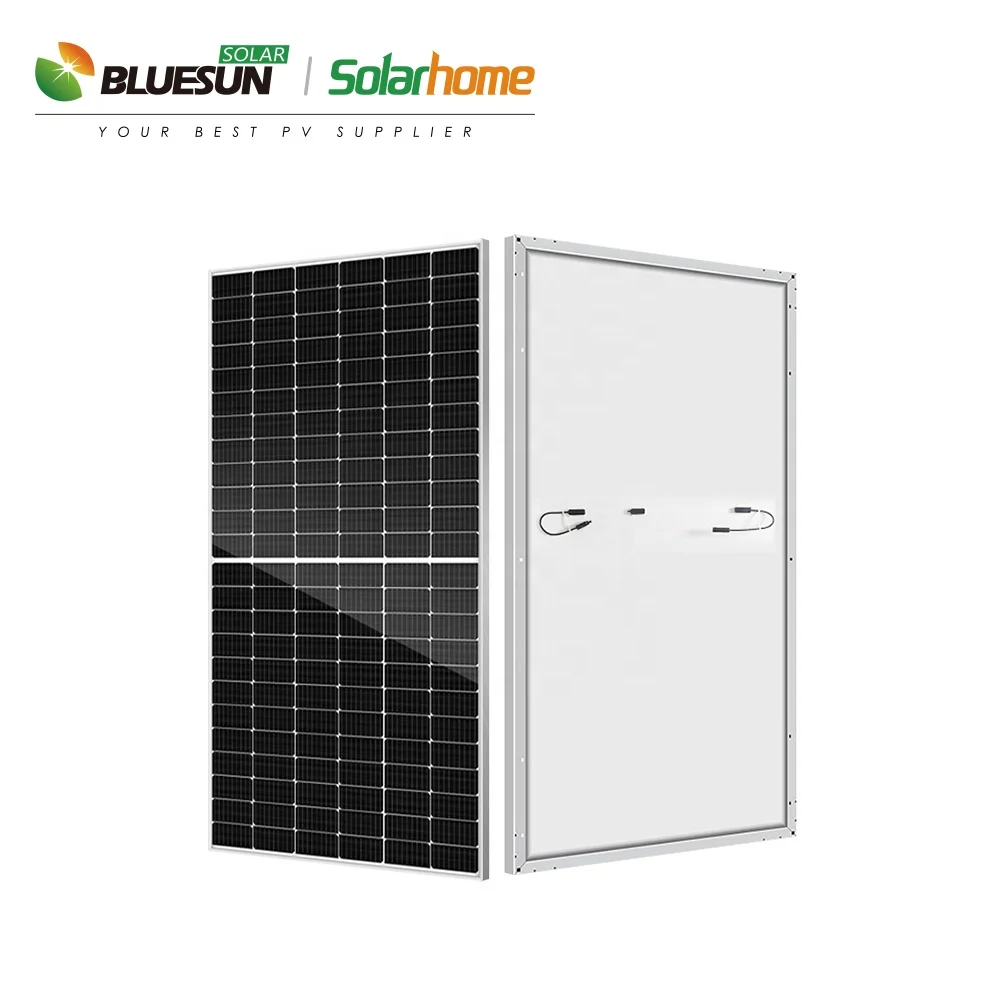

JA SOLAR panel 550w half 182mm solar cells panel solar 550w mono perc solar panel price
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.
Share on (1600174160054):
Product Overview
Description
Advantages Of Bluesun
Product Description

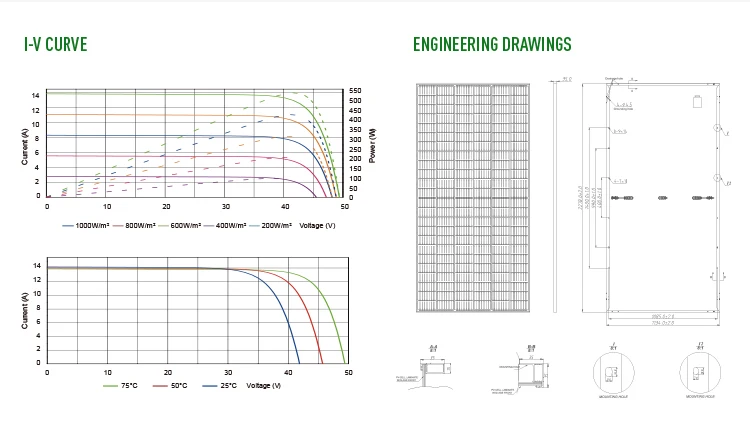

SPECIFICATIONS | ||||||||||

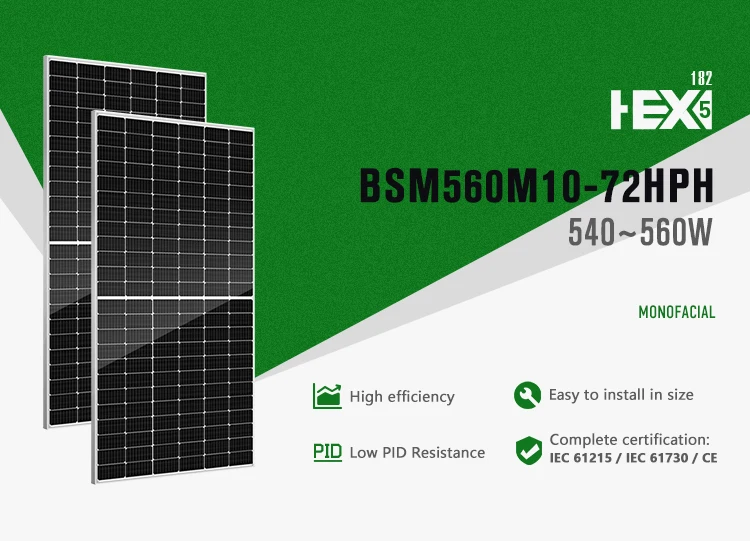

Module Type | BSM540M10-72HPH | BSM545M10-72HPH | BSM550M10-72HPH | BSM555M10-72HPH | BSM560M10-72HPH | |||||
STC | STC | STC | STC | STC | ||||||
Maximum Power (Pmax/W) | 540 | 545 | 550 | 555 | 560 | |||||
Operating Voltage(Vmp/V) | 41.96 | 42.06 | 42.16 | 42.24 | 42.33 | |||||
Operating Current(Imp/A) | 12.87 | 12.96 | 13.05 | 13.14 | 13.23 | |||||
Open-Circuit Voltage(Voc/V) | 49.60 | 49.70 | 49.80 | 49.90 | 50.00 | |||||
Short-Circuit Current(Isc/A) | 13.74 | 13.84 | 13.94 | 14.04 | 14.14 | |||||
Module Efficiency（%） | 20.90 | 21.10 | 21.30 | 21.49 | 21.68 | |||||
STC: Irradiance 1000W/m², Cell Temperature 25°C Air Mass AM1.5 | ||||||||||
Certifications

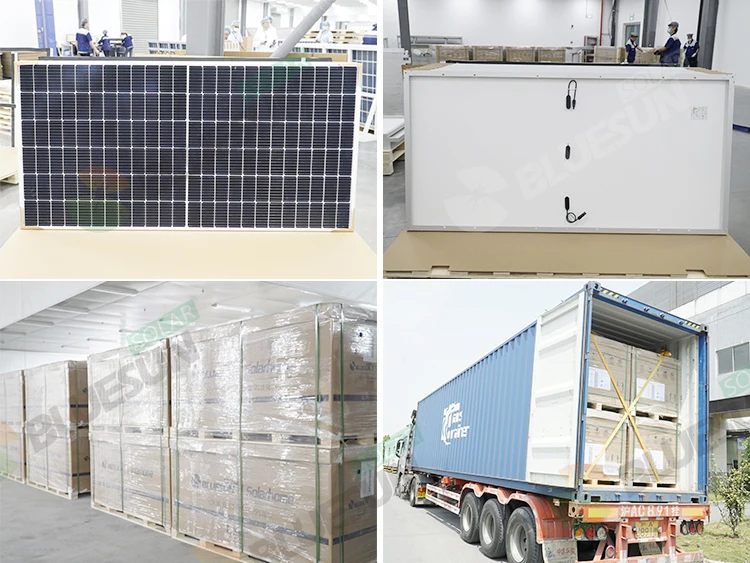

Packing&Delivery

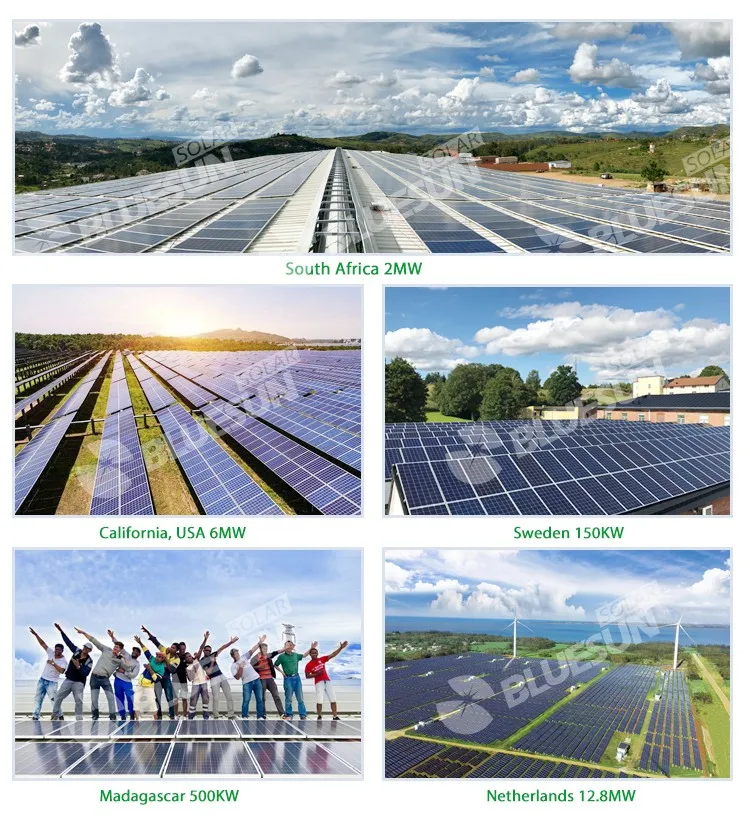

Projects
