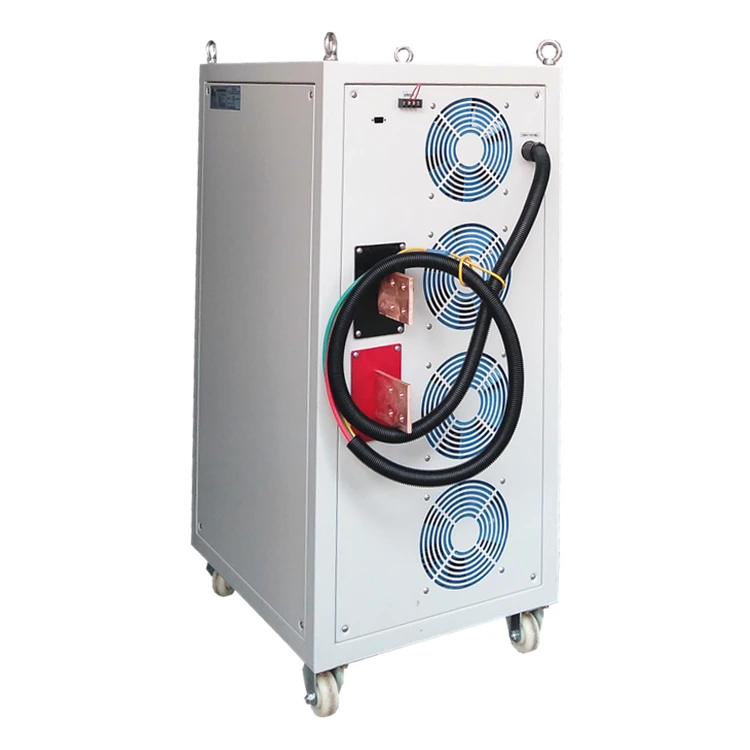

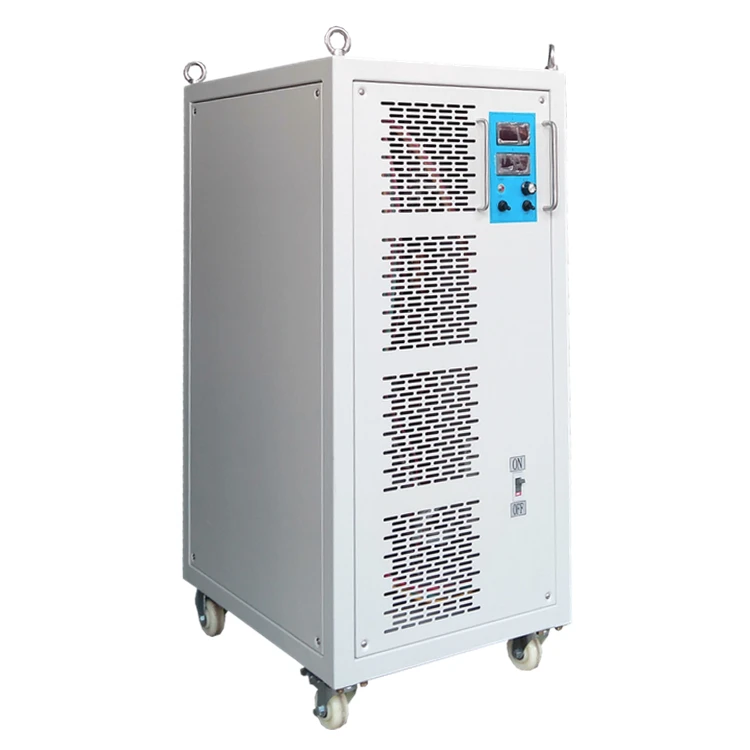

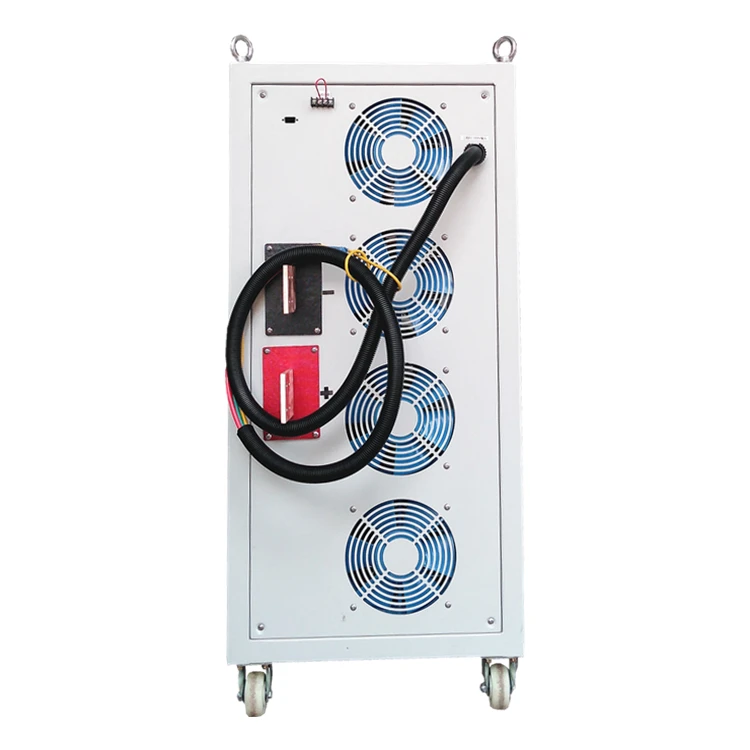

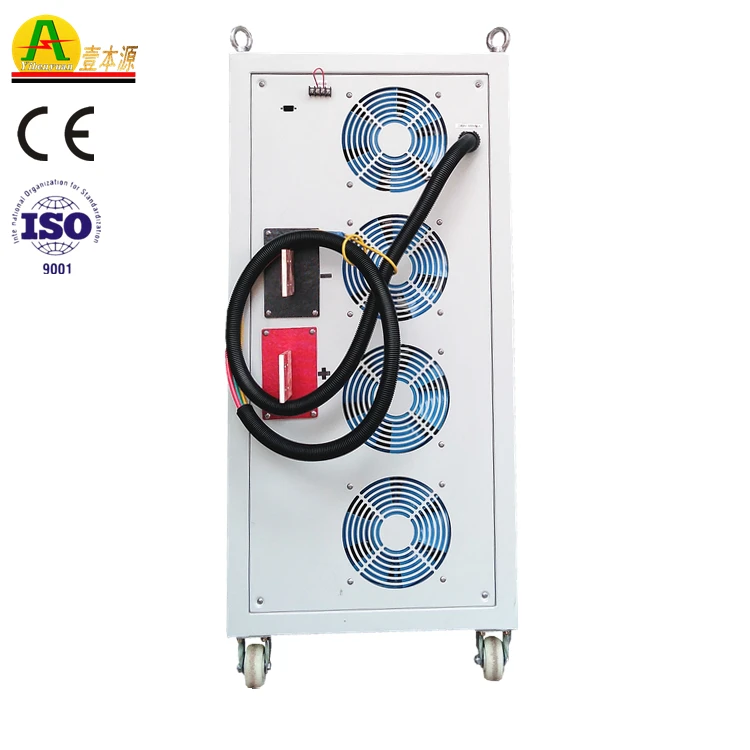

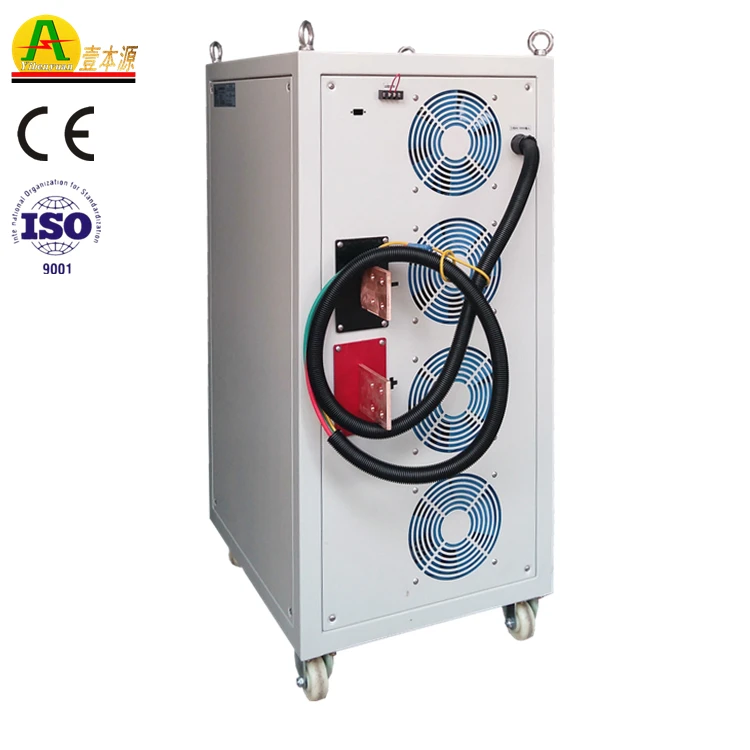

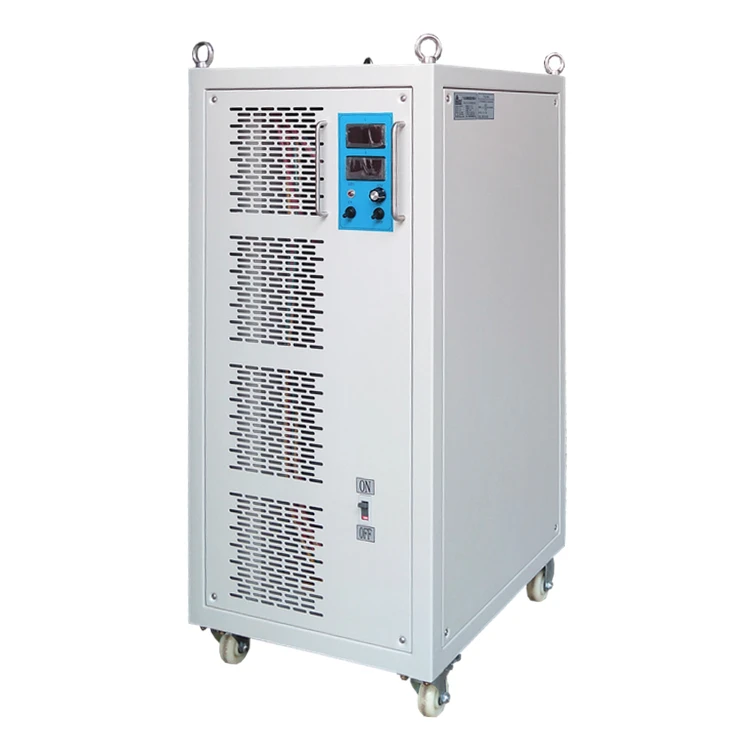

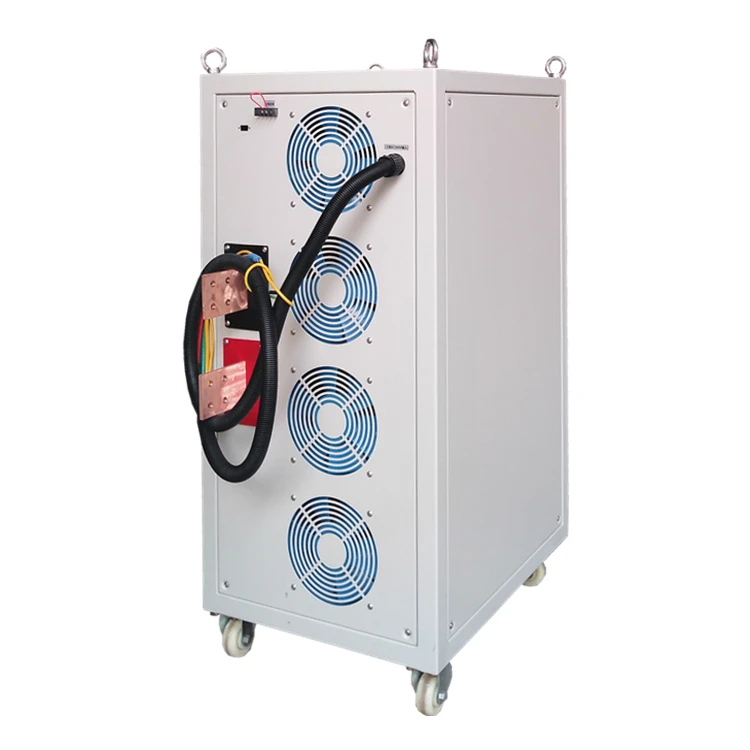

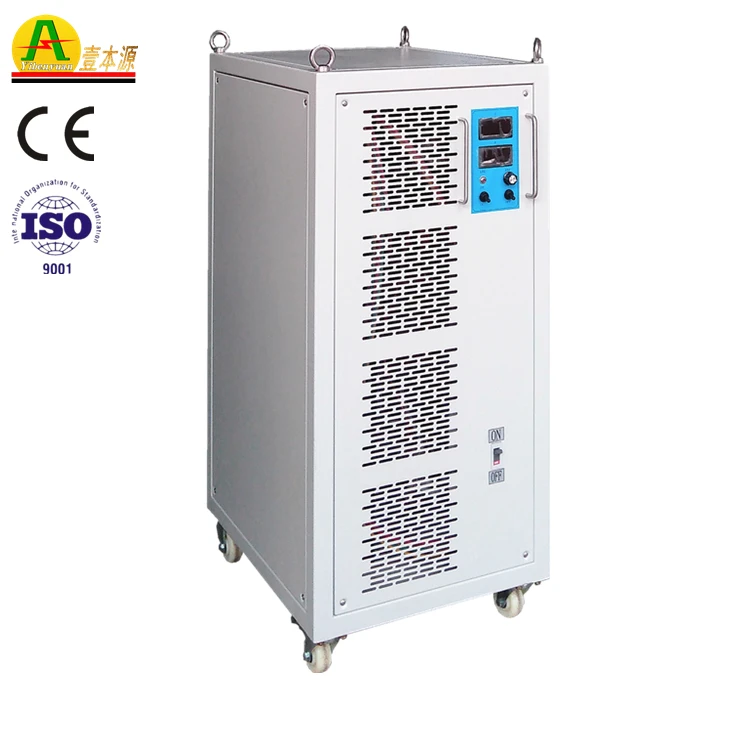

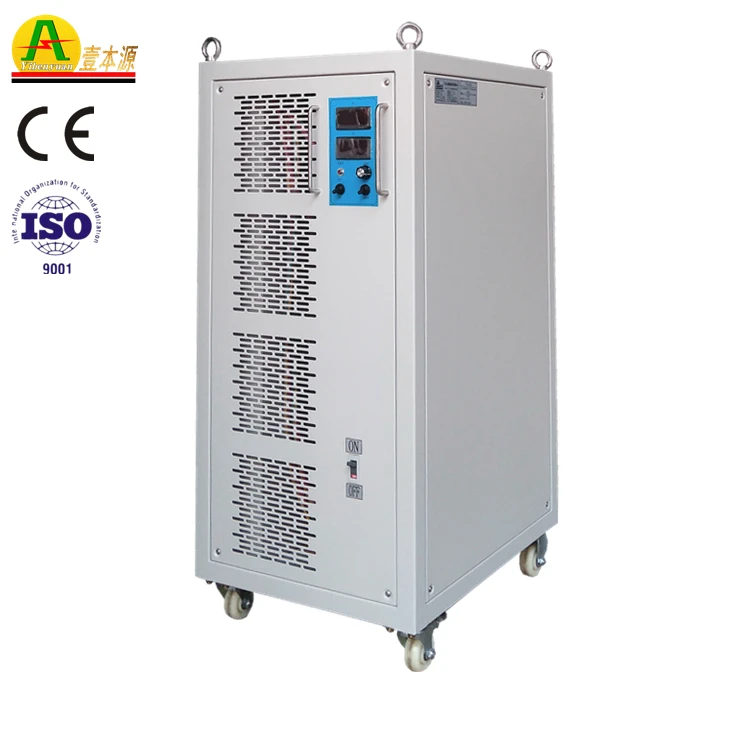

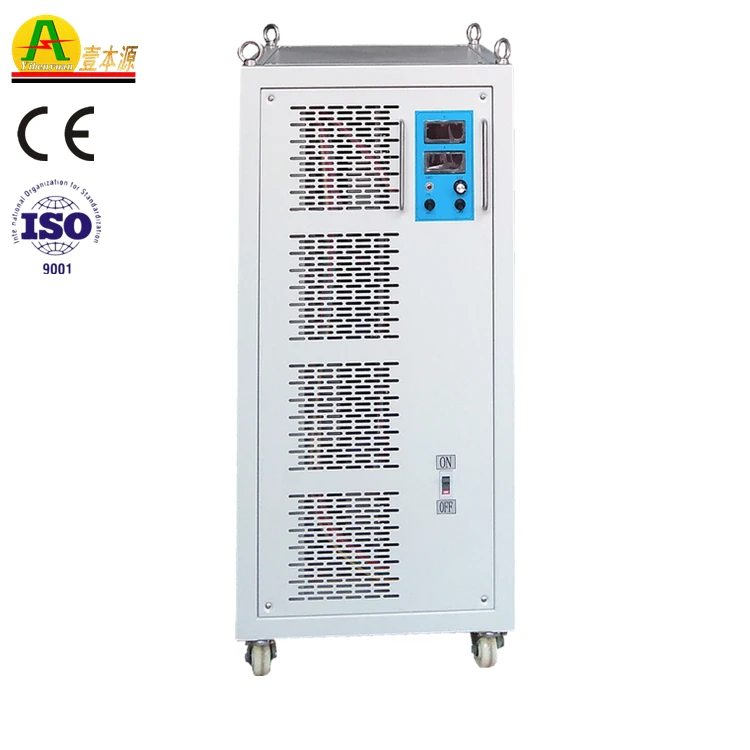

1500A 30V Adjustable Dc Regulated Switching Power Supply, Ampere Rectifier
- Category: >>>
- Supplier: Guangdong Yibenyuan Power Supply Equipment Co. Ltd.
Share on (1600174236909):
Product Overview
Description
1500A/30V constant voltage constant current adjustable power test power supply
Basic parameters
Product name | 1500A/30V high frequency DC power supply |
input voltage | Three-phase AC380V (Support Single phase and voltage customization) |
output voltage | 0~30V adjustable (Support customer customization) |
Output current | 0~1500A adjustable (Support customer customization) |
The output power | 45KW |
Work efficiency | ≥90% |
Power factor | ≥93% |
Adjustment accuracy | ≤1% |

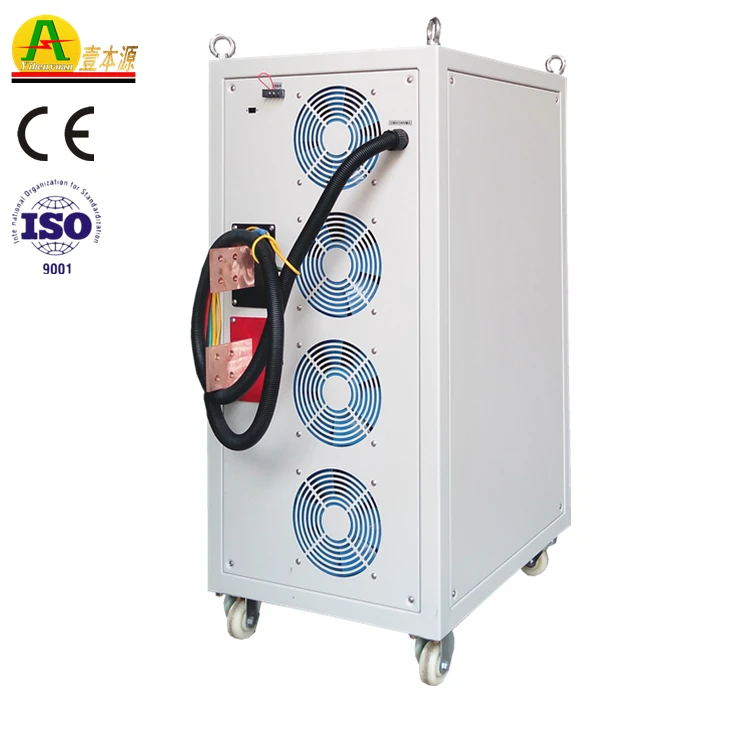

cooling method | Forced air Cooling |
ambient temperature | -15~45°C |
Ambient humidity | ≤85% |
Other parameters
Output characteristic | Constant power supply or constant current |
Protection mode | Automatic fault protection with phase loss, over temperature, over voltage,under voltage, over current, short circuit, etc. |

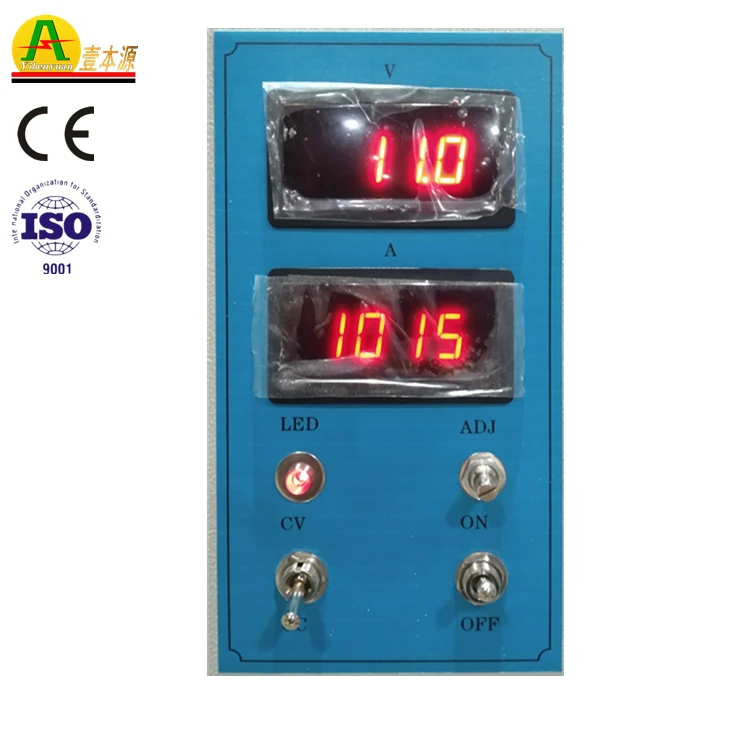

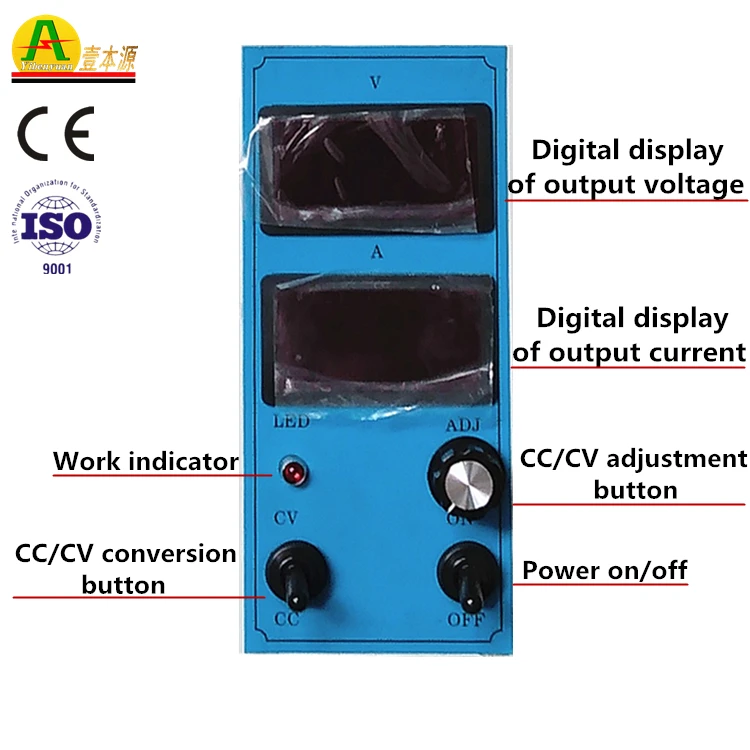

The output shows | Manual LED voltage and current digital display |
Insulation strength | Input and output, input and chassis: AC2200V, 10mA, 1 minute |
insulation resistance | Input and Output, Input and Shell, Output and Shell: > 20MΩ |
insulation class | Level B |
Protection level | IP20 |

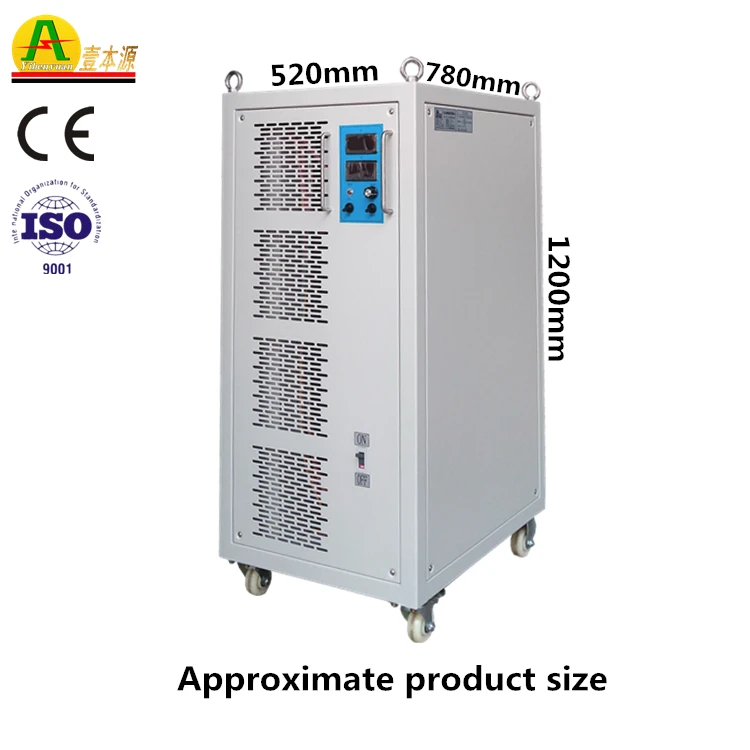

Outline size | Shell size: 1200 *780 *520 mm |
Applicable load | Electronic product withstand voltage test, LED lamp test, colleges and universities, laboratory institutions test power supply, etc. |
Other features that can be customized | Time control function, ampere hour meter function, intelligent temperature control function, intelligent touch screen display operation interface, RS-485, PLC or 232 communication interface, LC filtering function, etc. Professional customization according to various requirements of customers |
Certification
FAQ
————————————————
1Q:Aer you a manufacturer or a trading company?
| A:We are a manufacturer,and this is our factory's address:NO.3,Xinye Yixiang,Chenchung in dustrial zone,Qiaonan street,Panyu district,Guangzhou city,Guangdong Province,China. |
2Q:Do you accept OEM?
| A:Yes,all of our products can be customized. |
3Q:What's your MOQ?
| A:1piece is OK |
4Q:What's the lead time?
| A:It deoends,generally it's with in 10 business days for 1-2 piece. |
5Q:What's your warranty?
| A:One year. |
6Q:What's your payment?
| A:T/T,L/C are both acceptable. |
30V/1500A test power supply (customizable)
*Air-cooled three-phase 380V input, brand-new German imported Infineon IGBT module control; stable flow conversion, continuously adjustable voltage and current, manual LED voltage and current digital display
*It can be used for heating, electrolysis, product testing, polishing, electroplating, rare earth smelting, etc.
*Can be customized according to customer needs.
