Long life Glass Tube CO2 Laser with red light indicator 1100mm*75watt 1250mm*90watt 1400mm*100watt 1650mm*130watt 1850mm*150watt

Feature

Advance: Glass-to-Metal Seals, no gas leakage, beam quality keeps same all the laser tube working life.

Beam quality: Japanese high-precision CNC machining center, Israel spectrum analyzer, makes sure TEM00 mode.

Technology: mirror windows inside laser tube developed by our R & D team, made in IIVI Suzhou with global standard.

Quality Control: HM laser tube uses new optical production process, does quality test on each process and final exit works quality test, makes sure high consistency.

Customize: power/size/diameter/application can be discussed. Such as laser tube for marking, 40W 60W for engraving.

Specification

•1994 as sole agent for EPILOG

•2005 as sole agent for IPG and SCAPS

•2020 HM Laser Tube Launched

HM Laser was found in BDA Beijing 1994. We started as EPILOG sole agent, introduced the 1^st CO2 laser cutting engraving machine into China, opened a new world to China non-metal laser application such as sign makers, craft gift makers, clothing, shoes making, leather processing; we grow up with IPG fiber laser from 2005, improved the metal works factory production efficiency. Till now we have been following the laser market demand, develop laser products, serviced thousands laser users all over the world.

Now, we works mainly as v and SCAPS control system agent. We have professional R & D development team which have been developing CO2 laser tube and laser cutting engraving machine for 20 years, experienced sales team which visited thousands distributors and sellers all over the world.

Our sales team found the CO2 laser tube market users are requesting for more competitive products: better quality and less cost, more stable and less service. As a experienced laser company, which export China laser products and import USA Europe laser product, we know very well what to do: use the advance technology Glass-to-Metal Hard Seals and make it cost effective. At the same time, we developed new production process to improve the optical accuracy. These two critical innovation will keep the laser tube yield rate and consistency and stability even if our annual production is more than 100000 pcs.

Facing internet century, HM laser will follow the market demand, keep making the advance technology cost effective, provide excellent laser product to all over the world.

What is the laser tube working life?
The working life of different types of laser tubes is 10000~15000 hours. There are many factors that affect the service life, including: the working environment and duration of the equipment, the power setting, the technical ability and experience of the operator, and so on. Therefore, the service life experienced by customers can be as short as one year and as long as several years.

If the laser tube is damaged during transportation, who will bear the loss?

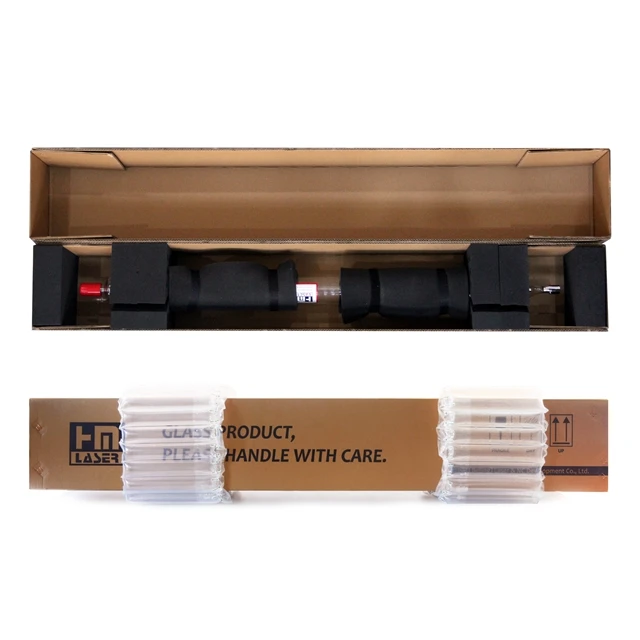

First of all, after testing, unless deliberately sabotaged, HM Laser's professional packaging can guarantee that even if it is violently loaded and unloaded, it will not be damaged. It can be said to be the best laser tube packaging box in the universe.
Secondly, we recommend that customers try to choose DHL as the carrier. DHL not only has good service and high freight discounts, but also the insurance company it cooperates with has a high loss rate.

How to calculate the courier fee?
Measure the weigh and the size, and then calculate the volume weight: length * width * height (cm) / 5000. The actual weight and volume weight, which is the larger one, it will be charged.

How to get a warranty if there is a problem with the laser tube?
If there is a power problem with the laser tube, please take a video. The video needs to show: laser tube working current, working status, factory label. The shooting can start from the ammeter, move from the high-voltage end of the laser tube to the low-voltage end, and clearly display the factory label.
If the laser tube has a spot problem, please test the spot quality at the laser tube's light exit. The light spots tested at the second reflector, third reflector, and focusing lens are affected by the lens and will not be admitted.

If the laser tube has no laser out, is it a quality problem?
The principle of the laser tube is that high-voltage direct current excites gas to produce laser light. Without electricity, there is no light, low current means weak light, and high current means strong light.
The laser tube installed on the laser engraving machine, laser cutting machine, and laser marking machine does not emit light. The possible reasons are:
1 If the laser device control card does not send the signal to the laser tube power supply, the laser tube power supply will not supply power to the laser tube, and there will be no laser generation.
2 The laser tube power supply is damaged, and the laser tube cannot be powered.
3 The laser tube is damaged.

Is the chiller temperature the lower the better?
Not really. The temperature of the chiller should be set within 10 degrees below room temperature. Too low will cause condensation on the water pipe, which may cause high-voltage discharge.

How to maintain the laser tube window mirror?
First of all, you should install a high-performance smoke exhauster and connect the smoke exhaust pipe to reduce possible pollution to the laser tube and ensure the normal operation of laser cutting.
Secondly, before the machine is turned on and after the machine is turned off every day, use a blower to clean the laser tube window mirror. You can also use a non-woven cotton swab soaked in ethanol and wipe gently every week.

What is the ideal working environment of the laser tube?
First of all, the power supply voltage must be stable without high-power or strong radiation interference. If the voltage fluctuates too much, a regulated power supply should be configured. The laser engraving and cutting machine must be grounded; Work in a vibrating and humid environment (damp is prone to high-pressure ignition);

How to choose a laser tube chiller?
75W 90W CO2 laser glass tube, please use special domain CW-3000 laser chiller;
100W CO2 laser glass tube, please use special domain CW-5000 laser chiller;
130W 150W CO2 laser glass tube, please use special domain CW-5200 laser chiller;

Can tap water be used for the coolant of the chiller?
Not recommend. Long-term use of tap water will gradually reduce the cooling effect, reduce the service life of the laser tube, or damage the laser tube. It is recommended to use purified water, deionized water, and ensure that it is clean and free of debris and replaced regularly. High-quality antifreeze can be used in winter.
