VL650 VMC 600 VMC 650 Metal Working Centro de Mecanizado CNC Machine Center
- Category: Machine Centre & Parts >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (1600174274239):
Product Overview
Description
Product Description

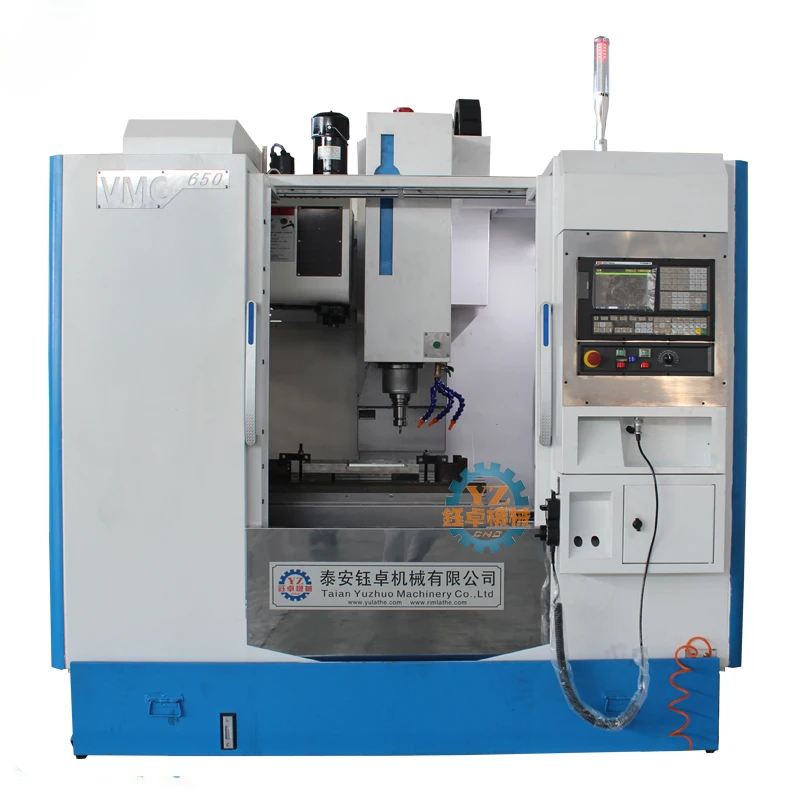

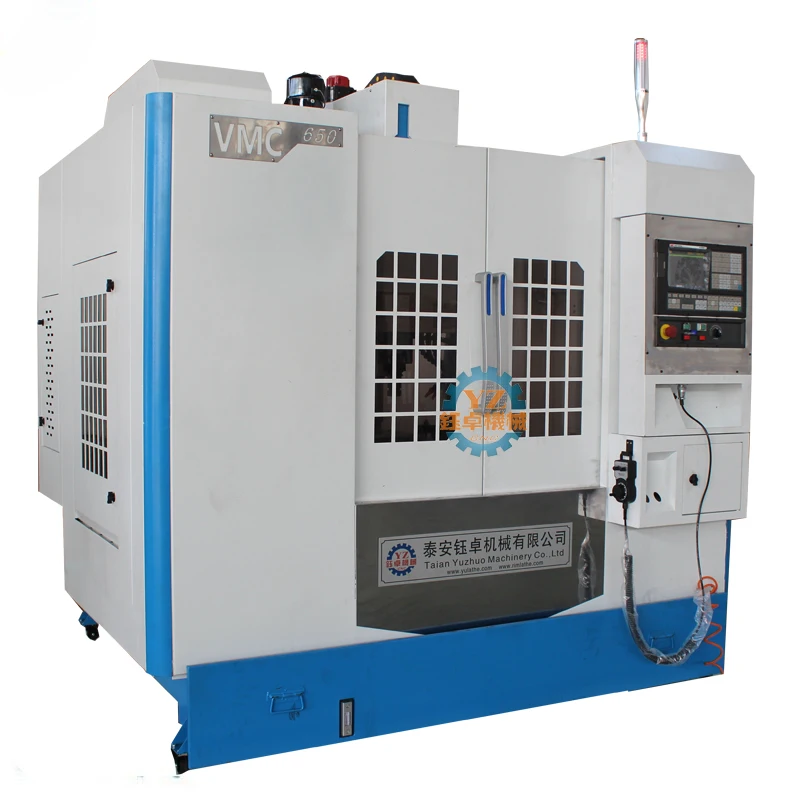

VMC 600 VMC 650 Metal Working centro de mecanizado cnc cnc machine center
ITM | Unit | VMC650 | |
Travel | X axis | mm | 650 |
Y axis | mm | 400 | |
Z axis | mm | 500 | |
Spindle nose to table | mm | 90-590 | |
Feed | X Y Z rapid feed | m/min | 24 |
Cutting feed | mm/min | 1-6000 | |
Table | Table size | mm | 800X400 |
Max.load | kg | 550 | |
T slot | mm | 3-16-90 | |
Spindle | Speed | rpm | 8000 |
Spindle bore | mm | 120 | |
Spindle taper | BT40 | ||
Main motor | kw | 5.5/7.5 | |
Accuracy | Positioning Accuracy | mm | 0.005/300 |
Machine | Size( L W H) | mm | 2500X2000X2300 |
Weight | kg | 2800 |
Standard Configuration
KND1000M or GSK CNC controller,
BT40 spindle,8000rpm speed,
Three axis linear guide And ball screw Taiwan HIWIN

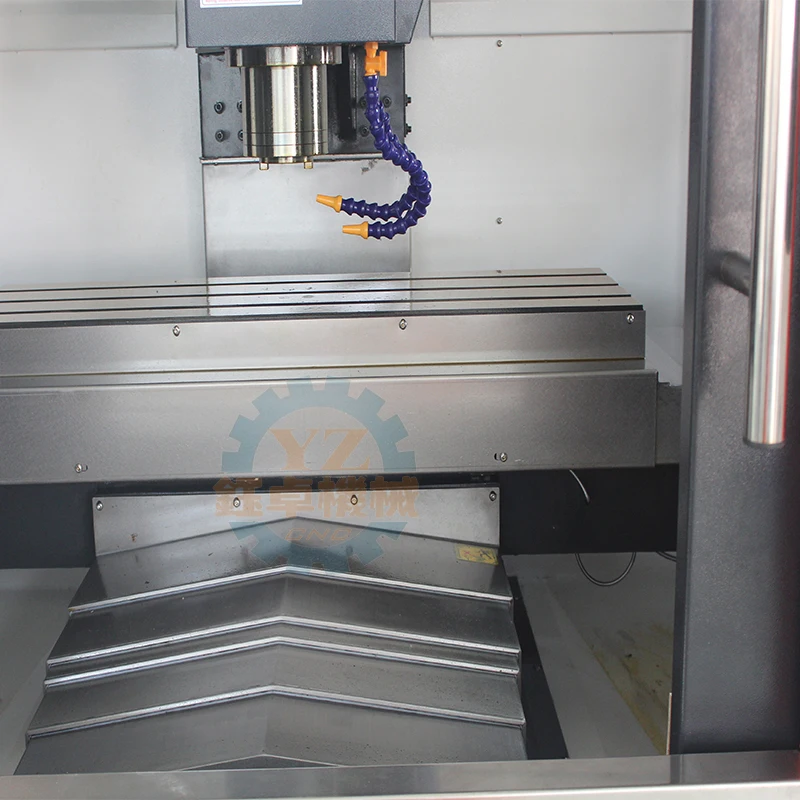

Three-axis rail protection
Intermittent lubrication system,cooling system,lighting system
Full protection of sheet metal system
380V 50HZ 3P
BT40 spindle,8000rpm speed,
Three axis linear guide And ball screw Taiwan HIWIN
Three-axis rail protection
Intermittent lubrication system,cooling system,lighting system
Full protection of sheet metal system
380V 50HZ 3P
Optional Configuration
1)FNAUC SIEMENS SYNTEC CNC Controller

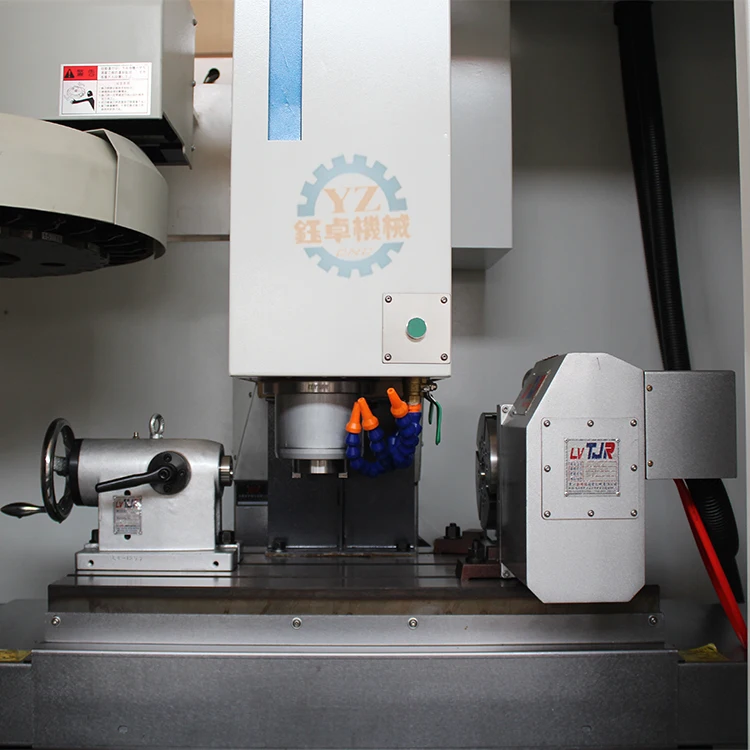

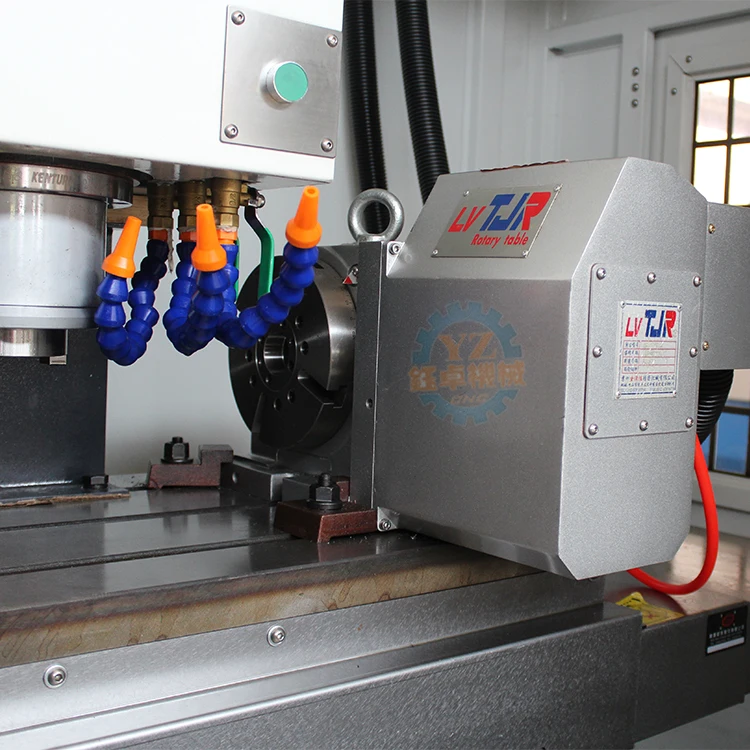

2)4th and 5th axis
3)Disc arm type tool changer
4)spindle center water outlet,
5)spindle directly connection
6)Chip conveyor
Tool measurement and work piece measurement
2)4th and 5th axis
3)Disc arm type tool changer
4)spindle center water outlet,
5)spindle directly connection
6)Chip conveyor
Tool measurement and work piece measurement
