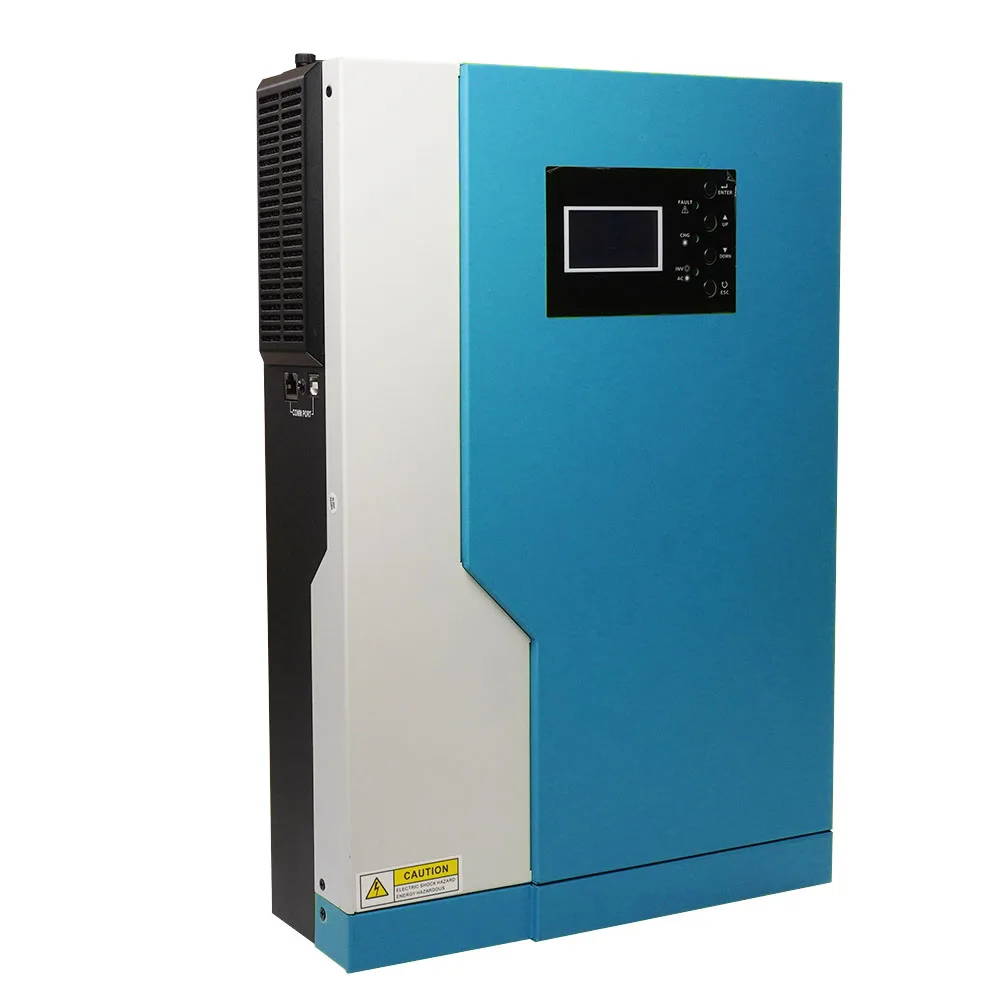

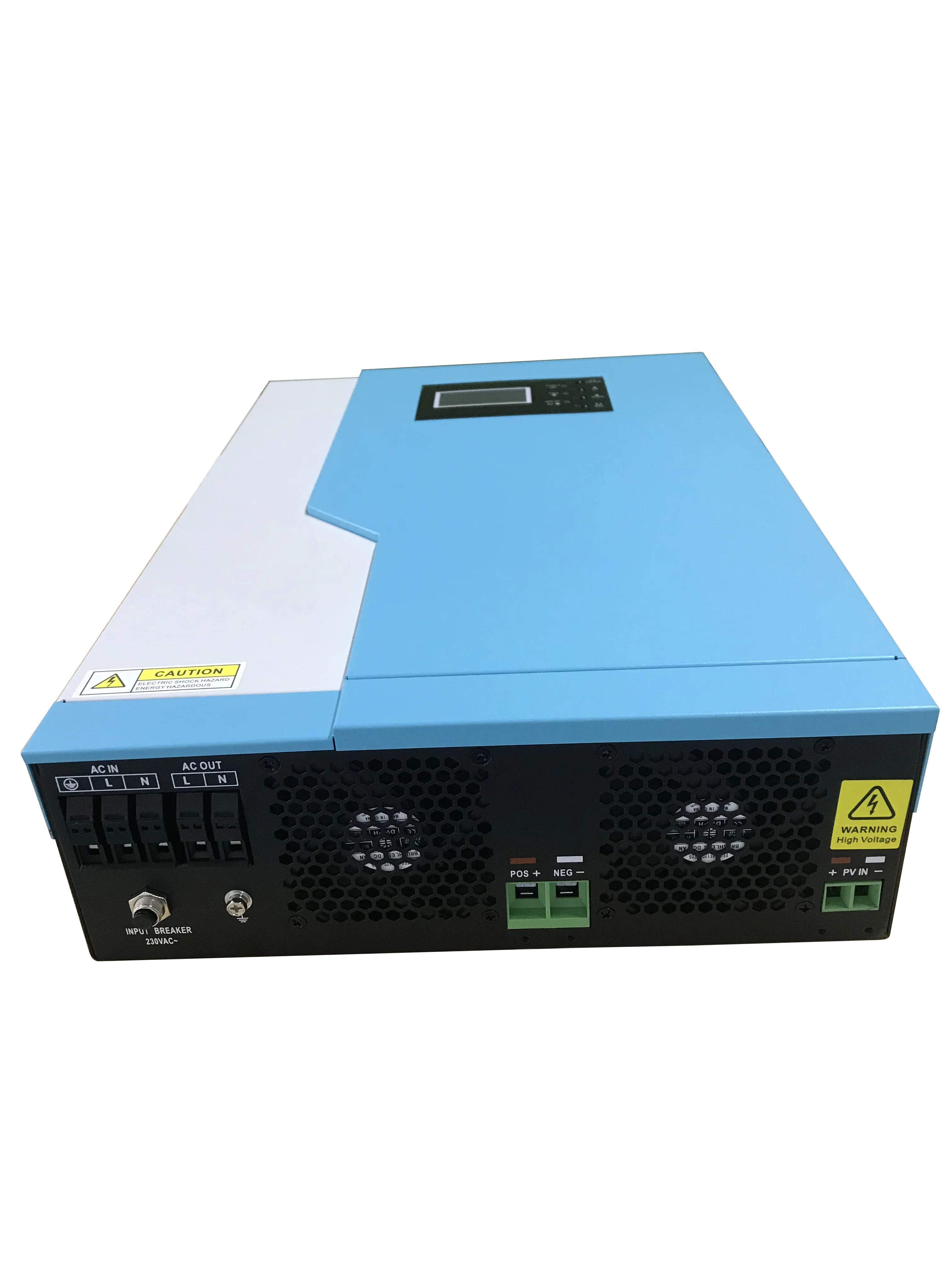

DC/AC 5500W 48V Off Grid Hybrid Pure Sine Wave Solar Inverter with 6000W PV Power and 100A MPPT Charger Controller
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (1600174289364):
Product Overview
Description
DC/AC 5500W 48V Off Grid Hybrid Pure Sine Wave Solar Inverter with 6000W PV Power and 100A MPPT Charger Controller
Product Features:
high efficiency pure sine wave inverter(PF=1).
wide PV input range(120Vdc--500Vdc)100A MPPT SCC; intelligent 3 stage 80A AC charger.
Surges to 2X continuous power for 5 seconds for motor loads.
Intelligent functionality enables utility and solar input prioritization.
Wide utility input range(90Vac--280Vac)for unreliable grid even in the most challenging environments.
Field serviceable with replacement boards and spare parts. Monitor, troubleshoot, or communication with USB/RS232.
System configures quickly into compact, wall-mounted system.
Working without batteries in sun day.
| Model | MPS-V-3500-24 | MPS-V-5500-48 |
| RATED POWER | 3500VA/3200W | 5500VA/5000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
| 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency (Peak) PV to INV. | 97% | |
| Efficiency (Peak) Battery to INV. | 94% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| Maximum Charge Current | 80 A | 80 A |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 5000W | 6000W |
| MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 100 x 300 x 440 | |
| Net Weight (kgs) | 9 | 10 |
| Communication interface | USB/RS232 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C - 55°C | |
| Storage Temperature | -15°C - 60°C | |
PRODUCT SHOW

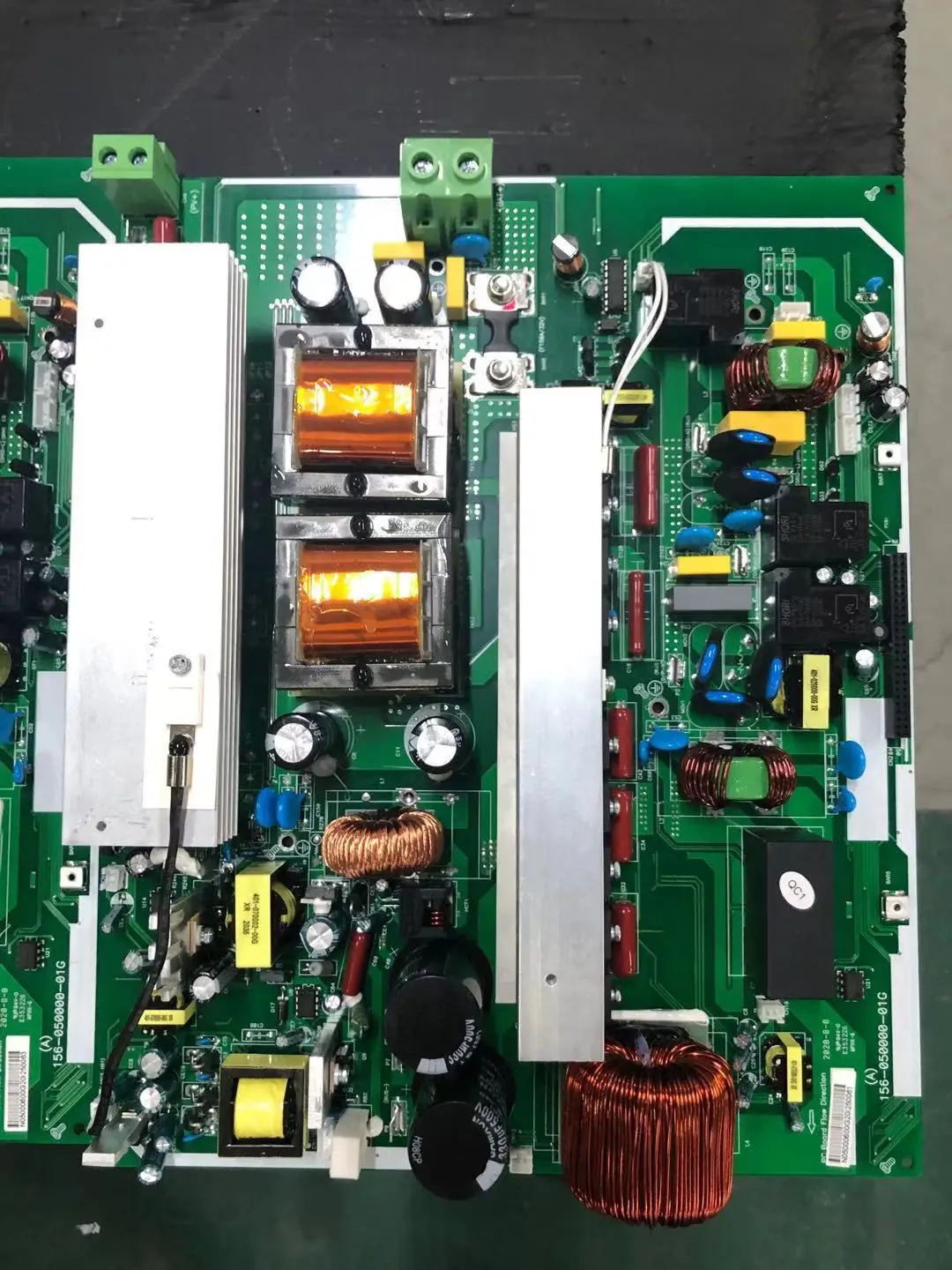

Main Board

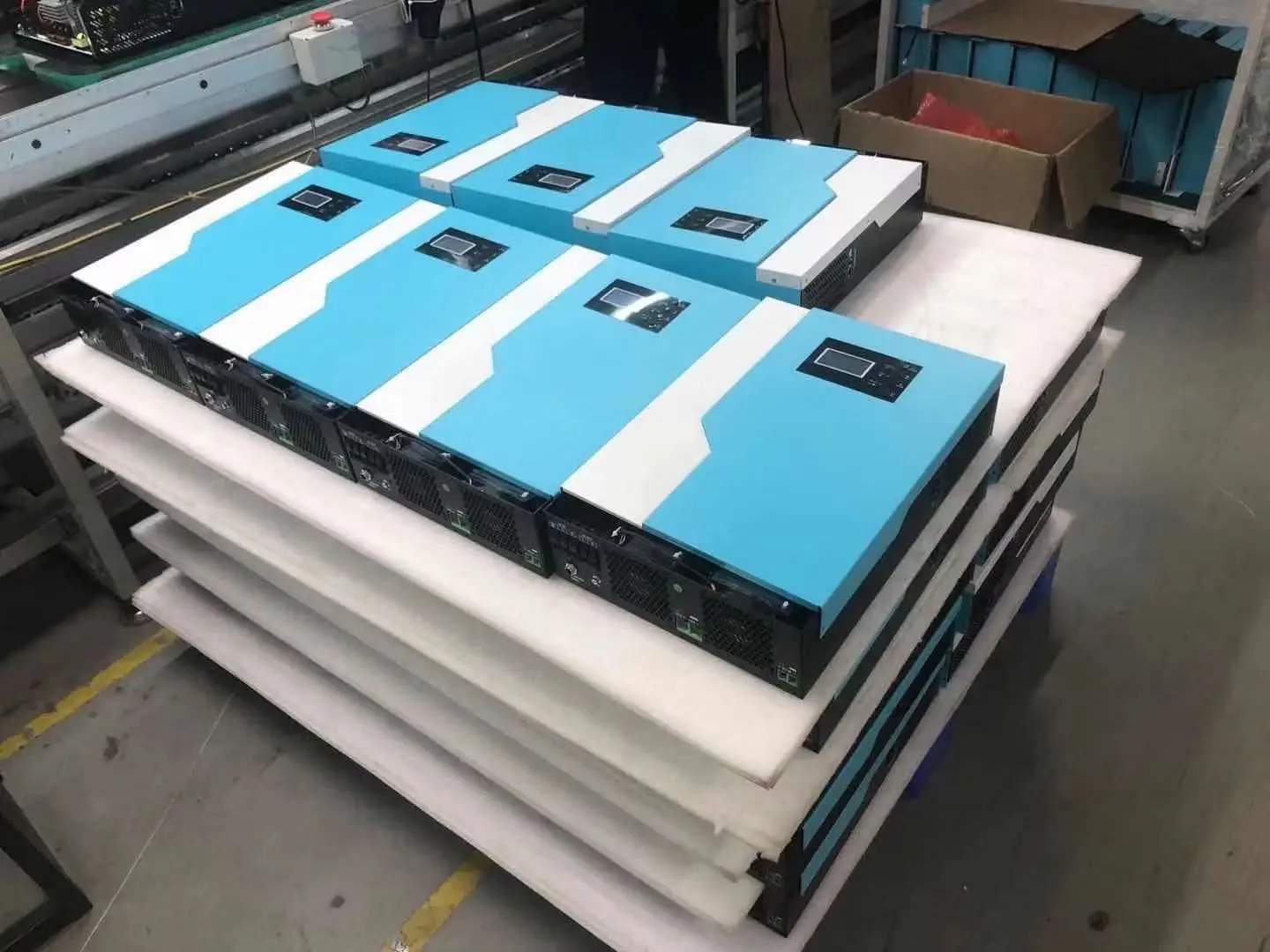

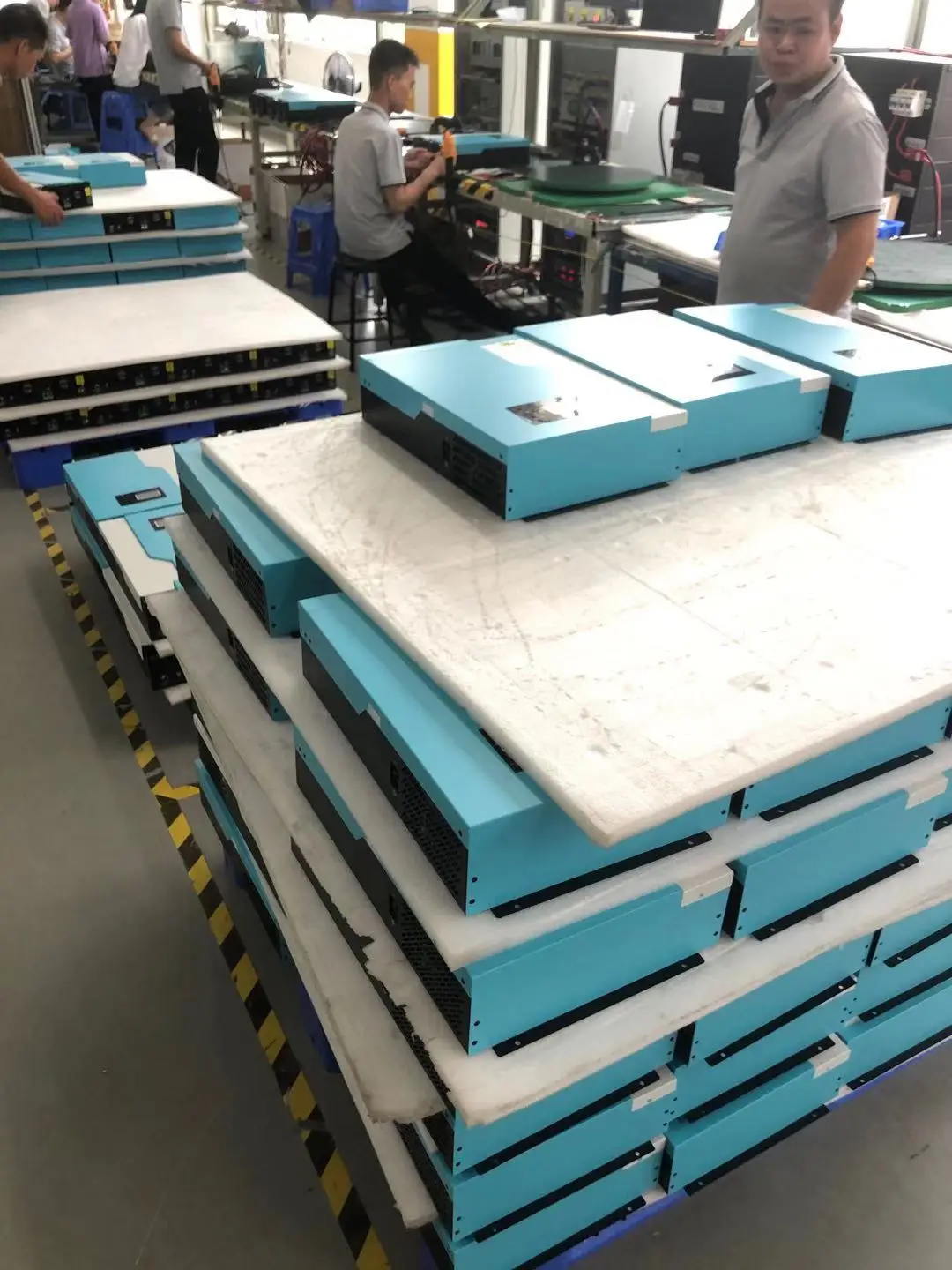

Production Line
