high pressure water blasting runway rubber removal

(3)  Handover, maintenance and operation training

(4)  250h Spare parts package (theoretically)

Road application

(5)  Improvements in asphalt and concrete

(6)  Clear road markings (hot melt, cold paint, two-component)

(7)  Remove the oil stain on the road surface

(8)  Remove Zebra crossing

Application at the airport

o Remove rubber and paint

o Oil cleaning

o AGL(Aerodrome Ground Lighting) cleaning

o The platform cleaning

Technical parameters

Max. pressure: 2800Bar (40Kpsi);

Working pressure: 2500Bar (36Kpsi)

Max. Flow: 39L/MIN; Pump can be changed when used to remove airport rubber (optional)

Ultrahigh pressure pump: import pump domestic assembly

Pump speed: 1500-2000 cycles per minute

Driving mode: direct drive

Diesel engine power: 225kw

Booster pump: the maximum 6KG booster pump

Filter: double stainless steel vertical filter two - stage filtration

Suction system:SSA vacuum pump,pressure: -0.4bar

Water tank:waste water tank:700kg(customizable),fresh water tank:6000kg(customizable)

Maximum elongation:1.3m

Total weight: 7000KG;

Machine size : 10m×2.5m×3.54m;

Apperance:Yellow(customizable)

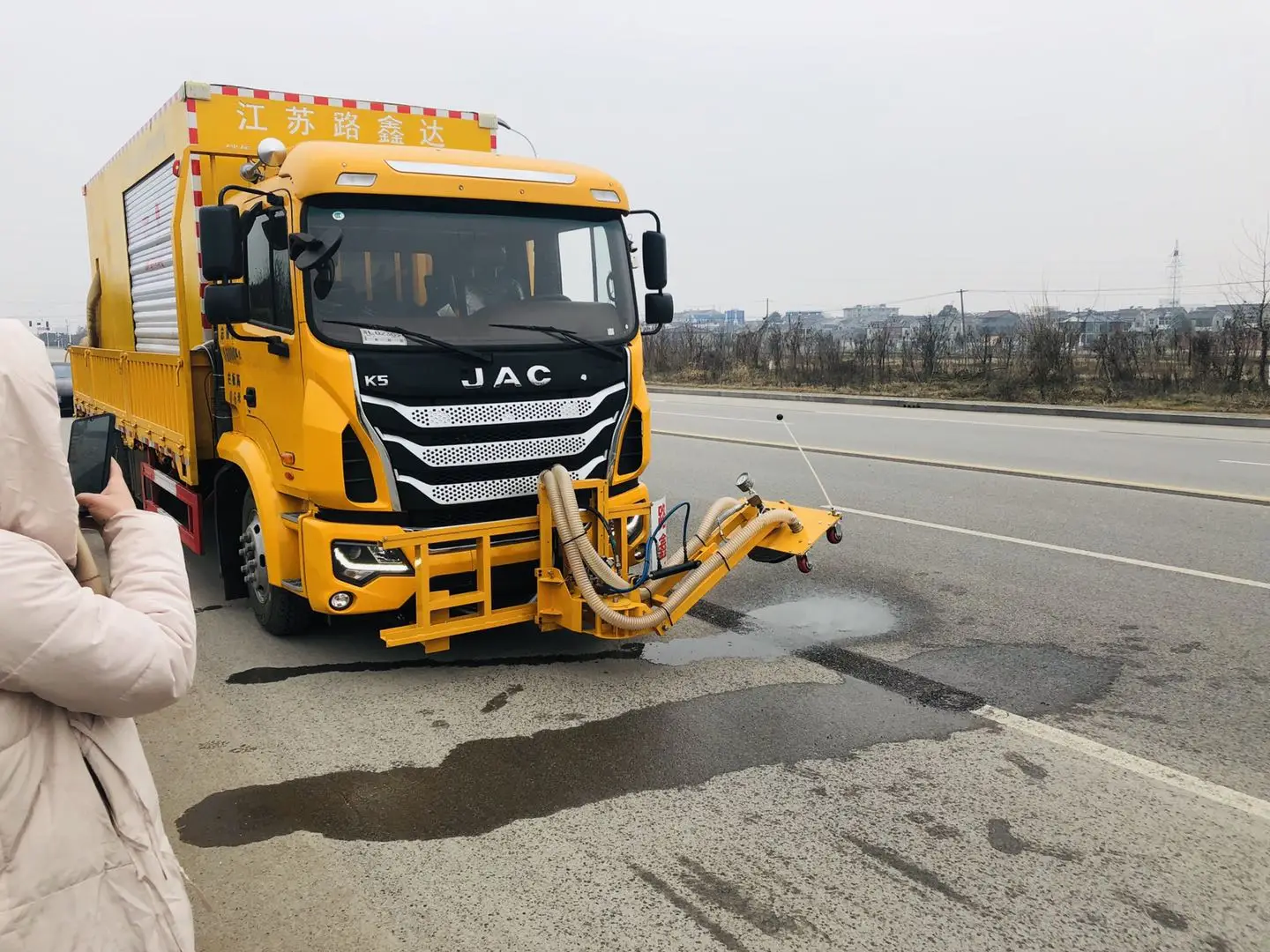

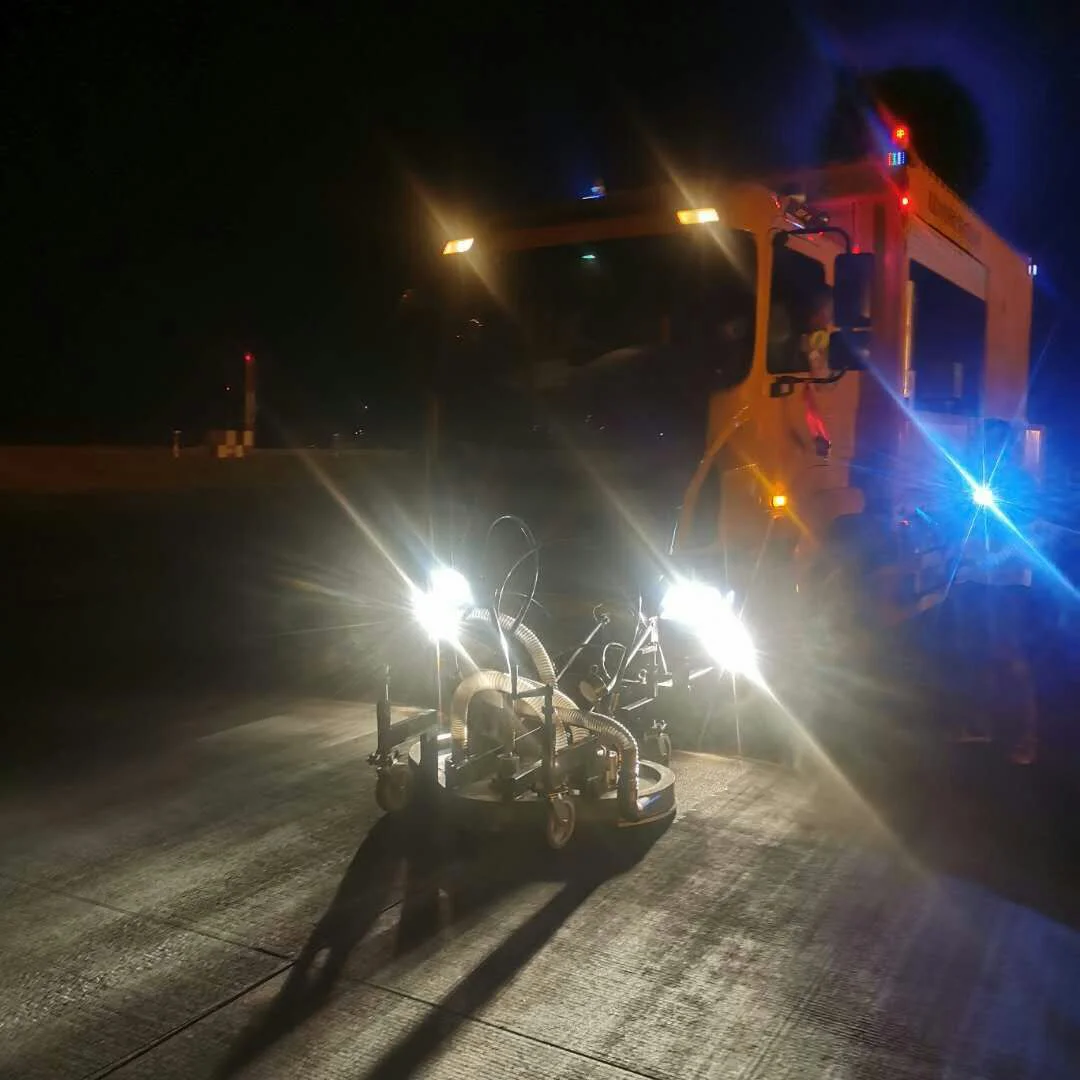

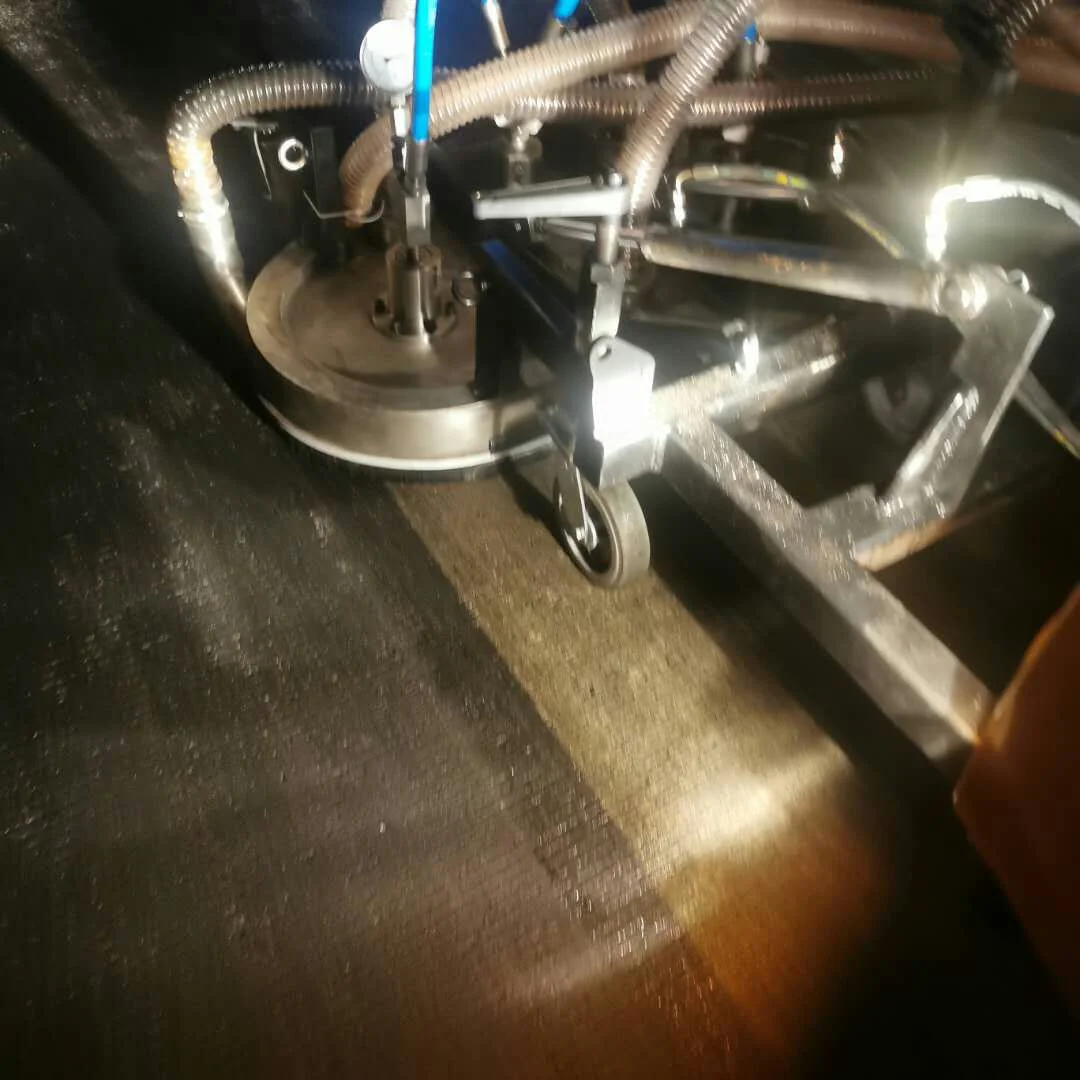

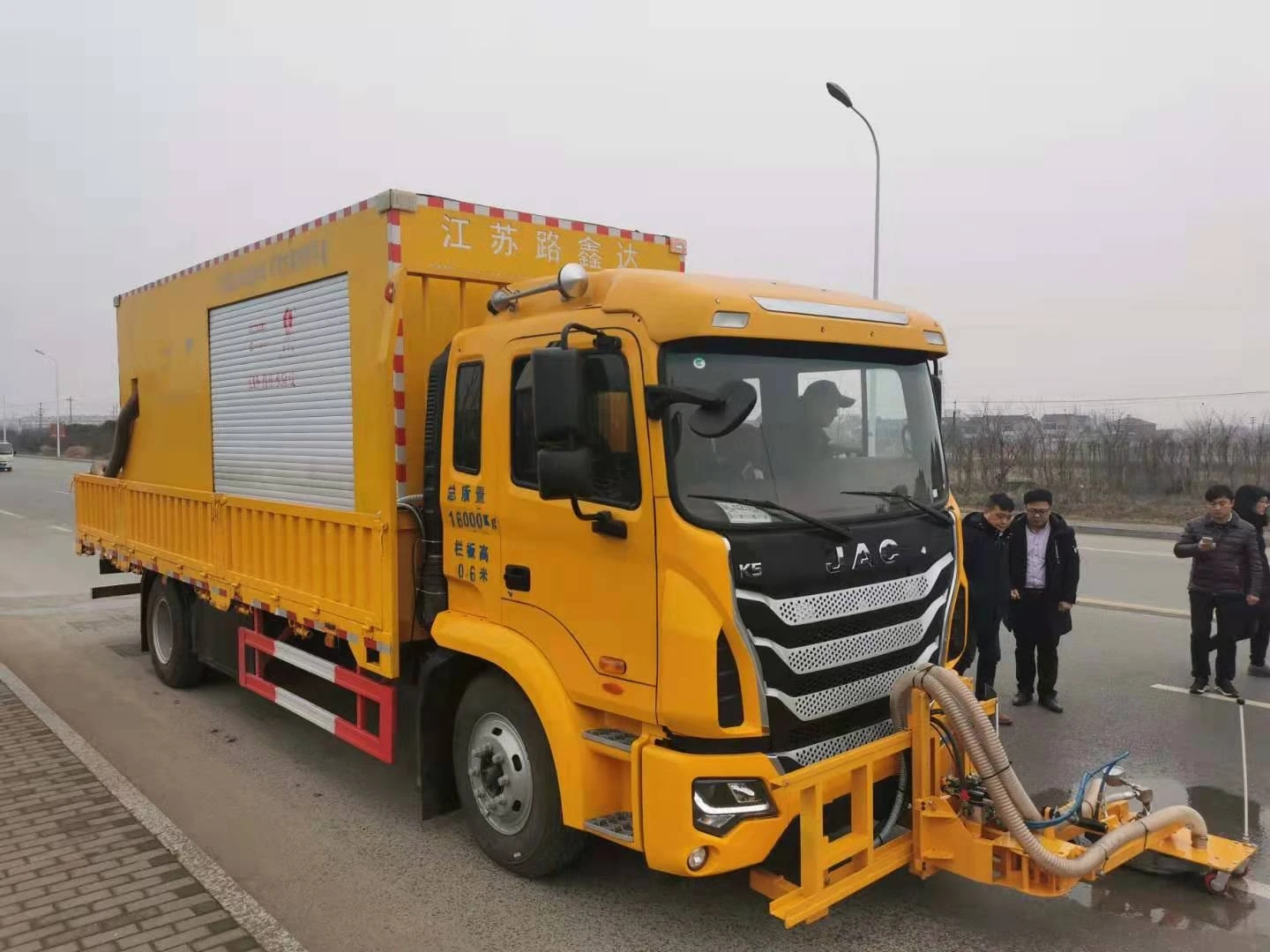

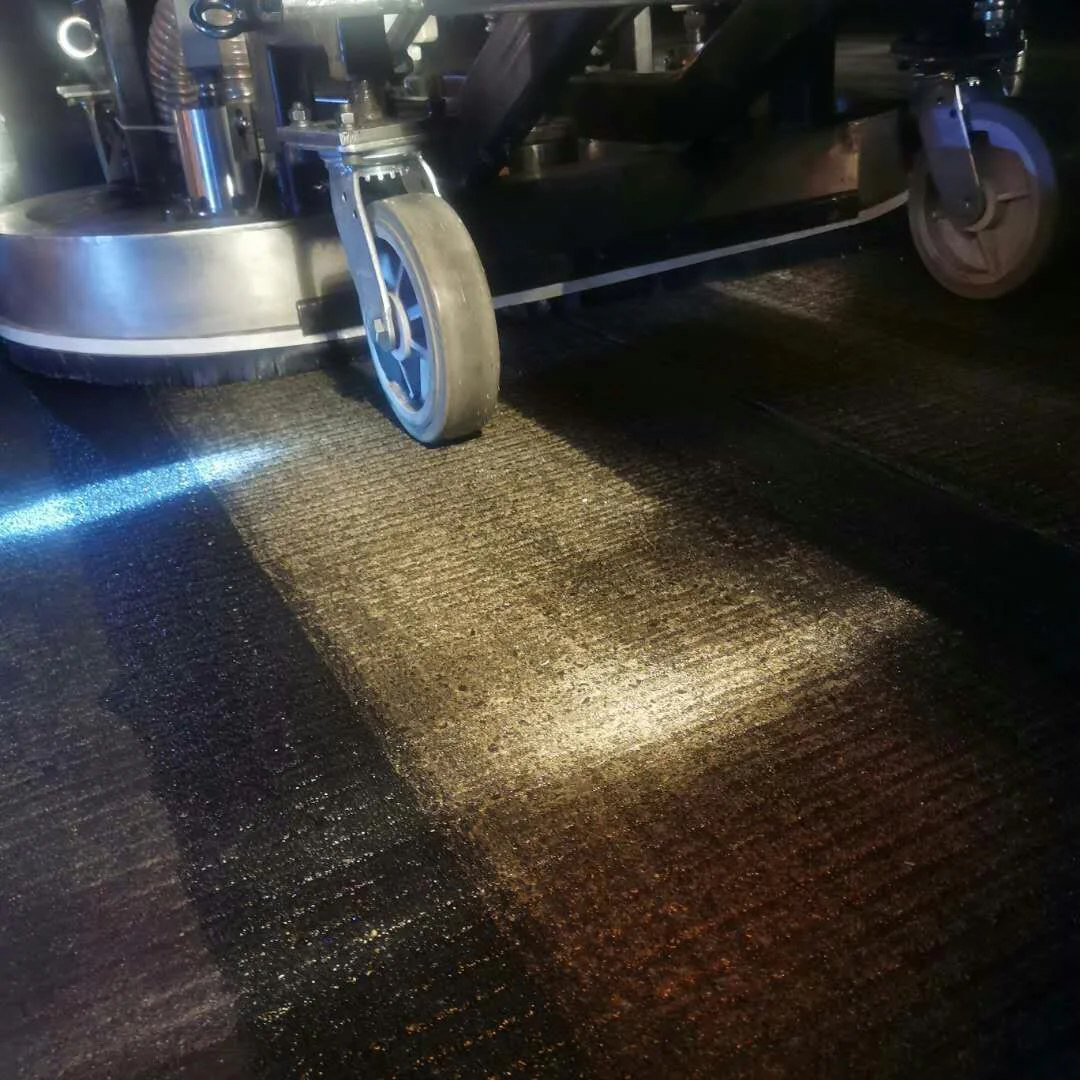

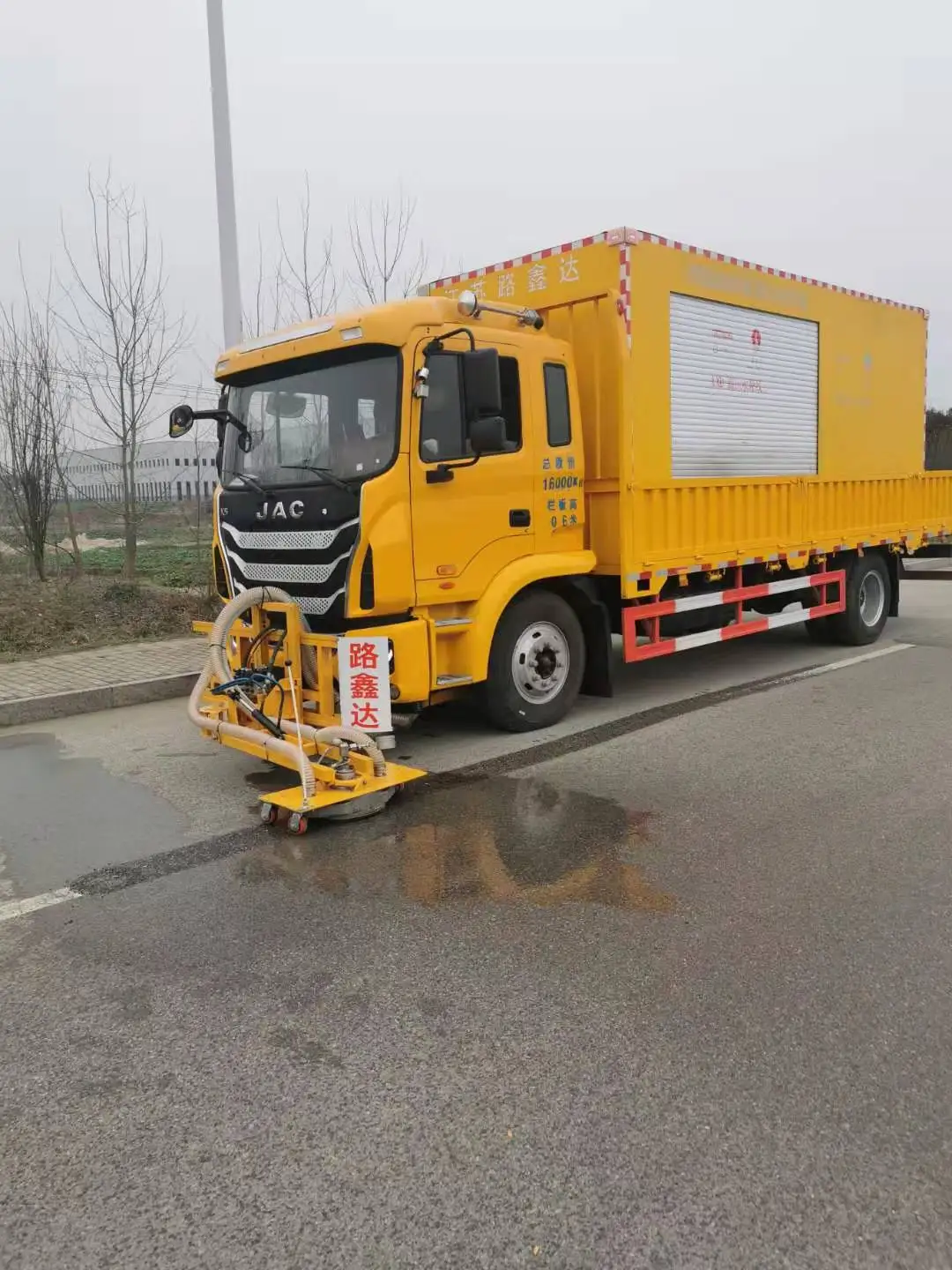

Application pictures:

Advantages:

1.high pressure water blasting runway rubber removal adopt recycling system imported form Germany,equipped with ultrhigh pressure pump imported form America.

runway rubber removal can remove runway rubber without damaging the road surface,and the waste water and residue can be suctioned into waste water tank,

New designed vehicle,equipped with more nozzle,can be jetting form different angles,to clean up runway rubber without damaging the surface.

2.Residual and waste water can be suctioned into vacuum chamber,

what’s more,the residue can be separated from the waste water automatically,residue can be placed into plastic woven bag, which can be putted in the nearby Dustbin .

The waste water will be flowed into waste water tank,when the waste water tank are full, just discharge them into sewer through water pipe. Very convenient ,very safety, and very friendly to the environment!

there’s no need to block the road.

3.The machine can work continuously,working and recycling can be done at the same time, no need to stop the machine.Really meet the requirement of high efficient and environment protection.
