Product Overview

Description



Product Description


POTATOS CHIPS PROCESSING LINE





Automaitc Potato Chips Machine is a complete line from washing peeling to the seasoning and packing.
Two different potato processing
Fresh potato chips: directly frying after fresh potato cutting: Lays


1) process:
Raw material→washingpeeling→picking line→cutting→washing→drying→frying→seasoning

Including: Conveyor--washing peeling--picking line--conveyor--slicer--washing--air drying--frying--vibrating deoil machine--conveyor and gas heating system,


2)fresh potato chips requirement

For fresh potato
Diameter is about40-60 mm, regular shape;
Inside is white, small bud ;
Drying material content is about 22-25%.
deoxidize sugar content ≤0.2%:before using the potatoes, it is needed to put storage potatoes in another room whose temperature is about 12-18 °C and last for 1 week
Washing peeling: choose brush washing peeling
Chips: it is about1.5- 2mm; size and thickness is in uniform, surface is smooth




Output Capacity
50kgh semi-automaitc
100kgh
200kgh
300kgh
Input capacity
150-200kgh
300-400kgh
600-800kgh
1000-1200kgh
Power
100kw if electricity frying ; 20kw for gas fired and 20m3 for gas consumption
Electricity cost:35kw
Gas consumption:
50m3/h
Electricity cost:60kw
Gas cost: 100m³/h, when working, it is about 80m³/h
Electricity cost:80kw
Gas cost: 120m³/h, when working, it is about 100m³/h
Dimension
8*2*4m
40*5*5m
55*5*5m
65*5*5m
Equipment consumption
below 20k
below 110k
below 170k
around 200k
Raw material
fresh potato
fresh potato
fresh potato
fresh potato


Products Description




Conveyor+ Washing peeling machine
This machine is used to peel with stone brusher and hard brusher, it can peel completely; Uneven and corrugated brush can peel the potatoes completely;
Model: QPJ-2400
Size: 3000*950*1670 mm
Spiral vane speed is adjustable
Rolls speed is adjustable
Picking line
This machine is used to pick out the bad parts and eyes by manually. Then deliver the potatoes to the next process. With the dirty
collection holes.
1. Model:TJX-2500
2. Belt width:800mm
3. Power: 0.55KW/ 380V/ 50Hz
Overall SUS304 stainless steel
Slicer
This machine is used to cut potatoes into slices
It is smooth in surface and cut in fast speed.
Easy to wash and easy to operate.
Save labor and cost.
1. Model:QPJ-500
2. Size: 880*770*1222mm
3. Power: 2.25kw 380V/50HZ/set


Washing machine
Washing time is 30-60s; Washing process is for washing off the potato starch on the potato chips .
At the same time, potato is totally immersed in water which can keep it from enzymatic-oxydative browning;
Model: QXJ-4200
Size: 4200*1200*1600mm
Material: SUS304
Power: 1.5kw.
Air drying line
This machine is used to remove the surface water on slices.
It can save frying time and keep good taste for the chips.
1. Model:FGX-3000
2. Size: 3000*1100*1800mm
3. Power: 3KW/ 380V/ 50HZ
Overall SUS304 stainless steel.

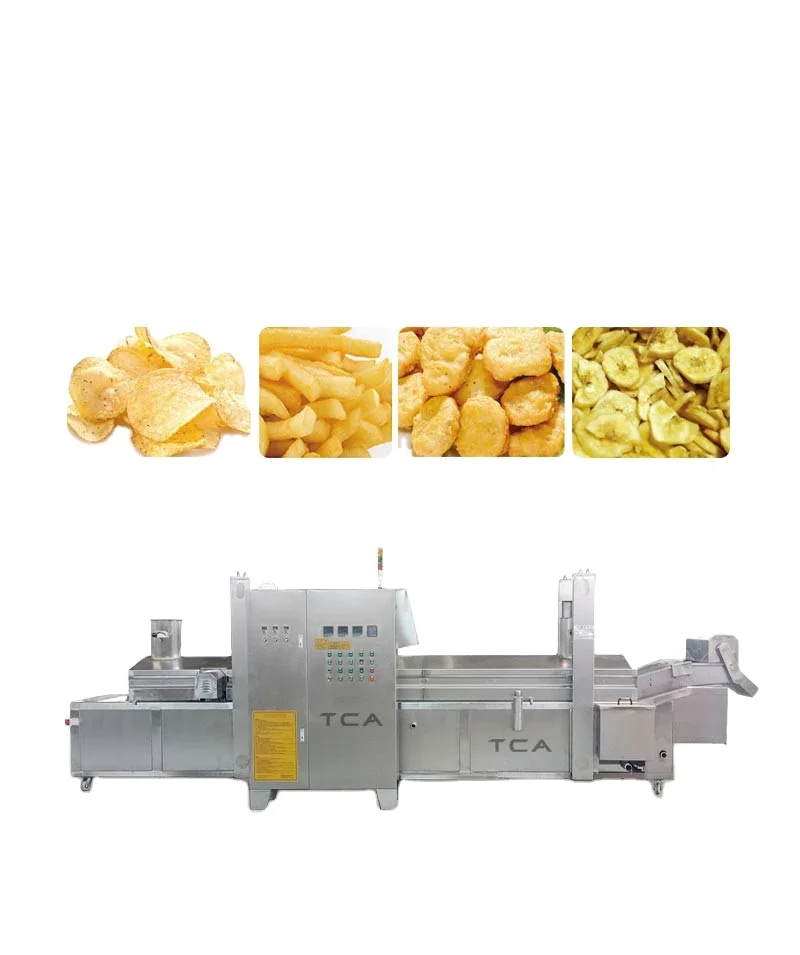

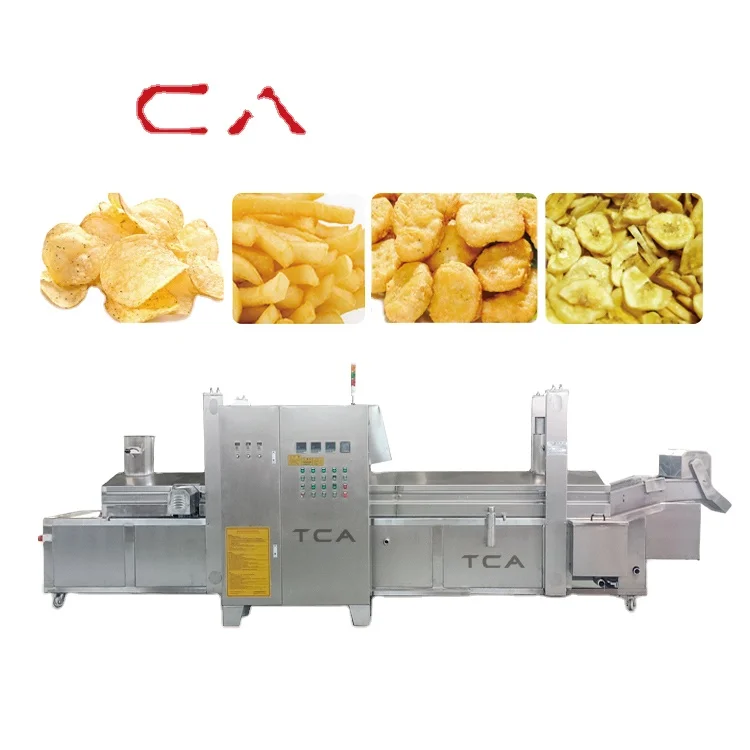

This machine is used to fry unified potato chips by automaticly, high precision temp control system to ensure the uniform quality
product.
Fry time and temperature can be adjusted based on actual
Frying time: 3min
Made of SUS304


vibrating deoil machine
1.It is used to remove some oil by vibrating
2. It is equipped with oil collection board and oil collection box
Model: ZDS-1500
Size: 1500*1100*1100mm
Power: 0.37KW/380V/50HZ
Material: SUS304
Board thickness: 2.5 mm
Flavoring machine
This machine is used to flavor for the fried chips automaticly. The hopper will leak the additives powder evenly, the fried food
will rolling with the drun to season evenly.
Add the vibrator dust flavor
Add the drum to remove small size
1. Model: TWJ-2500
2. Power:0.75KW/ 380V/ 50HZ
3. Size: 3000*1100*1700mm
Automatic weigher + packaging machine
This machine is used to weight and pack the potato chips automaticly.
One set of 10 heads weigher+ 1setsof 500 packing machine;
1 Units
Model:BZJ-500
Dimensions:5000*2700*4800mm
Power: 12KW/ 380V/ 50HZ
Bag width range:70- 240mm
Bag length range:80-300mm
With ONE pcs of former
