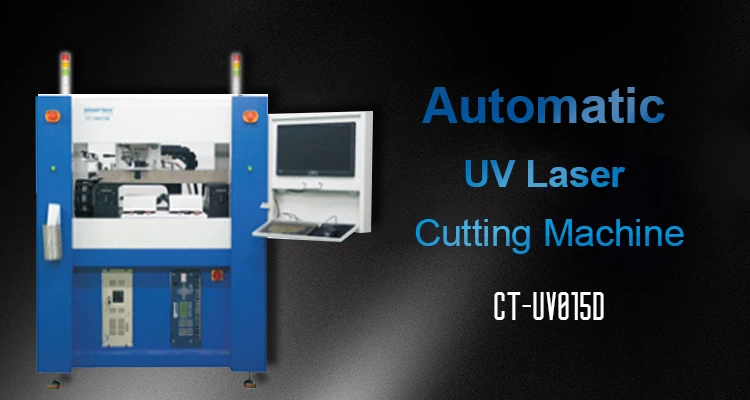

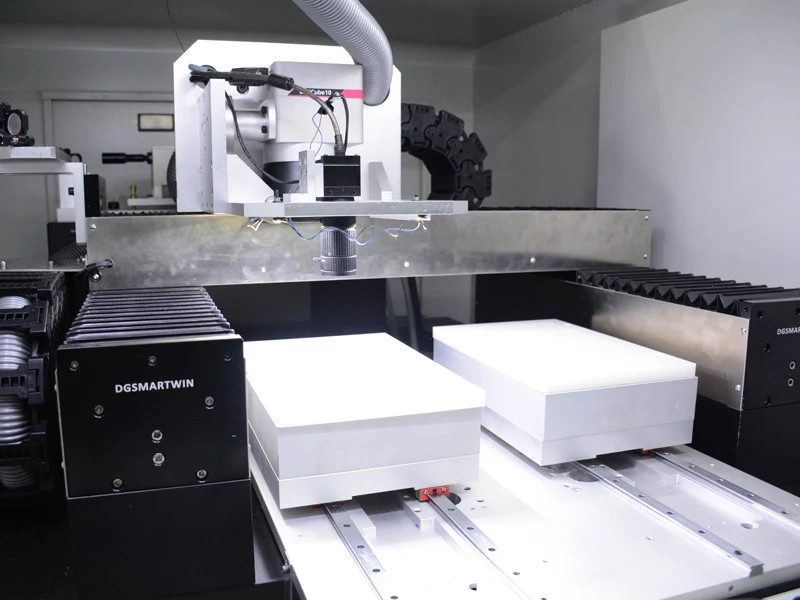

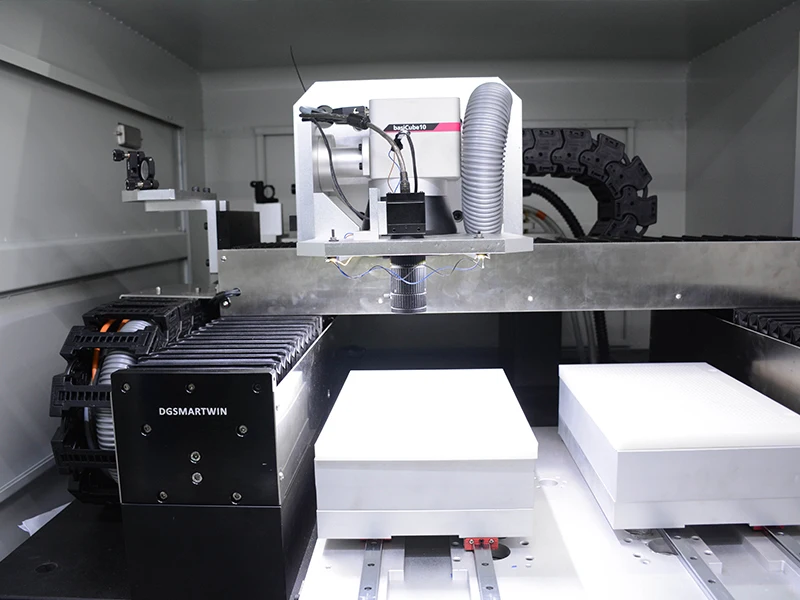

Automatic UV Laser cutting machine with CCD Automatic Positioning used for CVL SMIDA CT UV015D
- Category: >>>
- Supplier: Shenzhen Smida Intelligent Equipment Co. Ltd.
Share on (1600174357782):
Product Overview
Description
Shenzhen Smida Intelligent Equipment Co.,LTD.
Founded in 2010, Smida is a tech company integrating automation solution consulting, solution development, R&D, manufacturing, sales, and after-sales services. The company has been granted the trademark registration certificate in Chinese and English and is licensed to operate imports and exports independently.
We are also committed to the development and production of automatic equipment such as Planetary centrifugal deaeration mixer and laser marking machine.
Our Factory
We have our own factory, which has passed the national quality system certification and covers an area of more than 4,000 square meters. We have very high product quality requirements and provide customers with the best quality products and services.
While corresponding to the differentiated needs of different customers, we have done a lot of customized development and accumulation, which has won wide praise from customers.
Our Certificates
We have a number of invention patents and utility model patents, and have been awarded the title of high-tech enterprise by the national and Shenzhen governments, and have CE certification, ISO9001 and SGS.
Why Choose Laser Cutting？ | ||
High-speed, High-precision control | ||
Compatible with multiple types of process control | ||
Core independent research and development | ||
Integrated customised applications | ||
Why Choose Us？ | ||||||||
1 | MES system full closed-loop production control--Real-time observation of line body indicator | |||||||
2 | Technologically advanced--400mm station spacing, 0.8 seconds to complete, positioning accuracy up to μ level | |||||||
3 | Standardisation--Hundreds of automated line body experience, equipment has been standardised | |||||||
4 | Low costs--Quickly used for mass production of similar products and can be used in multiple applications | |||||||
5 | Increased output--Automatic offset compensation, laser coding and CCD reading in one device. | |||||||
6 | High efficiency--Dual-platform work scheduling system, power monitoring system | |||||||
7 | High compatibility--Compatible with different product sizes and thicknesses, self-developed software | |||||||
8 | High performance--Precise visual positioning, large field of view capture range | |||||||
9 | High precision--Graphic accuracy and alignment accuracy of ≤±10μm can be achieved | |||||||
10 | Intelligent--Full-automatic intelligent programme setting is simple, stable precision and high efficie | |||||||

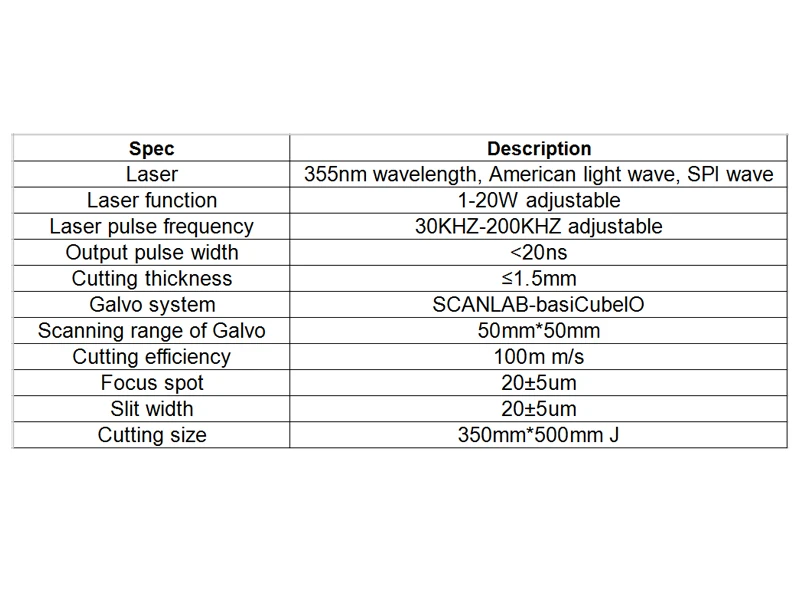

Technical Parameter | ||
Product name | CCD Tracing-edge of Lsaer-Cutting | |
Motion platform | Linear motor moving gantry | |
Marking head type/Power | UV/15w(optional) | |
location determination | Tracing-edge of Lsaer-Cutting, Mark point grabbing | |

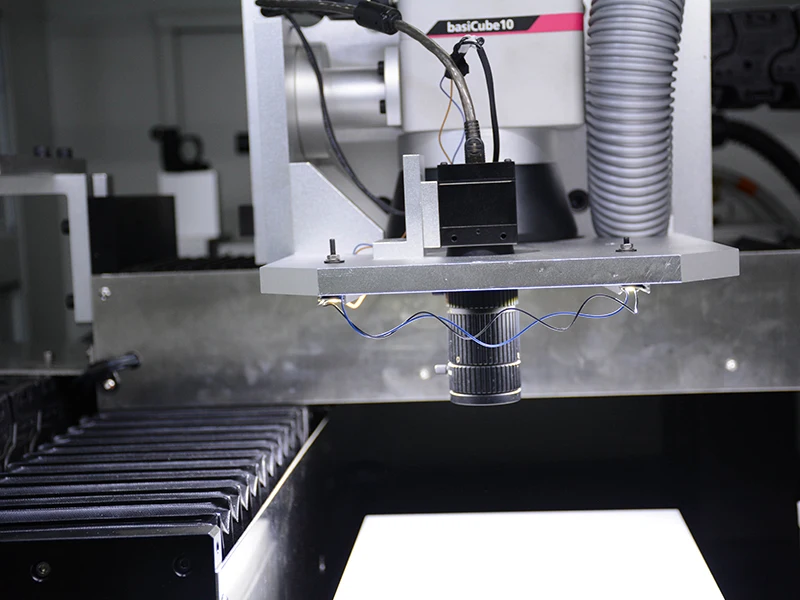

Recognition system | CCD positioning, Recognizable graphic positioning, With automatic positioning function | |
Cutting thickness | <1.5mm(power size affects cutting thickness) | |
Expansion and contraction compensation function | Automatic expansion and contraction compensation for the position of the mark point, uniform deformation file | |
Equipment size | L1770*W1350*H2050(mm) | |
Airborne dust | Equipped with dust suction and filtration device | |
Working temperature and humidity | Temperature 25 ± 5 ° C, humidity not condensing, ground vibration acceleration<0.01mm/(s<2) | |
MES function | Can interface with various customized mes communication needs of customers | |
Power/Air Pressure Demand | 220V 60Hz/ 0.4-0.6Mpa | |
Laser/fiber wavelength | 355nm | |
Platform positioning accuracy | ±0.003mm | |
Repeatability | ±0.002mm | |
Galvanometer scanning range | 50*50mm(optional) | |
Galvanometer system | SCANLAB-basiCube10(optional) | |
Cutting range | 350 mmX500mm(customizable) | |
Cutting efficiency | 1000mm/s(Cutting thickness affects cutting efficiency) | |
Cutting width | 25±5um | |
Comprehensive machining accuracy | ±30um | |
Working cooling cycle requirements | Water-cooling | |
Cutting material category | Cover Film(CVF), IC chip, Wafer scribing, Wafer scribing, Flexible circuit board, Rigid Flex(RF), Memory card, PCBA sub board, Flexible circuit board(FPC) | |
Power consumption of the entire machine | ＜3.5KW | |

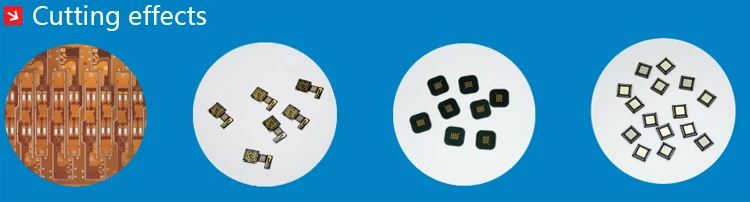

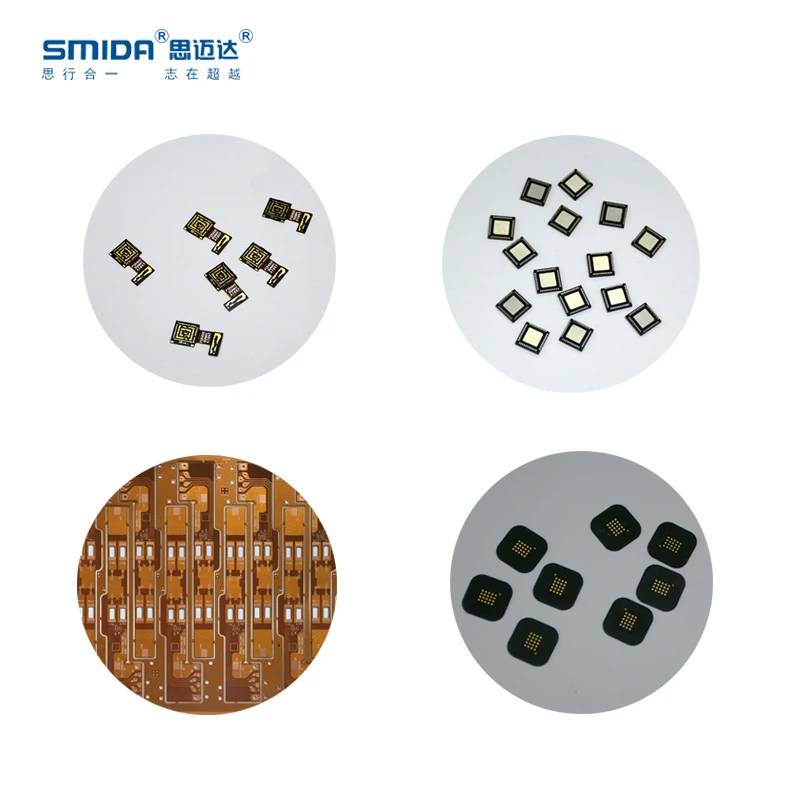

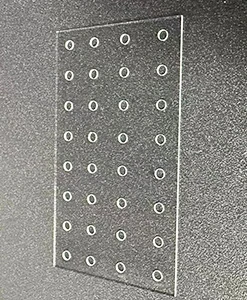

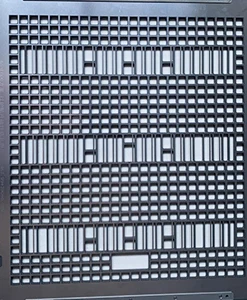

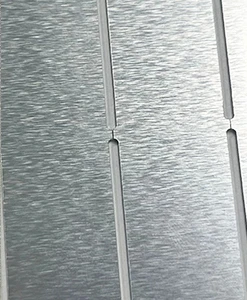

Applications | ||||||||
Cover Film(CVF) | IC chip | Wafer scribing | Fingerprint recognition module | Flexible circuit board | ||||
Rigid Flex(RF) | Memory card | PCBA sub board | Flexible circuit board(FPC) | More | ||||
