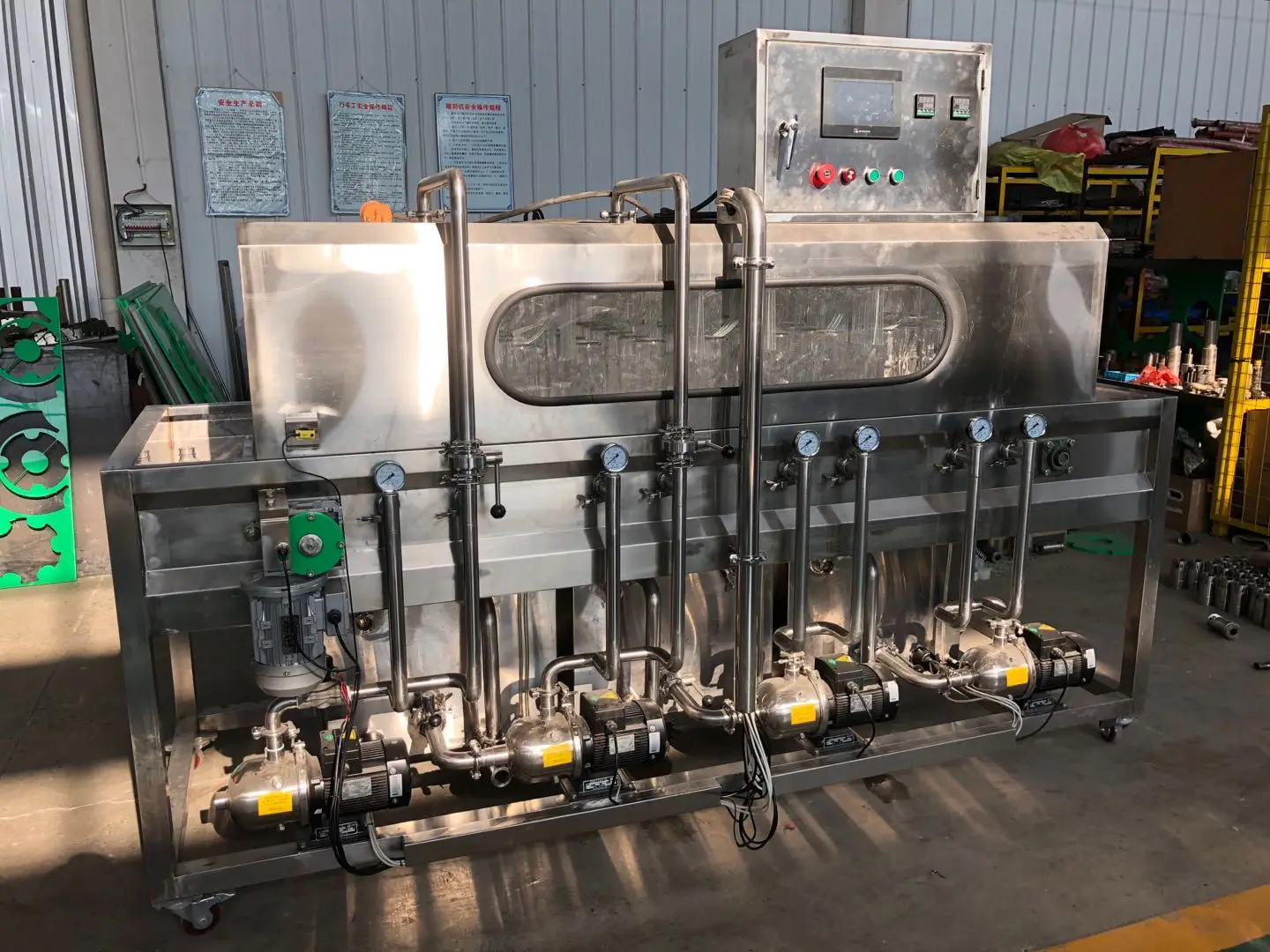

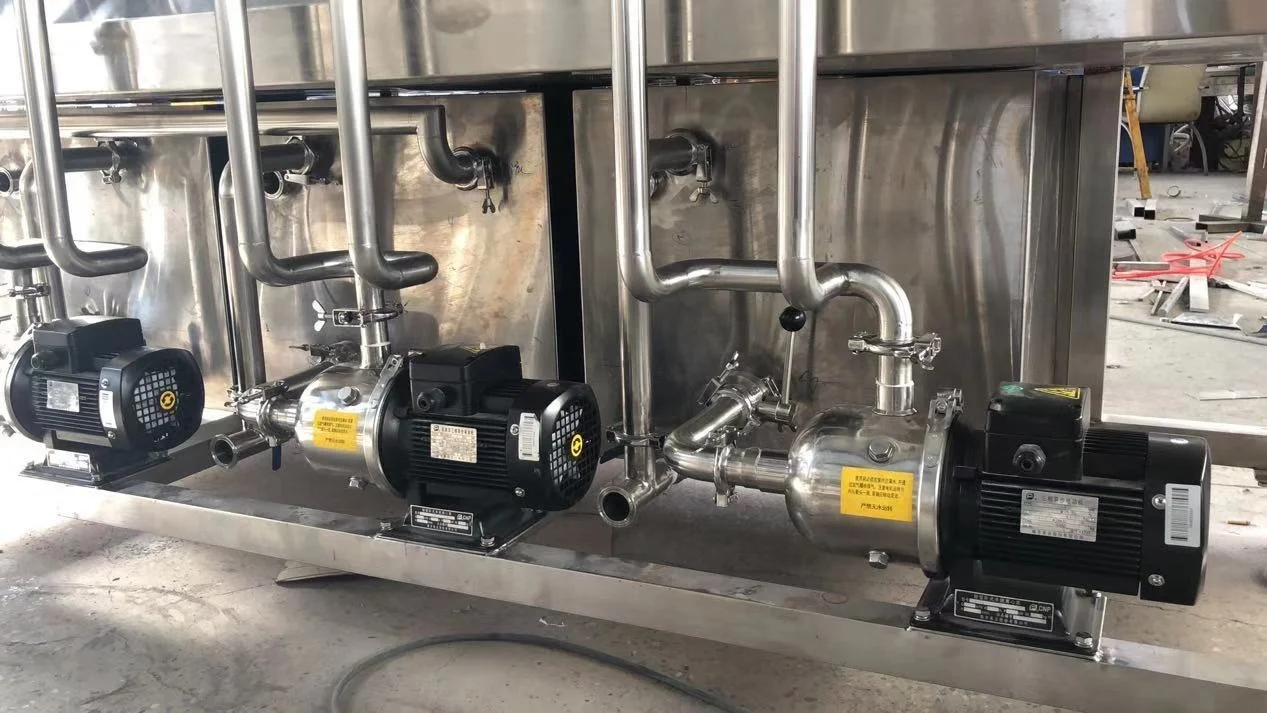

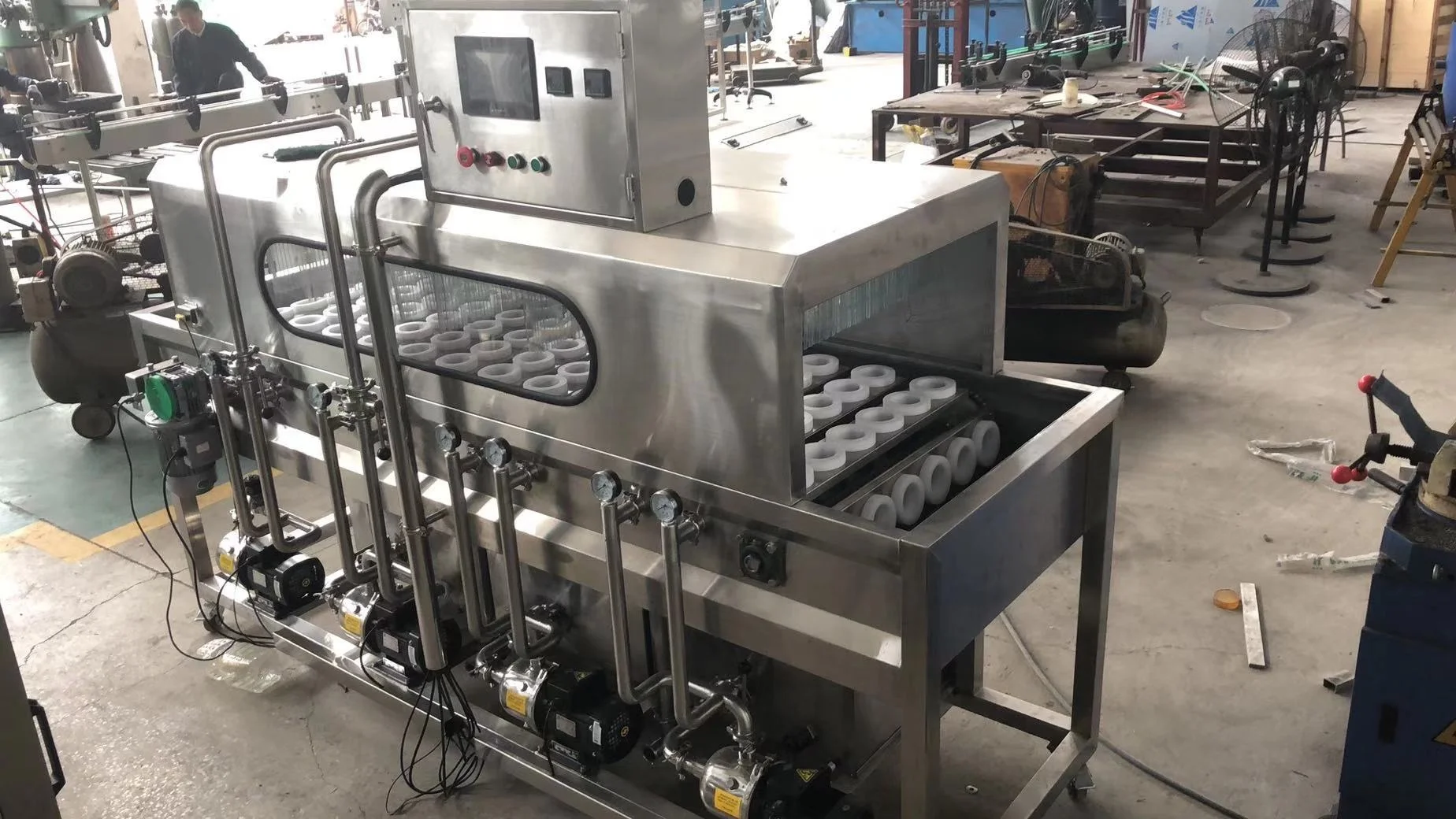

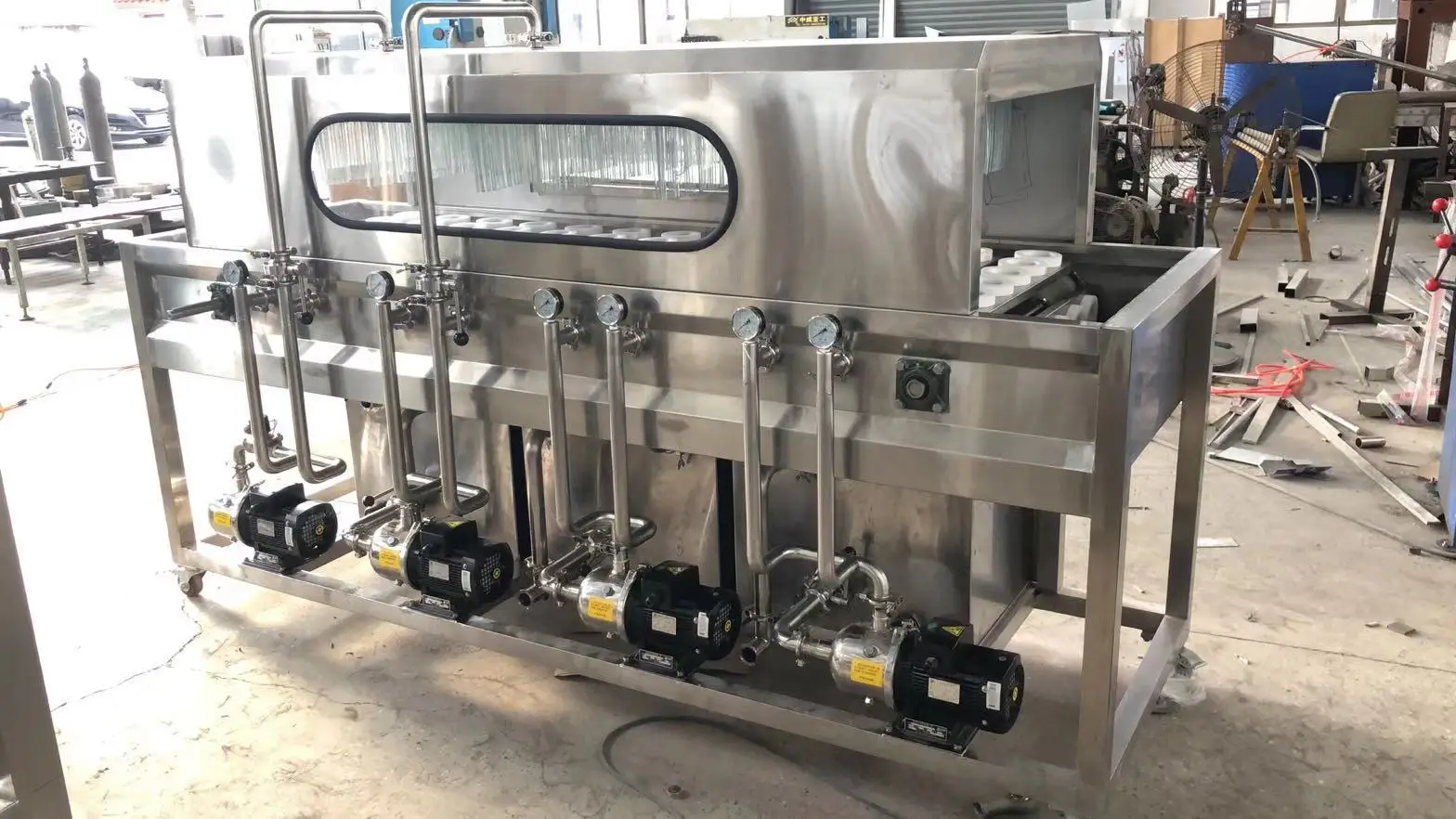

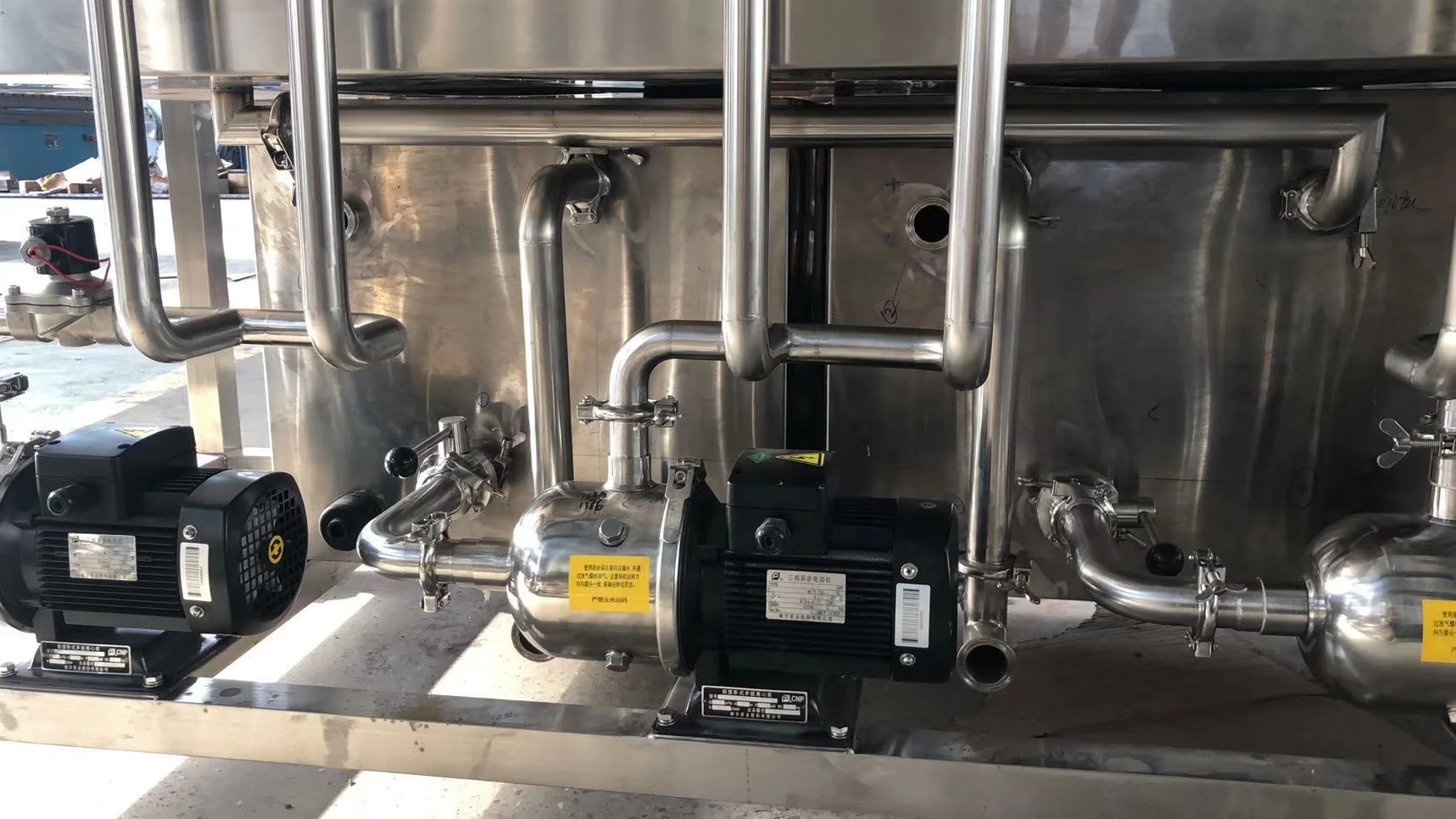

Semi automatic glass bottle disinfecting washing machine

Share on (1600174436770):


Price:RUB 668,943.90

Quantity:


Product Overview

Description

Equipment Description:
1.Automatic glass bottle disinfection and cleaning equipment has many advantages, such as multi-function, low price, small size and easy to move.
2. Full automatic PLC control.
3. 304 stainless steel.The infrared contact switch accurately detects whether there is a lack of bottles. If the glass bottle drops or the bottle is not put into the bottle holder, the machine will stop running until all the safe operating conditions are met, and the machine will run automatically, safely and reliably.
4. The equipment makes up for the shortage of traditional semi-automatic glass bottle washer that cannot be rinsed with disinfectant or hot water.At the same time compared to the automatic glass bottle washer, the volume is much smaller, the price is
also much lower.

Cleaning steps:
1. Flush with the first acid rinse. 2. Rinse with the second line of alkaline water. 3. Flush with hot water the third time.
The machine is 304 stainless steel, automatic PLC control, infrared contact switch, safe and reliable.
Product Paramenters
 Mode
GW-6
Head of washing
6
Production capacity (bottle/hour)
1500-2000
Suitable bottle diameter(mm)
D=50-90
H=150-310 330-1500 ml
Spraying pressure(Mpa)
2.25
Motor power(Kw)
3.48
Overall dimension (mm)
2000×1200×1600
Weight(Kg)
200
Company Profile
Processing Equipment
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customers Visit
Connection debugging before delivery
We will connect all the machines and pipes in the factory, simulate the operation in your factory, and disassemble and pack them into containers for transportation after they are qualified.
After sales and return visits
Certifications
One year warranty
During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period

Remote services
solve basic questions by telephone,email,whatsapp,wechat and video call.

Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email
.
