Price:$150,000.00

Quantity:


Product Overview

Description



Products description

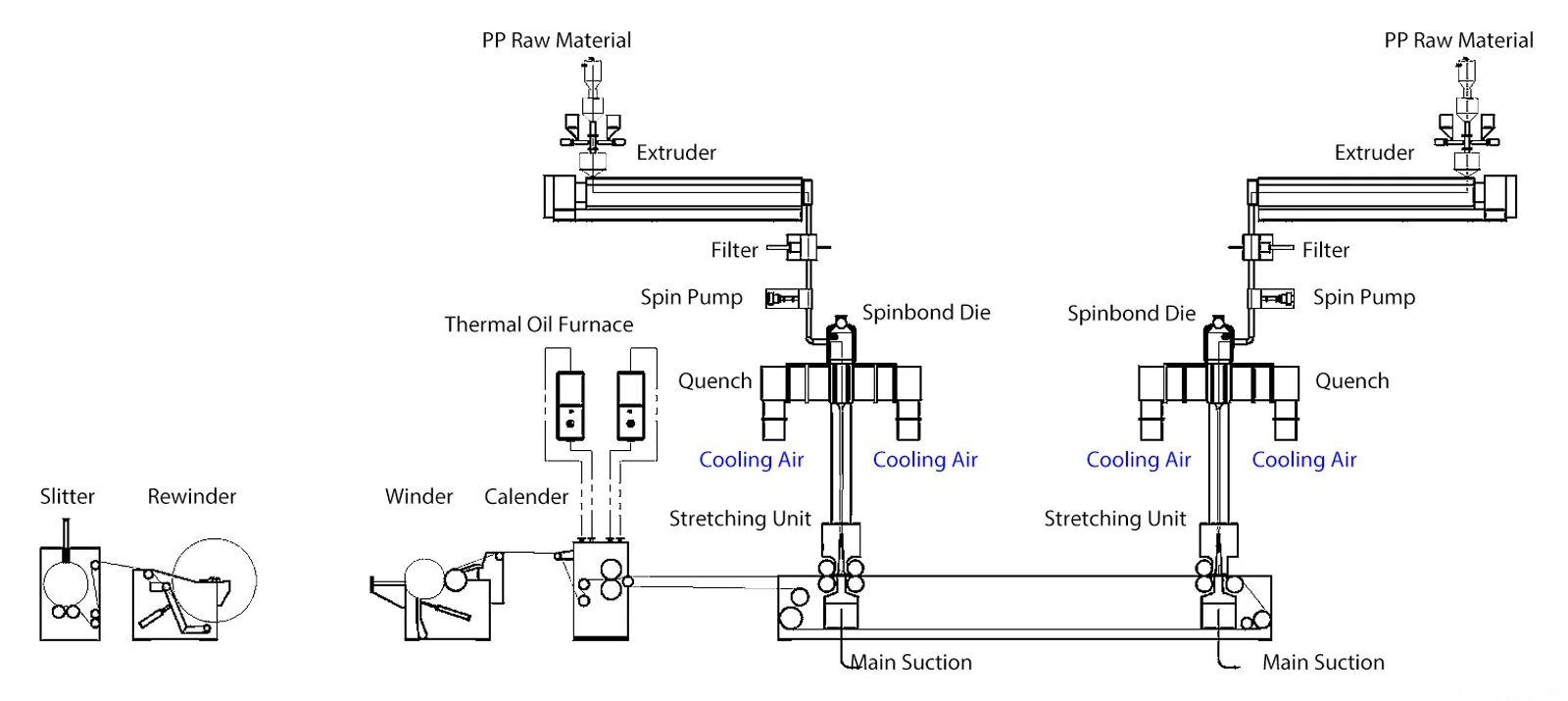

KH-SS two-Beam spunbond nonwoven fabric making machine/line
Effective Width
(mm)
GSM Range
(g/sq.m)
Max. Speed
(m/min.)
Daily Capacity
(Tons/Day)
Annual Capacity
(Tons/Year)
1600


8-120


300
8.3
3000
2400
12.4
4500
3200
16.5
6000
4800
24.7
9000
The configuration of machines could be CUSTOMIZED as your needs!


FEATURES
Dosing & metering system
Vacuum suction or blower feeding system. Gravimetric metering system with precise accuracy. Automatic alarm for high and low
position limit.
Spinning beam
Single coat-hanger melt distribution, manufactured by 4-coordinates CNC, grinding by manual.
Quenching chamber
Several layers multistep honey plates with different size holes. Quenching air distribution is uniform and easier for dismounting
and cleaning.
Stretching channel
Inside wall is made of polished stainless steel, top and bottom stretching channels can adjust slot width at the same time.
Diffusing channel
Channel is made of stainless steel. Special forming process and welding technology guarantee the whole channel is flat and no
shape changing.

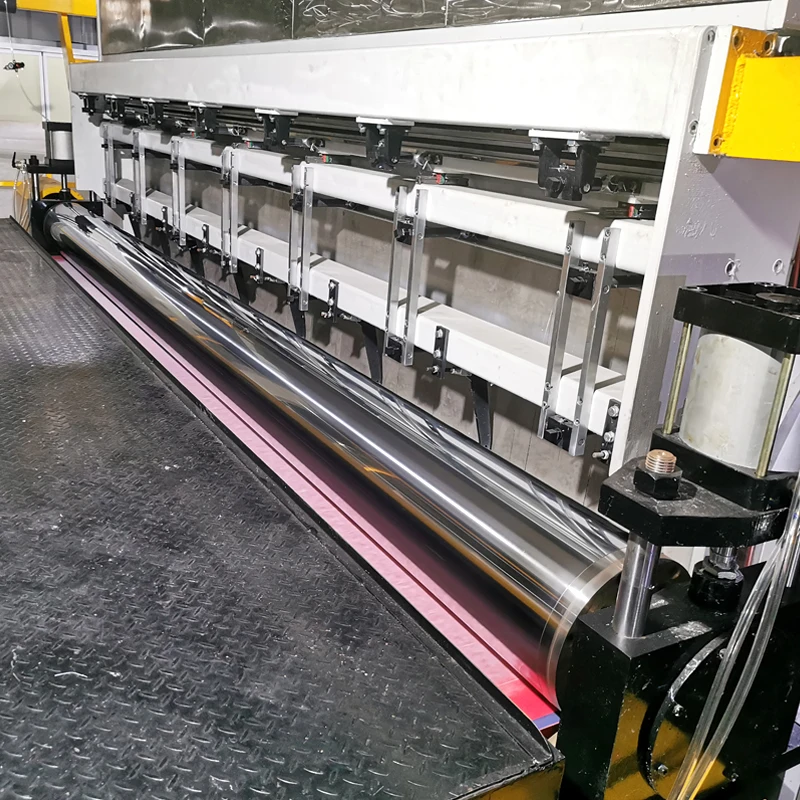

Conveyor
Rollers are inspected by dynamic balance to guarantee running in stable situation. Surface of prepressing roller is coated by
ceramic, to prevent entanglement. MB system has pneumatic belt protection unit.
Meltblown system
Imported screw blower has been applied to create stretching air. Pressure is constant, Spinning pressure is lower, higher
efficiency and less power consumption.
Electrical control system
The whole machine is controlled by PLC, AC inversion motor for the whole synchronization system, The process parameters and fault
can be displayed and alarmed. The whole system is in stable and reliable situation.

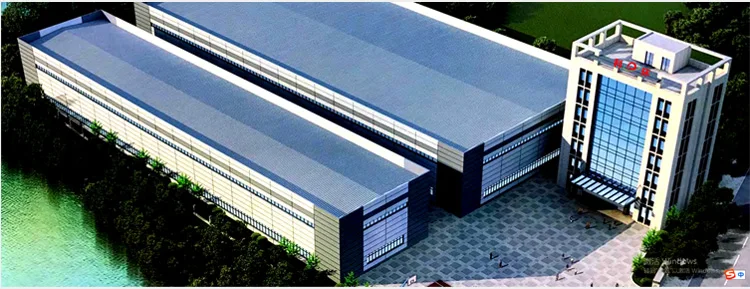

Company introduction










Production application


APPLICATIOTNS
nonwoven lines are designed and manufactured in accordance with individual customer requirements.
their possible area of application therefore is correspondingly wide.




NONWOVEN FOR
NONWOVEN FOR
NONWOVEN FOR
NONWOVEN FOR
NONWOVEN FOR
HYGIENE
MEDICAL
INDUSTRY
AGRICULTURE
FILTER MATERIAL


Spunbonded Nonwovens Mainly Applications
Nonwoven Packaging Product
Shopping bag, rice backaging, tea bag, clothes packaging, etc.
Nonwoven Hygiene Product
Baby and adult diapers: Top sheets, back sheets, ears, tapes, landing zone;
Female hygiene: Top sheets, wings;
Cleaning wipes: Baby care, cosmetics, etc.
Nonwoven Medical Product
Surgeon's Cap, surgeon's mask, disposable garments, surgical drapes, surgical sheet, shoe covers, etc.
Nonwoven Technical Product
Geotextiles: Erosion protection, filtration, reinforcement, drainage, separation layers, embankment fortification etc. forstreets,
dikes, and farms Structural engineering: Bitumen supports, roof insulation sheeting, diaphragms Agriculture: Crop forcing
nonwovens, insect protection, etc.Automotive: Inner paneling, sound insulation, insulation, etc.
Nonwoven Furniture Product
Beds: Pocket springs, mattresses, cushions, bed covers, disposal bedding
Seating: Upholstered backs, sub-paneling, intermediate layers, etc.


Spunmelt Composite Nonwovens Mainly Applications
Nonwoven Hygiene Product
Baby and adult diapers
Nonwoven Medical Product
Surgeon's mask, surgical drapes, etc.
Nonwoven Filtration Product
Gas, air, liquids(benzene, water, blood), etc.
Work Protection Product
Protecitve clothing, breathing masks


Meltblown Nonwovens Mainly Applications
Nonwoven Sanitary Product
Baby and child hygiene
Female hygiene
Incontinence products
Pads
Absorbing pads
Functional inserts for controlled absorption
Nonwoven Absorbents Product
Absorbent cloths and wiping cloths
Media for oil absorption
Liquids (benzene, water, blood)
Nonwoven Filtration Product
Gas, air, liquids(benzene, water, blood), etc.
