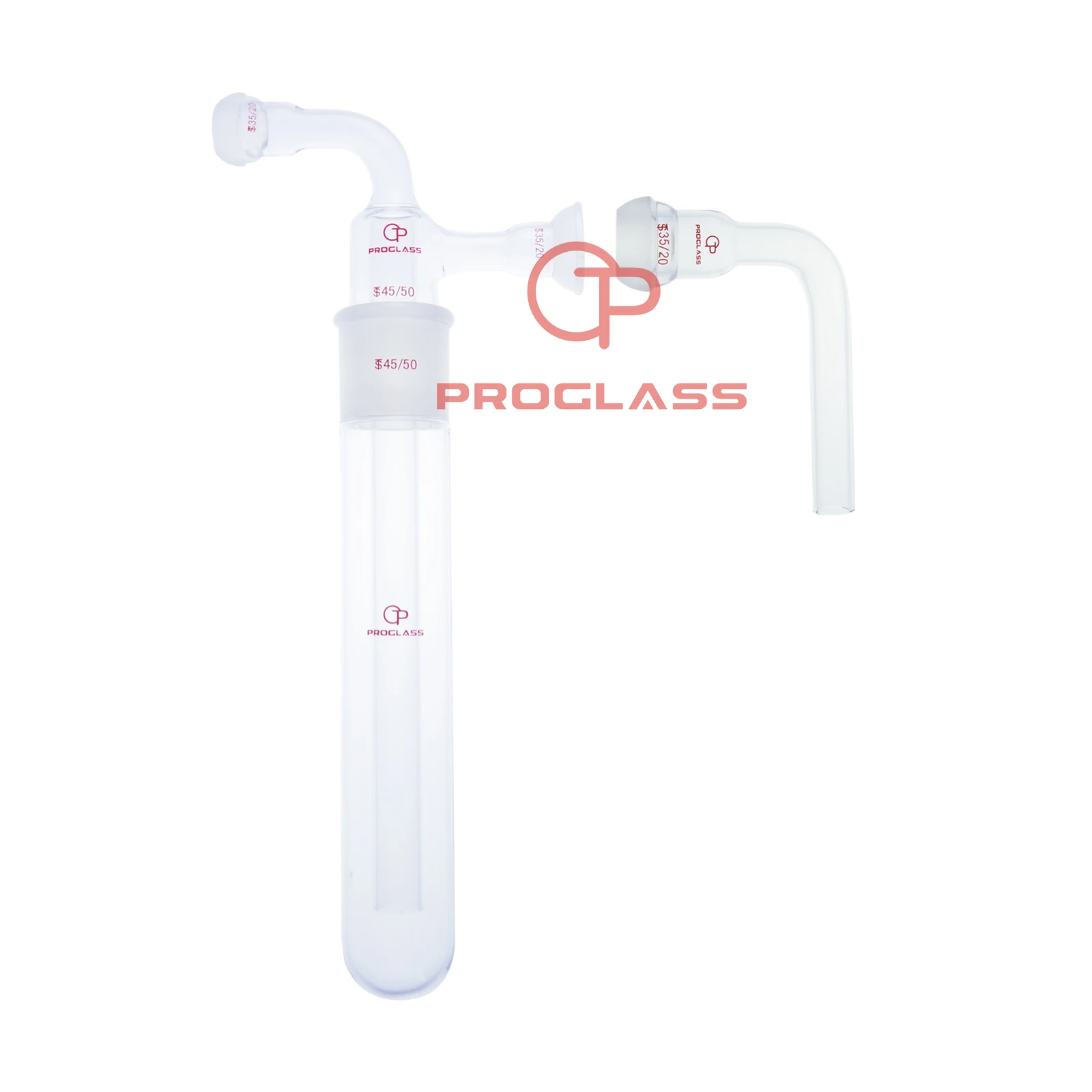

lab glass Vacuum Spherical Joints Traps with Removable Arms 45/50 joint for the body
lab glass Vacuum Spherical Joints Traps with Removable Arms 45/50 joint for the body

lab glass Vacuum Spherical Joints Traps with Removable Arms 45/50 joint for the body

Share on (1600174708441):


Price:RUB 10,447.01

Quantity:


Product Overview

Description

Two piece construction for easy removal of condensate. Inlet and outlet are 180º apart for installation into a variety of vacuum systems. Stopper has a standard taper inner joint and body has an outer joint. Body length is the overall length from the top of the joint to the bottom of the round bottom. 35/20  joints.

45/50 ground joint in the body,250mm Length,OD of the inner tube is 18mm.


If you need any other size,please contact with us by the leave a message.


Be Made From G3.3 Borosilicate Glass



Annealing Point ------560℃

Linear Coefficient of Expansion------ 33×10-7/℃

Softening Point------820℃

Trap S.jpg
