Лабораторные конденсаторы для стекла, высокоэффективный конденсатор со съемными разъемами

Product Overview

Description

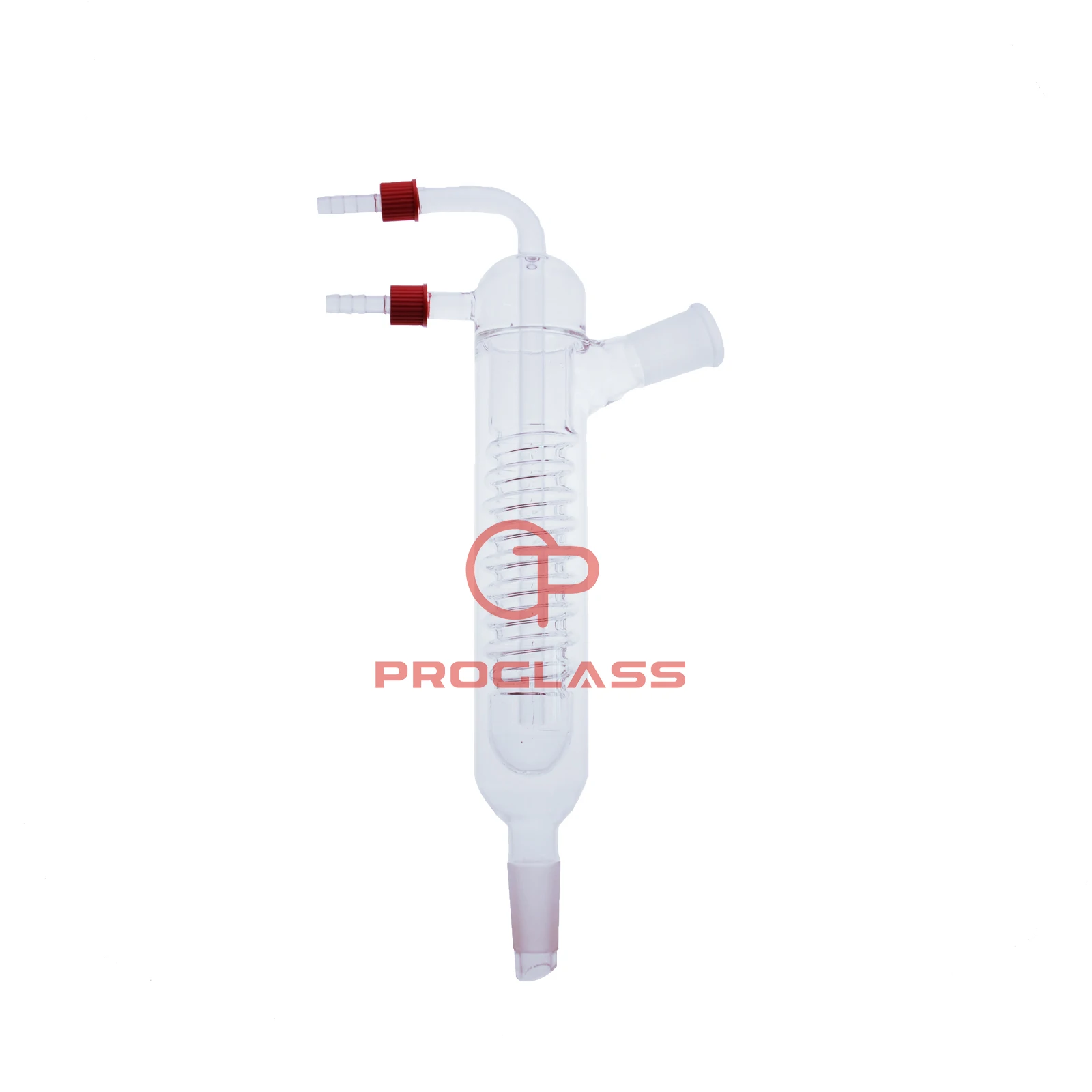

Condenser has a specially formed spiral inner tube providing a long vapor path, ensuring good heat transfer and anti-flooding characteristics. Condenser has a standard taper outer joint at a 15º angle to the condenser and a lower inner drip tip joint. Hose connections have an O.D. of 10mm at the middle serration.Length of the Body is 350mm.



If you need any other size or other Ground joints,please contact with us

Be Made From G3.3 Borosilicate Glass

Annealing Point ------560℃

Linear Coefficient of Expansion------ 32×10-7/℃

Softening Point------820℃

Part No	Upper Joint
1262-1001-00	24/40
1262-1002-00	29/42
1262-1003-00	34/45
1262-1003-00	45/50
