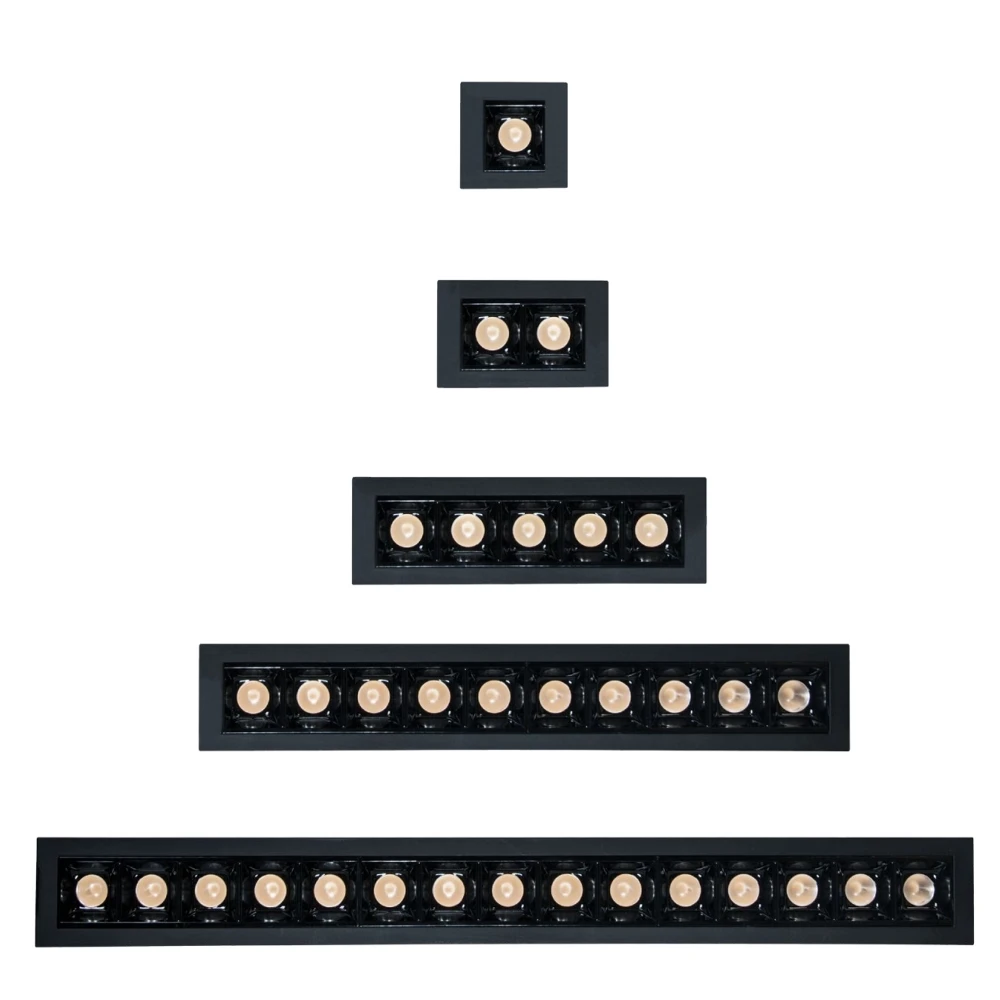

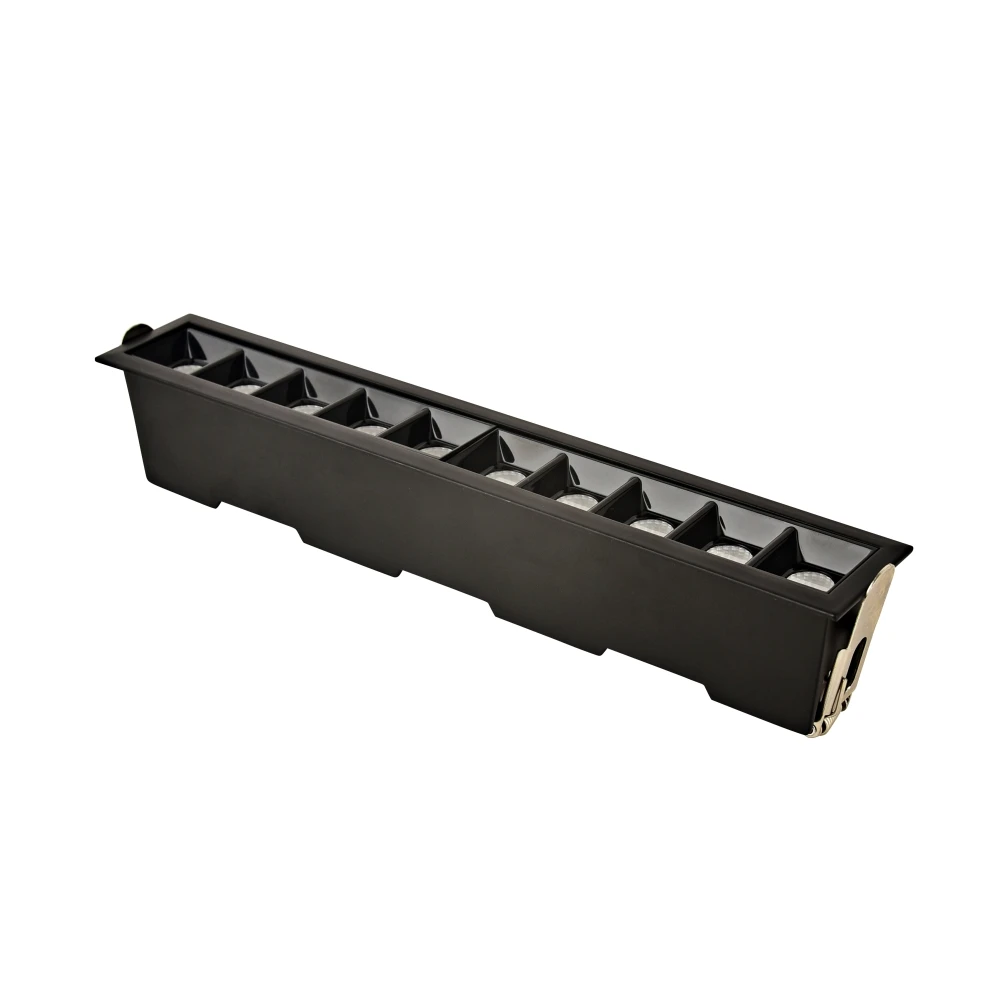

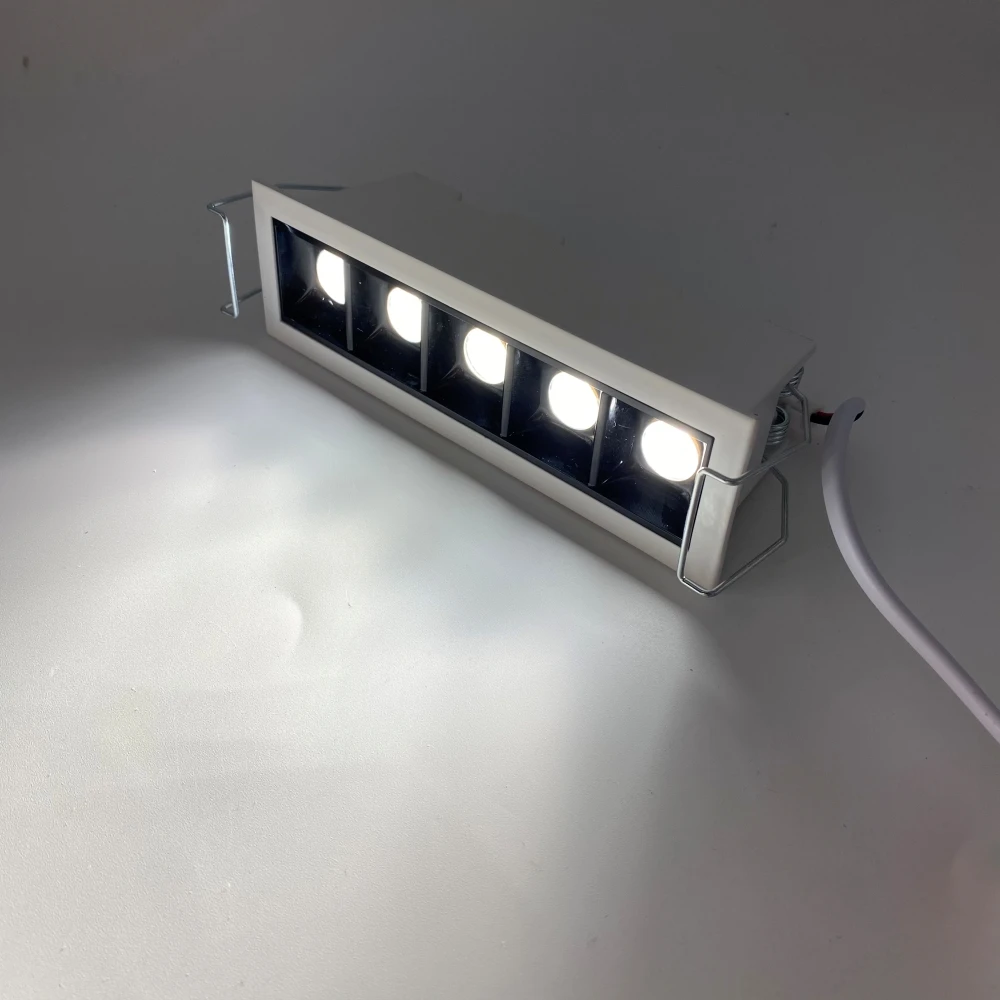

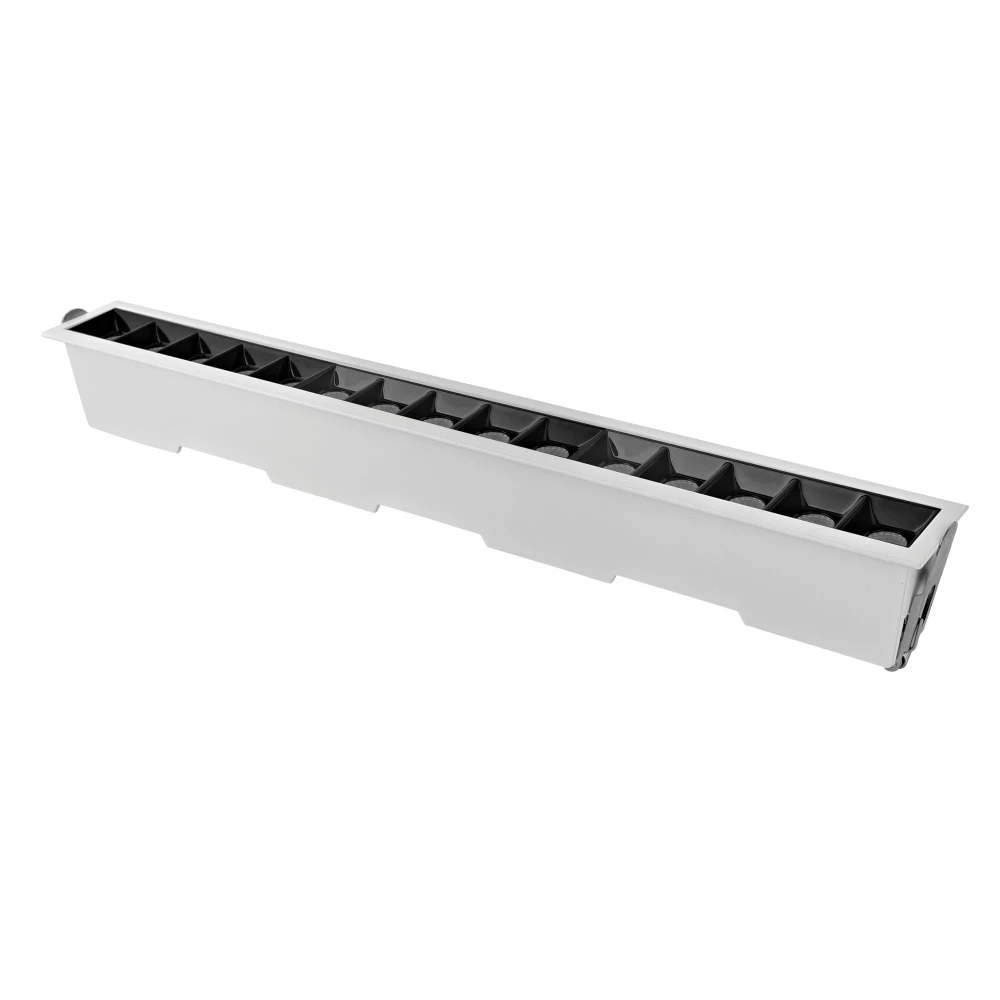

Linear LED recessed square downlight Linear laser blade Down Light 3030 1*2w 2*2w 3*2w 4*2W 5*2W 9*2W 10*2W 15*2W
- Category: >>>
- Supplier: Shenzhen Smart LED Limited
Share on (1600174933570):
Product Overview
Description

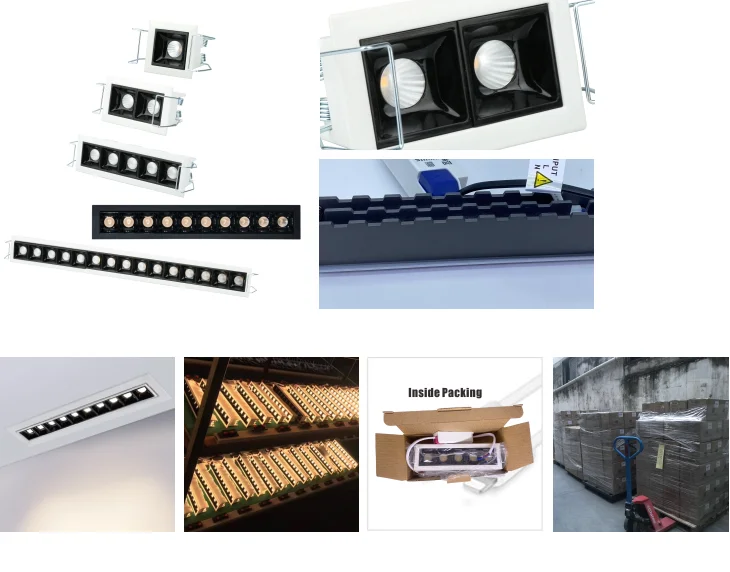

PRODUCTION
Products Detail
Products Detail
MODEL NO.: intergrated dia-casting recessed linear down light
POWER: 1x2W 2x2W 5x2W 10x2W 15x2W
MATERIAL: Intergrated design Aluminum

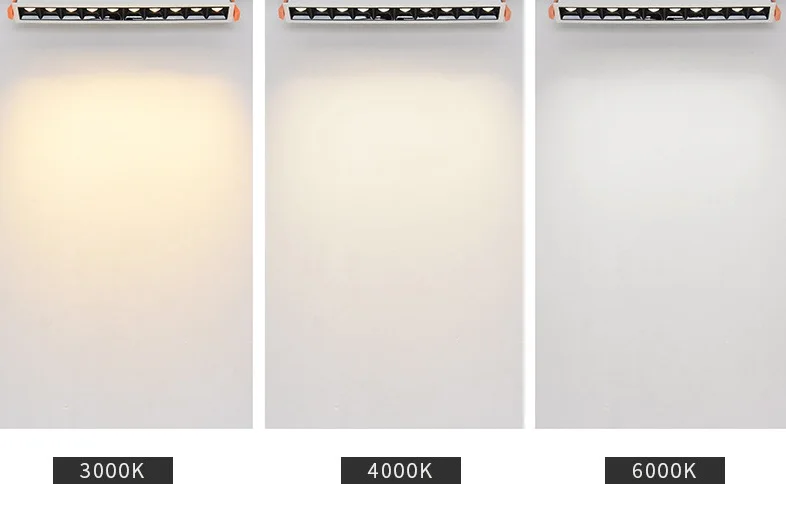

CCT: 2700K, 3000K, 4000K, 5000K, 6000K White
CRI: Ra80, Ra90, Ra97
UGR: 10-19
Output Efficiency: 110~130lm/W
INPUT: Ac100-240V, 50-60Hz, No-Flickering
DIMMABLE: Triac Dim, 0-10V Dim, Dali Dim, CCT-Dim (Ordered)
Warranty: 5 years
Application:Products are widely used as indoor main illumination lighting in the office,commercial center,shopping mall,supermarket,factory,etc.
PRODUCTS PARAMETERS
| Model Number | SM-LL21-A | SM-ML22-A | SM-ML25-A | SM-ML210-A | SM-ML215-A |
| LED Chip | 3030 | 3030 | 3030 | 3030 | 3030 |
| System Power | 2W | 2x2W | 5x2W | 10x2W | 15x2W |
| Input Voltage | AC100-277V / AC100-240V | ||||
| Frequency Range | 50Hz~60Hz | ||||
| Led Initial Flux(lm) | 200lm (±10) | 400lm (±50) | 1000lm (±50) | 2000lm (±200) | 3000lm (±250) |
| Dimension(mm | 45x45x50mm | 74x45x50mm | 147x45x50mm | 279x45x50mm | 411x45x50mm |
| Cut-out | 37x37mm | 67x37mm | 139x37mm | 272x37mm | 403x37mm |
| Color Rendering Index | Ra80, Ra90, Ra97 | ||||
| UGR | 10-19 | ||||
| Beam Angle | 15° 30°45° | ||||
| IP Rank | IP52 | ||||
| Color of Shell | White | ||||
| Storage Temperature | -25°-45° | ||||
| Working Temperature | -45°-65° | ||||
| Fireproof clasee | V0 | ||||
| Certification | CE, Rohs, C-tick, FCC, PSE, REACH | ||||
| Optical Data | IES | ||||

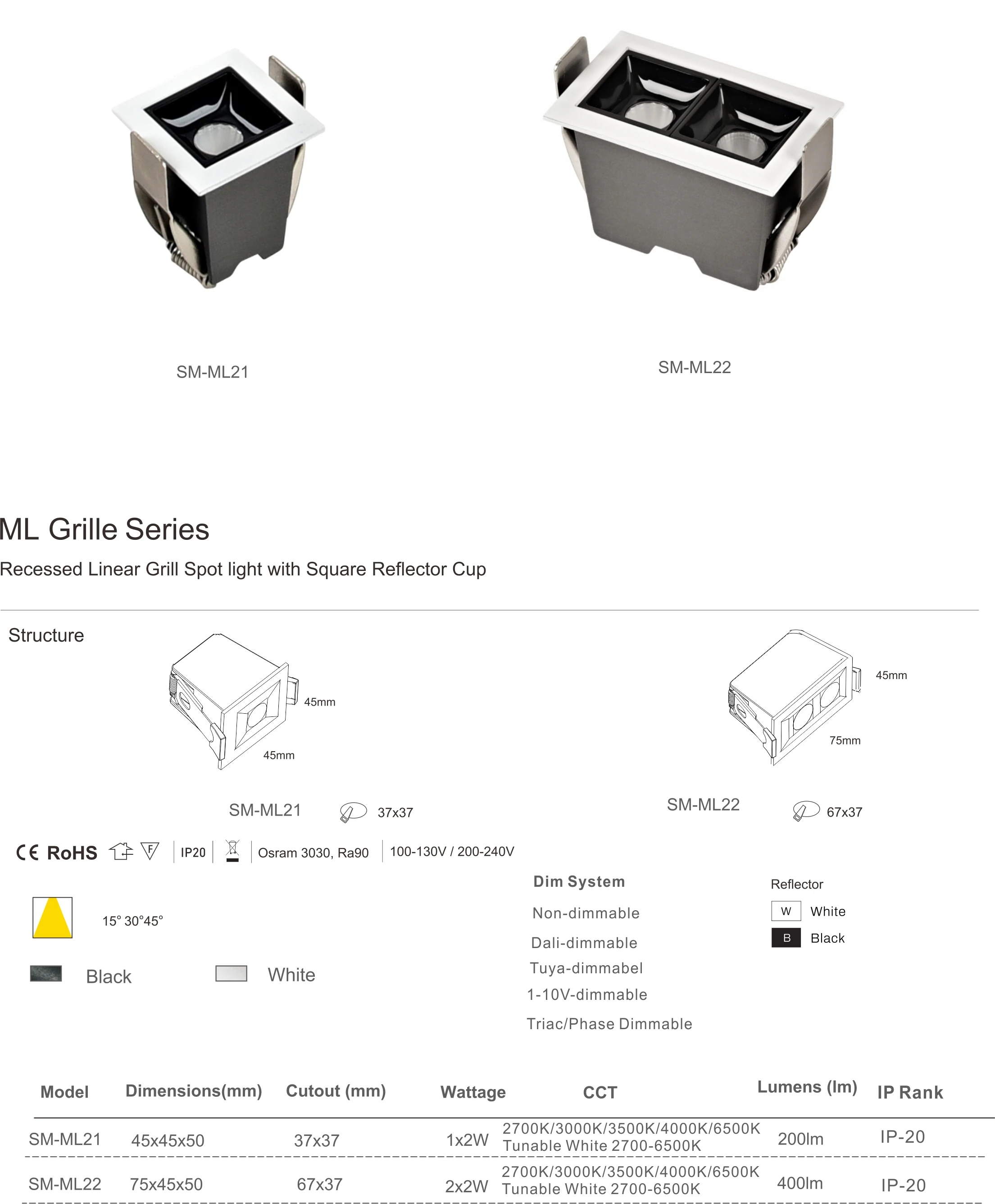

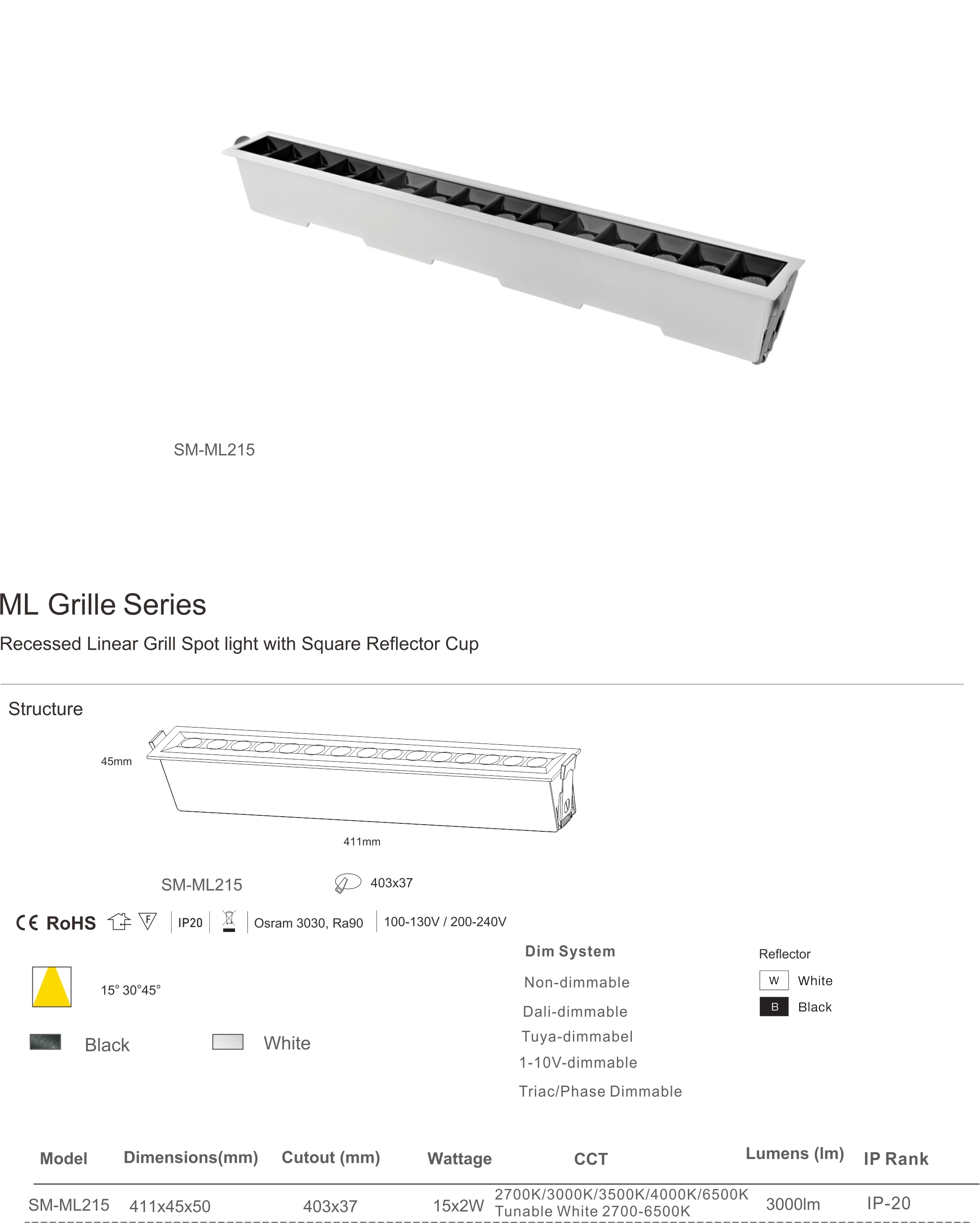

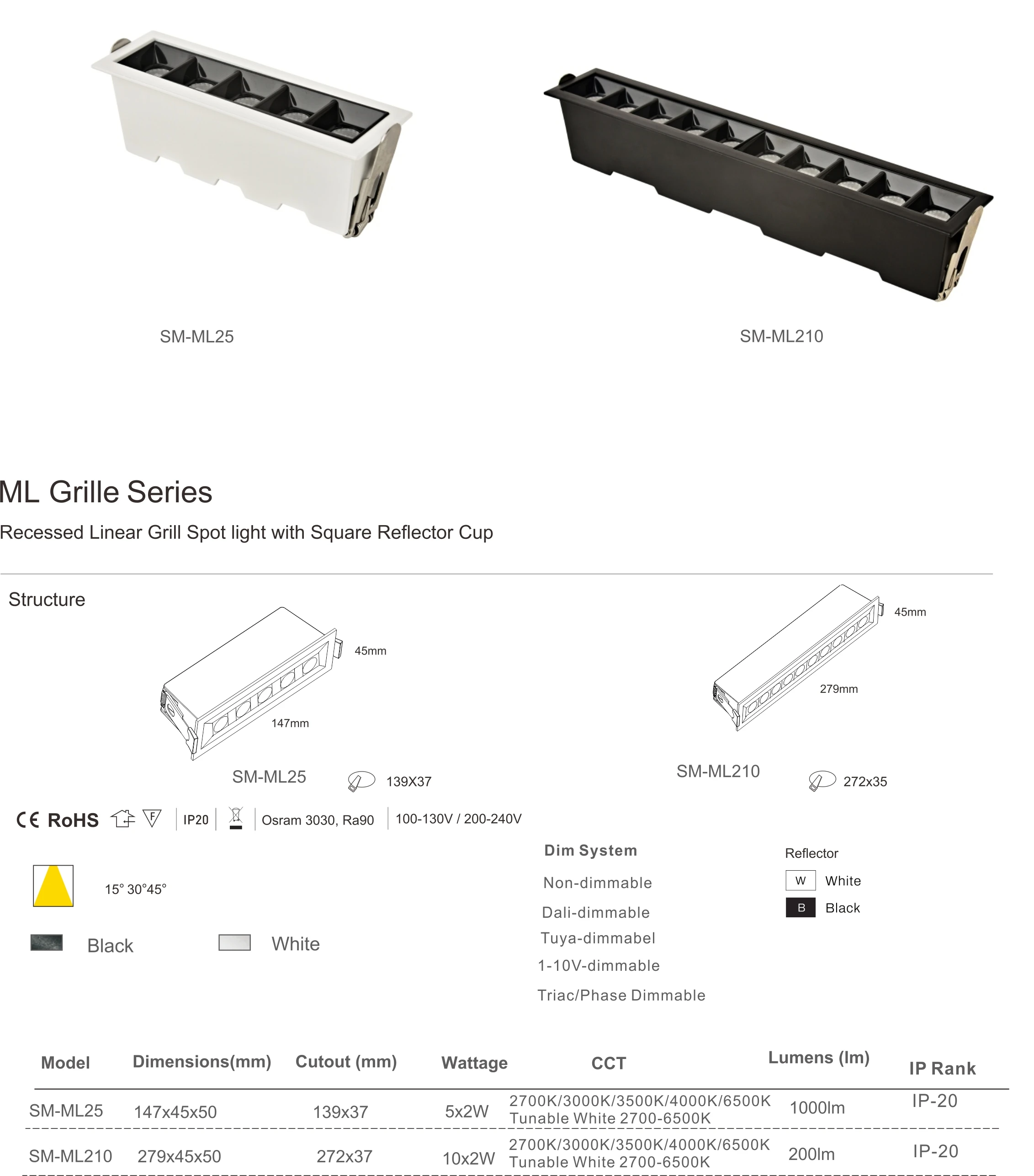

PRODUCTS Spec

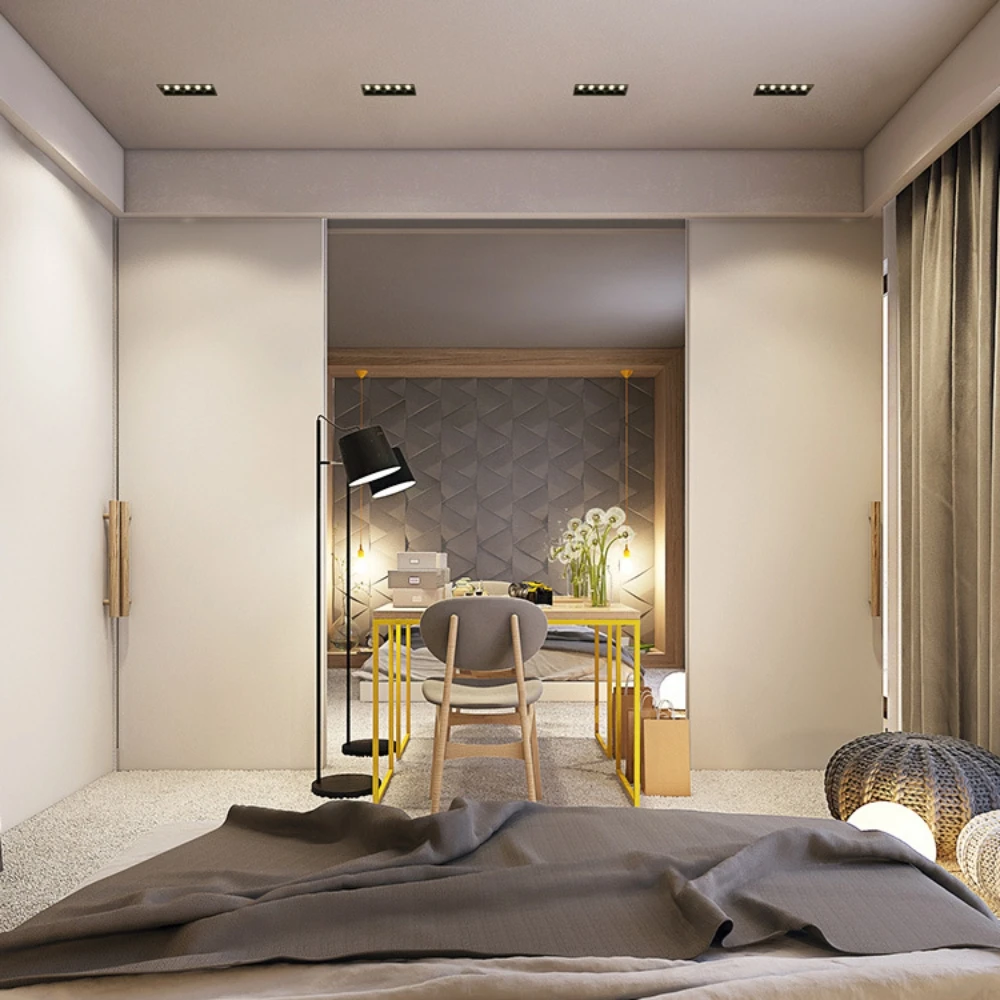

PROJECT
Hot Products
Magnetic Lighting Led Linear Lighting LED Track Light
LED Down Light LED Light Strip LED Suspension Light
COMPANY PROFILE
>>>Click here to get catalogues now
SMART is also quite experienced on ODM&OEM cooperation with customers for personalized products, all new ideas are welcome here.
Q1. Do you have certificate for your products ?
A: Yes, for all of our products have CE (EMC+LVD), Rohs, C-tick, FCC, PSE, REACH, ERP etc. Certification
Q2. What's the warranty?
A: Our Commercial Light are 5 years warranty.
Q3. Can I have the sample light and What's the MOQ?
A: We very welcome you to set sample order to feel our quality, so MOQ=1, and mixed sample will acceptable.
Q4. How long is the delivery time?
A: Sample order is 3-5 days, massive order is 7-20 days depends on the quantity.
Q5. What's your payment terms please?
A: T/T in advance, L/C, Paypal, West Union.
Q6. How to move the order
A: Usually by Express DHL, FEDEX, TNT or UPS, and it will cost 3-5 days on the way, when the order is big, or By Air or By sea cost 10-25days on the way.
Q7. Is it okay to Print your company name or Logo on lamps
A: Yes, pls inform us before ordering
Q8. How to process one orde
A: 1> pls let me know your needed and requirement
2>according as your needed, we quote you all the cost
3> pls confirm all the details on the PI, and arrange the deposit
4> we arrange the production, and ship to you by express and tell you the tracking number to follow
