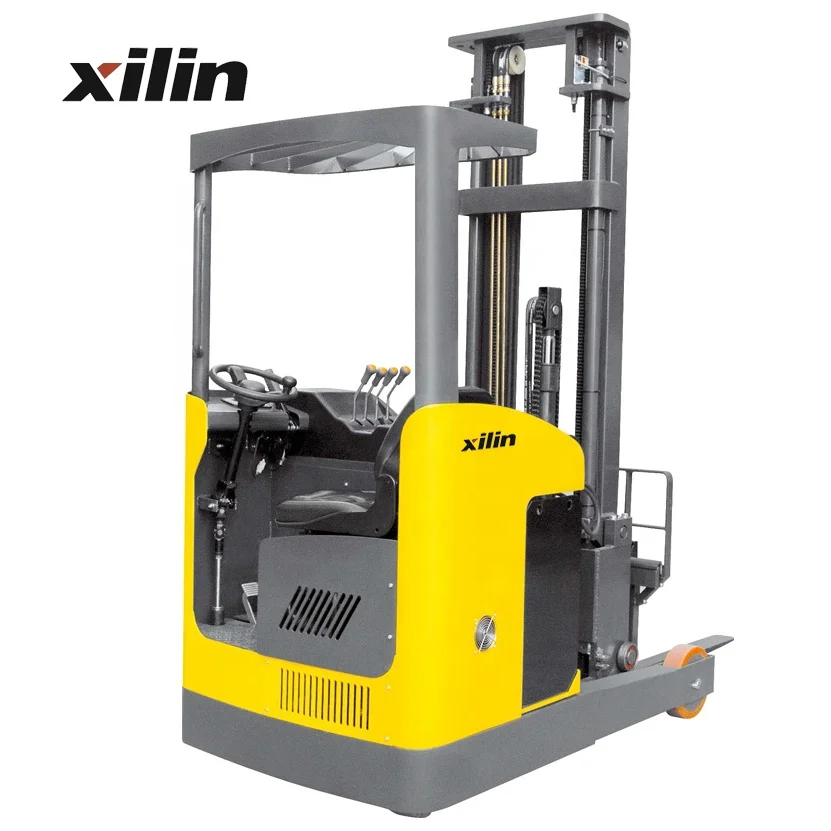

Xilin New Design 1500kgs 1.5ton 3300lbs Capacity High Lift Electric Portable Reach Stacker With Small Turning Radius
- Category: Forklifts >>>
- Supplier: Ningbo Ruyi Joint Stock Co. Ltd.
Share on (1600175035258):
Product Overview
Description
Xilin Stacker 1500kgs 1.5ton capacity trucks Seat Type Hydraulic Electric Reach Truck
Features:
● Truck with small width from 1020-1100mm,
● small turning radius
● Available in either DC or AC power options.

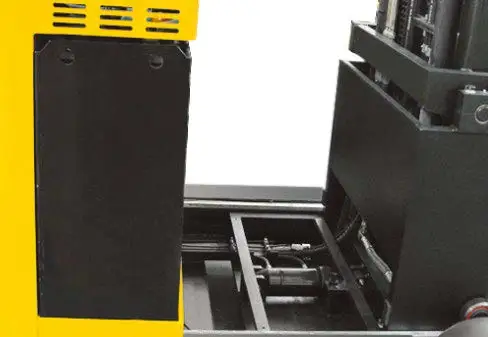

● Simply using a battery handle controller, you can automatically remove and replace the battery box.
● Equipped with two separate floating devices.
● A fully hydraulic steering system.
● Optional high-level video system places a camera in the top skid.
● small turning radius
● Available in either DC or AC power options.
● Simply using a battery handle controller, you can automatically remove and replace the battery box.
● Equipped with two separate floating devices.
● A fully hydraulic steering system.
● Optional high-level video system places a camera in the top skid.
Option
* AC power system.
* Joystick hydraulic controller.
* LCD display and camera.
* Height selection and height position system.
* Lithium battery 350AH (Charger 48V/100AH)
* Joystick hydraulic controller.
* LCD display and camera.
* Height selection and height position system.
* Lithium battery 350AH (Charger 48V/100AH)
Model | CQD15M | |
Power | battery | |
Operate type | seated | |
Capacity / rated load | （kg/lbs) | 1500/3300 |
Lift height | h3(mm/inch) | 3000/5000/6200(118.1/196.9/244.1) |
Load centre distance | c(mm/inch) | 500/19.7 |
Height, mast lowered | h1(mm/inch) | 2086/2240/2640（82.1/88.2/103.9） |
Free lift | h2(mm/inch) | ~/1700/2100（~/66.9/82.7） |
Height, mast extended | h4(mm/inch) | 3800/5800/7000（149.6/228.3/275.6） |
Height of overhead guard (cabin) | h6(mm/inch) | 2114/83.2 |
Seat height / stand height | h7(mm/inch) | 920/36.2 |
Height of crura | h8(mm/inch) | 270/10.6 |
Overall length | l1(mm/inch) | 2390/94.1 |
Length to face of forks | l2(mm/inch) | 1850/72.8 |
Overall width | b1(mm/inch) | 1100/43.3 |
Fork dimensions | s/e/l(mm/inch) | 35/100/1070(1.4/3.9/42.1) |
Reach distance | l4(mm/inch) | 600/23.6 |
Aisle width for pallets 1000x1200 crossways | Ast(mm/inch) | 2800/110.2 |
Aisle width for pallets 800x1200 lengthways | Ast(mm/inch) | 2850/112.2 |
Turning radius | Wa(mm/inch) | 1740/68.5 |
Travel speed, laden / unladen | Km/h | 7/7.2 |
Lift speed, laden / unladen | m/s | 0.2/0.4 |
Service weight (with battery) | (kg/lbs) | 2400/2800/2900(5291.1/6172.9/6393.4) |
Ningbo Ruyi Joint Stock Co. Ltd.
Ruyi has been dedicated to the manufacture of the warehousing logistics equipment and the main products can be classified intothe following series, electric pallet truck, electric stacker, order picker, narrow aisle truck, electric tow tractor, hand pallet truck, manual stacker , lift table and forklift.
Ruyi has been dedicated to the manufacture of the warehousing logistics equipment and the main products can be classified intothe following series, electric pallet truck, electric stacker, order picker, narrow aisle truck, electric tow tractor, hand pallet truck, manual stacker , lift table and forklift.
Q1: Are you a factory?
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
