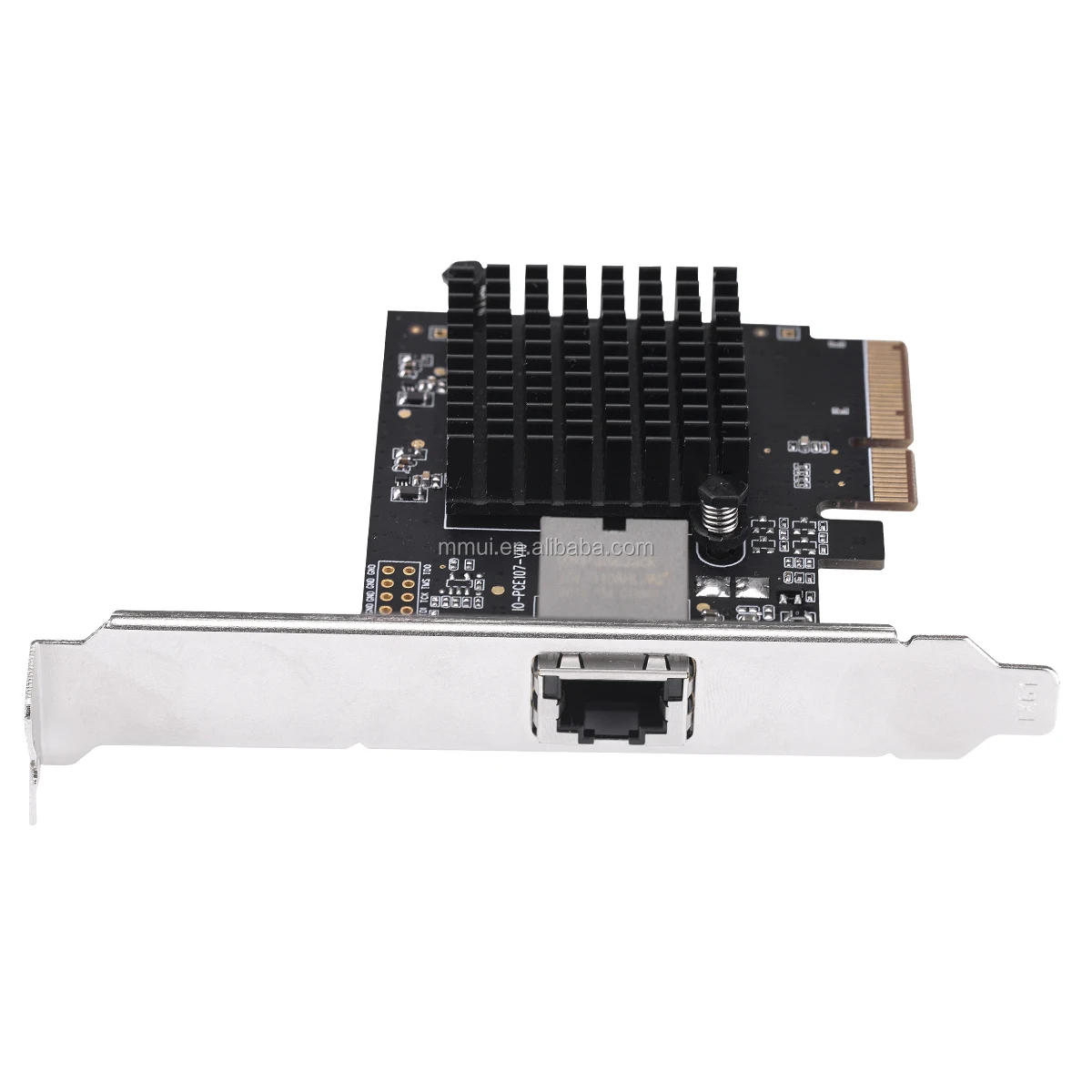

PCIe x4 single port AQC107 chip rj45 10 gigabit ethernet nic card
- Category: Network Cards >>>
- Supplier: Shenzhen,MMUI,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Hardware | Bus Type | PCI Express 3.0 (8.0 GT/s) | |
Material | Bus Width | x4 lane PCI Express, operable in x4, x8 and x16 slots | |
Function | Card Type | Standard/Low Profile | |
Chipset ID | AQUANTIA – AQC107 | ||
Industry Standards | IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3an 10GBASET-T, IEEE 802.1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.1p Priority Queuing, IEEE 802.3az EEE | ||
Interface | 1x RJ45 | ||
Power Consumption | 10Gbps – 5.3W | ||
Special Notes / Requirements | System and Cable Requirements | PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x8, x16) | |
Software | OS Compatibility | • Windows 7/8/8.1/10 • Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2 • Linux Stable Kernel version 2.6.32/3.x/4.x or later • Linux CentOS/RHEL 6.5 / 7.x or later • Ubuntu 14.x/15.x/16.x or later • VMware ESX/ESXi 4.x/5.x/6.x or later | |
Physical Characteristics | size | 120 mm*136 mm*22 mm | |
Product Weight | 72 g | ||
Indicators | LED Indicators | 1 – 10G Speed LED (Amber) 1 – Link/Act (Green) | |
Environmental | Humidity | 20~80% RH | |
Operating Temperature | 5°C to 50°C (41°F to 122°F) | ||
Storage Temperature | -25°C to 70°C (-13°F to 158°F) | ||
Package | 1* PCIe x4 Single-port RJ45 10G Ethernet network adapter 1*Low profile bracket 1*Manual 1*CD driver | ||
- Features
• Support PCI Express Gen-III x4
• PCI Express (Pcle) v 3.0 x4 lanes
• Jumbo frame support up to 16 KB
• 1 Gbps to 10 Gbps, 5 Gbps, 2.5 Gbps and 100M data rates
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• iSCSI No
• WoL No
• Jumbo Frames Yes
• DPDK Yes
• PXE Yes
• FCoE No
• Industrial Temperature: -40 to 108°C
• Commercial Temperature: 0 to 108°C
• Storage Temperature：-50 to 150°C
• PCI Express (Pcle) v 3.0 x4 lanes
• Jumbo frame support up to 16 KB
• 1 Gbps to 10 Gbps, 5 Gbps, 2.5 Gbps and 100M data rates
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• iSCSI No
• WoL No
• Jumbo Frames Yes
• DPDK Yes
• PXE Yes
• FCoE No
• Industrial Temperature: -40 to 108°C
• Commercial Temperature: 0 to 108°C
• Storage Temperature：-50 to 150°C
