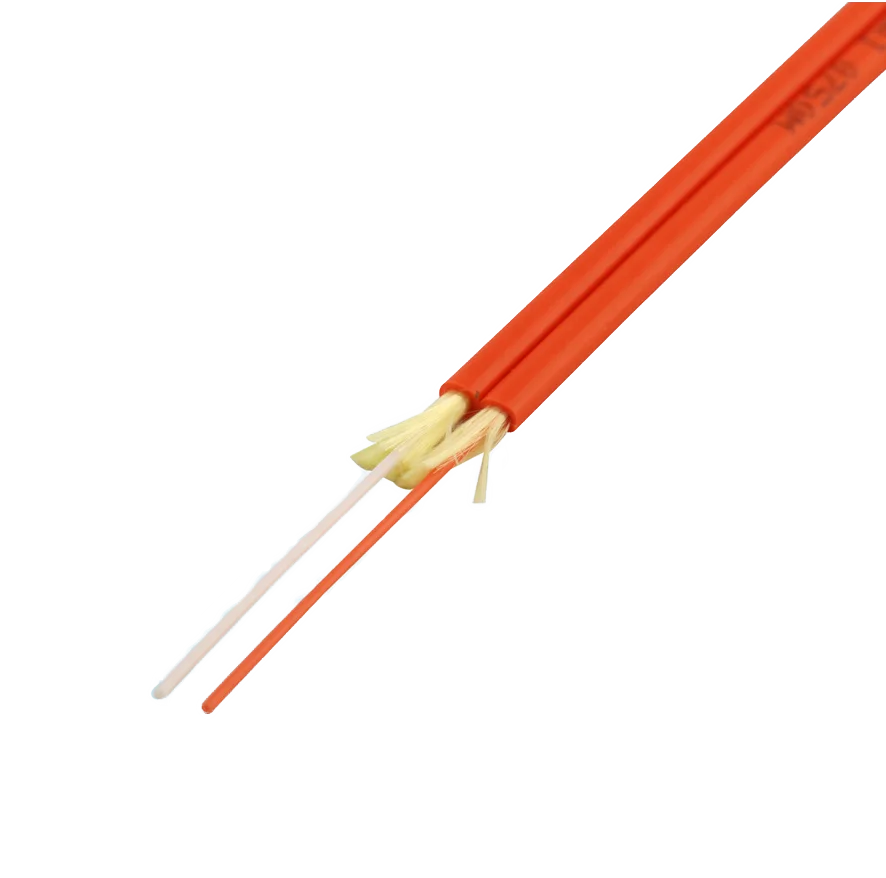

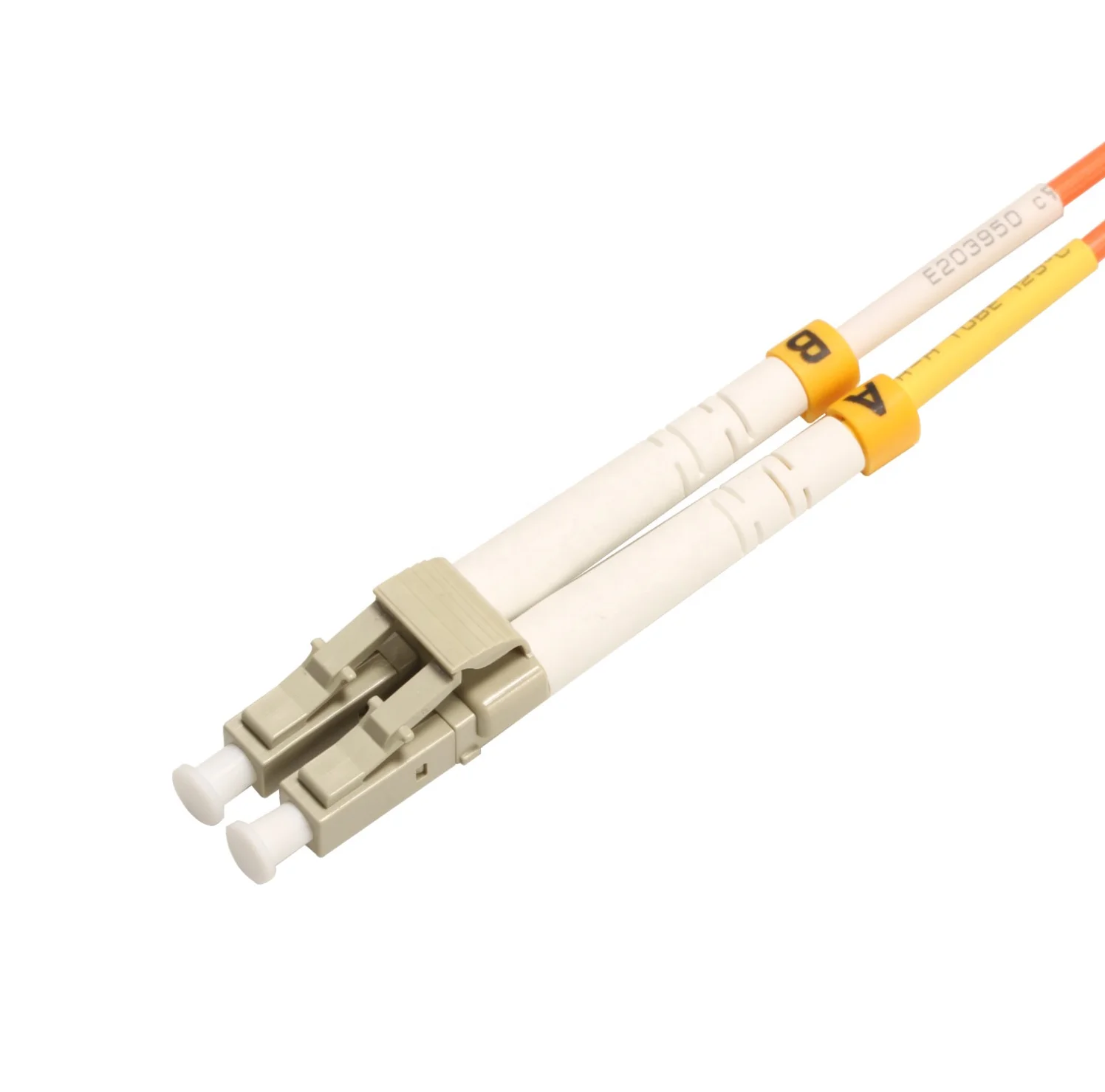

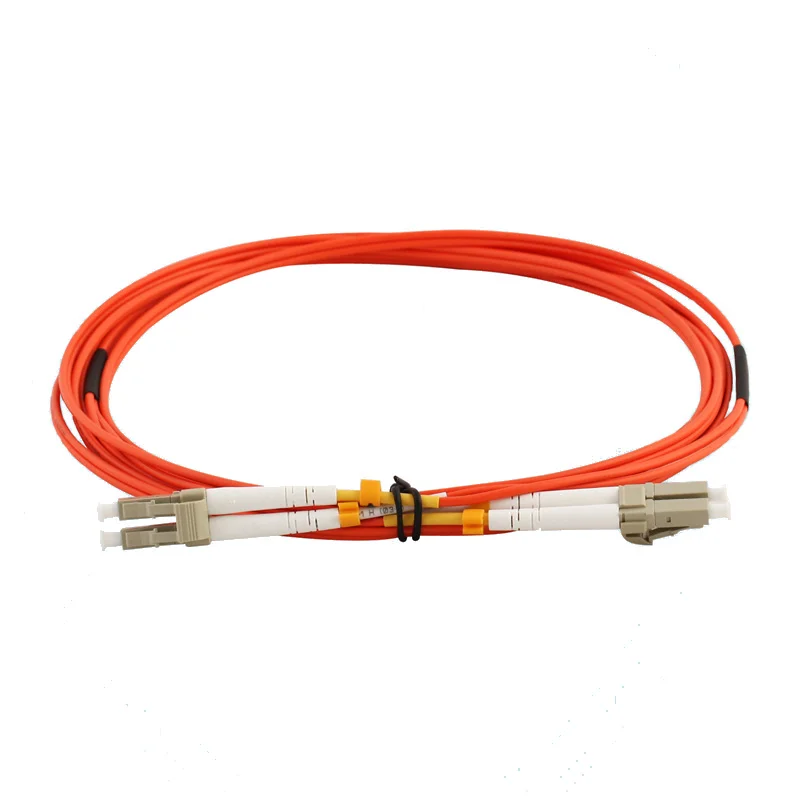

This fiber optic patch cord product is a piece of certain lengths of fiber cable (length customized) with two LC UPC connectors at each end (four connectors in total). Fiber optic patch cords are utilized to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
FEATURES AT A GLANCE
Easy Installation
Small Size High Dense
Excellent mechanical endurance
Good in Repeatability
3D Interference Test More than 90% Passed
PRODUCT SPECIFICATIONS
Parameter
Unit
Data
Operating Wavelength
nm
850 nm
1300 nm
Insertion Loss
dB
≤ 0.3
Return Loss
dB
≥ 50
3D Interference Test Passing Rate
%
90
Repeatability
dB
≤ 0.1
Plug and Pull Durability
Times
> 1000
Operating Temperature
°C
-45°C ~ +75°C
Storage Temperature
°C
-45°C ~ +85°C
WHY CHOOSE US
Quality Assurance
HTD dedicates to provide high quality products to our clients.
Our connector testing items include but not limited to insertion loss, return loss, ferrule end face inspection, 3D interference test and tensile value.
Fast Delivery
HTD's production scale allows us to provide product to clients in relatively short time. If the order quantity is small (less than 10,000 pieces), our normal delivery time would be within 15 days after placing order.
If the order quantity is very large or the order requirement is complicated, our delivery time would be extended to 30 - 35 days after placing order.
