SZADP Lan Cable Cat5 Copper CCA 4Pair 24AWG 0.5mm Network Cable Cat5E UTP
- Category: >>>
- Supplier: Huizhou,Adp,Optical,Communications,Co.,Ltd.
Share on:
Product Overview
Description
Products Specification
Lan Cable | |
Category: | Cat5e/ Cat6 /Cat6a /Cat7 |
Specifications: | 4 pairs |
Conductor: | 0.5mm /0.51mm /0.56mm /0.57mm/ 0.58mm (as your request) |
Material: | Copper /CCA /HCCA (as your request) |
Shield: | UTP(Unshielded Twisted Pair), FTP(Shielded Foil Twisted Pair), SFTP(Shielded Foil Twisted Pair) |
color | blue black white grey yellow red |
Jacket: | PVC / LSZH |
Meter | 305M |

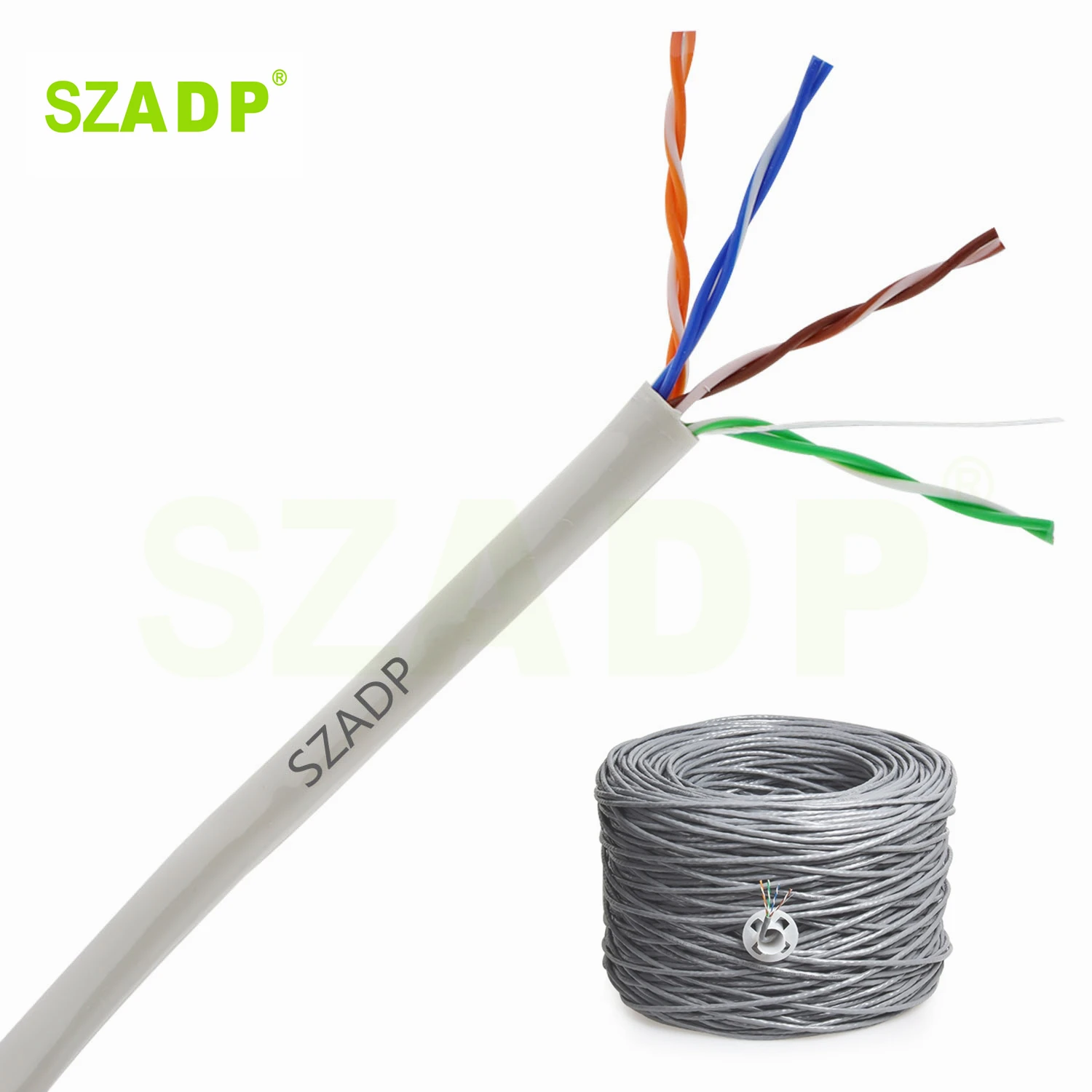

Lan Cable cat5e 4Pair 24AWG UTP Cat 5e Network Cable
Cable data:
1, Conductor:Solid bare copper/CCA/HCCA
2, AWG: 24
3, Conductor Dia(mm):0.51
4, Insulation: PE
5, Average Thickness(9±0.03mm):0.20
6, Min Point Thickness:0.17
7, Insulation Dia(±0.03mm):0.91
8, Twistiing lay length(mm):30 undemeath
9, Cabling lay length(mm):200 undemeath
10, Jacket: PVC
11, Average Thickness: 0.5
12, Min Point Thickness: 0.43
13, Qutor Dia(i1.0mm): 5.1
14, Rip Cord:YES
15, Weight Nom(kg/km):32
16, Core Color: Blue-white/nlue,Orange-white/orange Green_white/green,Brown_white/brown
Lan Cable cat5e UTP Cat 5e Ethernet Cable
Electrical Performance:
-Electrical Performance (At 100MHz)
1, 1.0-100.0MHZ Impendance(ohms)100±15
2, 1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
3, Pair to ground Capacitance Unbalance (PF/100M)330 Max
4, Conductor DC resistance 20%(ohms/km)<93.8
5, Resistance Unbalance(%): 5
6, Test object : jacket
7, Test material: PVC
8, Before Tensile Strength(Mpa): ≥13.8
9, Aging Elongation(%): ≥100
10, Aging condition(C xhrs): 100*240
11, After tensile strength(Mpa): ≥85% of unaged
12, Aging Elongation(%): ≥50% of naged
13, Cold bend(-20±2℃*4hrs): No crock
-Electrical Performance (At 100MHz)
1, 1.0-100.0MHZ Impendance(ohms)100±15
2, 1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
3, Pair to ground Capacitance Unbalance (PF/100M)330 Max
4, Conductor DC resistance 20%(ohms/km)<93.8
5, Resistance Unbalance(%): 5
6, Test object : jacket
7, Test material: PVC
8, Before Tensile Strength(Mpa): ≥13.8
9, Aging Elongation(%): ≥100
10, Aging condition(C xhrs): 100*240
11, After tensile strength(Mpa): ≥85% of unaged
12, Aging Elongation(%): ≥50% of naged
13, Cold bend(-20±2℃*4hrs): No crock
Utp CAT5E LAN CABLE Application
This 4-pqir Category 5e cable is tested for power Sum NEXT, ELFEXT, Delay Skew. Propagation Delay and aany other criteria as specified in the emerging standard. Applications can include Vocie, ISDN, ATM 155 AND 622Mbps, 1000Mbps TPDDI, Fast and Gigabit Ethernet, Shielding protects against EMI/RFI interference.
Recommend Products
Main products are high-tech cables, including fiber optic cable, fiber optic patch cord, copper cable, CAT5E and CAT6 computer cable, large number pairs cable,telephone cable, USB cable, and other relative network accessories.
Product packaging
100m/box
wooden drum
305m/box
305m/roll, 1 roll in 1 color box
2 color box in outer box
Certifications
Our Factory
Huizhou Adp Optical Communications Co., Ltd. was established in 2002, and is a professional designer and high-tech manufacturer of network cable and fiber optic cable. Our mod-ernized company introduces advanced full set of production lines and testing equipment, in order to meet the various markets demand as customer’s required.
Exhibition
If you have any questions about the item of CCA COPPER CAT5E UTP FTP SFTP lan cable. Welcome to contact me, we always be here service for you!
