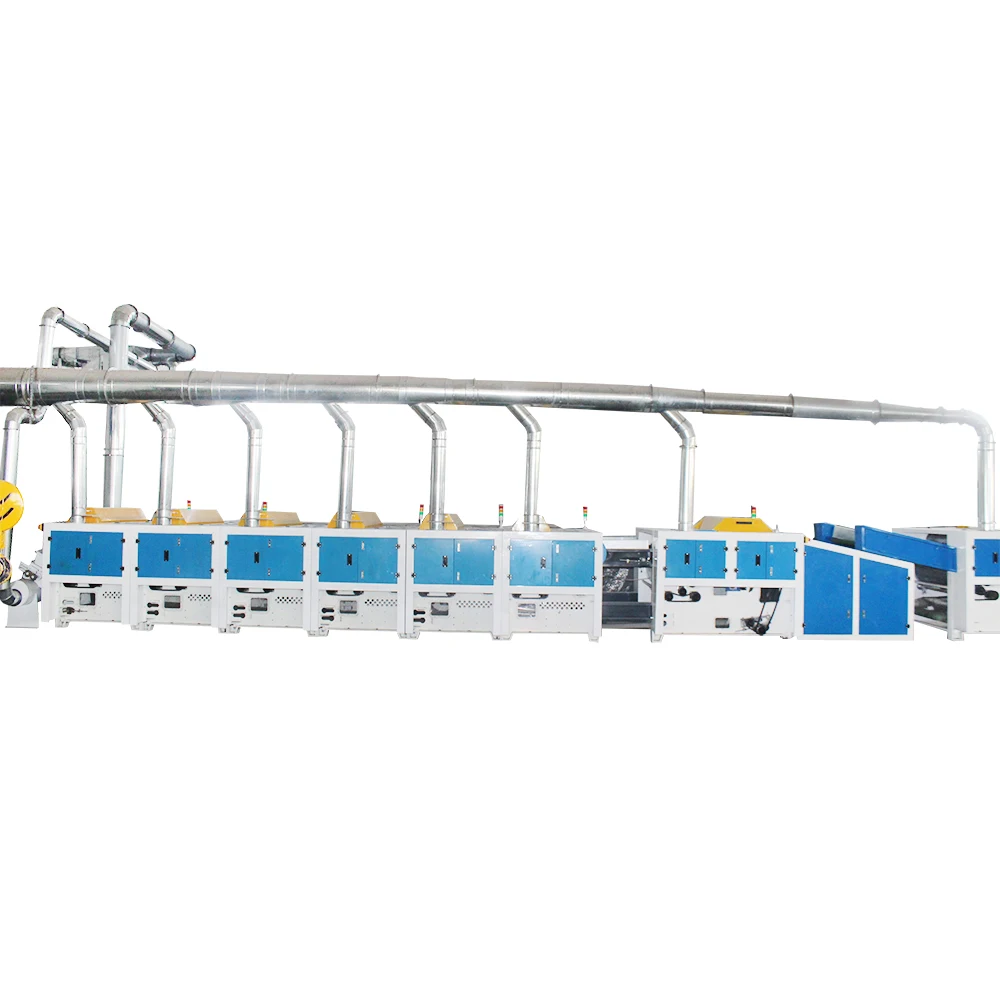

High Capacity Flax Jute Hemp Recycling Machine

NO.

ITEM

DESCRIPTION

1

Model

GML600

RFor spinning products

2

Installation dimensions

(L*W*H) 2340 *1700* 1400mm

3

Weight

About 1200kgs

4

Main motor

22kw

5

Working width

R1040mm/ Un-adjustable

6

Main roller

Φ600mm-1040mm

7

Capacity

R500Kg/h under the working width 1040mm

Depending on the raw material and product requirements(length of fiber), also the correct operate

8

Protection

RMain motor overload protection Open phase protection

RPhotoelectric sensor induction protection

9

Way of control

Constant power & Inverter control

10

Bearing

C&U/Or according to the customer's requirements

11

Electrical components

zhengtai

12

Print Color

According to the customer's requirements

13

Note

1. CNC cutting equipment and machining center equipment will be used in the manufacture of the machine.

2. All rotating shaft through dynamic balance test.

3. Shaking range must be less than + / - 0.55 mm, and does not influence the main rollers (based on the correct installation and the base must be in the same plane under a highest speed)
