  • Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire

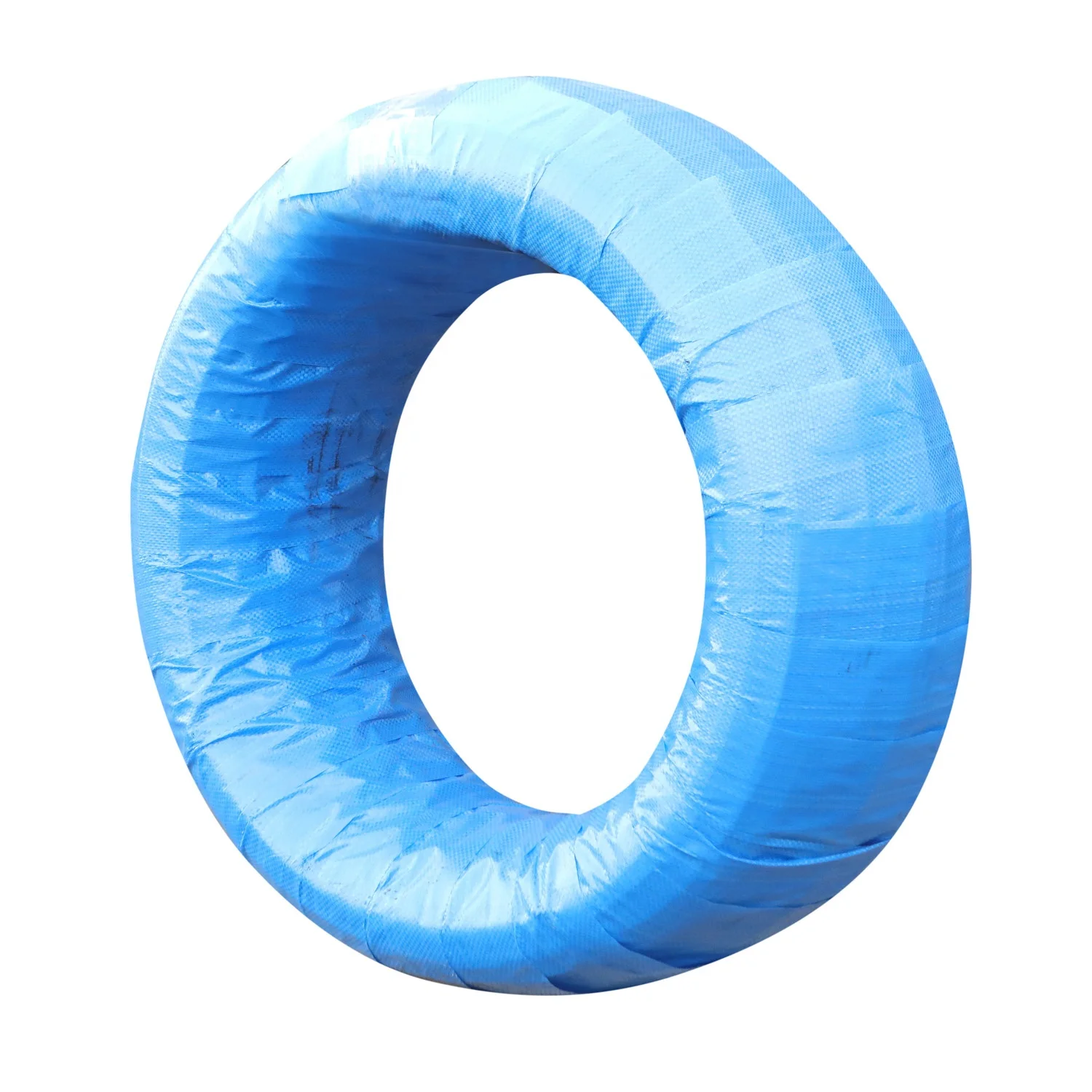

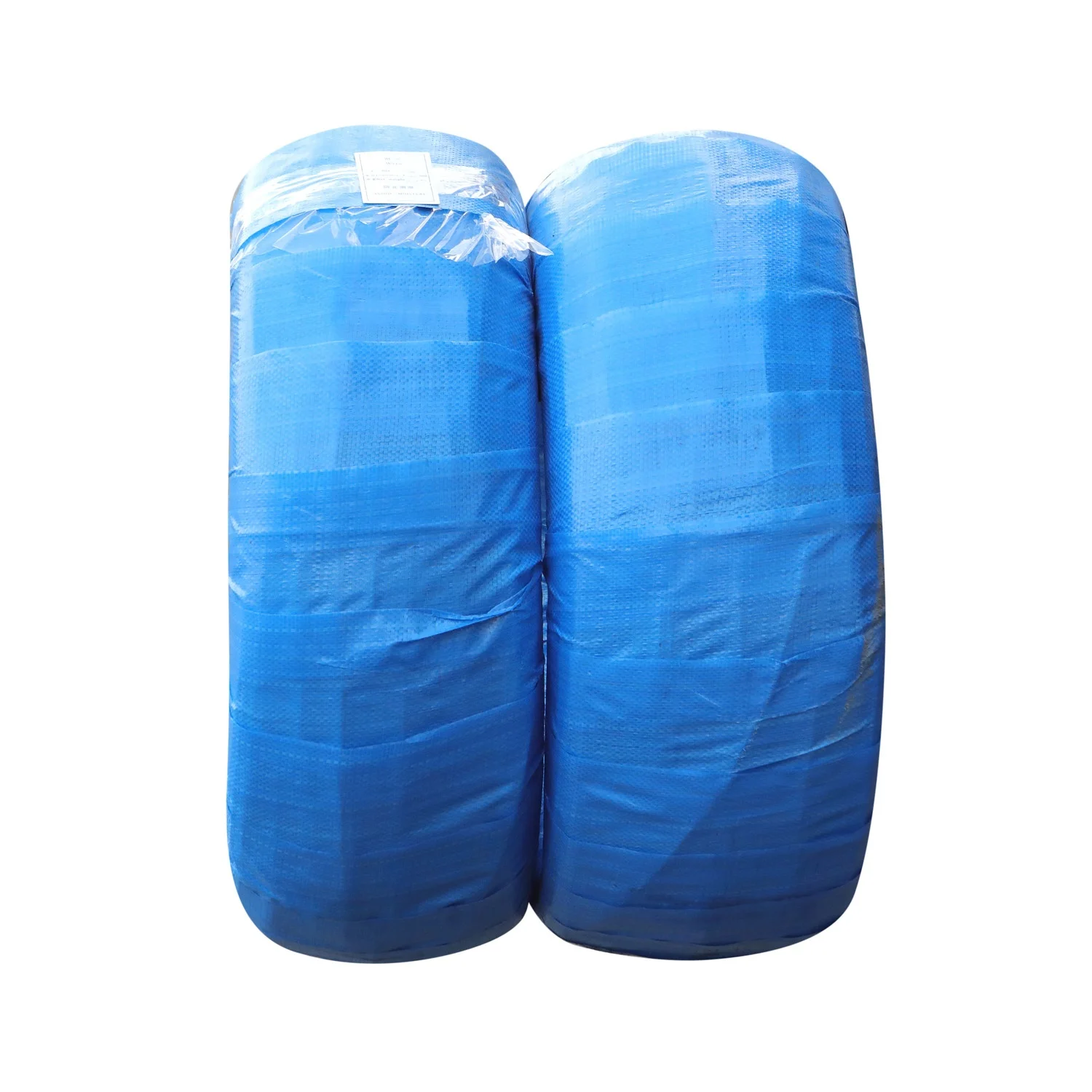

Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire
Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire
Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire
Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire
Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire
Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire
Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire

Ungalvanized Black High Carbon Steel Wire Coil Grade 2 Spring Steel Wire

Share on (1600175359405):


Price:$800.00

Quantity:


Product Overview

Description



Company Profile




Product Name
High Carbon Steel Wire
Standard
DIN 17223-1, EN 10270-1, IS 4454, A 227M, GB/T 4357, GB/T4358
Wire Size:
0.20-12.50 mm
Chinese Material
45#, 47A, 47B, 60#, 62A, 62B, 65#, 65Mn, 67A, 67B, 70#, 72A, 72B, 75#, 77A, 77B, 80#, 82A, 82B, 85#
Japanese Industrial Standard Steel Grade
SWRH 42A, SWRH 42B, SWRH 47A, SWRH 47B, SWRH 52A, SWRH 52B, SWRH 57A, SWRH 57B, SWRH 62A, SWRH 62B, SWRH 67A , SWRH 67B, SWRH 72A, SWRH 72B, SWRH 77A, SWRH 77B, SWRH82A, SWRH82B
UNS Grade No.:
 SAE1040, SAE1045,SAE1050, SAE1055, SAE1060, SAE1065, SAE1070, SAE1080,SAE1084.
British Standard Steel Name:
C42D, C48D, C60D, C62D, C66D, C68D, C70D, C72D, C76D, C78D, C80D, C82D,C86D.
Springs Usage
Helical Springs(tension, compression and torsion springs), spring washers and other wire springs.
Garage door spring wire, Mattress steel wire, bed steel wire, sofa steel wire, Springs for mattress, mattress frame wires, Pocket coil mattress wire, etc.
Other Products Name
High Carbon Steel Wire, Spring Steel Wire, Coil Spring Steel Wire,.Spoke Steel Wire, Nipple Steel Wire, Nipple Steel Wire, Black Steel Wire, Hard drawn steel wire, Phosphated steel wire, Ungalanized Steel Wire, Medium Carbon Steel Wire, Low Carbon Steel Wire, etc.


Round steel wire for springs Patented cold drawn,carbon steel wire for springs Technical delivery conditions
DIN 17223
Wire grade
Nominal diameter
mm
Chemical composition (cast analysis)% by mass
C
Si max
Mn
P
S
Cu max
A
1.00 to 10.00
0.40 to 0.85
0.35
0.30 to 1.00
0.04
0.040
0.20
B
0.30 to 6.00
6.30 to 14.00 15.00 to 20.00
0.55 to 0.85
0.40 to 0.85
0.40 to 0.85
0.35
0.35
0.35
0.30 to 1.00
0.30 to 1.00
0.30 to 1.50
0.040
0.040
0.040
0.040
0.040
0.040
0.20
0.20
0.20
C
2.00 to 6.00
6.30 to 20.00
0.70 to 1.00
0.50 to 1.00
0.35
0.35
0.30 to 1.50
0.30 to 1.50
0.030
0.030
0.030
0.030
0.12
0.12
D
0.07 to 6.00
6.30 to 20.00
0.70 to 1.00
0.50 to 1.00
0.35
0.35
0.30 to 1.50
0.30 to 1.50
0.030
0.030
0.030
0.030
0.12
0.12


Steel wire for mechanical springs-patented cold drawn unalloyed spring steel wire
EN 10270-1:2001
Tensile strength
Static
Dynamic
Low Tensile strength
Medium Tensile strength
High Tensile strength
SL
SM
SH
-
DM
DH
















Q:What is brand of your steel wire Material/rods?
A: The brand of our steel wire rods is Shagang.
Shagang Group is not only one of Fortune Global 500 enterprise, but also the biggest private steel enterprise in china.
Q: Could you please send us some samples?
A: Yes, Samples within 30 kgs can be sent to you for free.
you only need to arrange the shipment at your side.


Q:Could you please show us your Test Report?
A: Yes, we can send you our Test Report before you place the order, which including Chemical Composition, Tensile Strength, Torsion, Wrapping, Bend Data, etc.
Q: What is your Minimum Order Quantity?
A: in order to better support our new customer, we do not have any MOQ requirements for any new order.
