vacuum diffusion pump oil Ultra High vacuum silicone oil dc 705 equivalent oil
- Category: Energy Chemicals >>>
- Supplier: Anhui Zhan-Oil Inc.
Share on (1600175658702):
Product Overview
Description
Product Description
Performance
Zhan-oil 705 silicone oil is a Pentaphenyltrimethyltrisiloxane, with higher viscosity than DP-704 oil. It contains the highest ratio of phenyl shows the best temperature stability of all diffusion pump fluids. It is designed to be the ideal fluid for ultra high and ultra clean vacuum applications. Extremely low back streaming rate. Ultimate pressure 3x10-9 Torr.
The Zhan-oil 705 silicone oil for diffusion pumps can be alternatively used to the silicone oil DC705, INVOIL 705, CVC-5, Hivac F5, AN175, INDOMET PENTA, etc. These oils have the same chemical formulation and can be mixed.
Appearance | colorless clear liquid |
Vapor pressure at 25C (torr) | 10E-9 |
Boiling point at 25C | 245 |
Density at 25C(g/ml) | 1.09 |
Viscosity at 25C | 175 |
Flash point (C) | Min. 210 |
Pour point (C) | <-12 |
Molecular weight | 546 |
Surface tension (nM/m) | 36 |

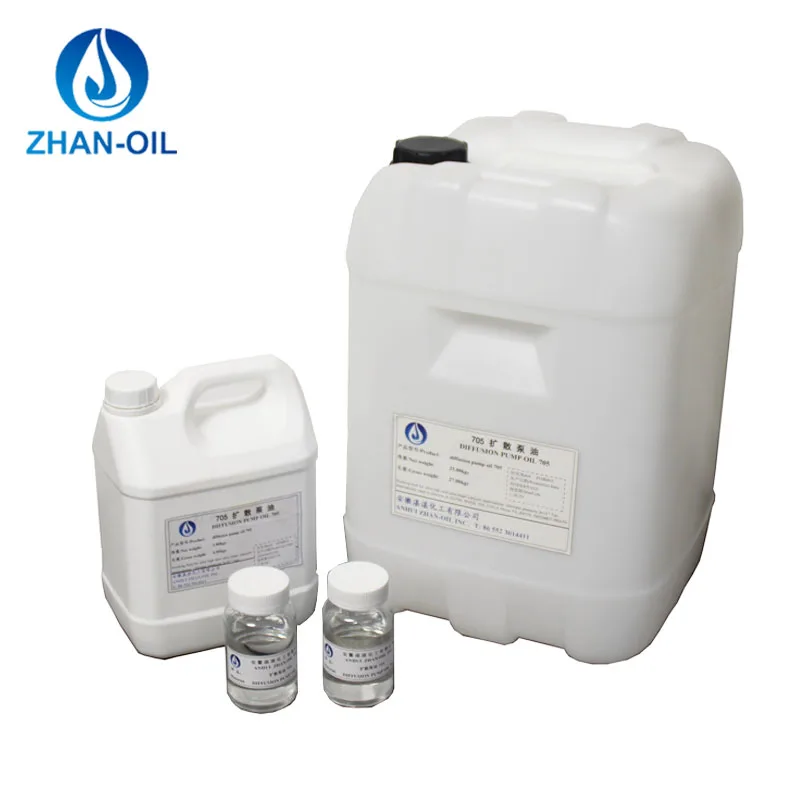

Available packing | 3.8kg pail, 25kg barrel, 200kg drum |
