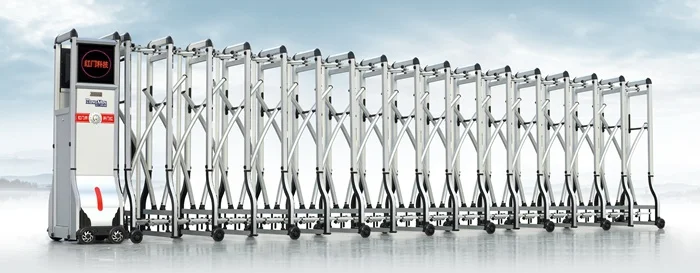

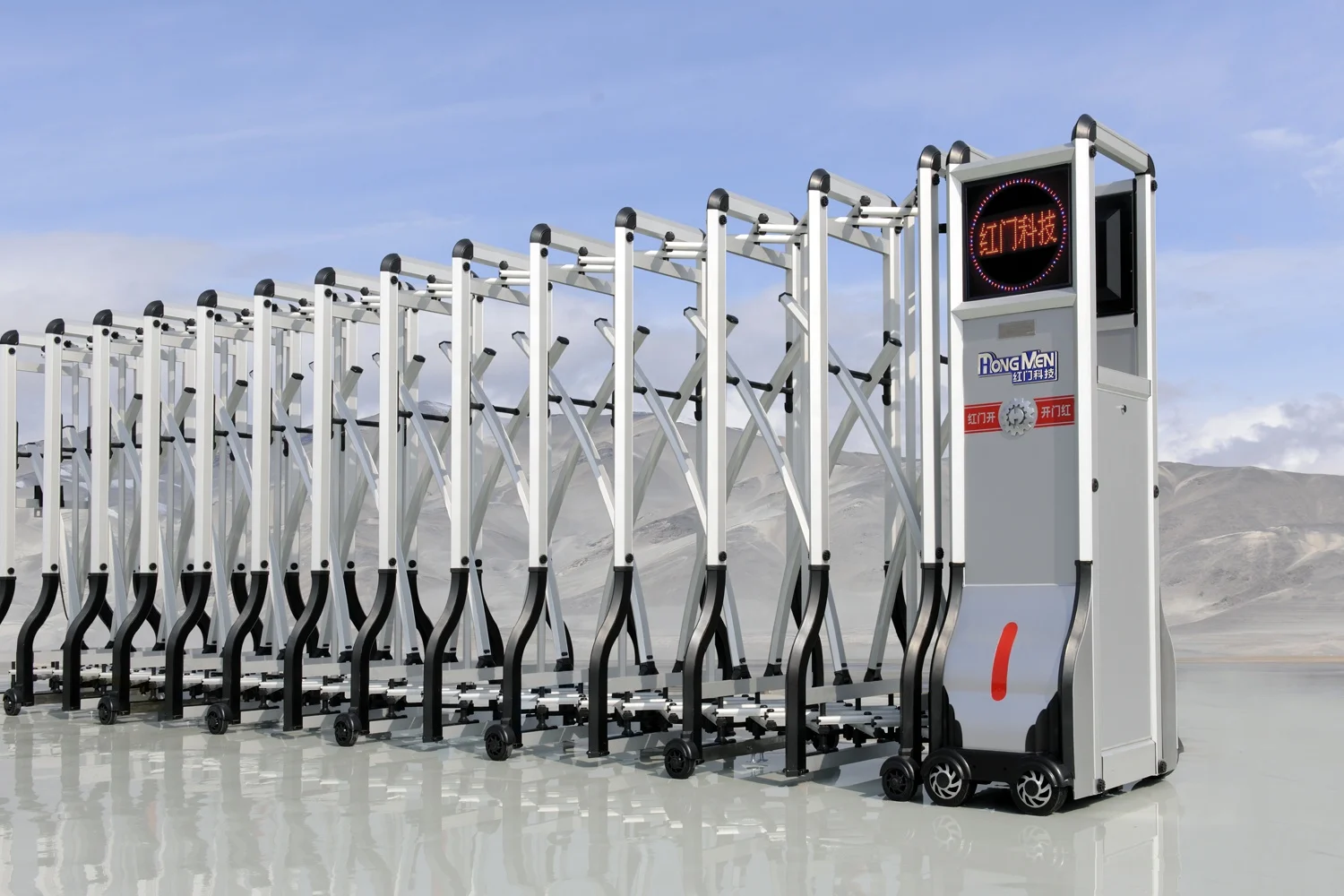

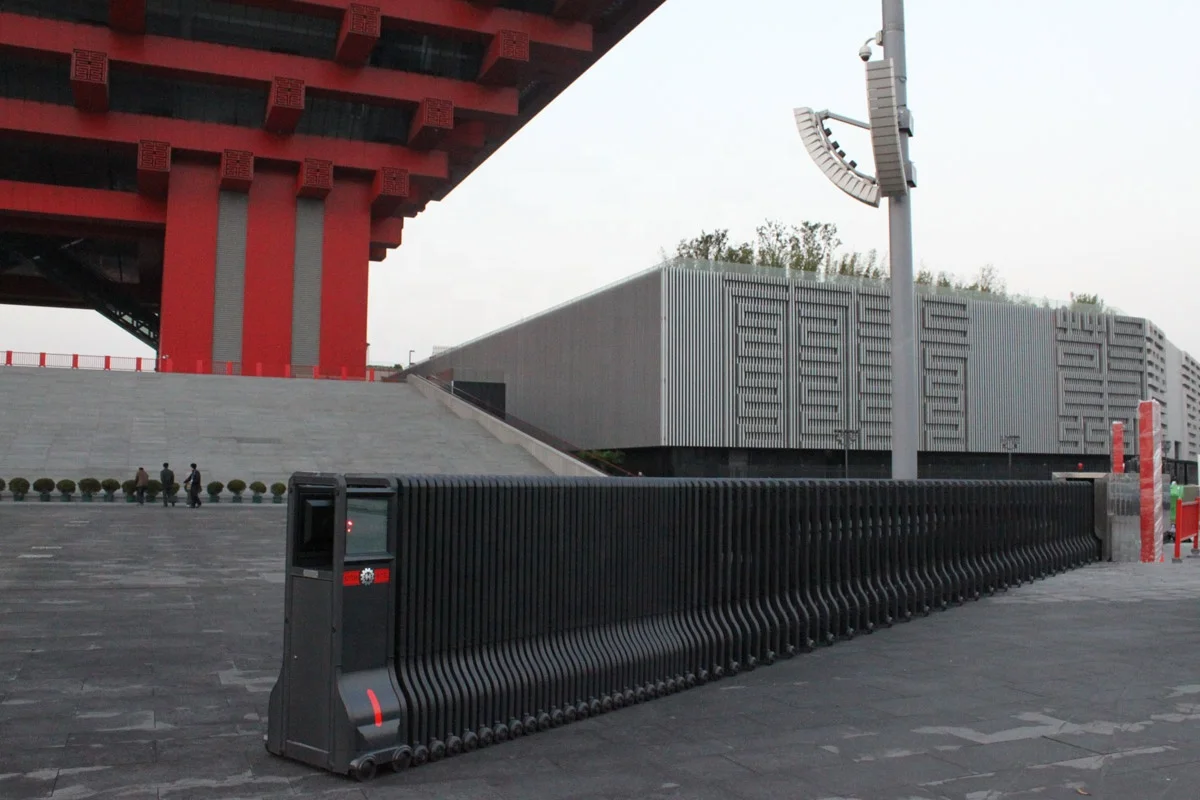

Original Design Aluminium Retractable Gate and Automatic folding gate with Intelligent Self Align (ISA) Motor

Gate Performance

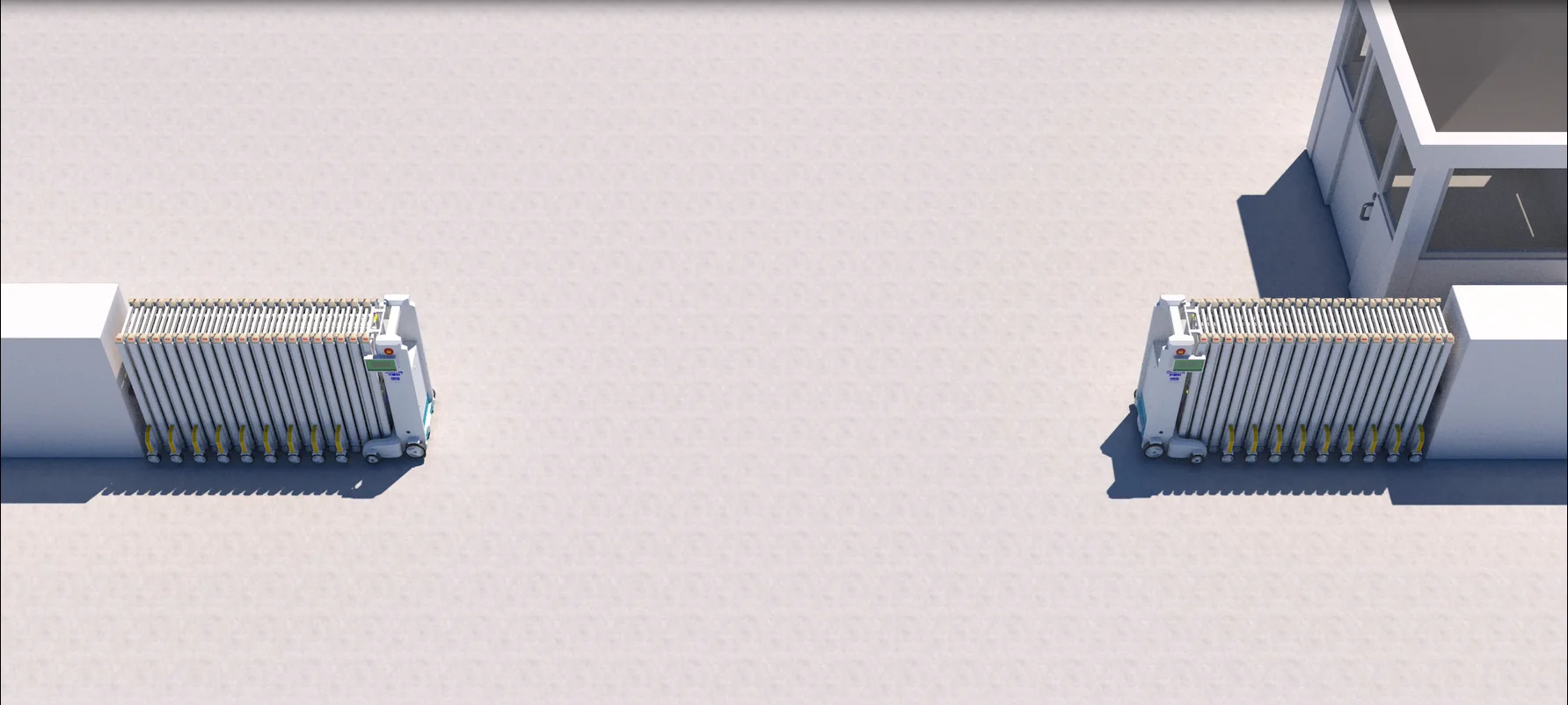

   1. Trackless operation

       Horizontal 4-direction even pull straight line technology with absolute trackless operation and reliable performance.

  2. Smart power outage clutch

      Eccentric key-type clutch can easily change to manual mode during a power outage by insert a special key into

       the  hole  of the clutch and turning it to 90 degrees.

  3. Concealed wiring

       Concealed wiring gives the gate a neater appearance.

  4. Anti-crash function

     Anti-crash intelligent infrared double detectors enable the gate automatically retract when a person or object is

     detected as far as 30-50cm away, thus ensuring the safety or vehicle and pedestrians.

  5. Stable and noiseless start-up

      Combined used of patented electronic soft starter and mechanical buffers device ensures that the motor will not

      shake and run smoothly when started. Conventional electric gates tend to shake easily when started and

      produces intermittent noise duo to friction and resulting in the snapping of the twist joint tube.

  6. Unique overheating protection motor

      Hangmen’s unique overheating protection turbo motor does not overheat easily under heavy operation .thus

      prolonging the lifespan of the motor .Special assurance: The motor is specially designed by professional electric

      engineers for heavy duty automatic gates .The company provides lifelong warranty on any quality defect caused by

      overheating of the motor.

  7. High quality component

      A: Each hole of retractable piece is mounted with a wear-resistant PA bush to eliminate any irritating noise during

     operation. The retractable pieces passed a million times of 45-degree rotating test with load without any apparent

     loosening.

     B: The running wheels show no apparent wear and tear after 300,000-time swing test over 10m distance. Sand or

     pebbles in rainy or stormy weather do not affect the normal operation of the electric gate.

Structure

1. The main structue is streamline

     The main structue is streamline, it reduce the resistance of wind. So it can be used in Taiwai, Penang, Ireland.

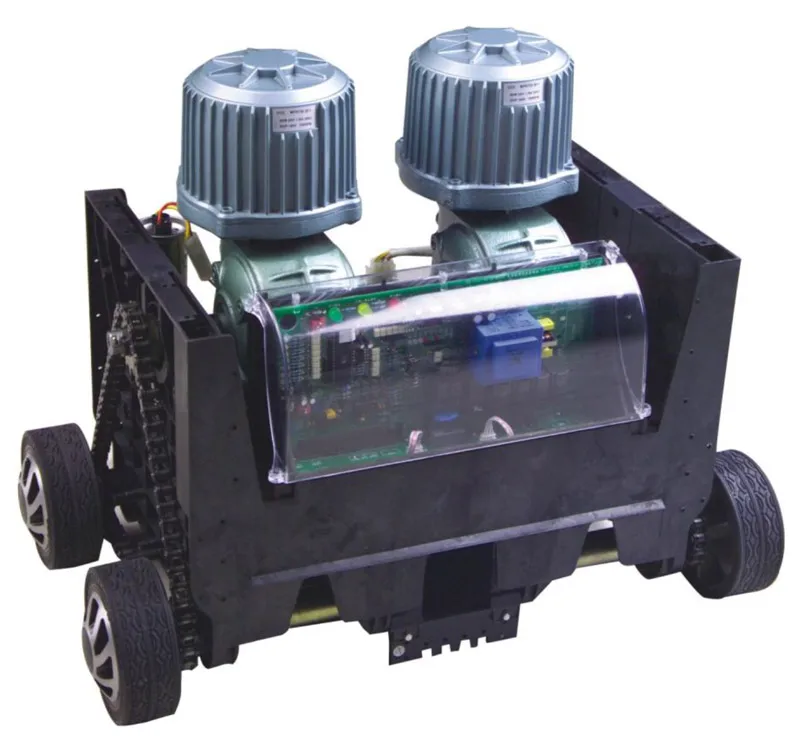

2. The pictures of motors

Intelligent self-align ( ISA ) Motors ( 10 years warranty, one to one exchange service )

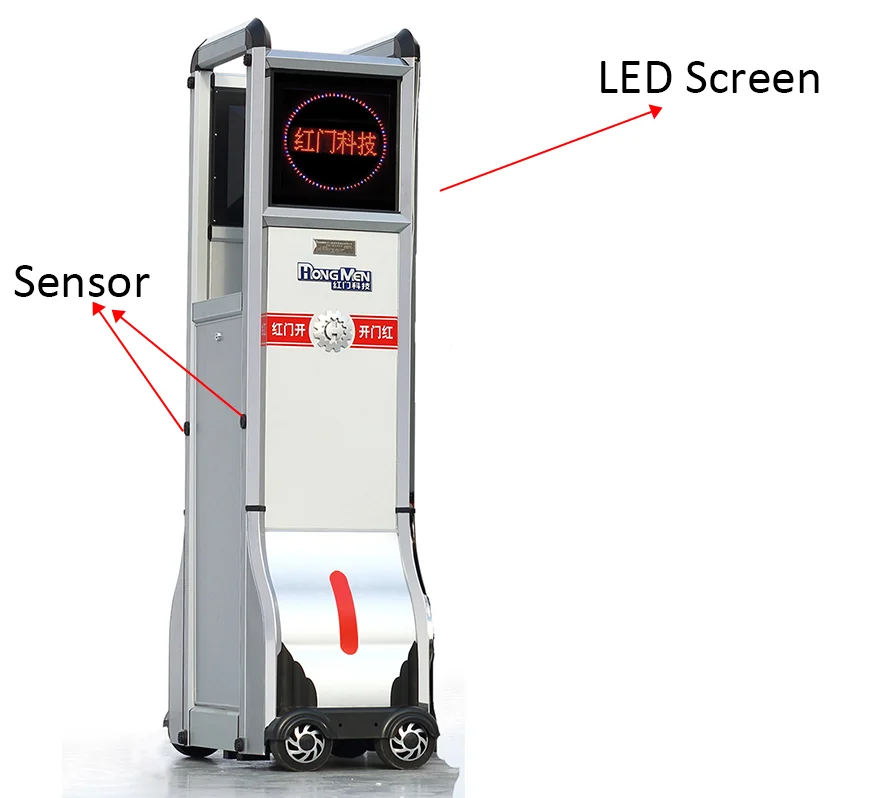

3. The LED screen & Anti Collision IR Sensor

•     For the led screen, it support 250 words slogan, you can put your preferred words.


•     Our engineer place one pair sensor for your gate to get the anti-collision.

4.  Wireless remote controller ( 18 months warranty)

5. 35 meters wireless operation

     35 meters wireless operation, you don't to put any rails, more convenient for you and your customer.

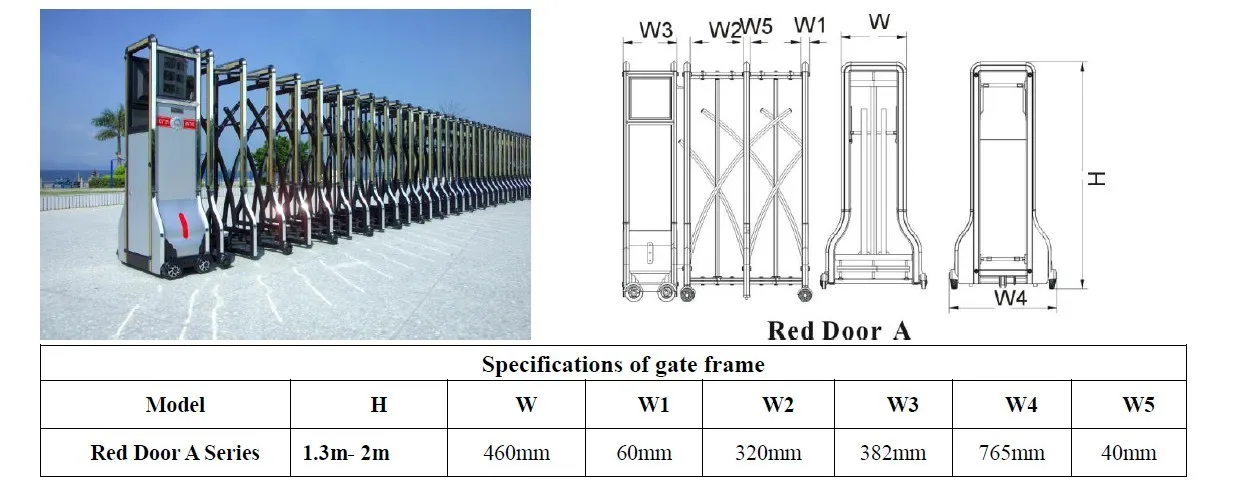

The drawing of the product

  1. Main Frame: 47.5*42*1.0 (Aluminium)

  2. Inner Cross Tube: 55*29.8*0.9 (Aluminium)

  3. Decorative Side Panel: 40*22.7*0.6 (SUS 304)

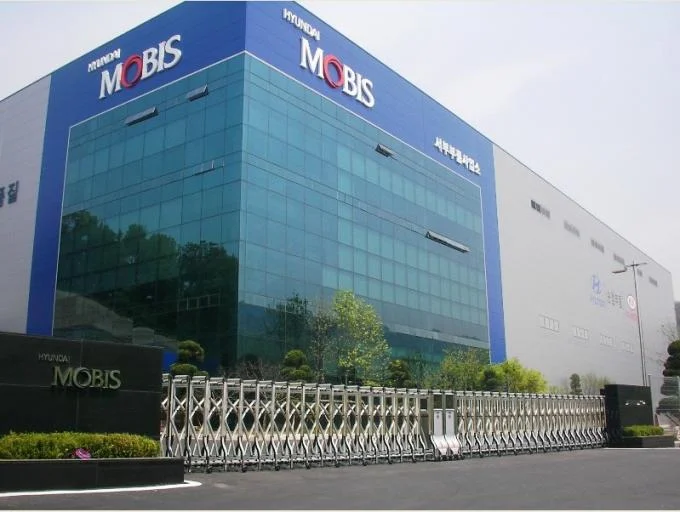

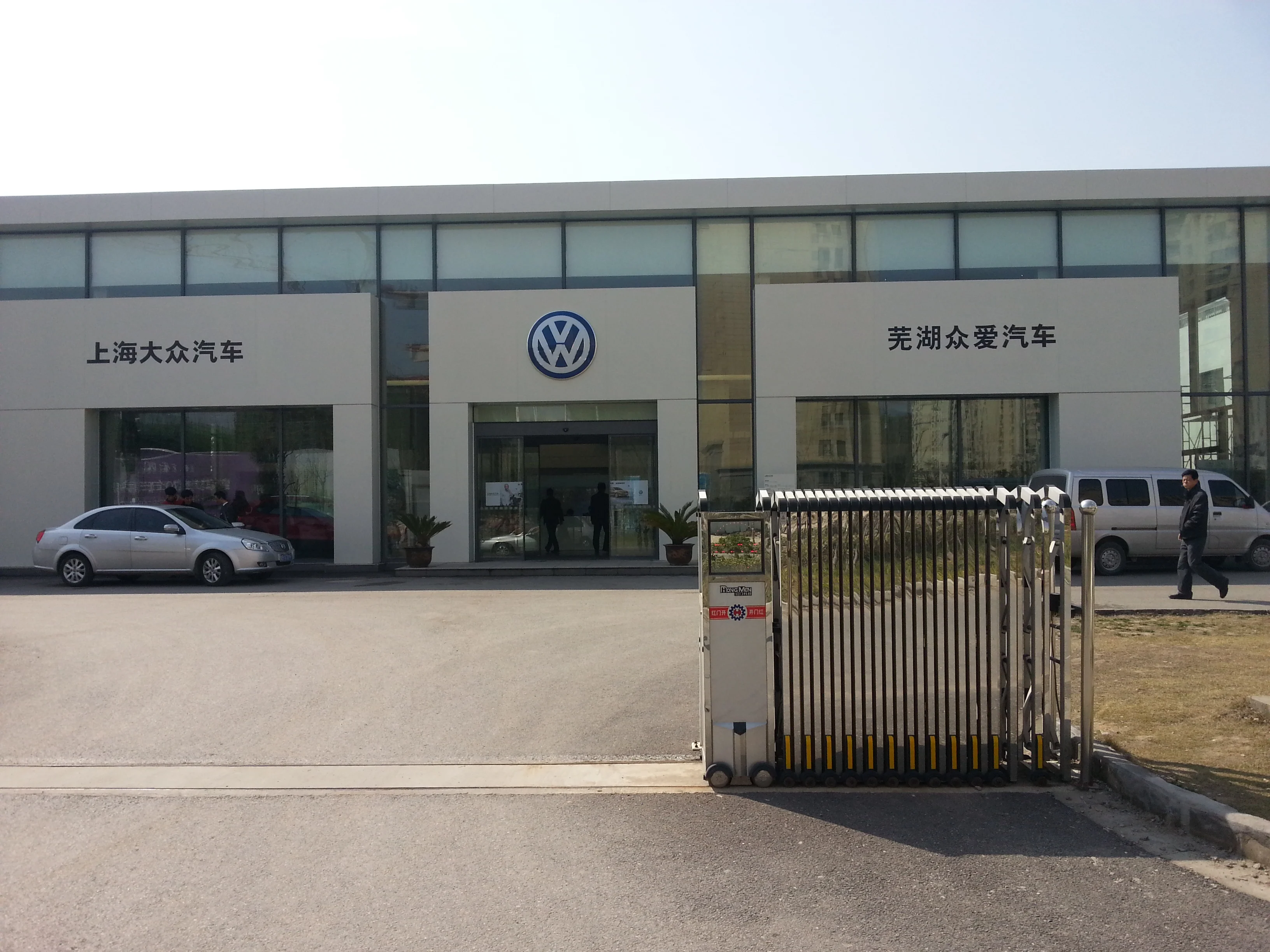

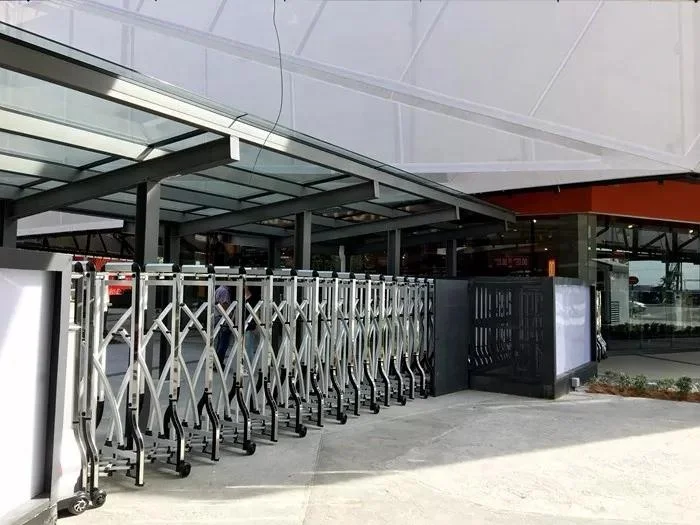

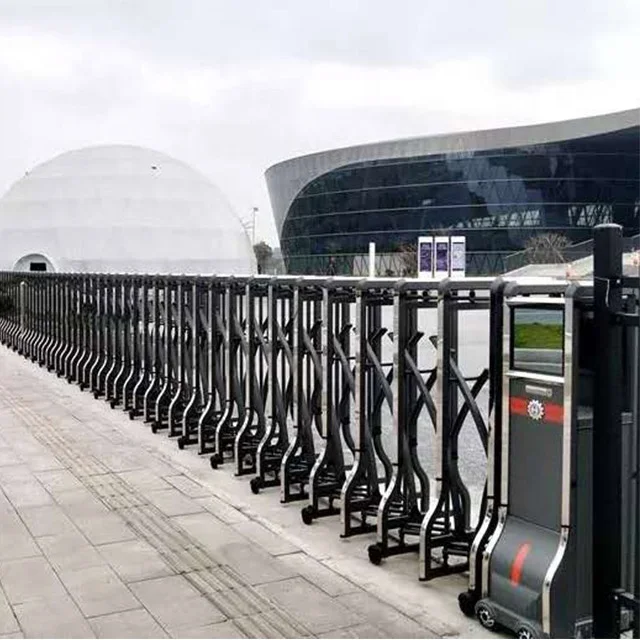

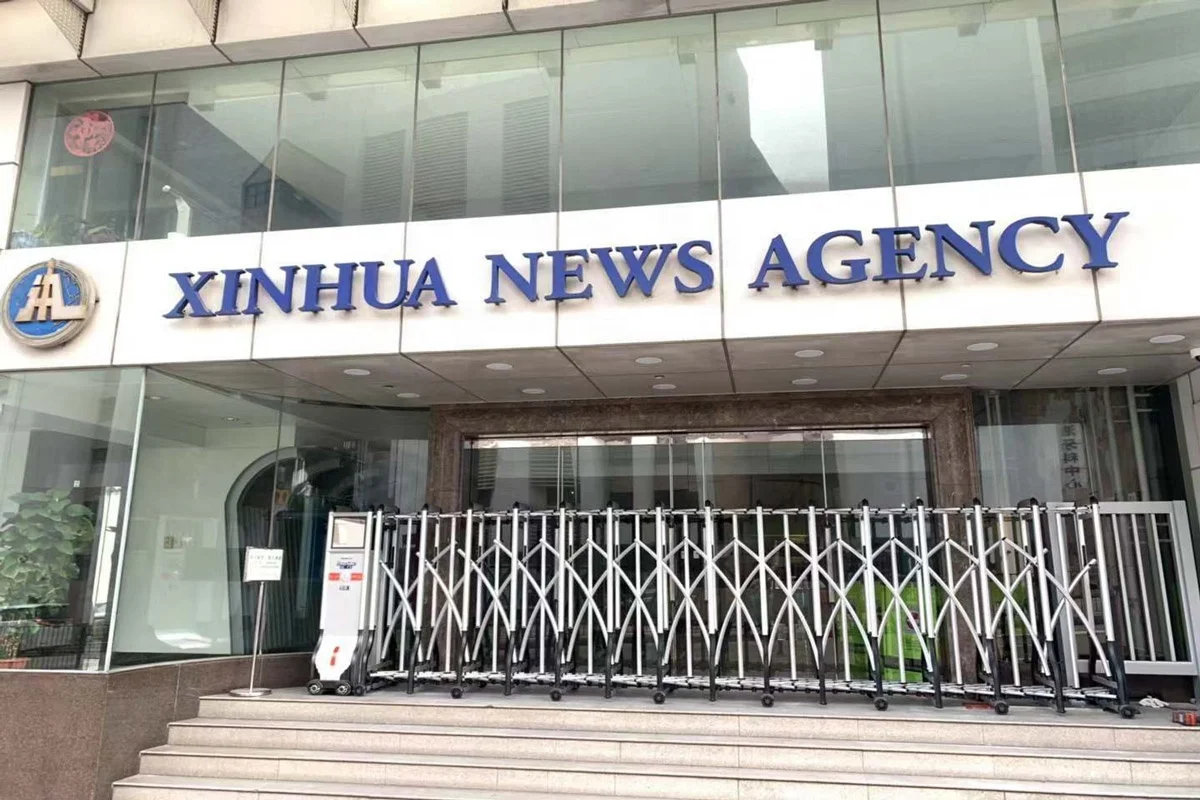

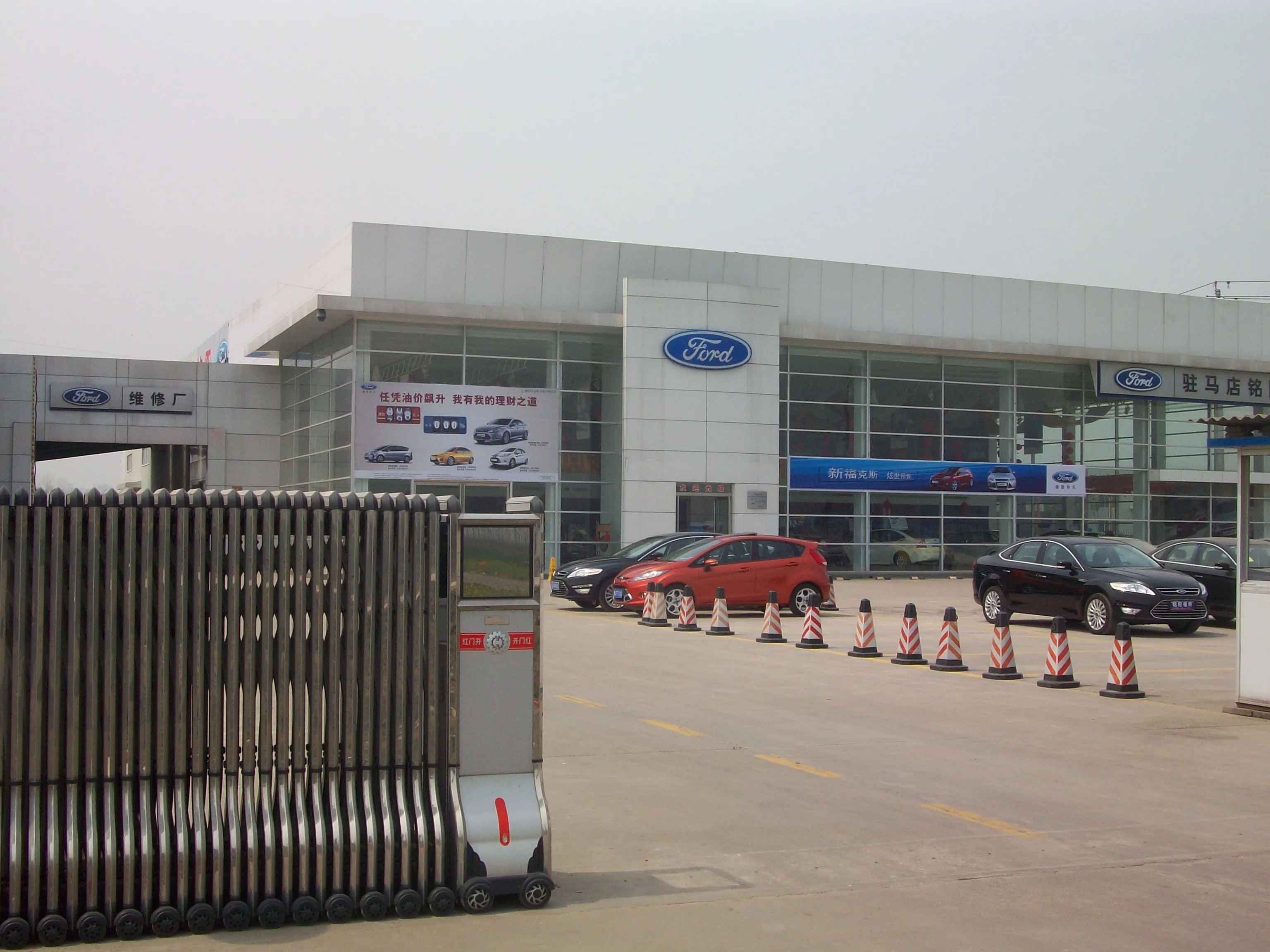

Project Reference

Q:  How to place the order?

A:  Once we confirmed your requirement, we will send a PI to you. After you signed it, we will arrange the product.

        Q:  How to make the payment?

A:  We use T/T to receive the payment. 30% deposit will be paid in advance, and 70% balance before shipping.

        Q:  How to make a transport for the goods?

        A:  1.When the term is EXW, we will place the goods in the warehouse, waiting for your car.

     2.When the term is CFR and CIF, we will arrange the transport for you, once the container dispatched, the B/L  will be

        sent to you in time.

Q:  How to get the after-sale service?

A:  Any question of after–sale service, you can forward them to us by email, the respond will be given to you within 24

     hours.

Q:  How long about the warranty?

A:  We provide 10 years warranty for the motor, 12 months warranty for the parts. And we built a professional after-

     sale team, best service will be provided for you.
