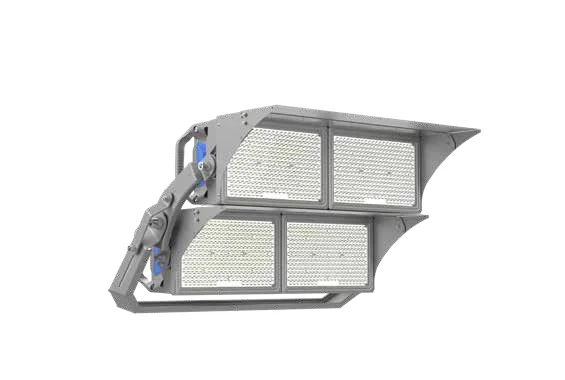

2000 Watt High Mast pole Stadium gym arena LED flood light for Airport Runway

Product Overview

Description

Parameters:

Model NO.:	HO-03FDST-1600W	HO-03FDST-2000W	HO-03FDST-2400W
Power	1600W	2000W	2400W
PowerSupply	Meanwell
Input  Voltage	AC100-277V/AC200-480V 50/60Hz
Output Voltage	DC48V
Power Efficiency	>92%
Power Factor	0.95
Total Harmonic Distortion	<15%
LED Type	Samsung 3535
LED QTY	320 PCS
Efficiency	140Lm/W
Luminous Flux	224000	280000	336000
CCT	3000K/4000K/5000K/5700K/6500K
Beam Angle	15°/30°/60°/90°/120°  Remark: 120° only glass, other only PC
CRI	>70Ra/80Ra
System Efficency	>90%
IP Rating	IP66
Lifetime(L70 Standard)	54,000 hours
Heat Radiator	4 PC die-cast aluminum
Lens Material	PC
Mounted Method	Bracket suitable for Internal and External power, rotatable base only suitable for External driver
Carton Dimensions	L1135mm*W915mm*H340mm
Gross Weight	62kg
Fixture Dimension	L993.5xW717.6XH594.8mm
EXW Price USD

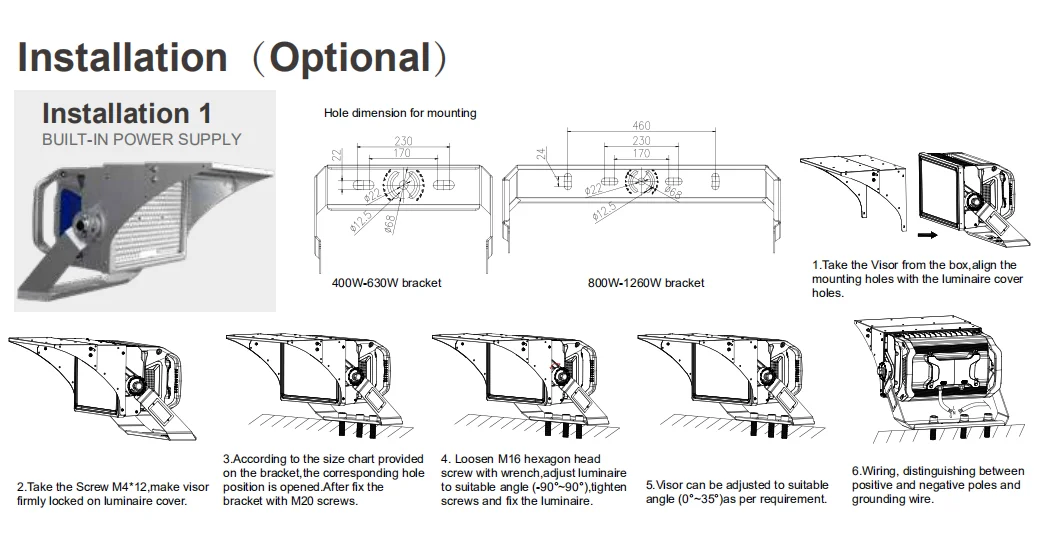

Drawing dimension:











Application:

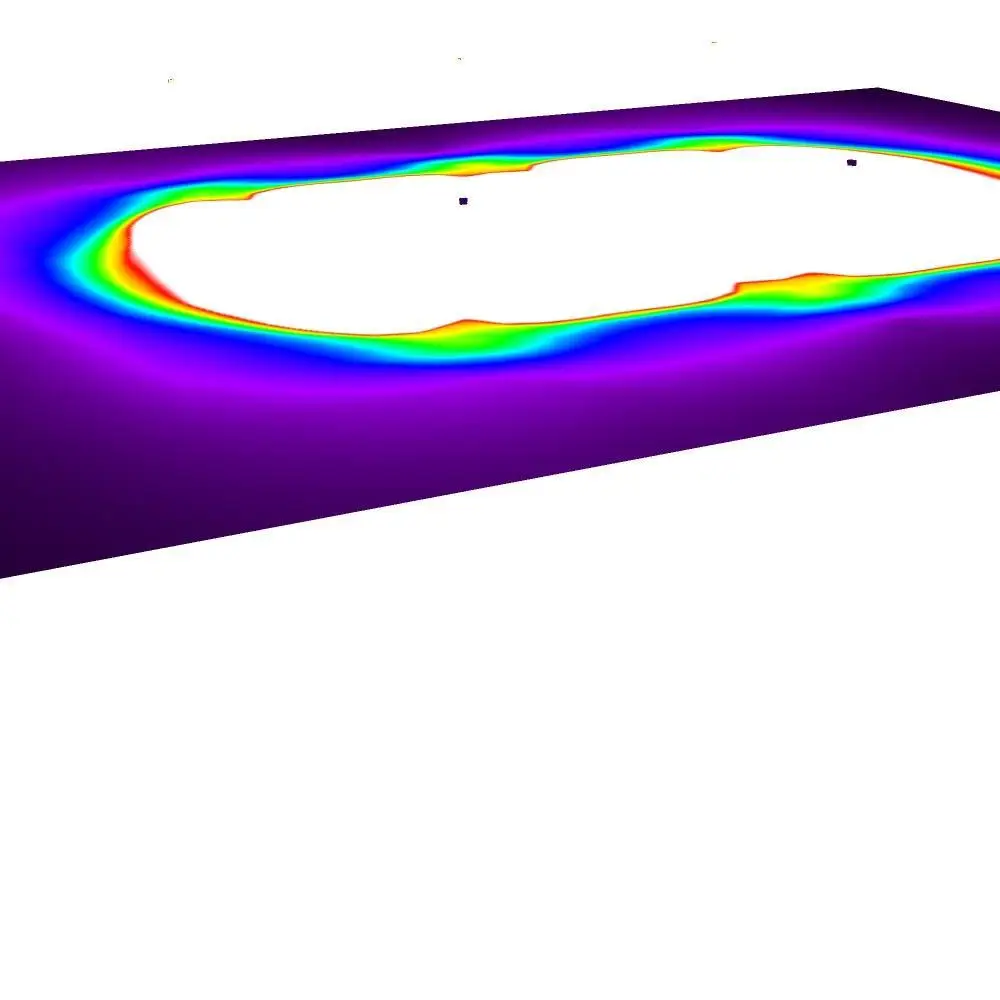

Dialux effect:
